• Spartan Metro Star EMFD 10” Raised Roof Chassis
• Cummins L9 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame
• Six (6) Person Cab Seating w/ Five (5) SCBA Seats
• ROM Painted Roll-up Doors
• Waterous CXSC20 1500 GPM Pump
• 1000-Gallon Poly Tank w/ 20-Gallon Foam Tank
• Two (2) 6” Suctions, One (1) Each Side
• Three (3) 2 ½” Discharges, Two (2) Left, One (1) Right
• Three (2) 3” Discharges, One (1) Right, One (1) Rear, One (1) Deck Gun
• One (1) 2 ½” Gated Suction, Left Side
• One (1) 2 ½” Hosebed Preconnect
• Two (2) 1 ½” Front Bumper Preconnects
• One (1) 2 ½” Tank Fill, Rear
• Waterous Aquis 1.5 Foam System
• Akron Apollo Monitor w/ Task Force Tips Extend-a-Gun
• Three (3) Dual Air Bottle Wheel Well Compartments
• Ladder/Suction Hose Storage, Through the Tank
• FireCom Intercom System w/ Pump Panel Jack
• Whelen LED Warning Light Package
• Whelen Traffic Advisor [...]

• Freightliner M2 106 4-Door Chassis
• Cummins L9 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body & Sub-Frame
• ROM Painted Roll-up Doors
• On Spot Chains
• Five (5) Person Cab Seating w/ Four (4) SCBA Seats
• Hale DSD 1500-GPM Pump
• 1000 Gallon Poly Tank
• Two (2) 6” Suctions, one (1) Each Side
• Two (2) 2 ½” Front of Hosebed Preconnects
• Two (2) 2 ½” Discharges, one (1) Left, one (1) Right
• Three (3) 3” Discharges, one (1) Right, one (1) Rear, one (1) Deck Gun
• Two (2) 1 ½” Cartridge Lay Preconnects
• One (1) Gated Suction, Left Side
• One (1) 2 ½” Tank Fill, Right Side
• Hannay 1” Booster Reel, Right Side
• Waterous Aquis Foam System w/ 20-Gallon Tank
• Akron Apollo Monitor w/ TFT Extend-a-Gun
• Three (3) Double Air Bottle Storage Compartments, two (2) Right, one (1) Left
• Ladder/Suction Hose/Pike Pole Storage, Through the Tank
• Backboard Storage, L3/R3 Transverse Area
• Progressive [...]

• Ford F-550XL 4×4 4-Door Chassis
• 6.7L PowerStroke V8 330HP Turbo Diesel Engine
• TorqShift 10-Speed Automatic Transmission
• Heavy Duty Stainless-Steel Body & Sub-Frame
• Four (4) Person Cab Seating w/ Two (2) SCBA Seats
• Warn 9000# Multi-Mount Winch
• ROM Painted Roll-Up Doors
• Hale DSD125 1250 GPM Pump
• 300-Gallon Poly Tank
• Two (2) 6” Suctions, One (1) Each Side
• Two (2) 1 ½” Mattydale Preconnects
• Four (4) 2 ½” Discharges, Two (2) Left, One (1) Right, One (1) Rear
• One (1) 3” Discharge, Right Side
• Two (2) 2 ½” Gated Suctions, One (1) Each Side
• One (1) 2 ½” Tank Fill, Rear
• Hannay 1” Booster Reel
• Two (2) Single Air Bottle Wheel Well Storage Compartments, One (1) Each Side
• Floor Mounted Console for Emergency Switches
• Progressive Dynamics On-Board Battery Charger w/ Viair Compressor
• Kussmaul Super Auto Eject Shoreline Connection
• Whelen LED Warning Light Package
• FireTech LED Scene Light Package
• Whelen Traffic Advisor Arrow Stick
• Whelen Electronic [...]

• Spartan Metro Star SMFD 10” RR Chassis
• Cummins L9 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame
• Four (4) Person Custom Cab Seating
• Amdor Painted Roll-up Doors
• Custom EMS Compartment w/ One (1) Adjustable Shelves, Cab
• Front Bumper Extension w/ 1 ½” Preconnect and Extrication Tool Storage
• Two (2) Running Board Hose Wells, one (1) Each Side
• Waterous CXVC20 1500-GPM Pump
• 750-Gallon Poly Water Tank
• Williams Foam System w/ 60-Gallon and 10-Gallon Foam Tanks
• Two (2) 6” Suctions Waterous Monarch Intake Valves, one (1) Each Side
• Four (4) 2 ½” Discharges, two (2) Left and two (2) Rear
• One (1) 3” Discharge w/ 5” Storz Adapter, Right Side
• One (1) 2 ½” Gated Suction, Left Side
• One (1) 3” Discharge for Deck Gun, Front Bumper
• Two (2) 1 ½” and One (1) 2 ½” Cartridge Lay Preconnects
• One (1) 2 ½” Tank Fill, Right Side
• Two (2) [...]

• Spartan Metro Star MFD 10” Raised Roof Chassis
• Cummins L9 450 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Aluminum or Stainless-Steel Body
• Galvanized or Stainless-Steel Sub-Frame
• Four (4) Person Cab Seating with Three (3) SCBA Seats
• ROM Roll-Up Doors
• Custom EMS Compartment with Two (2) Adjustable Shelves and Power Strip, Cab
• Hale DSD 1500 GPM Pump
• 750-Gallon Poly Tank with 30-Gallon Foam Tank
• Two (2) 6” Suctions, Left and Right Side
• Two (2) Running Board Hose Wells
• Four (4) 2 ½” Discharges, two (2) Right and two (2) Left
• One (1) 3” Discharge with 5” Storz Adapter, Right Side
• One (1) 2 ½” Gated Suction, Left Side
• One (1) Rear Tank Fill
• TFT Crossfire Monitor Package with Extend-a-Gun
• One (1) 2 ½” Mattydale Preconnect
• Two (2) 1 ½” Cartridge Lay Preconnects
• One (1) 1 ½” Preconnect, Front Bumper Extension
• Two (2) Dual Air Bottle Compartments, one (1) Each Side
• Two [...]

• Ford F-550XL 4×4 4-Door Chassis
• 6.7L Power Stroke V8 330HP Turbo Diesel Engine
• TorqShift 6-Speed Automatic Transmission
• Heavy Duty Aluminum Body
• Five (5) Person Cab Seating
• Darley 2BE Direct Drive Pump w/ Honda 20 HP Engine
• 300-Gallon Poly Tank w/ 10-Gallon Foam Tank
• Two (2) 1” Booster Lines, Ahead of Skid Unit
• Two (2) 1” Discharges, Rear
• One (1) 1 ½” Preconnect, Left Side Hose Tray
• Trident Foamate Foam System
• Hannay Booster Reel, Left Side Rear
• Floor Mounted Console for Emergency Switches w/ Map/Binder Storage
• Progressive Dynamics On-Board Battery Charger
• Kussmaul Super Auto Eject Shoreline Connection
• Whelen LED Warning Light and Scene Light Package
• Whelen Electronic Siren and 100-Watt Speaker
• Two (2) Akron Brass Extenda-Lite Telescopic Lights
• Diamond Grade Chevron Striping, Rear
• 7’ 5” Overall Height
• 22’ 7” Overall Length
• 179” Wheelbase
• 60” Cab to Axle
• 7,500 FAWR
• 14,706 RAWR

19,500 GVWR

• International HV607 4-Door Chassis
• Cummins L9 350-HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy Duty Stainless-Steel Body and Sub-Frame
• Five (5) Person Cab Seating w/ Four (4) SCBA Seats
• ROM Roll-up Doors
• Hale QMax150 XS 1500-GPM Pump
• 1000-Gallon Poly Tank
• 20-Gallon Foam Tank w/ FoamPro Single Tank Foam System
• Two (2) Running Board Hose Wells, one (1) Each Side
• Two (2) 6” Suctions w/ Akron Butterfly Valves, one (1) Each Side
• Five (5) 2 ½” Discharges, two (2) Left, one (1) Right, two (2) Rear
• Two (2) 3” Discharge, one (1) Right Side, one (1) Deck Gun
• One (1) 2 ½” Gated Suction, Left Side
• Two (2) 1 ½” Cartridge Lay Preconnects
• One (1) 2 ½” Tank Fill, Rear
• Four (4) Dual Air Bottle Wheel Well Storage Compartments
• Progressive Dynamics On-board Battery Charger
• Kussmaul Super Auto Eject
• Floor Mounted Console for Emergency Switches w/ Binder Storage, Cab
• Whelen LED Warning Light and Scene [...]

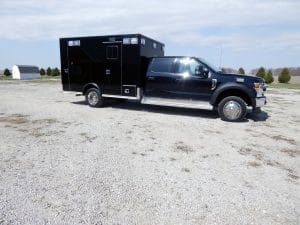

• Chassis: 2020 Ford F-550 XLT
• Engine: 6.7L Powerstroke V8
• Transmission: 6-speed Automatic
• Module Body: 170″ x 96″
• Cab-to-Patient Opening w/ Plexiglass Window
• Interior Head Room: 72″
• Warning Lights: Whelen LED
• Skirt Rail Lights: LED Red/White with White Ground Lights
• Stone Guards 20”
• Liquid Spring Rear Suspension
• Custom Design Interior
• Mirrors: Folding Arm, Heated, Power Adjustable
• Shoreline: Kussmaul 20amp Auto Eject w/ Yellow Cover
• Vanner Battery Charger/Inverter
• Siren Speaker: Cast Products
• Electronic Siren: Whelen 295SLSA1
• Air Horns: Grover Stuttertone Emergency
• Cabinetry Color: Gray Pampas
• Upholstery: Ash Gray
• Flooring: Lon Plate (Gunmetal)
• Attendant Seat: EVS Safety Seat
• Squad Bench: 4 Point Per4Max seat belts
• Electric O2 w/ Monitor
• Vacuum System-Onboard
• Dri-Dek Tiles (Black) Compartments
• FAWR: 7,000
• RAWR: 13,660
• GVWR: 18,0000

• Chassis: 2020 Ford F-550 XLT
• Engine: 6.7L PowerStroke V8 Diesel
• Transmission: 6-speed Automatic
• Module Body: 170″ x 96″
• Cab-to-Patient Opening w/ Plexiglass Window
• Interior Head Room: 72″
• Warning Lights: Whelen LED
• Stone Guards 20”
• Liquid Spring Rear Suspension
• Shoreline: Kussmaul 20amp Auto Eject w/ White Cover
• Vanner Battery Charger/Inverter
• Siren Speaker: Cast Products
• Electronic Siren: Whelen 295SLSA1
• Cabinetry Color: Gray Pampas
• Upholstery: Ash Gray
• Flooring: Lon Seal (Onyx w/ Flecks)
• Attendant Seat: EVS Safety Seat
• Squad Bench: 4 Point Per4Max seat belts
• Rostra Back-up Camera
• Electric O2 w/ Monitor
• Vacuum System-Onboard
• Dri-Dek Tiles (Black) Compartments
• FAWR: 7,000
• RAWR: 13,660
• GVWR: 18,0000
