• Spartan MFD Metro Star
• 450 HP Cummins L9
• Allison 3000 EVS Automatic Transmission
• Six (6) Person cab with five (5) SCBA seats
• 24” Front Bumper Extension with one (1) 1 ½” Preconnect and Center Hose Well
• Progressive Dynamics Battery Conditioner with VIAIR Auxiliary Compressor
• Heavy Duty Aluminum Subframe & Aluminum Body
• ROM Series IV Satin Finish Roll Up Doors
• 1000 Gallon Poly Water Tank
• Top Control Pump Module
• Hale QMAX-XS 150 1500 GPM Split Shaft Pump
• One (1) 5” Front Suction
• Two (2) 6” Suctions, one (1) each side
• One (1) 2 ½” Gated Suction, Left Side
• Four (4) 2 ½” Discharges, Two (2) Left, One (1) Right, & One (1) Rear
• One (1) 3” Discharge, Right Side
• One (1) 3” Fixed Monitor Piping Over Pump Compartment
• Two (2) 1 ½” Cartridge Lay Preconnects
• Low Hose Bed with One (1) Divider
• Electronically Controlled Ladder Rack
• Suction Hoses, Pike Poles and Attic Ladder Storage [...]

• Chevrolet Silverado MD 4WD Crew Cab
• Duramax 6.6L Turbo-Diesel
• Allison 2700 EVS Automatic Transmission
• Heavy Duty 14 Gauge Stainless-Steel Body and Subframe
• ROM Satin Finish Roll-Up Doors
• 100 Gallon Poly Tank with 2 ½ Gallon Foam Tank
• One (1) 1 ½” direct tank fill with a 1 ½” x ¾ GHT adapter
• High-pressure, low-flow triplex 8 GPM Cat pump 56G1
• One (1) 8 HP Honda GX 270 Engine
• High Pressure Electric Reel with 100’ ½” hose
• Two (2) Air Bottle Storage Compartments, right side
• Stainless Steel Sure-Grip Top Access Ladder, rear mounted
• One (1) Strokes Basket and Three (3) Backboard Storage Rack
• Two (2) Aluminum PAC Vertical Pull Out Boards, left side
• Floor Mounted Console for Emergency Switches, Cab
• Progressive Dynamics on-board Battery Charger
• Kussmaul Super Auto Eject and 120-Volt Shoreline
• Whelen Warning Light Package and Scene Light Package
• One (1) Whelen Electric Siren & 100 W Speaker
• One (1) Audiovox Back-up Camera
[...]

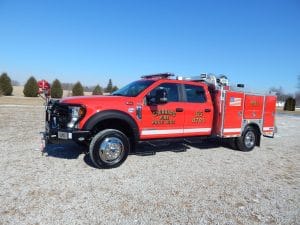

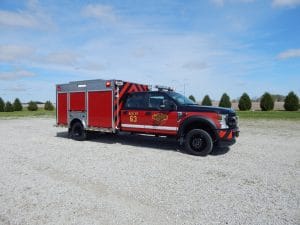

• Ford F550 Crew Cab 4×4 Chassis
• 7.3L V8 Gas Engine
• Automatic TorqShift 10-speed Transmission
• Black n-Fab Crew Steps
• Black Buckstop Outback with Hidden Winch Mount and Receiver
• Darley 2BE Direct Drive Pump
• Discharges-One (1) 2.5”, One (1) 1.5”, & Hannay Electric Booster Reel
• Akron Model 3462 Forestry Bumper Turret
• 300 Gallon Poly Tank
• FRC Water Level gauge
• 10’ Response One -Stainless Steel Body
• Sub-Frame- Heavy Duty Stainless Steel
• Two (2) Rear Tow Eyes
• Two (2) Wheel Well SCBA Compartments
• ROM Painted Roll Up Doors
• Assortment of Shelves, Roll Out Trays, Mounted Fire Extinguishers, Walk Away Air Pack Brackets, Backer Board for Tool Mounting, etc
• Customized Shelf behind Center Console for Mounting Equipment
• LED Krystal-Lite Strip Lights for Compartments
• Floor Mounted Console for Emergency Switches
• Progressive Dynamics PD2140 Battery Charger with Kussmaul Auto Eject
• Whelen M Series Warning Light Package
• Whelen Siren and Speaker
• Whelen TAM65 LED Arrow Stick
• LED Rub Rail Warning Lights [...]

FEATURES:

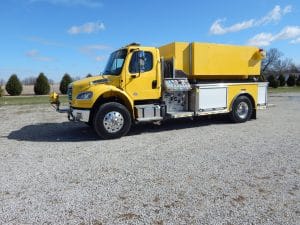

• Freightliner M2 106 Conventional Chassis
• Cummins L9 350 HP Diesel Engine
• Allison 3000 EVS Transmission
• Heavy-Duty 304 Stainless-Steel Body & Sub Frame
• Intermediate Stainless Steel Pump Module
• Darley PSM 1500 GPM Split Shaft Pump
• Trident 3 Barrel Air Primer
• FRC Pump Boss Pressure Governor
• Stainless Steel Manifold & Plumbing
• Discharges- One (1) 2.5” Left, One (1) 2.5” Rear, & One (1) 3” Right
• Mattydale Preconnects-One (1) 1.5” & One (1) 2.5”
• Fixed Monitor Piping
• One (1) 2.5” Gated Suction Intake, Left Side
• Akron Valves
• Robinson Statin Finish Roll Up Doors
• 2000 Gallon Poly Tank
• One (1) 2.5” Fire Programs Fill
• Newton Stainless Steel Swivel Dump with Extension
• Progressive Dynamics PD2140 Battery Charger with Kussmaul Auto Eject
• Floor Mounted Console for Emergency Switches
• Whelen Warning Light Package
• Rub Rail LED Warning Lights & LED Ground Lights
• Whelen Siren & Siren Speaker
• Fold Da Tank Storage Passenger Side Compartment Top
• Suction Hose Storage Driver’s Side [...]

• Freightliner M2 106 Tandem 2-Door Chassis
• Cummins L9, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body and Sub-frame
• ROM Roll Up Doors
• 3000-Gallon Wet side Poly Tank
• One (1) 2 ½” Fire Programs Tank fill, rear
• One (1) Newton 10” square manual swivel dump with 36” extension
• Hale DSD 150 Split Shaft 1500 GPM Pump
• Left side intermediate pump operator’s panel
• Stainless Steel Manifold & Plumbing
• Three (3) 2 ½” Discharges, two (2) left side and one (1) right side
• One (1) 3” Discharge with 5” Storz, right side
• One (1) 1 ½” and one (1) 2 ½” Mattydale Preconnects, behind cab
• One (1) 2 ½” Gated Suction, left side
• Folding Tank storage, right side compartment top
• Suction hose storage, left side compartment top
• Manual battery recharge shoreline connection
• Air coupling for external air compressor
• Floor mounted console for emergency switches, cab
• SCBA Bracket Mounted in Cab
• Whelen [...]

• International MV 607 Two Door Chassis
• Cummins L9 350 HP Diesel Engine
• Allison 3000 EVS Transmission
• Hale DSD 1250 GPM Pump
• Trident 3-Barrel Air Primer
• Two (2) Akron Model 7983 Revolution Butterfly Valves
• FRC Pump Boss Pressure Governor
• Stainless Steel Manifold and Plumbing
• Top Control Operator and Discharge Panels Incorporated in the Body
• Discharges-2.5” One (1) Left & One (1) Right, 3” Discharges-One (1) Right & One (1) Rear, Preconnects-Two (2) 1.5” Module
• One (1) 2.5” Gated Intake, Left Side
• 3” Fix Monitor Piping for Deck Gun
• Heavy Duty Aluminum Body & Sub Frame
• Ladder & Suction Hose Storage Thru Tank-Ground Accessible
• Four (4) Duel Wheel Well Air Bottle Compartments
• ROM Stain Finished Roll Up Doors
• Assortment of Adjustable Shelves, Roll Out Trays, Hinged Pac Trac Swing Out Tool Board, Zico Quic Index SCBA Bracket, & Duratile
• Krystal Lite-Strip LED Compartment Lights
• 1000 Gallon Poly Tank
• Floor Mounted Console with Switches, Radios, Siren, [...]

FEATURES:

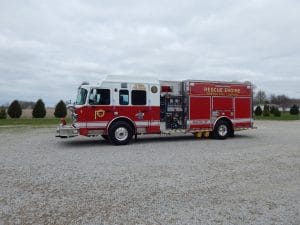

• Spartan Metro Star MFD 24” Raised Roof with Bustle Back Cut Out
• Cummins 450 HP L9 Diesel Engine
• Allison EVS 3000 Transmission
• Occupant Advanced Protection System
• 24” Front Bumper Extension with Preconnected Front Suction
• Cam In View 360 Bird’s Eye View System
• Waterous CXVC 20 Single Stage 1500 GPM Pump
• Stainless Steel Enclosed Top Mount Pump Module
• FRC Pump Boss Pressure Governor
• Whelen LED Tank Level Gauges, Operator’s Panel and Three (3) Sides
• Stainless Steel Manifold and Plumbing
• 2.5” Discharges- One (1) Left Side, One (1) Right Side & Two (2) Rear and 3” Discharges-One (1) Right Side & One (1) Left side
• Three (3) Cartridge Lay Preconnects, Two (2) 1.5” & One (1) 2.5”
• 2.5” Gated Intakes, One (1) Each Side
• One (1) Front Suction Intake and One (1) Rear Suction Intake
• Waterous Aquis 3.0 Single Tank Foam System with 20 Gallon Integral Tank
• Fixed Monitor Piping with an Akron Model 3430 [...]

• Freightliner 114 SD Two Door Chassis
• Cummins L9 450 HP Engine
• Allison EVS 3000 Transmission
• Heavy Duty Aluminum Body & Sub Frame
• Rom Satin Finished Roll Up Doors
• 500 LB roll Out Trays
• Krystal-Lite LED Compartment Lights
• Progressive Dynamics Battery Charger with Kussmaul Auto Eject
• In House Air Inlet with Kussmaul Auto Eject
• 2000 Gallon Poly Tank
• Newton 10” Stainless Steel Swivel Dump-Electric Operated
• Whelen Warning Light Package
• Rub Rail LED Warning Lights & LED Ground Lights
• Whelen Electroinc Siren & Speaker
• Whelen 12 V LED Scene Lights
• Fold Da Tank & Suction Hose Storage -Thru Tank Slide in
• Armour Seal Body Undercoating
• NFPA Rear Chevron & Striping
• 9’ 9” Overall height
• 26’ 6” Overall length
• 200” Wheelbase
• 134.4” Cab to Axle
• 16,000 LB FAWR
• 30,000 LB RAWR
• 46,000 LB GVWR

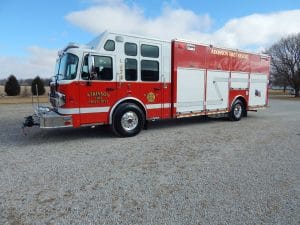

• Spartan ELFD Metro Star Chassis
• Cummins L9 450 HP Engine
• Allison 3000 EVS Transmission
• Occupant Advance Protection System
• Cab EMS Compartment Outside Access
• Fire Com Wireless Head Sets
• 21” Bumper Extension with Storage Compartment
• Front, Rear, & Side Hitch/Winch Assemblies
• Waterous CPK2-300 GPM PTO Pump, Located in L3 Compartment
• Pump Panel, FRC InControl Governor, Trident Air Primer in L3 Compartment
• Stainless Steel Manifold and Plumbing
• Two (2) Hanney Booster Reels, One (1) each side
• 300 Gallon Poly Tank
• Heavy Duty # 304 Stainless Steel Body
• Sub-Frame- Stainless Steel
• Three (3) Triple SCBA Wheel Well Bottle Compartments
• Five (5) Upper Coffin Storage Compartments with 21” Wide Recessed Walkway
• Ladder Storage Compartment in Upper Walkway
• Assortment of Pac Trac [...]
