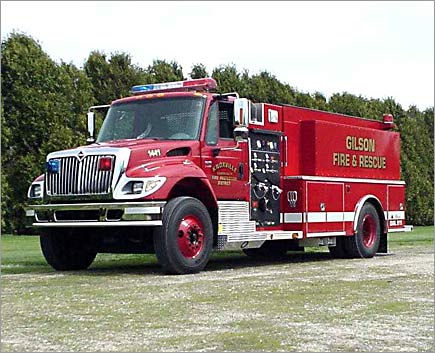

Knoxville Fire Protection
District
Technical Specs
• International 4400 two
door chassis
• International DT 530 330 HP diesel engine
• Allison MD 3060P automatic transmission
• Heavy Duty 3/16” aluminum body
• 2000 gallon UPF Poly Wetside tank
• Hale QFLO-100 1000 GPM midship pump
• Side mount control panel
• Ladder storage on right side of the truck
• One adjustable shelf in L1 and L2
• One adjustable shelf in R1 and R2
• Slide in Fol-Da-Tank bracket on the left side
• Suction hose storage one each side under the
tank “T’s” accessible from the rear,
one to store a preconnected low level strainer
• 10” Newton dump at the rear
• 4” rear tank fill with butterfly valve
• 9’-6” Overall height
• 28’ Overall length
• 204” Wheelbase
• 137” Cab to axle
• 14,000 FAWR
• 30,000 RAWR
• 44,000 GVWR
|
