Wyoming Community Fire
Protection District
Wyoming, Illinois
Technical Specs

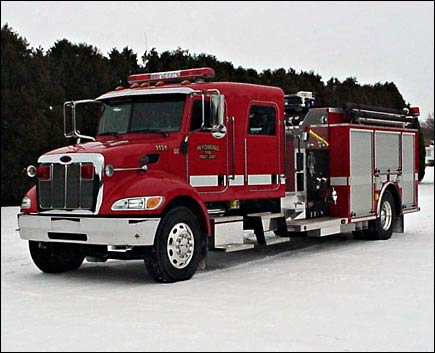

• Peterbilt 335 Crew Cab
Chassis
• Caterpillar C7 - 330hp Diesel
• Allison 3000EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1250 Gallon Poly Tank
• Hale QPAK 1000gpm Pump
• Two (2) 1-1/2" Cartridge Lay Preconnects
• Akron Valves
• Two (2) electrically controlled spray booms in
front bumper
• Four (2) air bottly storage compartments in wheel
wells, two (2) each side
• Red Hypalon hose bed cover
• Top mount control panel
• Class-1 Krystal-Lite tube compartment lighting
• Turtle Tile on compartment floors and shelving
• Five (5) adjustable shelves
• ZICO walkaway air pack brackets, four (4), in
L2 compartment
• Newton 10" square, manually controlled,
dump at rear
• Class-1 ES-KEY multiplex electrical system
• Vanner 30-10 automatic battery charger/ conditioner
• PowerArc warning light package
• 6600 watt Yamaha gasoline generator in the hosebed
• Hannay electric cord reel in top of R2 compartment
• Two (2) Extenda-Lite 650 watt "Beta"
lift lights
• Ladder storage in hosebed
• Hard suction hose storage above compartments
left side
• NFPA equipment package
• 10'Overall Height
• 33'-3" Overall Length
• 280" Wheelbase
• 158.2" Cab to Axle
• 12,000 FAWR
• 26,000 RAWR
• 38,000 GVWR
|
