CITY OF WILTON FIRE DEPARTMENT
WILTON, IOWA
Technical Specs
• Freightliner M2 106, 2-Door Chassis
• Cummins ISL, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• ROM Roll Up Doors
• 2000-Gallon Wetside Poly Tank
• Two (2) 2 ½" Tank fills, one (1) left side operator's panel and one (1) rear
• One (1) Newton 10" square manual swivel dump with 36" extension, rear
• Waterous CLVK, 500-GPM PTO Pump
• Left side under tank pump operator's panel
• Two (2) 2 ½" Discharges, one (1) left side and one (1) rear
• Two (2) Electric Booster Reels with 150-ft of 1" hose each, one (1) each side

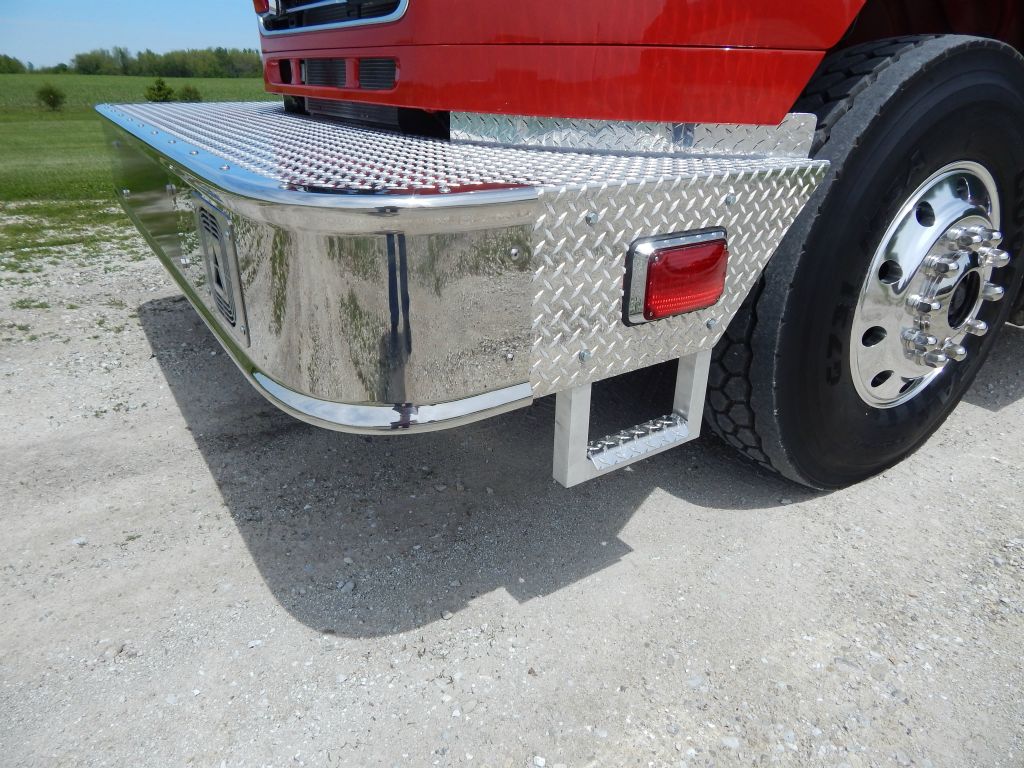

• 18" Front Bumper extension
• Ziamatic Hydraulic hinged folding tank rack for 2100 gallon tank, right side
• Two (2) Suction hose storage gutters, left side
• Progressive Dynamics on-board Battery charger with Viair compressor
• Kussmaul Super Auto Eject 120-volt shoreline

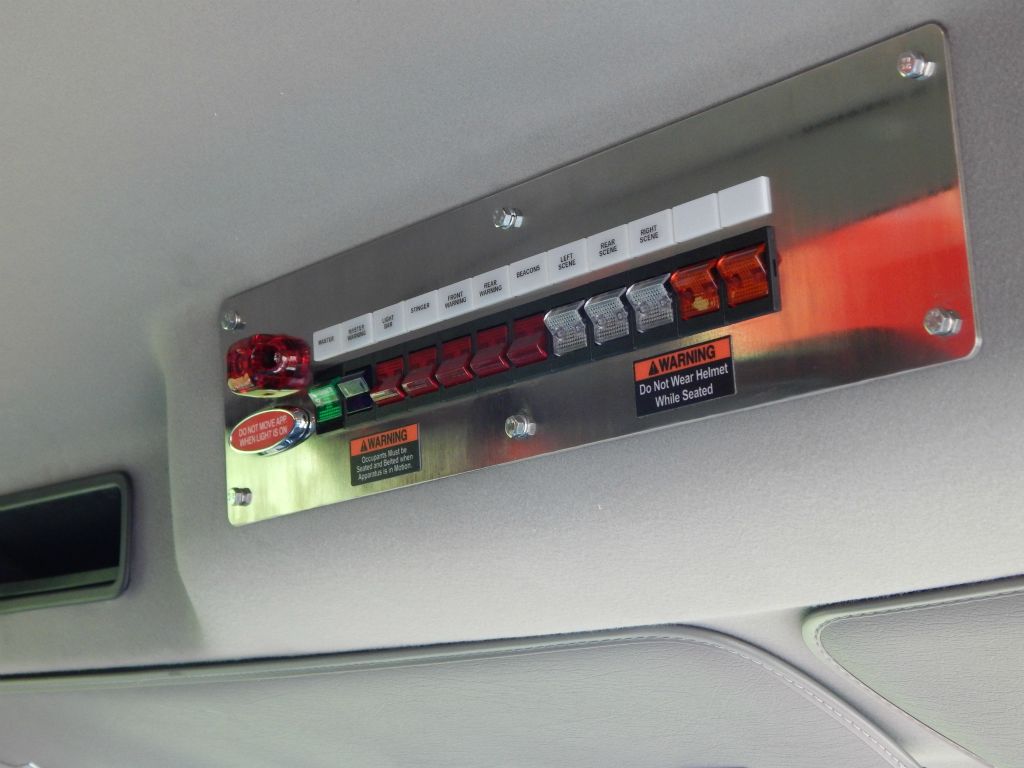

• Overhead console for emergency switches, cab
• Whelen Electronic Siren with 100-watt Whelen speaker
• Four (4) Whelen LED Scene lights, one (1) each side and two (2) rear
• One (1) Golight LED floodlight/spotlight remote controlled from cab
• Whelen LED Warning Light Package
• Diamond Grade Chevron pattern striping, rear
• 9' 7" Overall height
• 28' 7" Overall length
• 208" Wheelbase
• 142.45" Cab to Axle
• 14,600 FAWR
• 30,000 RAWR
• 44,600 GVWR
