City Of West Branch
Fire Department
West Branch, Iowa
Technical Specs

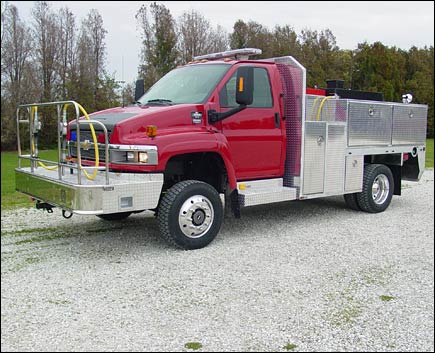

Chevrolet 5500 2-Door
4x4 Chassis
Duramax 6.6L, 330-HP Diesel Engine
Allison 1000 EVS Automatic Transmission
Heavy Duty 3/16" Aluminum Body
UPF 400-Gallon Rectangular Poly Tank
Bean Royal 70 Pump with Deutz engine
Two (2) ¾" booster lines with 10-ft
hose
Two (2) Front high Pressure ¾"
Discharges with 8-ft hose and nozzles
One (1) Hannay electric Booster Reel with 200-ft
of ¾" hose, rear
24" Front Bumper extension with stainless
steel grass railing
Reese type trailer hitch/winch receiver, front
and rear
Chassis hood center section coated with black
reflex coating
Two (2) dropped Stanchions with treadplate
doors, one (1) each side behind headache rack
Work area between stanchions with pump panel
Two (2) compartments with two (2) drop down
doors each, one (1) each side of body
Two (2) under body compartments, one (1) each
side ahead of rear wheels
Two (2) Class 1 water tank gauges with LED
display, one (1) pump panel and one (1) cab console
Vanner 110-volt On board battery charger/conditioner
One (1) Kussmaul Super Auto Eject 120-volt
shoreline
Code-3 Electronic Siren with 100-watt Federal
speaker
Two (2) Collins Deck lights, rear
Code-3 LED Warning Light Package
8' 7" Overall height
22' 1" Overall length
152" Wheelbase
84" Cab to Axle
8000 FAWR
13,500 RAWR
19,500 GVWR
|
