WATERMAN COMMUNITY FIRE
PROTECTION DISTRICT
WATERMAN, ILLINOIS
Technical Specs

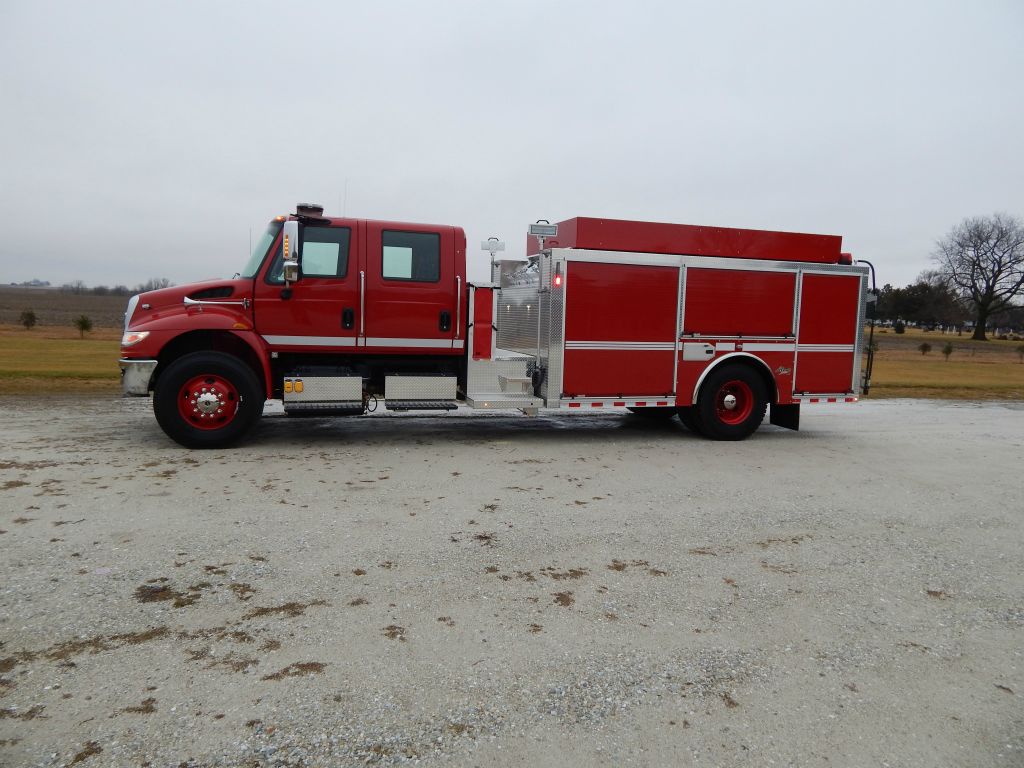

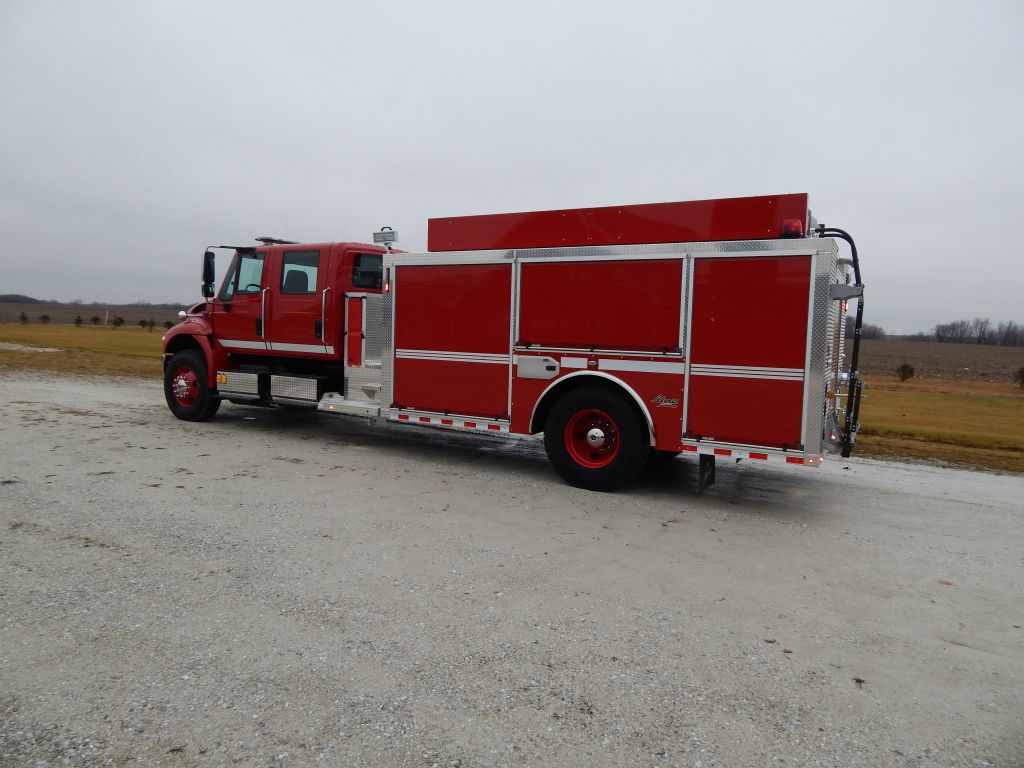

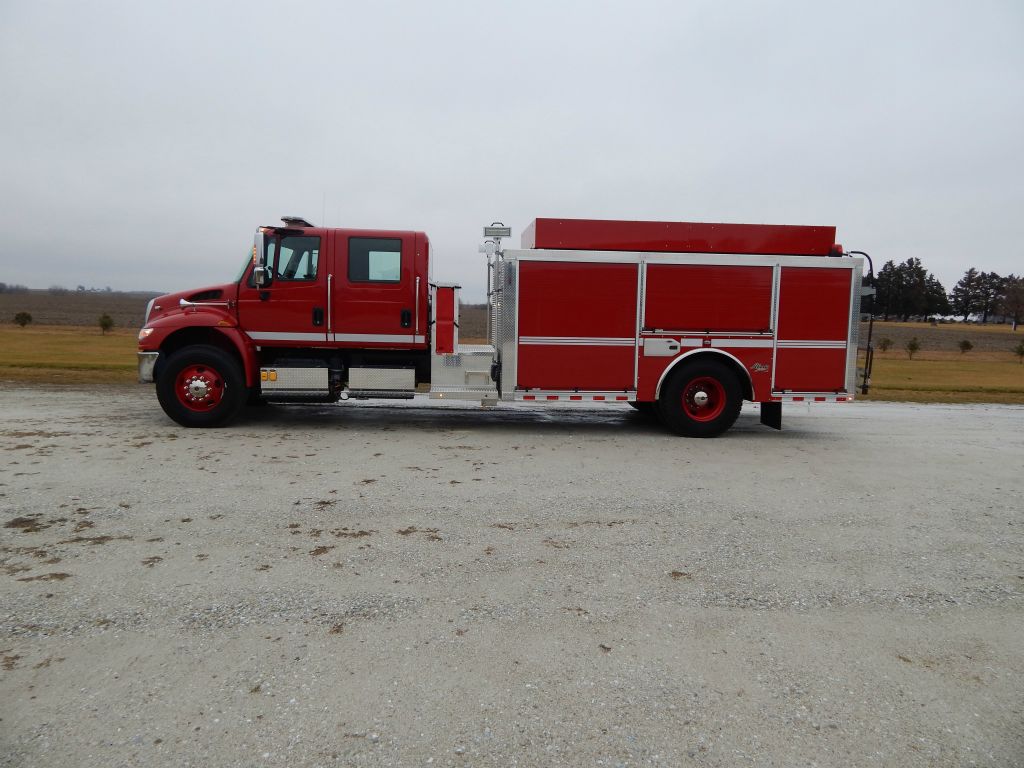

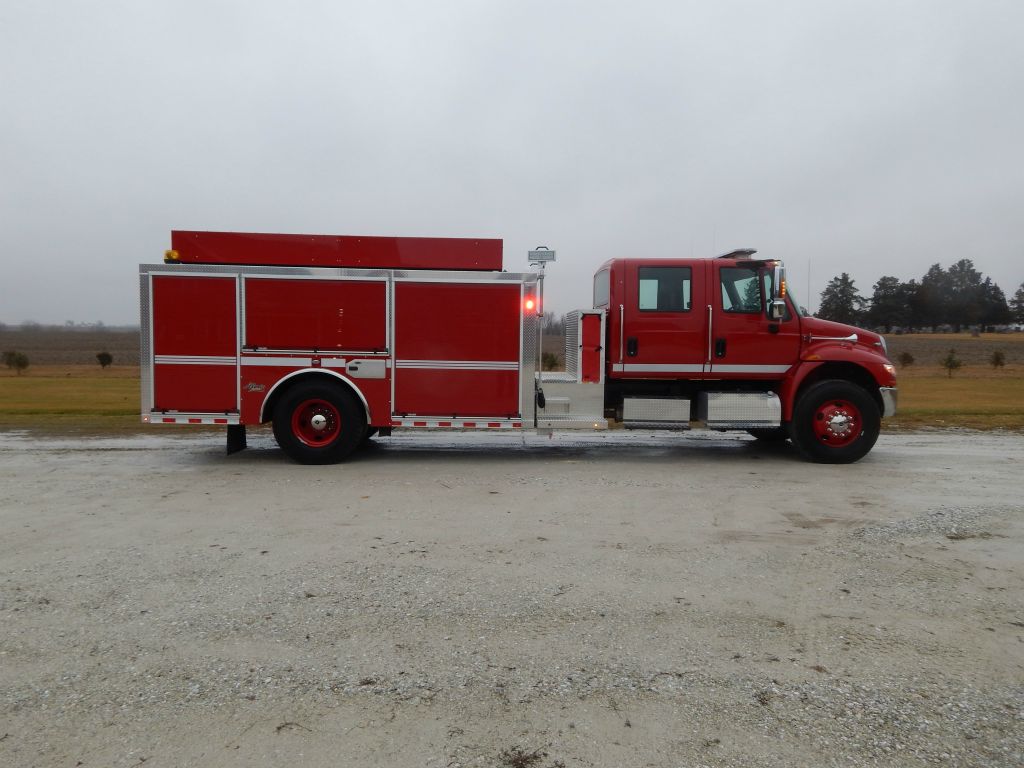

• International 4400 4-Door Chassis
• MaxxForce 9, 330-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Five (5) man cab seating with four (4) SCBA Seats
• Heavy Duty 3/16" Aluminum Body

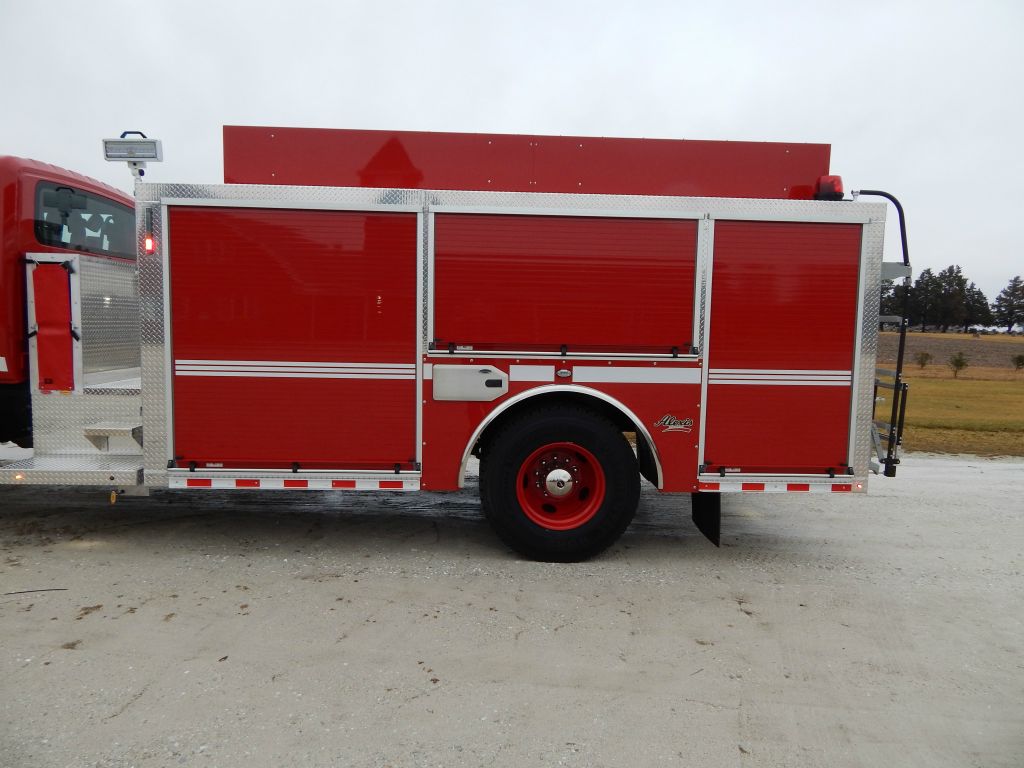

• ROM Roll Up Doors
• 1000-Gallon Poly Tank with 20-Gallon foam tank
• One (1) 2 ½" Fireman's Friend Tank fill, right side
• Waterous CXS, 1250-GPM Pump

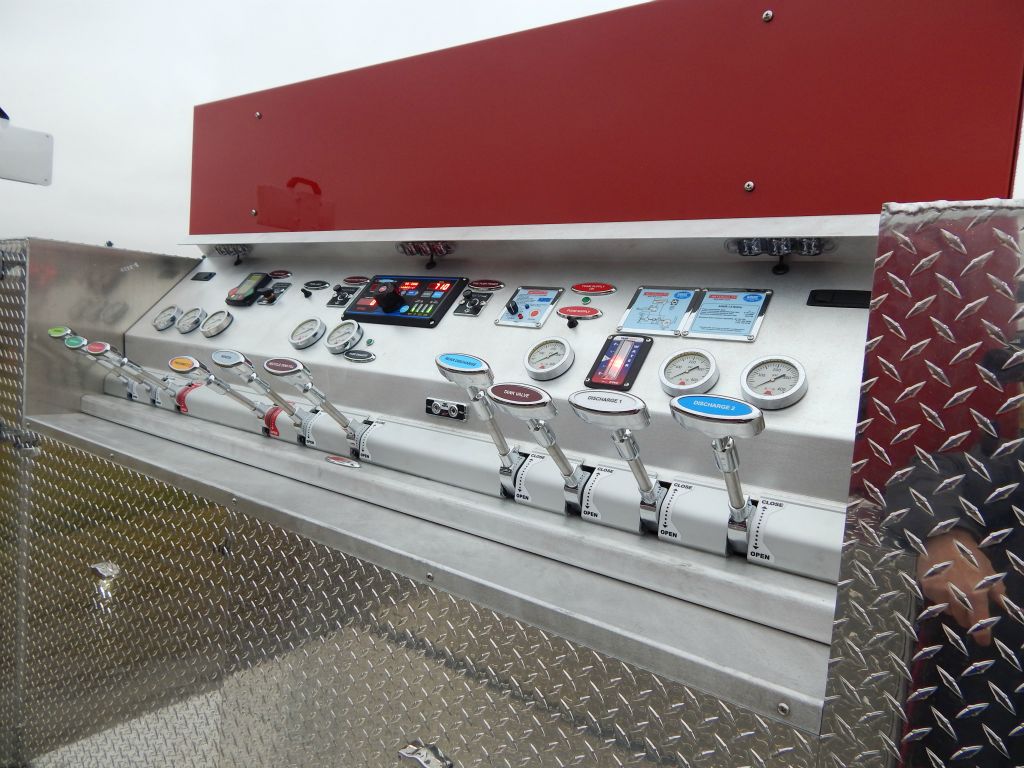

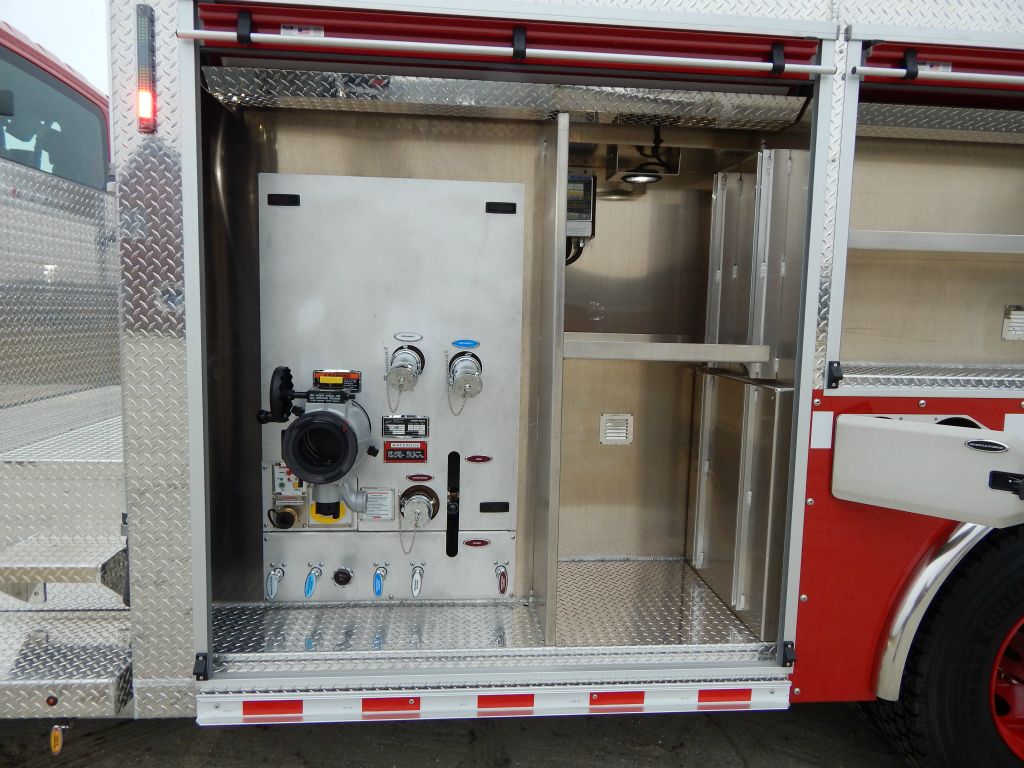

• Operator's panel across top of body

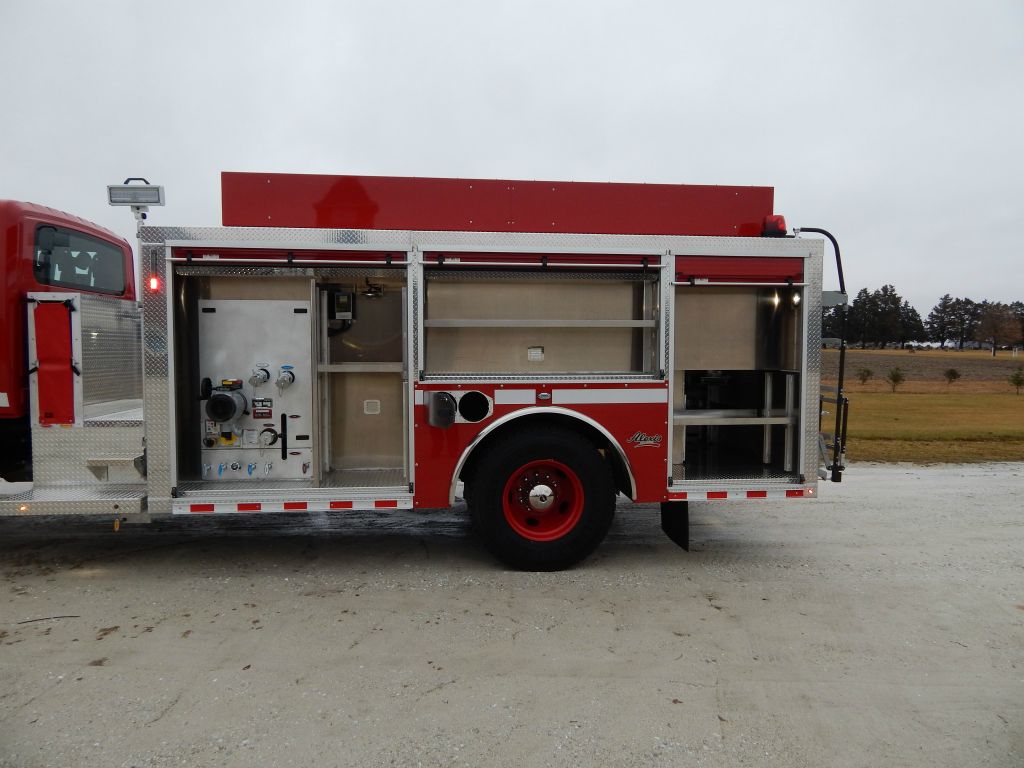

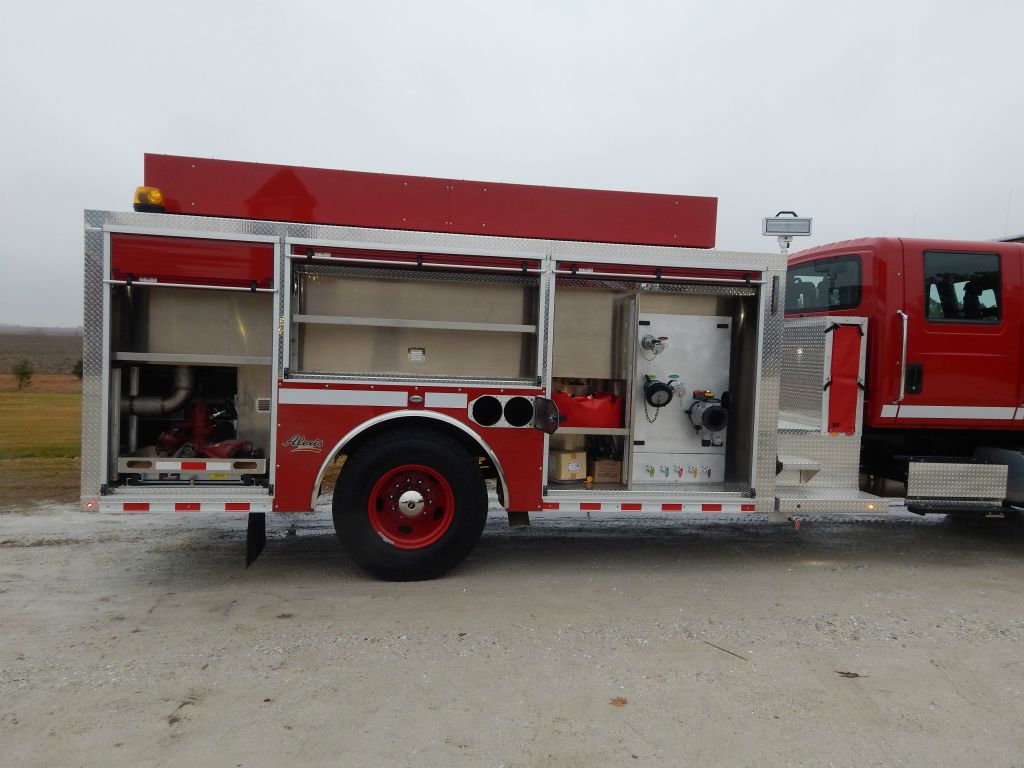

• Three (3) 2 ½" Discharges, two (2) left and one (1) right side
• Three (3) 3" Discharges, one (1) right side, one (1) rear and one (1) over pump

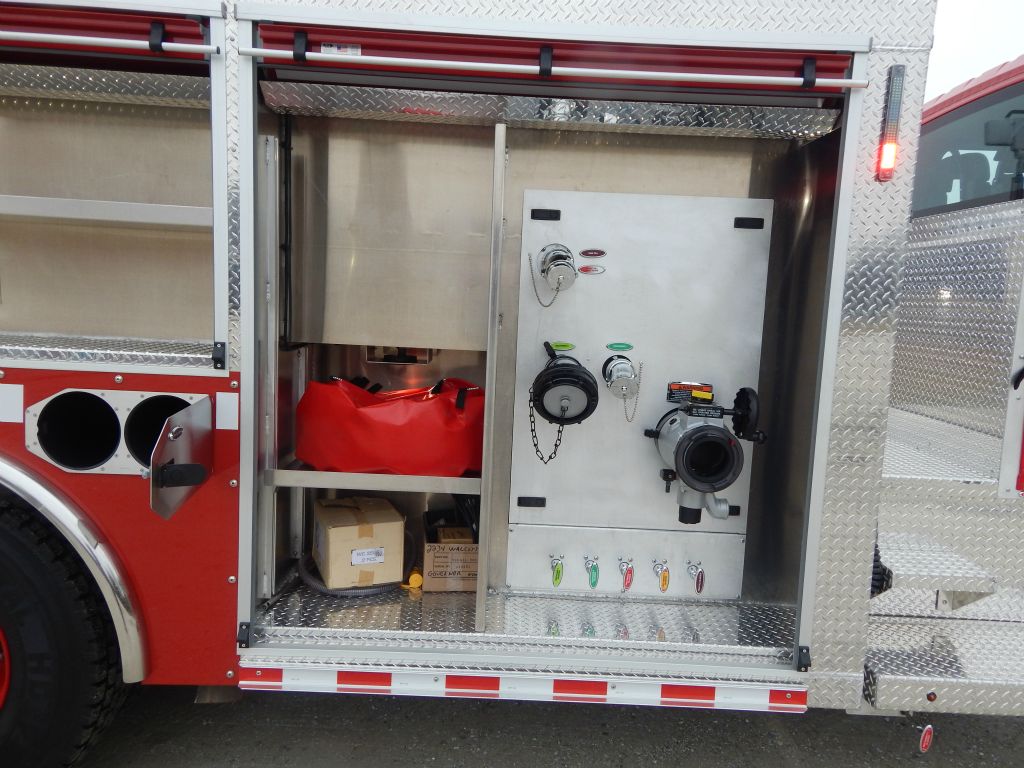

• One (1) 2 ½" Gated Suction, left side
• One (1) 5" Suction, rear
• Waterous Aquis 1.5 Foam System with foam fill system
• Two (2) 1 ½" Preconnects, behind the cab
• Two (2) Dual bottle Air bottle compartments, one (1) each side

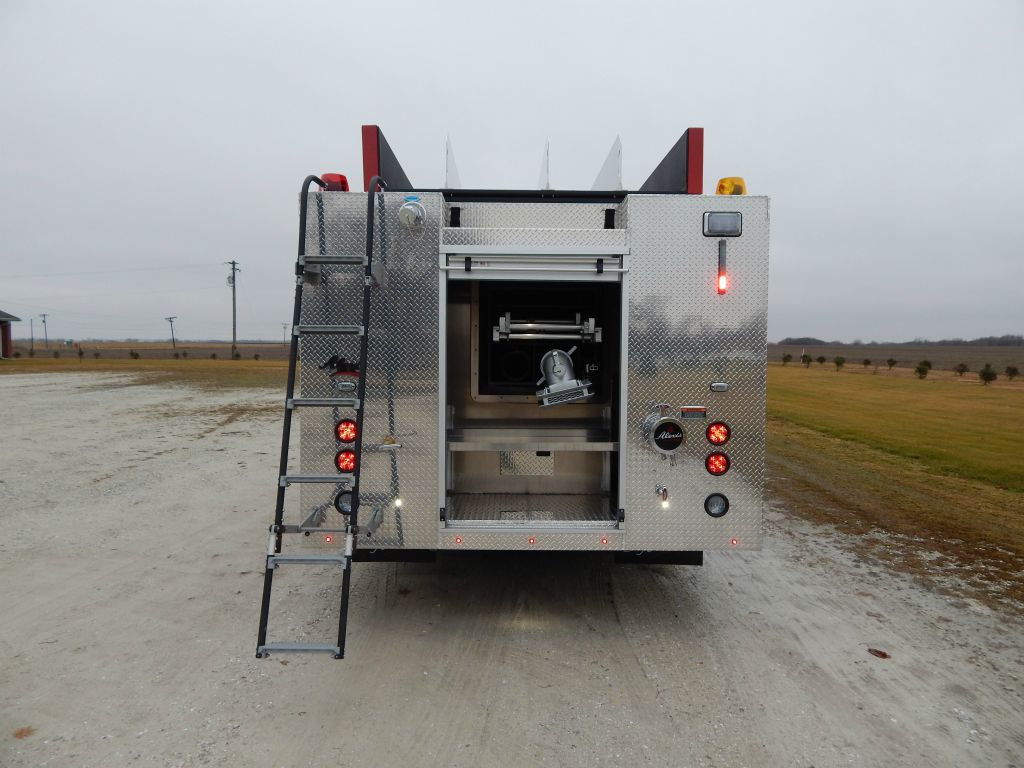

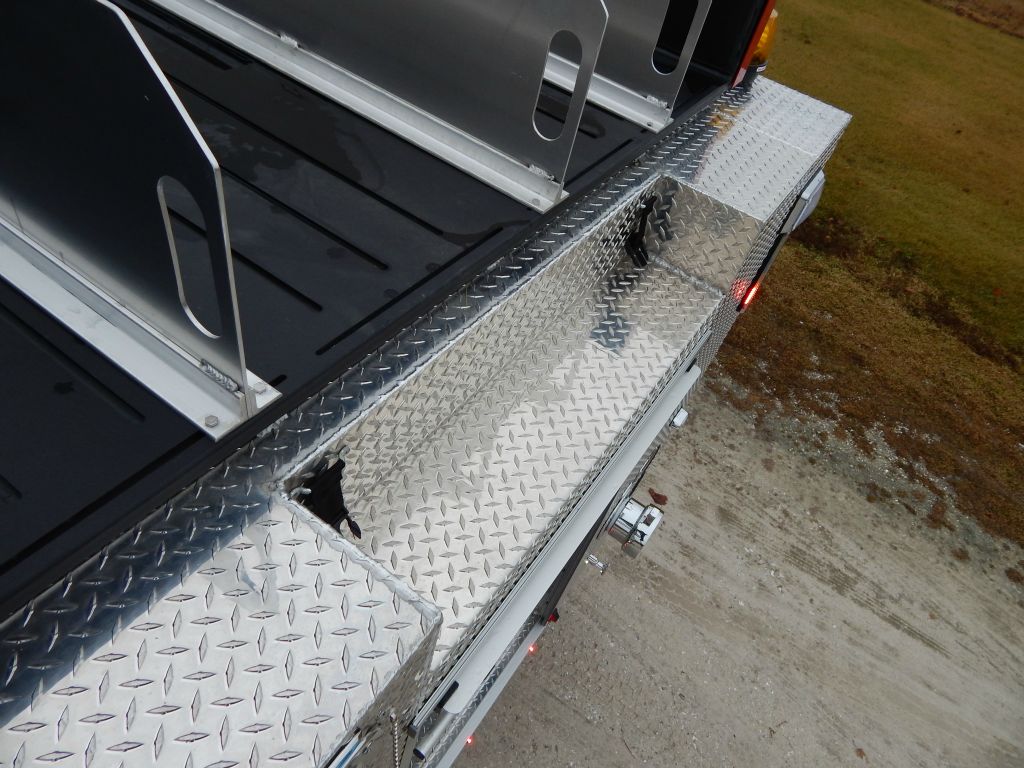

• Ladder, Suction hose and Pike pole storage through tank with rear access
• Zico Top Access ladder, rear mounted
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Kussmaul Air Eject
• Two (2) Air Horns, one (1) each side of hood
• Code 3 Electronic Siren with 100-watt Cast Products speaker
• Two (2) FRC Spectra LED telescopic scene lights, one (1) each side
• One (1) Whelen LED scene light, rear
• Whelen LED Warning Light Package

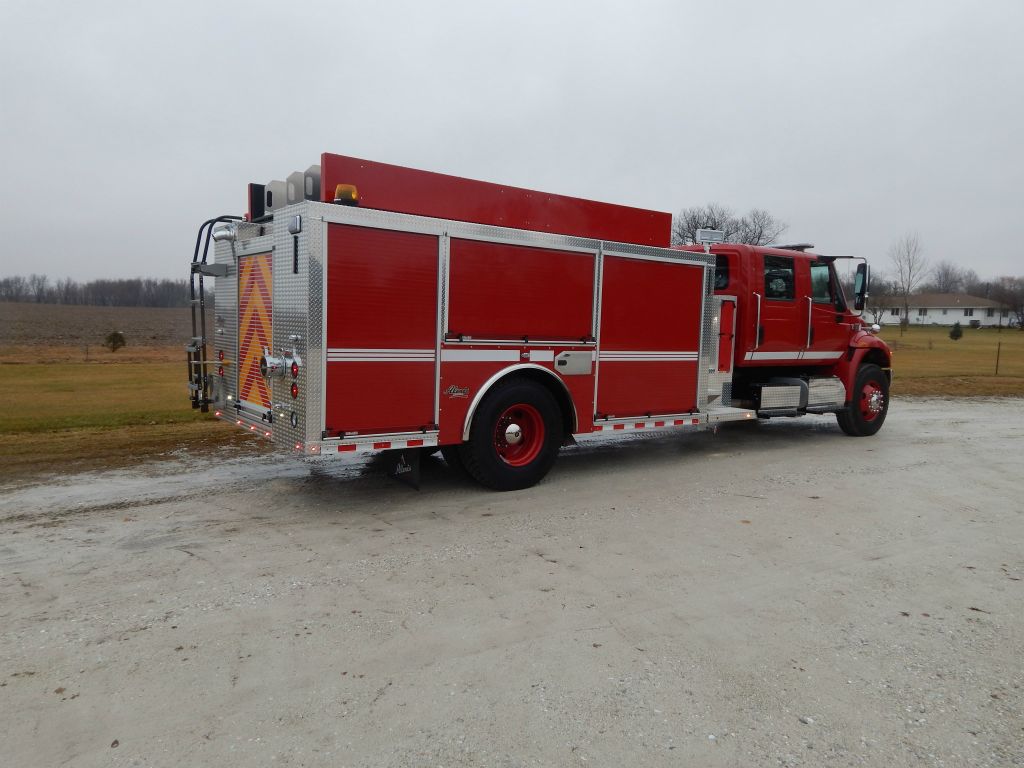

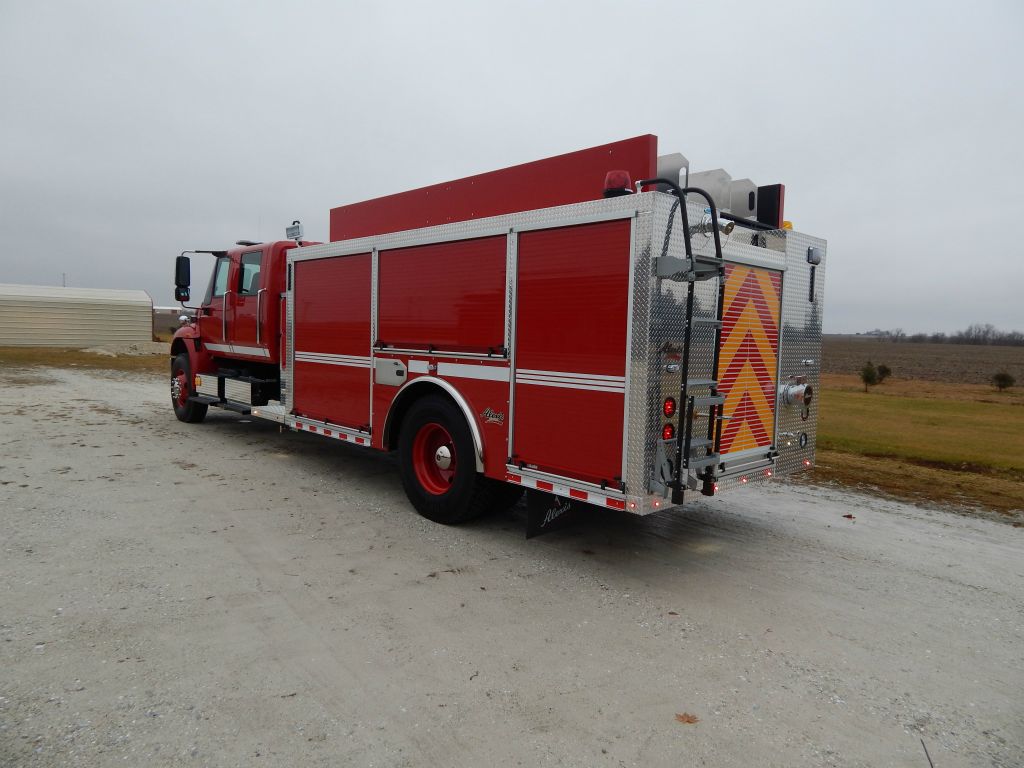

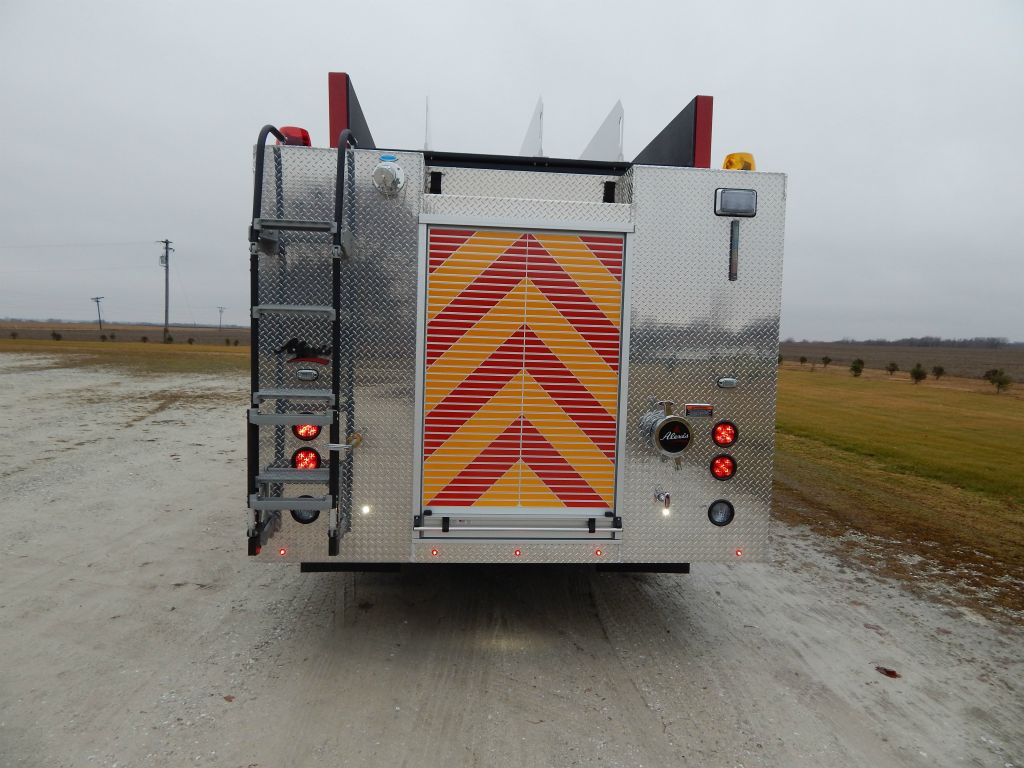

• Chevron pattern striping, rear
• 9' 6" Overall height
• 31' 6" Overall length
• 256" Wheelbase
• 145" Cab to Axle
• 14,000 FAWR
• 30,000 RAWR
• 44,000 GVWR

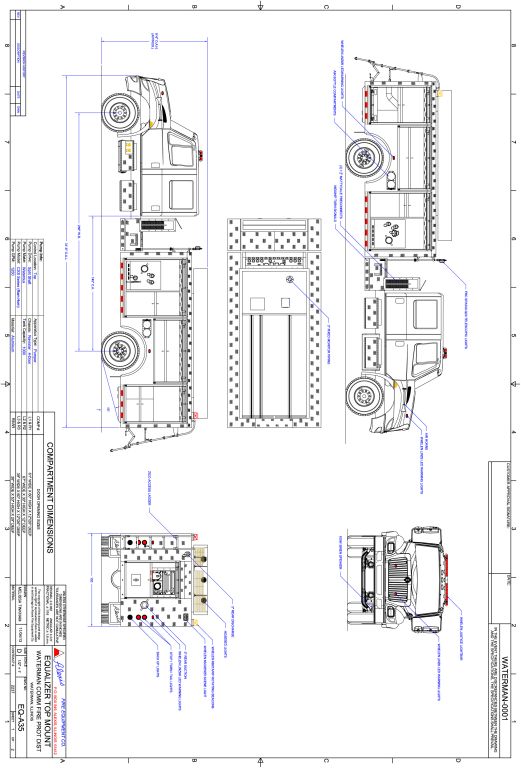

Download Spec Sheet »
|
