Waterman Community Fire
Protection District
Waterman, Illinois
Technical Specs

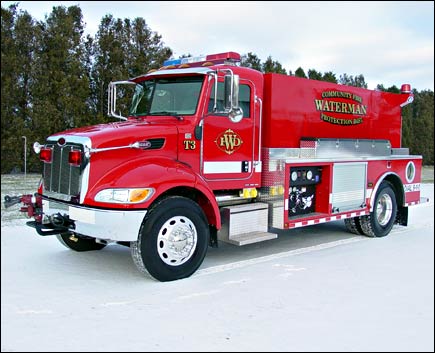

Peterbilt 335, 2-door
Chassis
Caterpillar C7, 330-HP Diesel Engine
Allison 3000 EVS-P Automatic Transmission
Heavy Duty 3/16" Aluminum Body
UPF 1800-Gallon Wetside Poly Tank
Hale AP50, 500-GPM PTO Pump
Pump Panel under tank, left side
Two (2) 2 ½" Discharges, left side
One (1) Akron FireFox front bumper turret controlled
from joystick in cab
One (1) Preconnect hose tray with divider,
left side compartment top
ROM Roll Up Doors
Three (3) E J Metals air operated Tank dumps
with 22" extensions, one (1) each side and one
(1) rear
One (1) electric Booster reel with capacity
for 150-ft. of 1" hose, right side
One (1) Tubular drop down Fol-da-tank Rack,
right side
Suction Hose storage, right side of hose bed
Four (4) Federal GHSCENE large scene lights,
one (1) each side and two (2) rear
Two (2) Grover Air Horns, one (1) each side
of the hood
Federal Electronic Siren with 100-watt Federal
speaker
PowerArc Warning Light Package
9' 10" Overall height
26' 8" Overall length
228" Wheelbase
158.2" Cab to Axle
12,000 FAWR
26,000 RAWR
38,000 GVWR
|
