Waterloo Community Fire
Protection District
Waterloo, Illinois

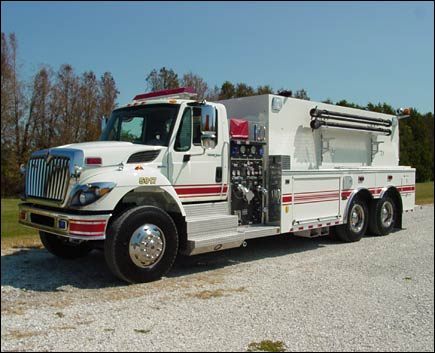

Technical Specs
• International 7400 2-door
Tandem Chassis
• International MaxForce 9, 330-HP Diesel Engine
• Allison 3000EV Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 3000-Gallon Wetside Poly Tank with 30 Gallon
foam tank
• Hale PSD100, 1000-GPM Pump
• Left side control pump panel
• Four (4) 2 ½" Discharges, two (2)
each side
• Two (2) 1 ½" Mattydale Preconnects
with capacity for 200-ft of 1 ¾" hose each
• Foam Pro 2002 foam system
• On Spot Automatic tire chains
• ROM Roll Up Doors
• Two (2) Air bottle compartments, one (1) each
side
• Two (2) vertical pull-out boards, left side compartment
• Two (2) FlameFighter Walk-away air pak brackets,
left side compartment
• Three (3) Newton 10" square tank dumps electrically
controlled with extensions
• One (1) Ziamatic electric folding tank bracket,
right side
• Two (2) Suction hose gutters, left side above
ladder brackets
• Ladder brackets with two (2) pike pole tubes,
left side
• One (1) Kussmaul Pump Plus 1200 air compressor/battery
charger
• One (1) Kussmaul Super Auto Eject 120-volt shoreline
• Six (6) Code-3 large scene lights, two (2) each
side and two (2) rear
• Two (2) Unity Deck lights, rear
• Two (2) Grover air horns, one (1) each side of
hood
• One (1) Code-3 Electronic siren with Cast Products
speaker
• Code-3 Warning Light Package
• 10' 5" Overall height
• 32' 1" Overall length
• 242" Wheelbase
• 174.9" Cab to Axle
• 14,000 FAWR
• 40,000 RAWR
• 54,000 GVWR
|
