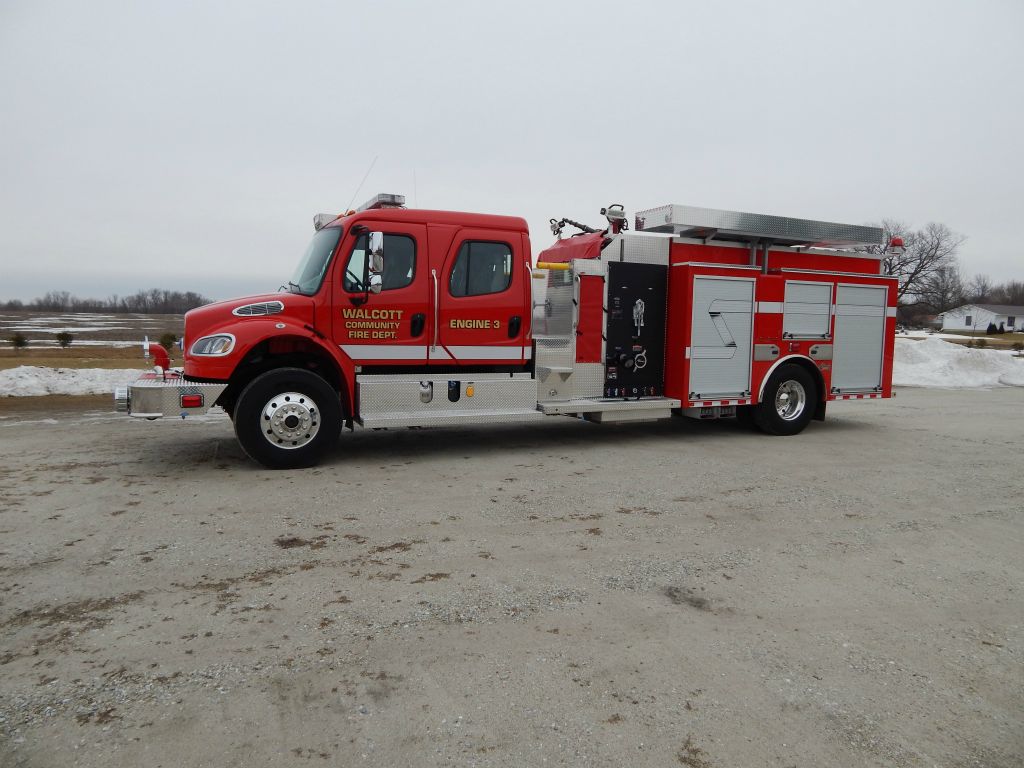

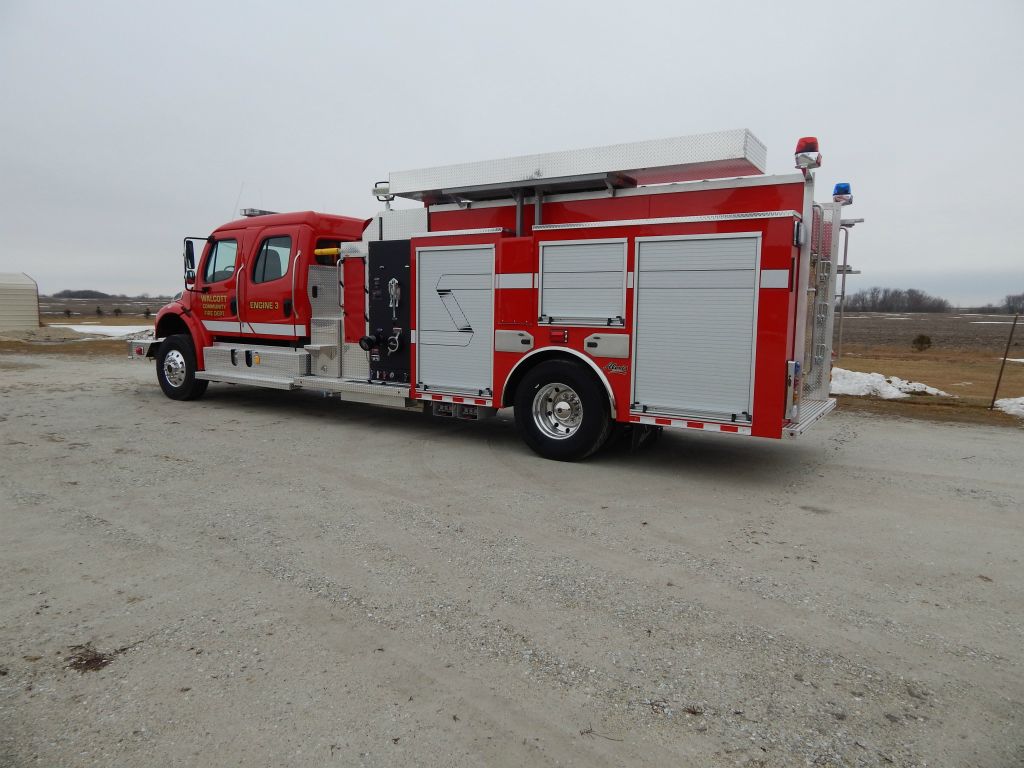

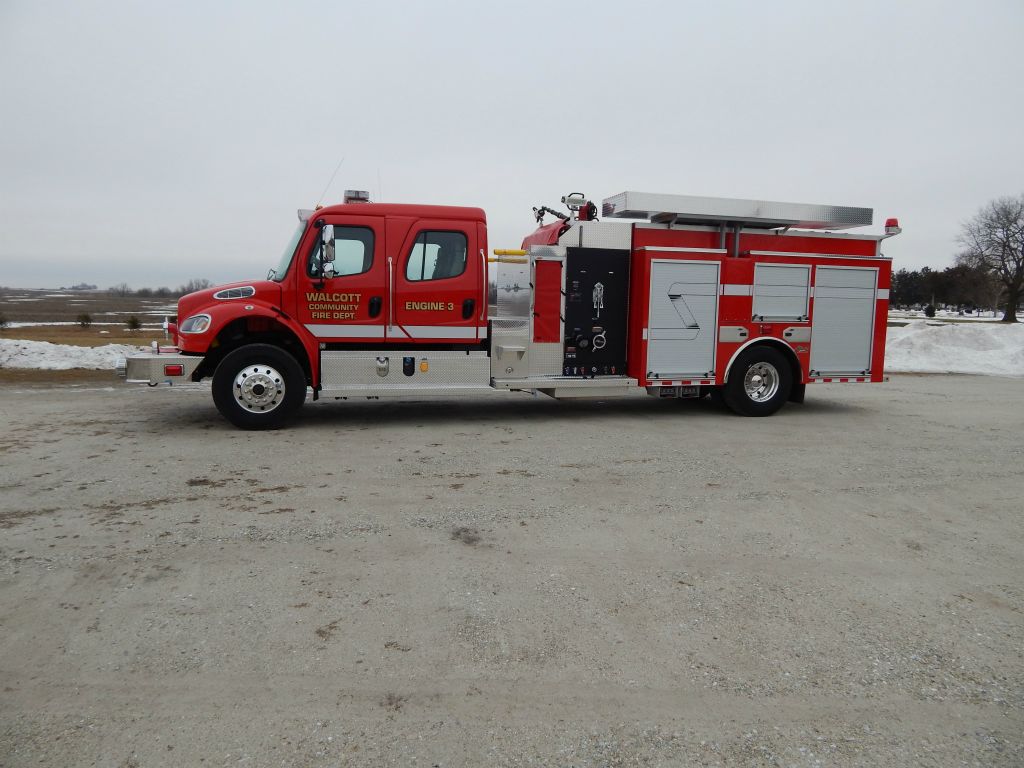

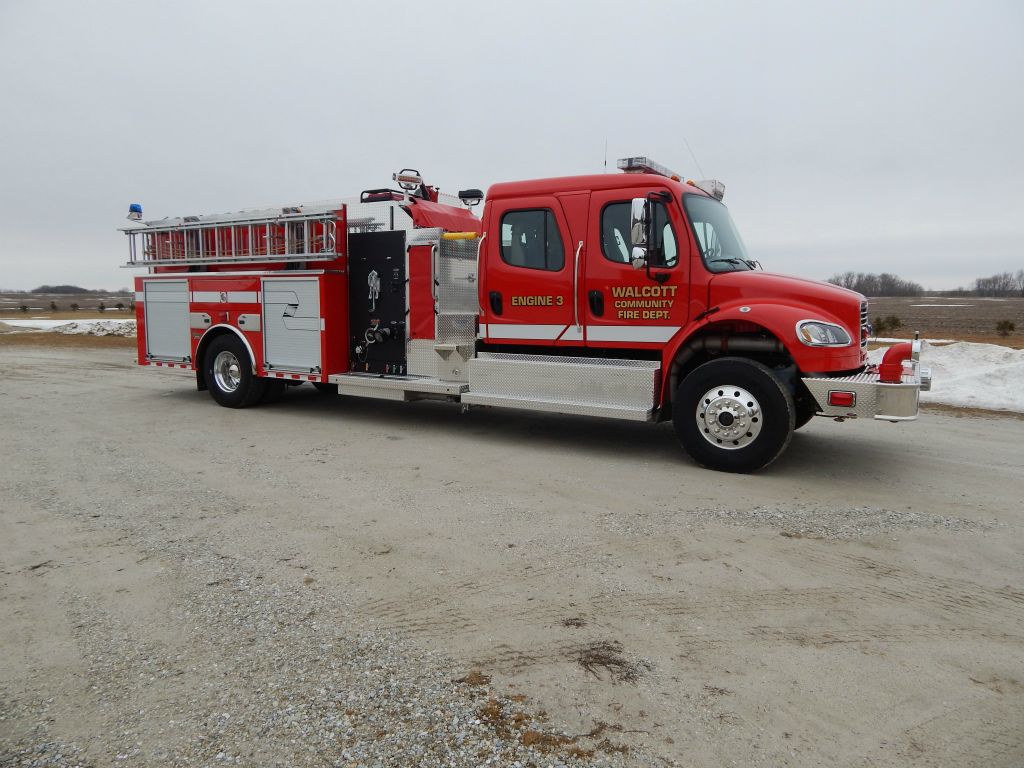

CITY OF WALCOTT FIRE DEPARTMENT
WALCOTT, IOWA
Technical Specs

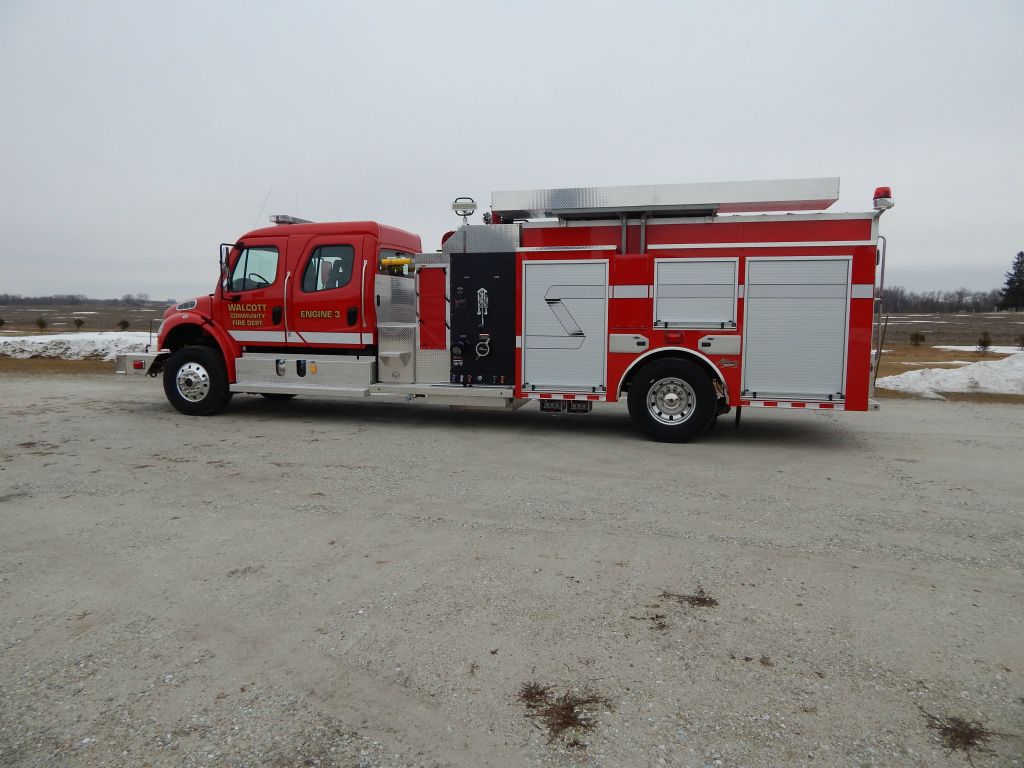

• Freightliner M2 106 4-Door Chassis
• Cummins ISL, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Five (5) man cab seating with four (4) SCBA seats

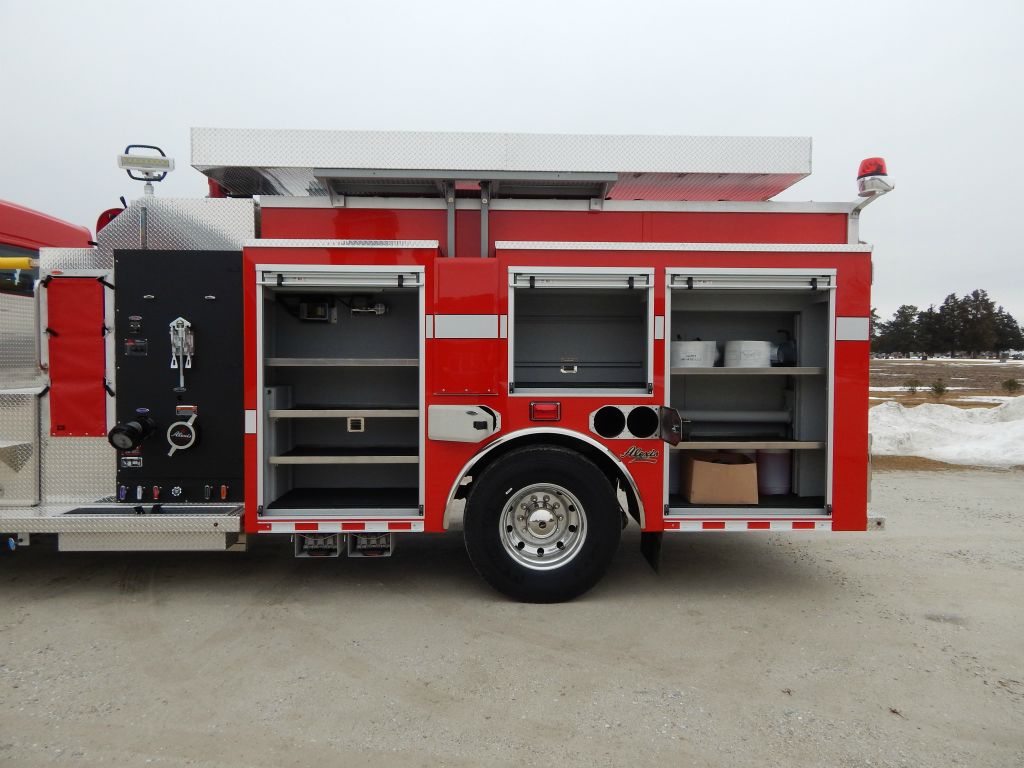

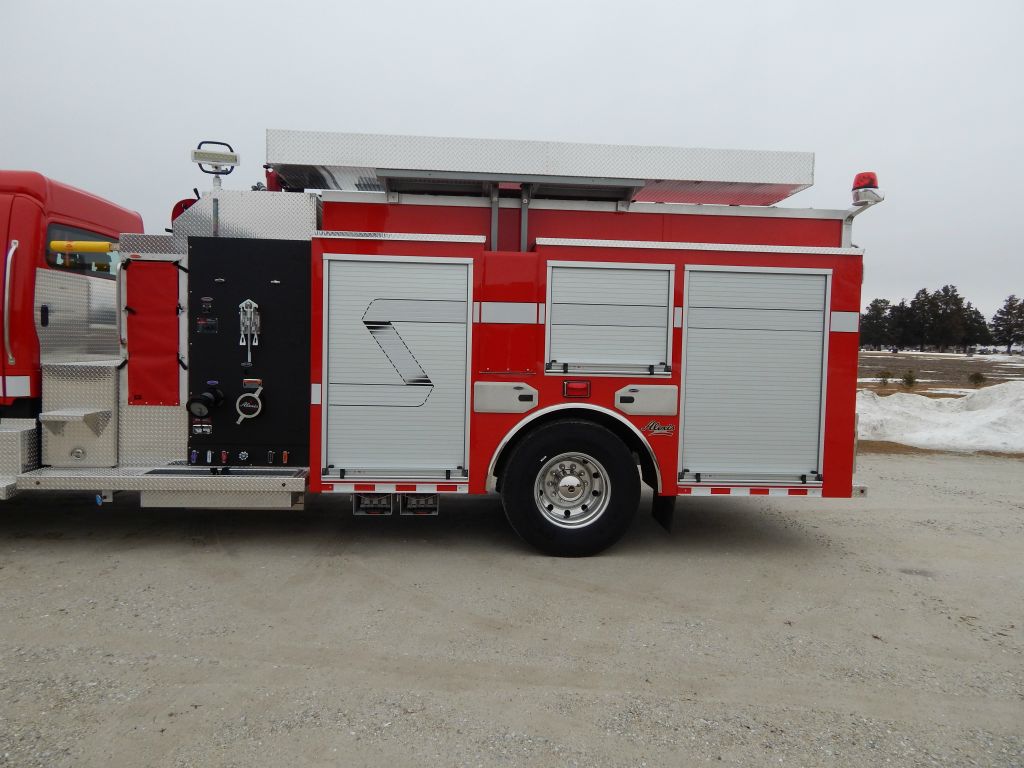

• Heavy Duty 3/16" Aluminum Body with ROM Roll Up Doors
• On Spot Automatic Tire chains
• 1000-Gallon Poly Tank with 20-Gallon foam tank
• One (1) 2 ½" Fireman's Friend tank fill, rear

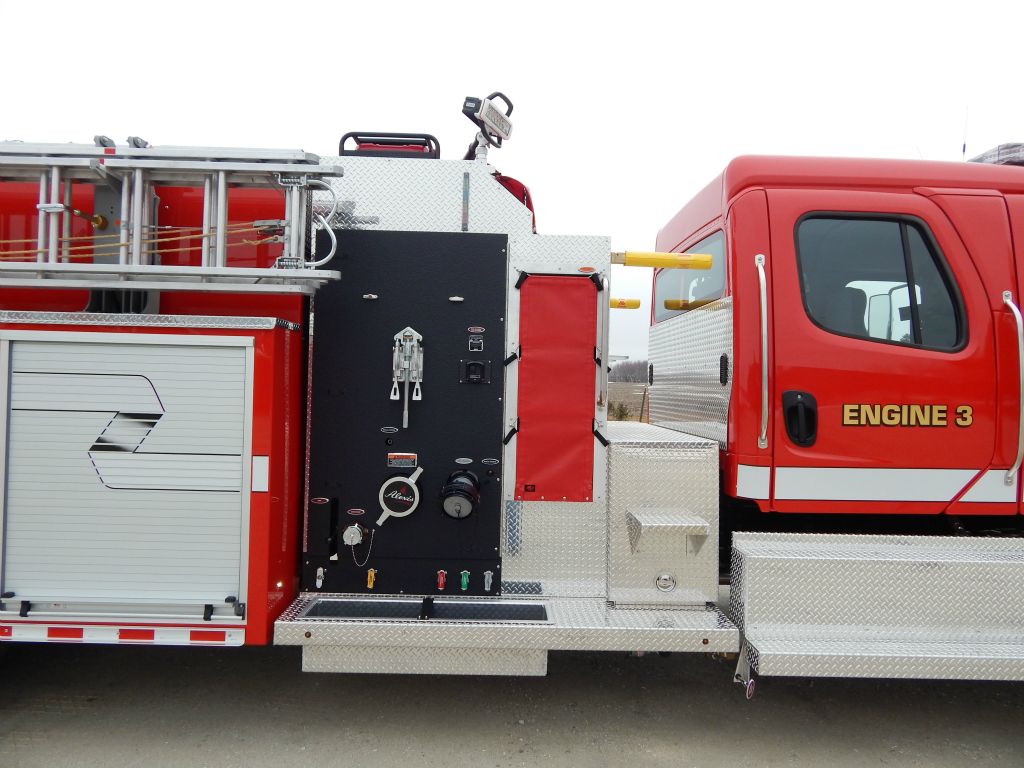

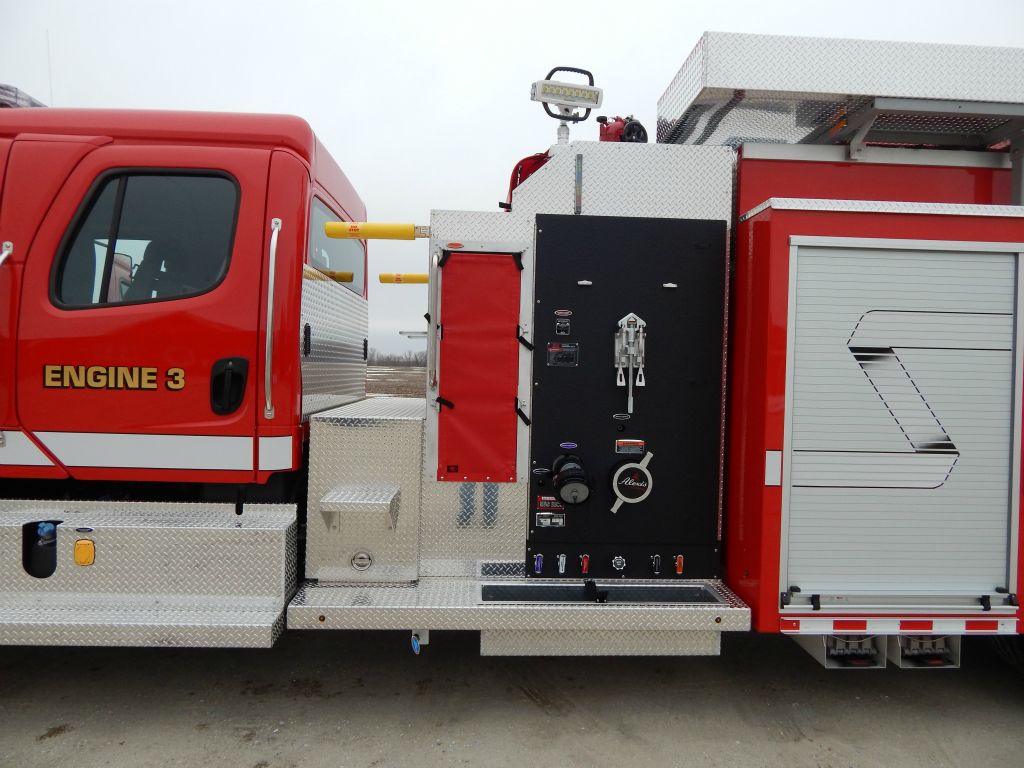

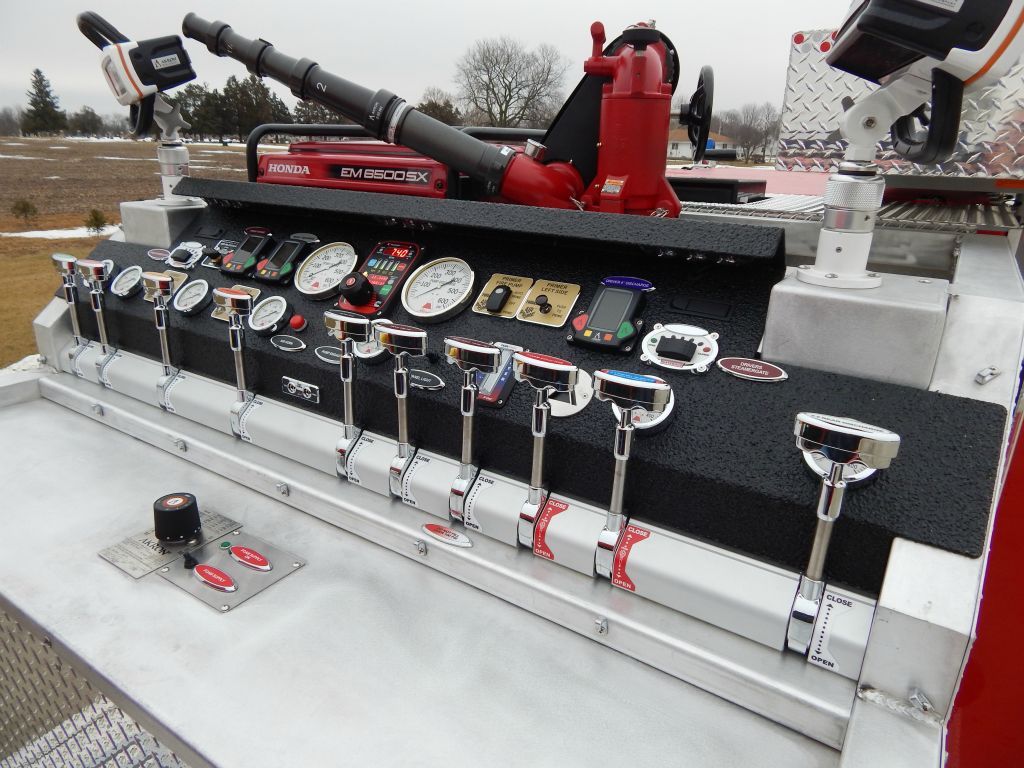

• Waterous CSU, 1500-GPM Pump with operator's panel across top of apparatus
• One (1) 2 ½" Discharge, rear
• Two (2) 4" Discharges, one (1) each side
• One (1) 3" Discharge over pump for Akron Apollo deck gun
• One (1) 2 ½" Gated Suction, right side
• Two (2) 1 ½" and one (1) 2 ½" Cartridge lay Preconnects , front of body
• Two (2) 2 ½" Preconnects, one (1) front of hosebed and one (1) front bumper

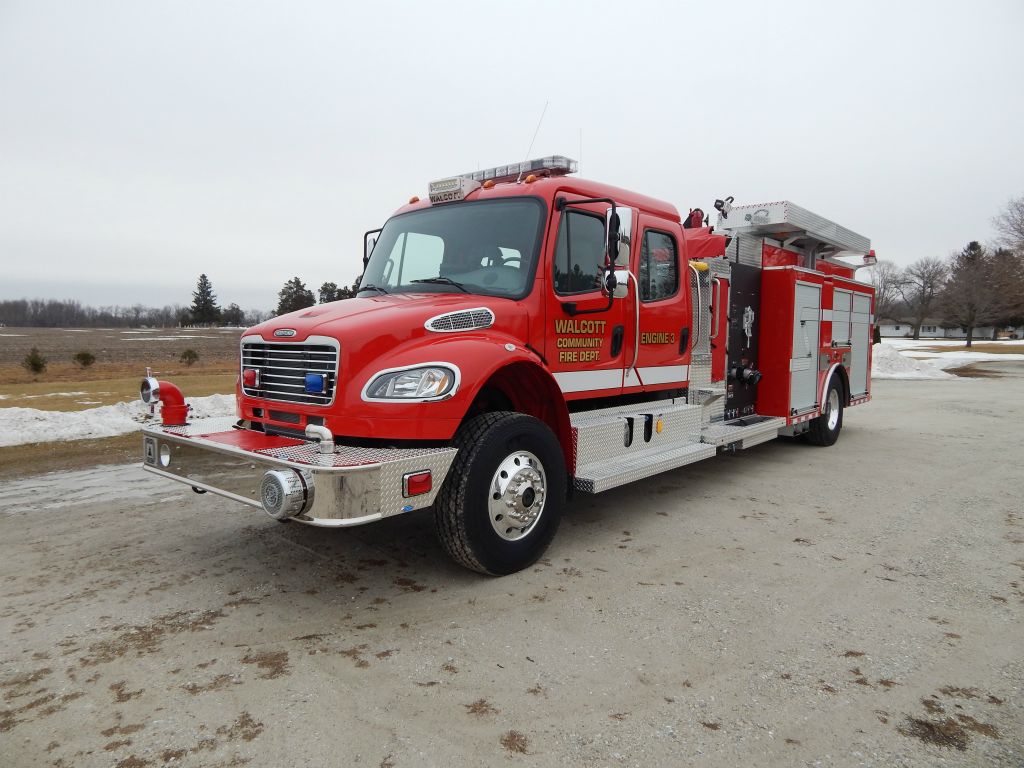

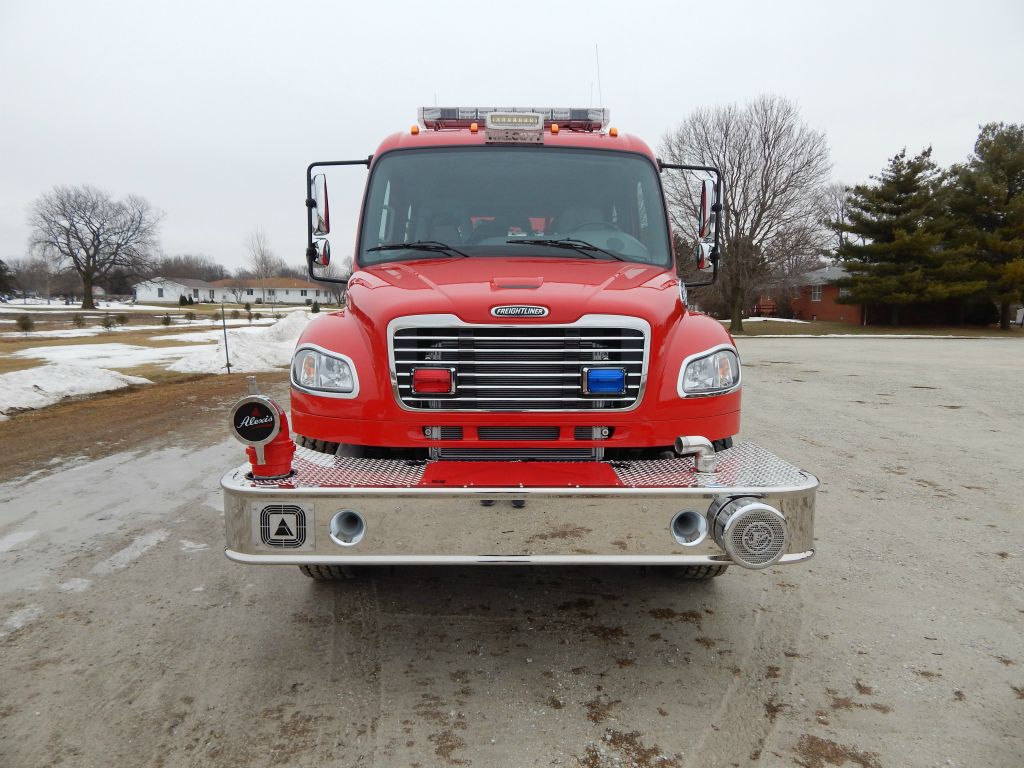

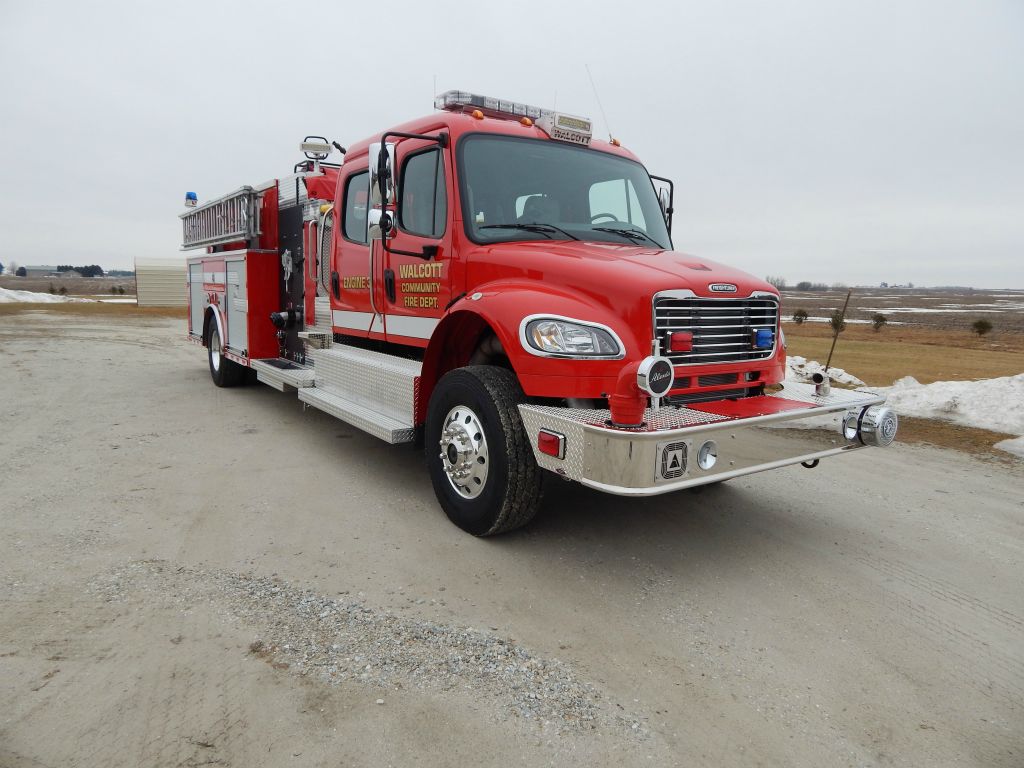

• 18" Front bumper extension with 5" suction and center hosewell

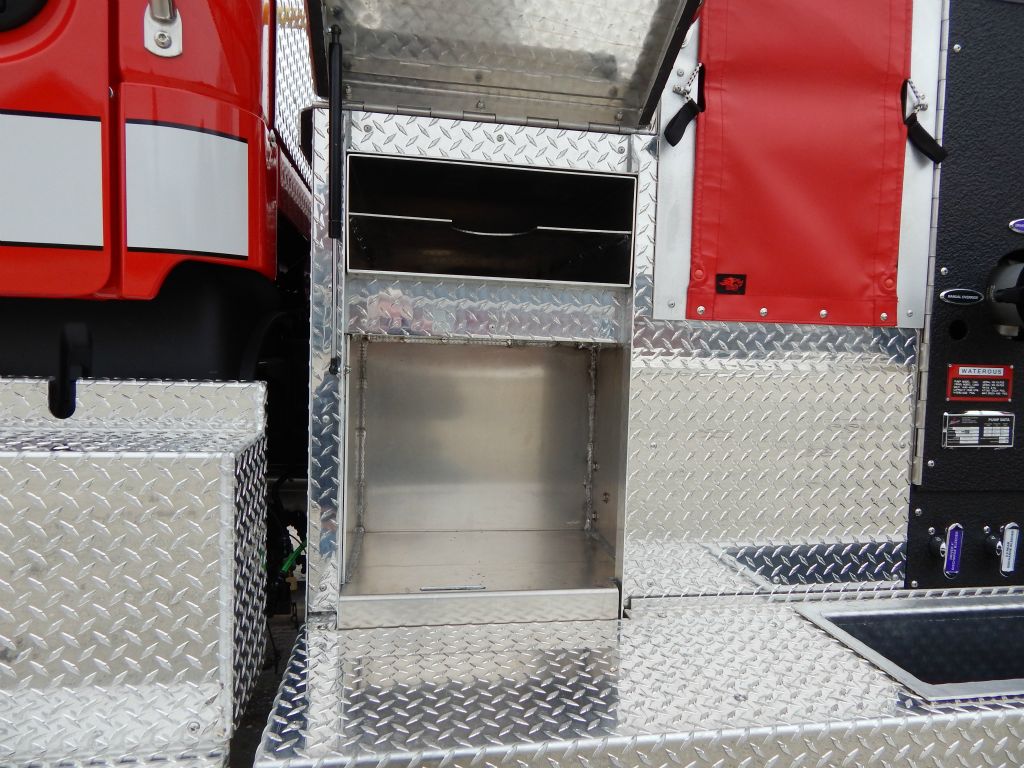

• Two (2) under walkway compartments, one (1) each side with backboard storage
• Two (2) floating hosewells, one (1) each side running board

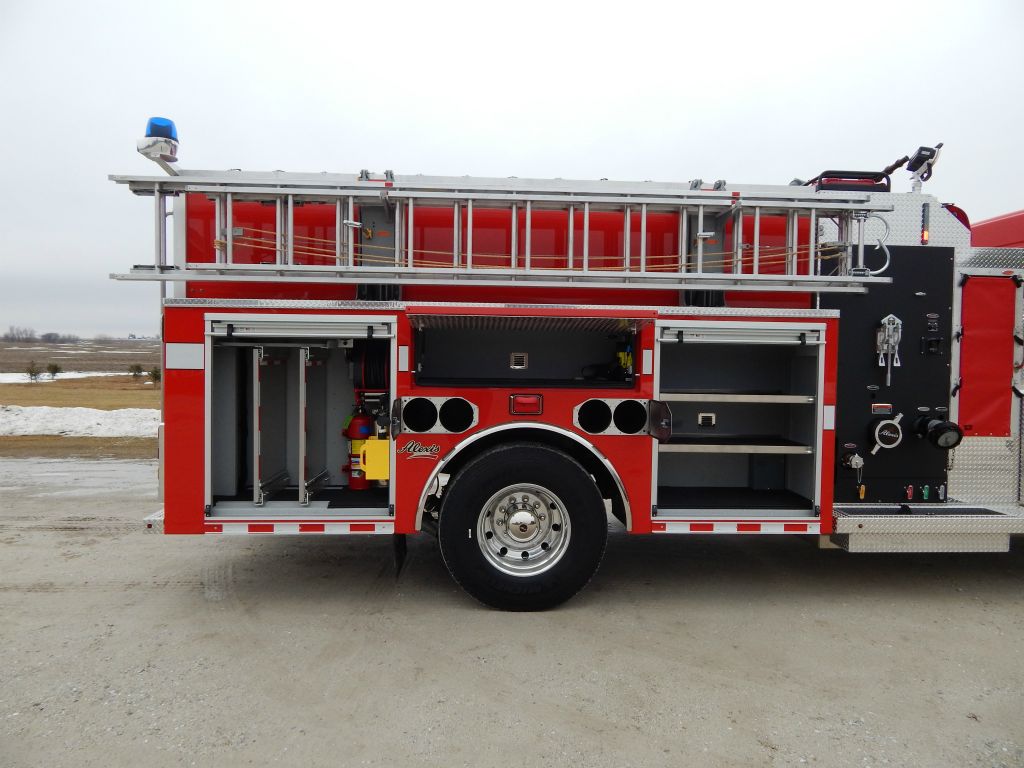

• Four (4) Dual bottle Air bottle compartments, two (2) each side rear wheel wells
• Two (2) vertical pull out tool boards, right side

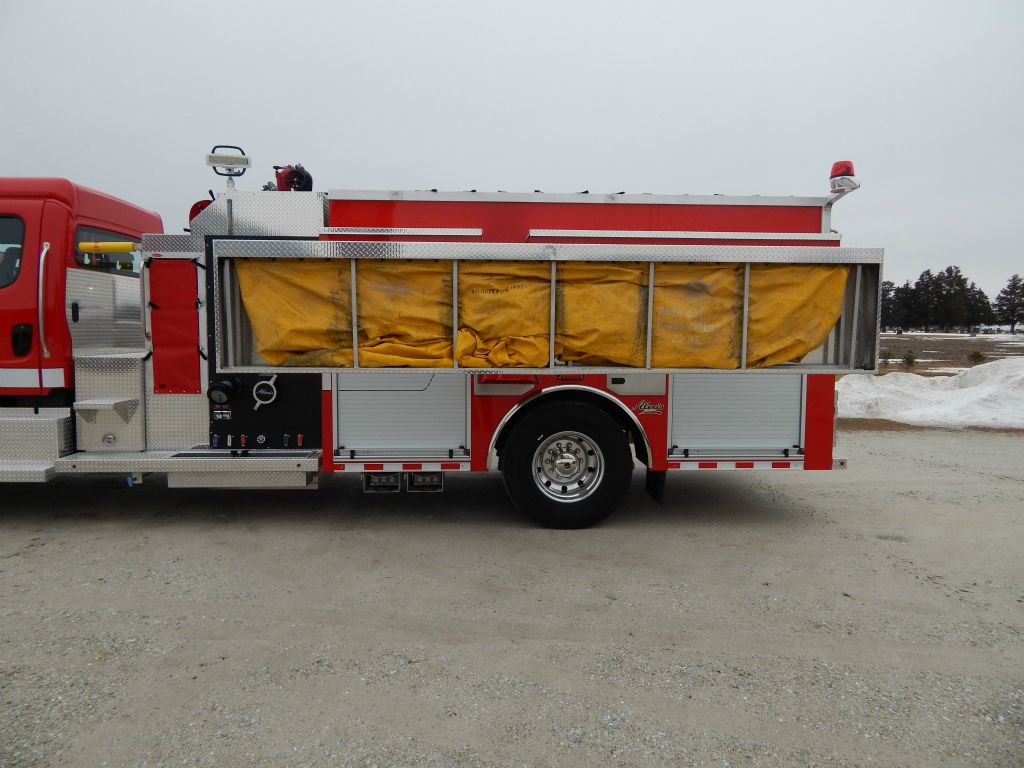

• Zico hydraulic folding tank rack for 3000-gallon tank, left side

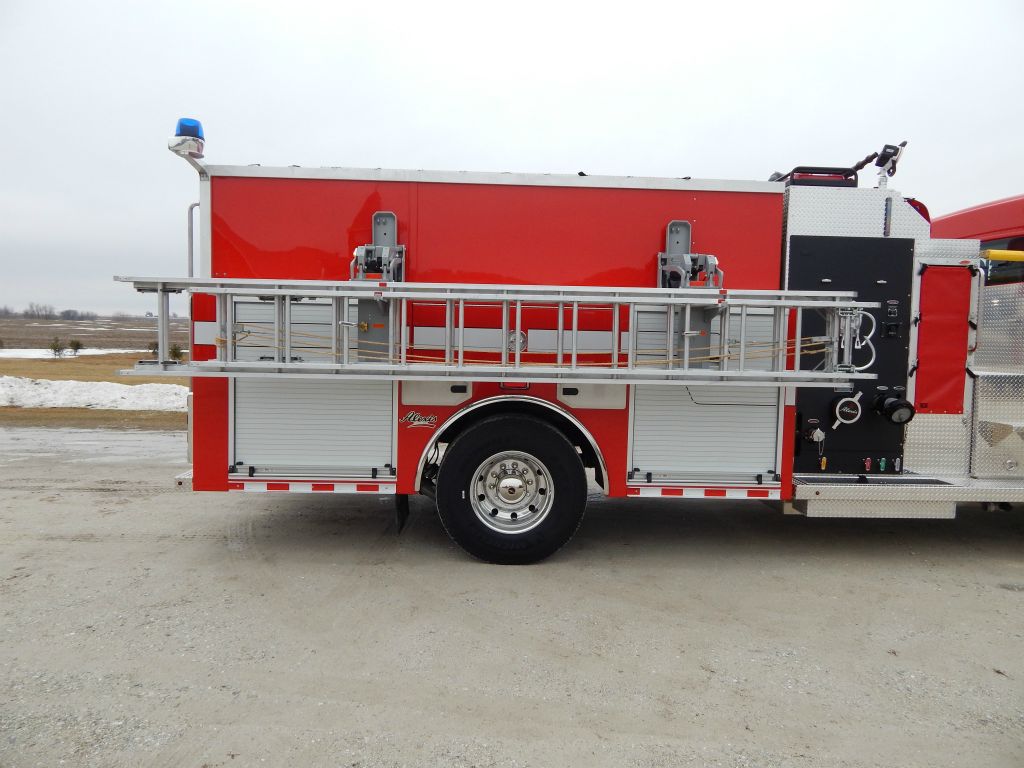

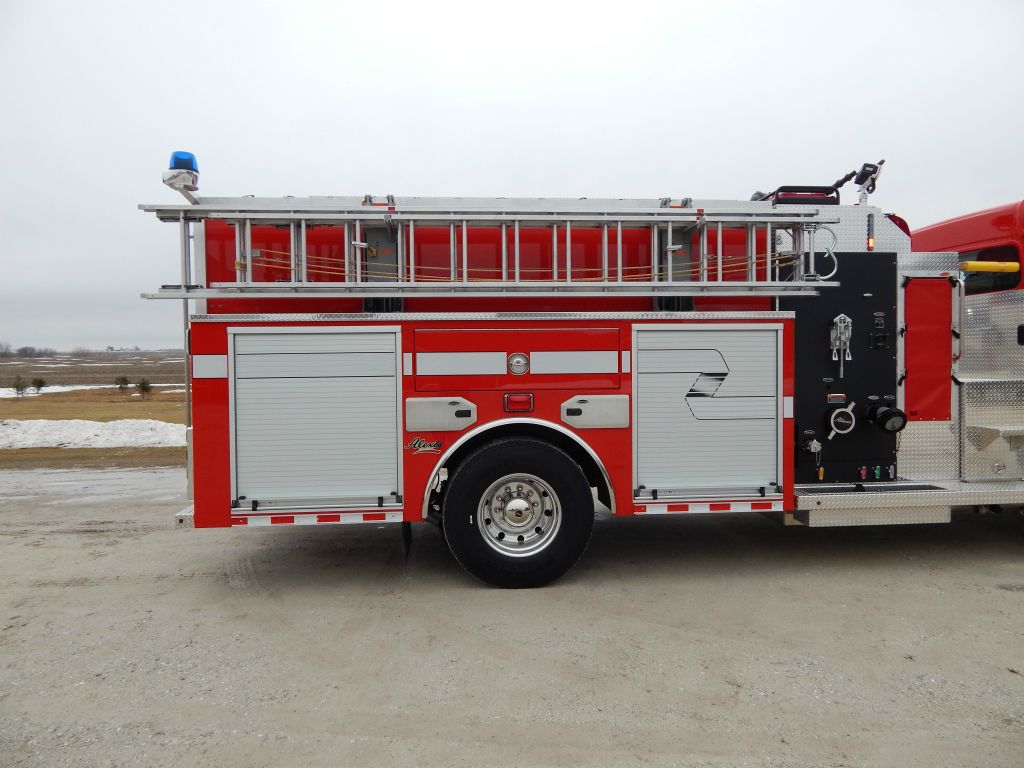

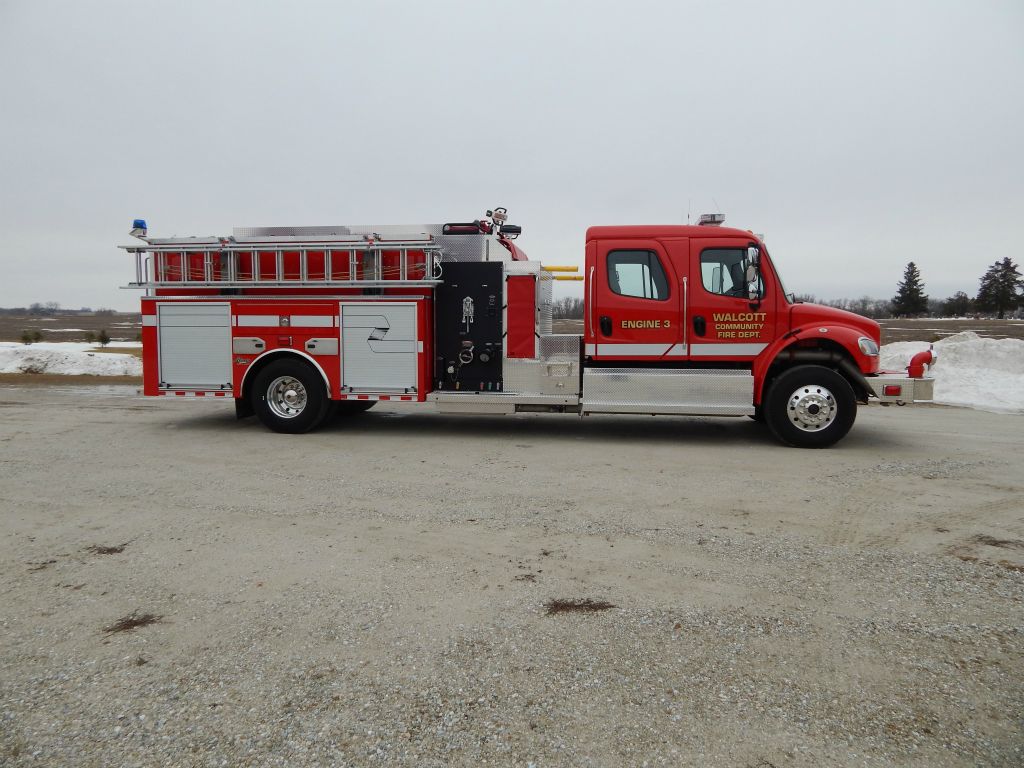

• Ziamatic electric ladder rack, right side
• Three (3) Suction hose storage, two (2) in the hosebed and one (1) left side
• Progressive Dynamics battery charger with Viair air compressor and Auto eject

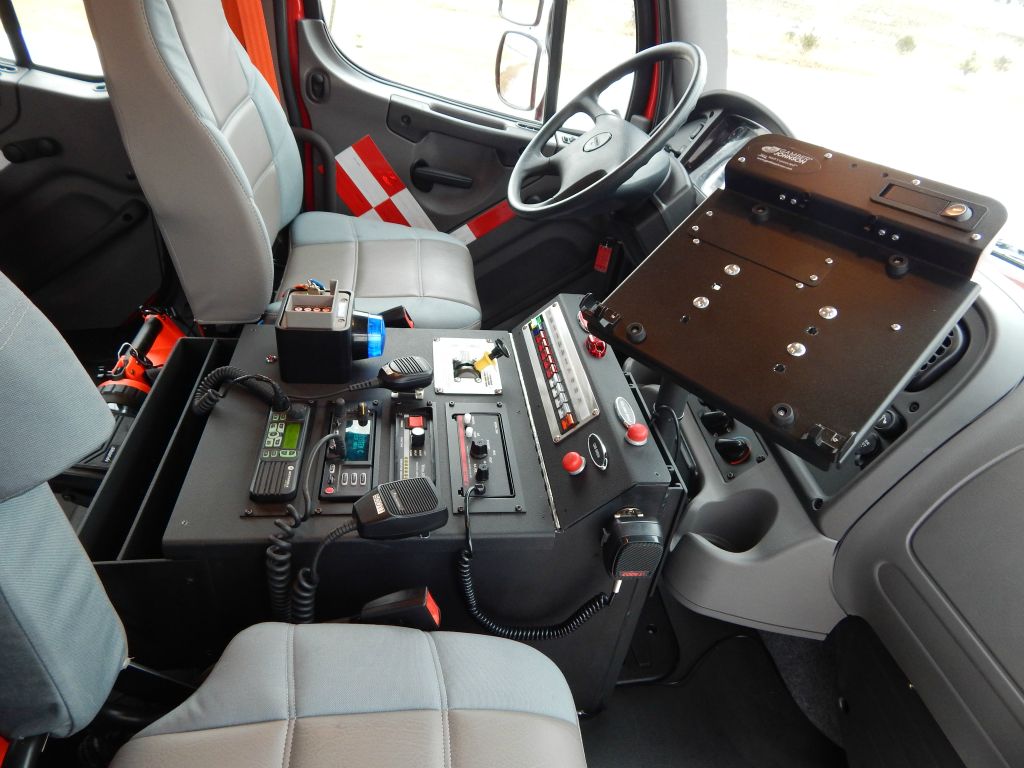

• Floor mounted console for emergency switches with map/binder storage
• Code 3 Electronic Siren with 100-watt Whelen speaker
• Federal Q2B mechanical Siren, flush mounted front bumper

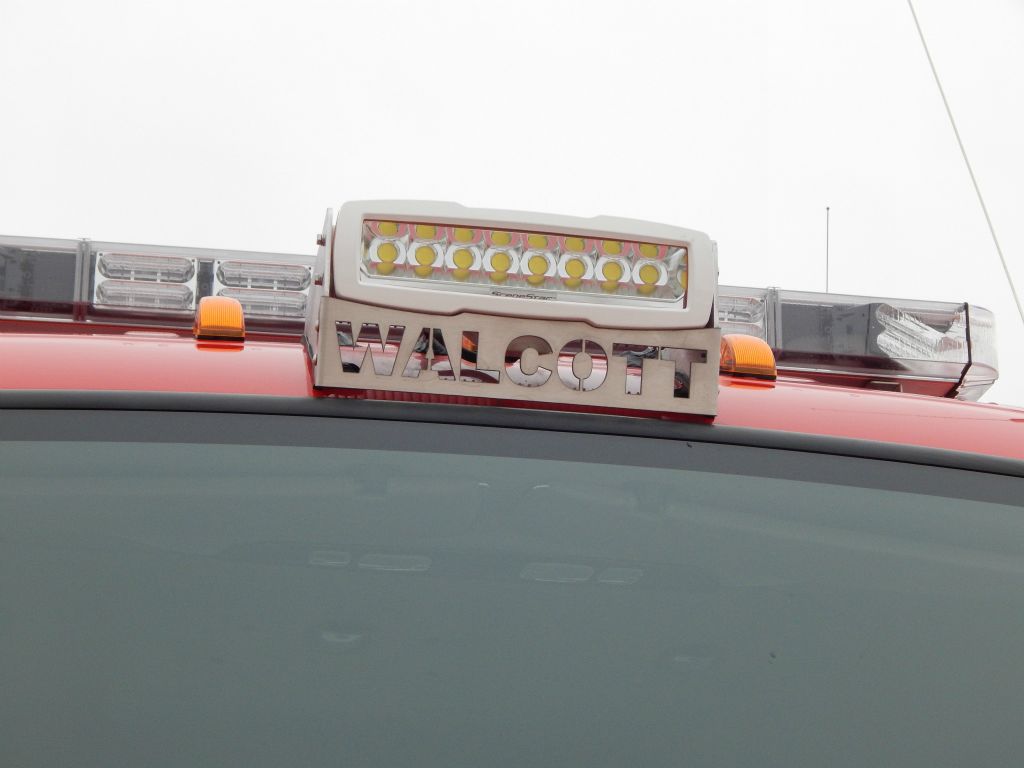

• 12-volt LED Scene light package
• Honda 6500-watt gasoline Generator with 120-volt system
• One (1) Akron electric cord reel with 150-ft of 10/3 cord and junction box, right

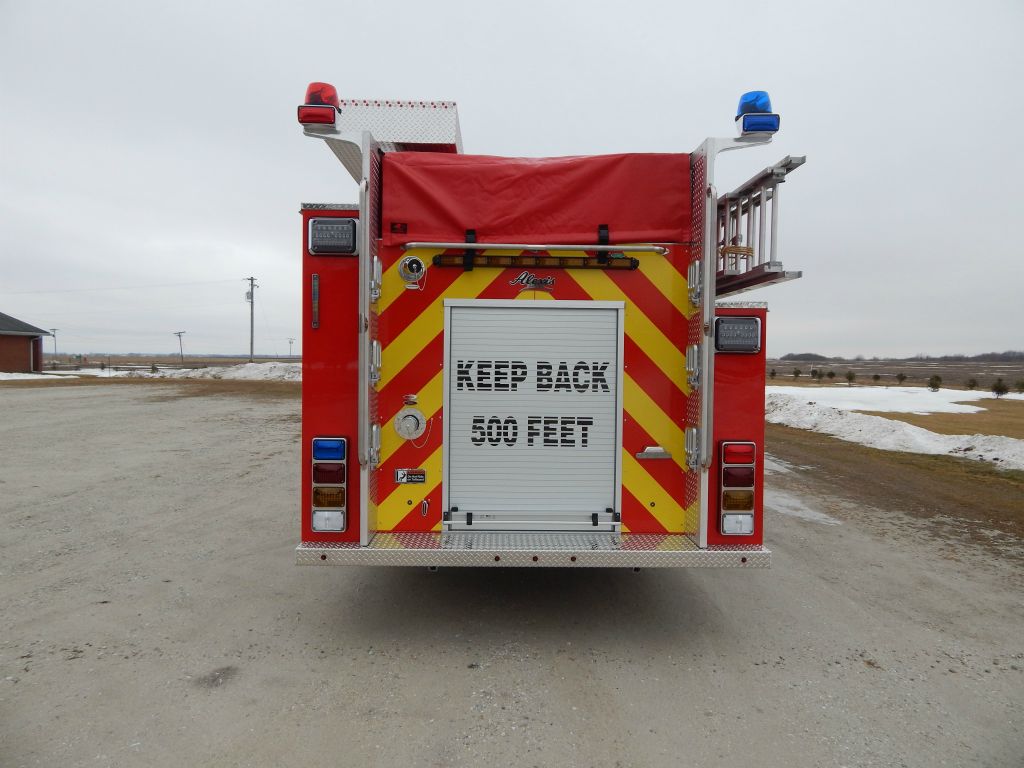

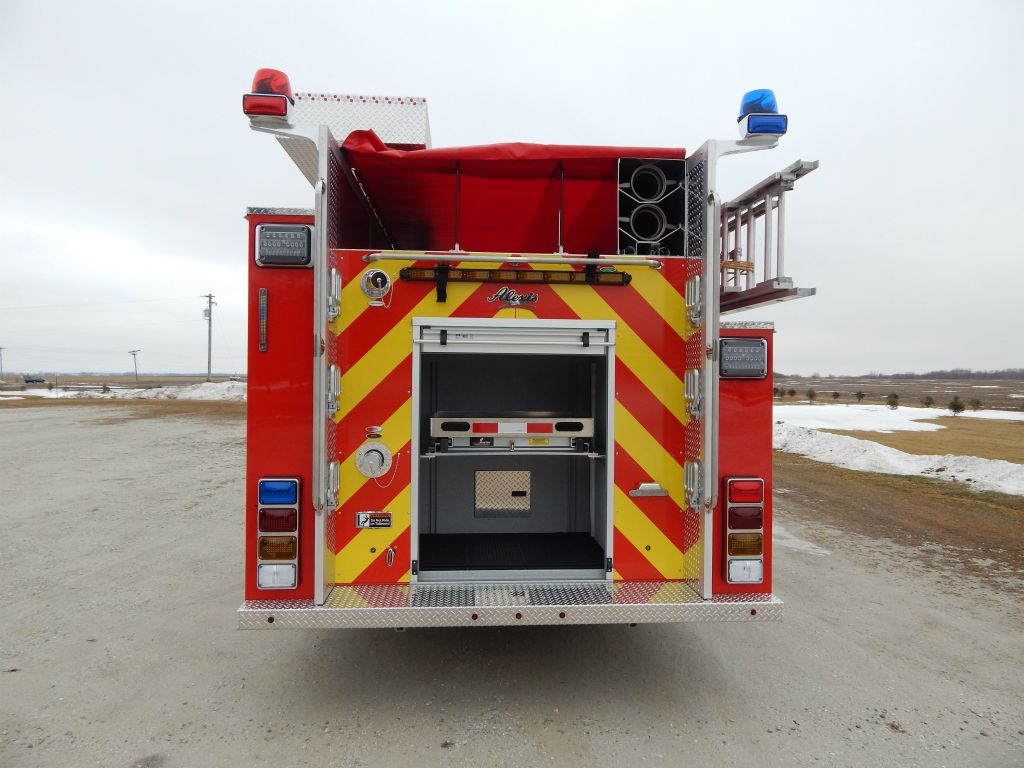

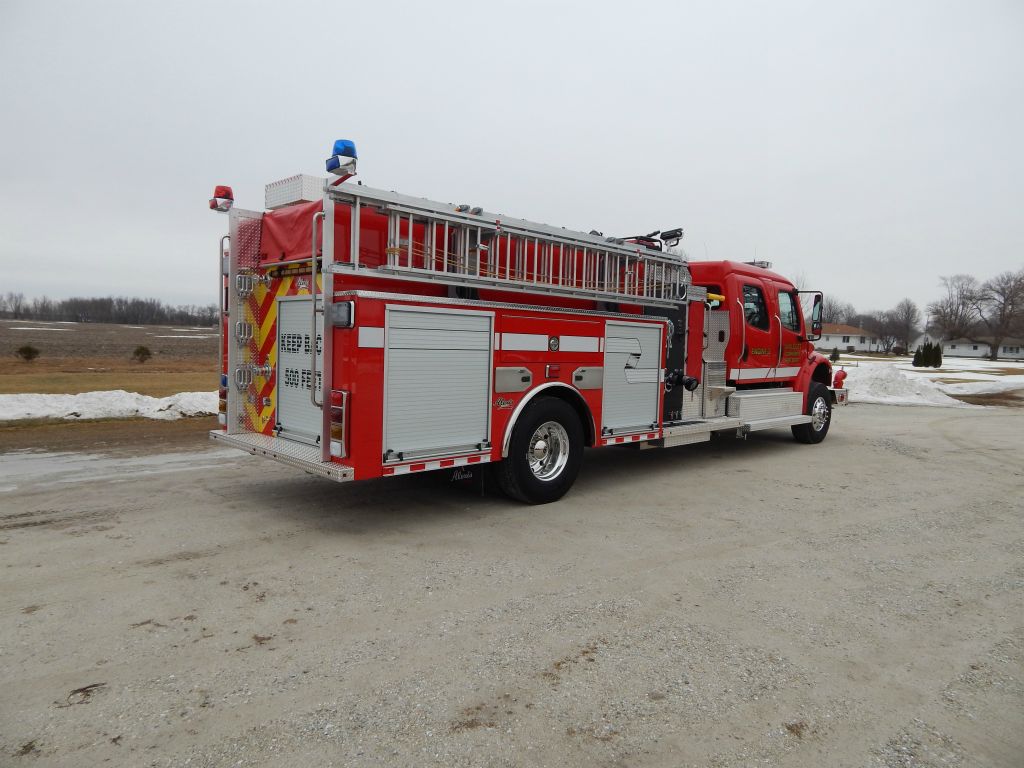

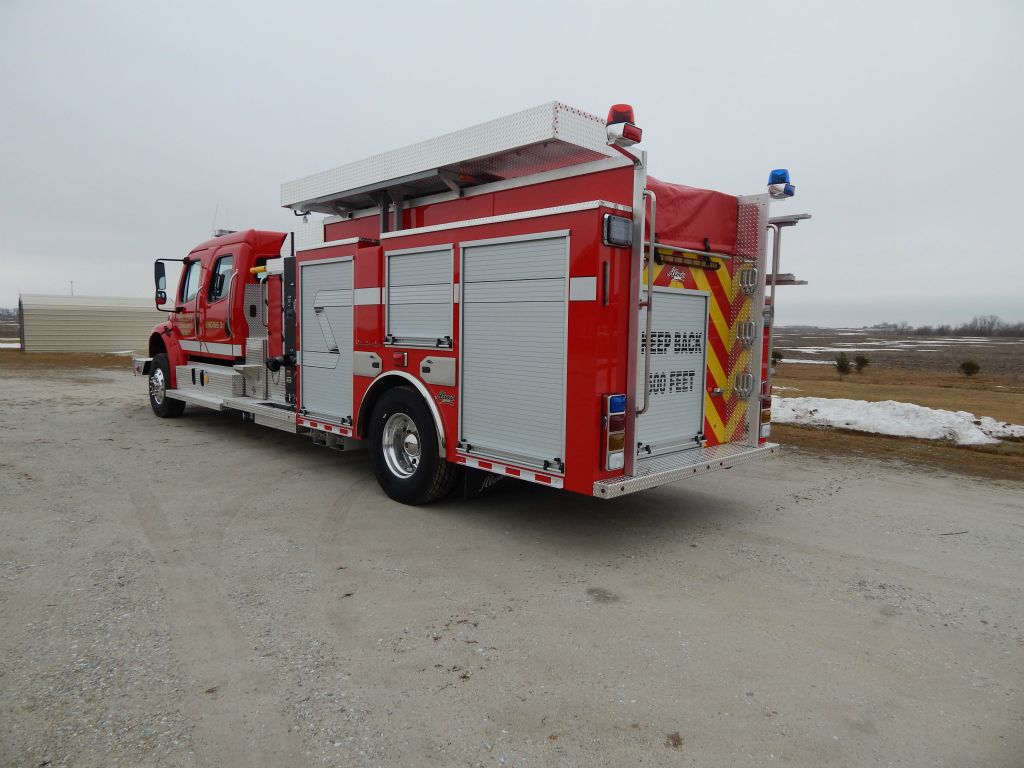

• Whelen LED Warning Light Package and Chevron pattern striping, rear
• 10' 3" Overall height
• 35' 7" Overall length
• 276" Wheelbase
• 163.2" Cab to Axle
• 16,000 FAWR
• 30,000 RAWR
• 46,000 GVWR
