WABASH FIRE PROTECTION DISTRICT
MATTOON, ILLINOIS
Technical Specs

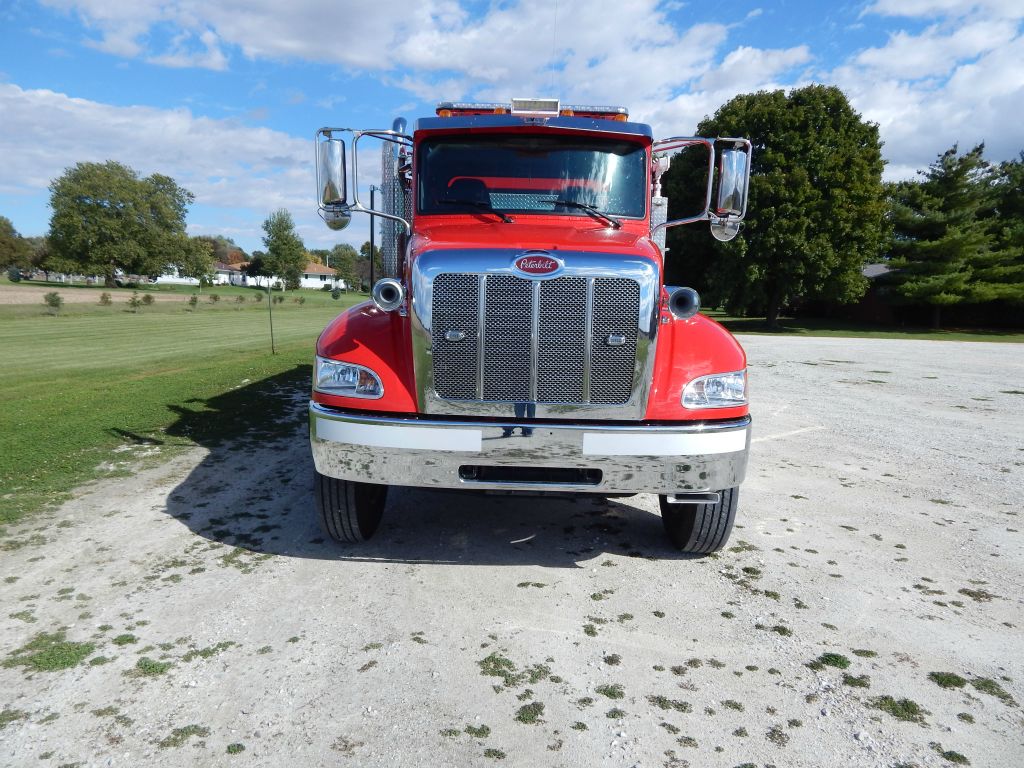

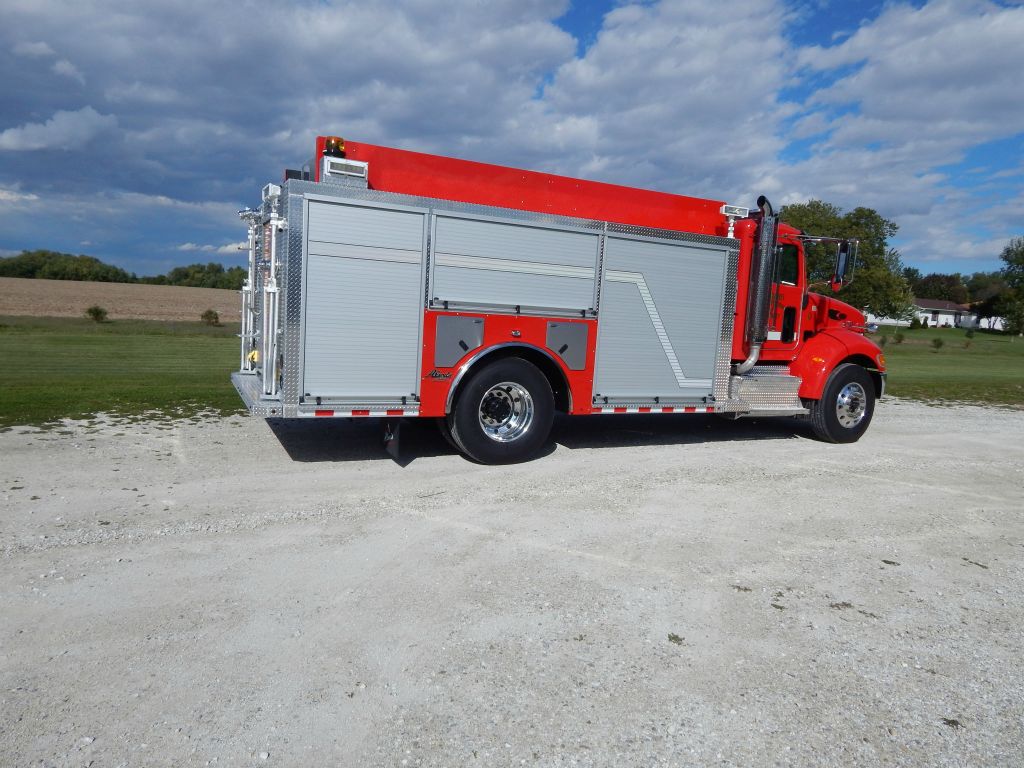

• Peterbilt 348 2-Door Chassis
• Paccar PX-9, 330-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body

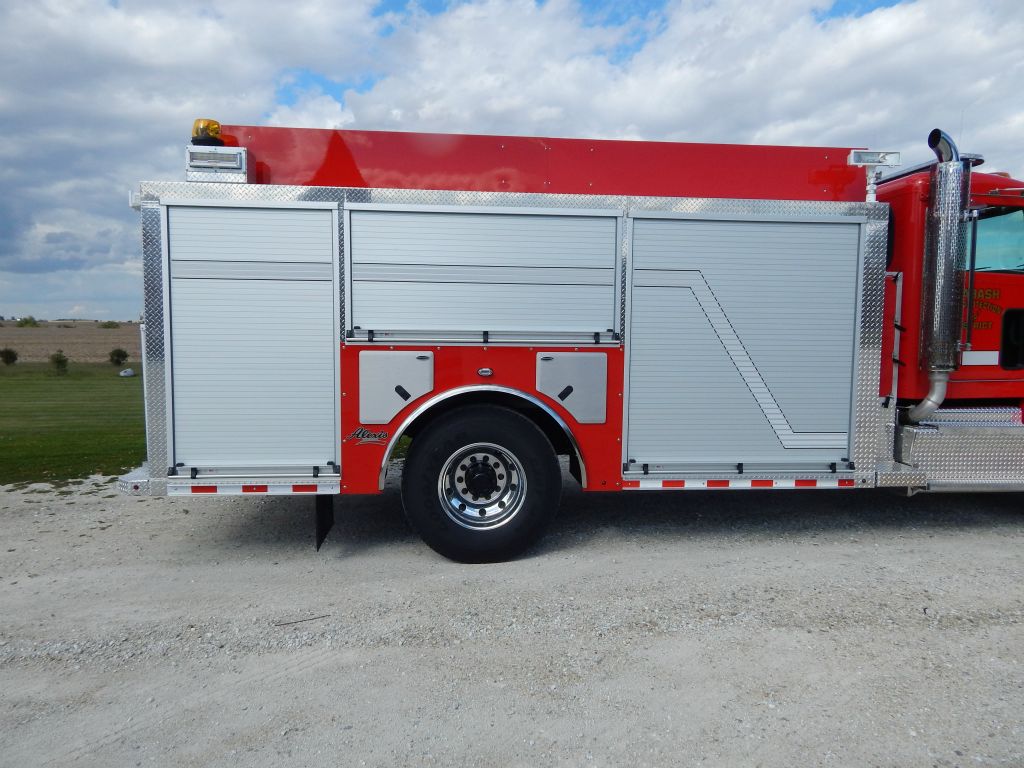

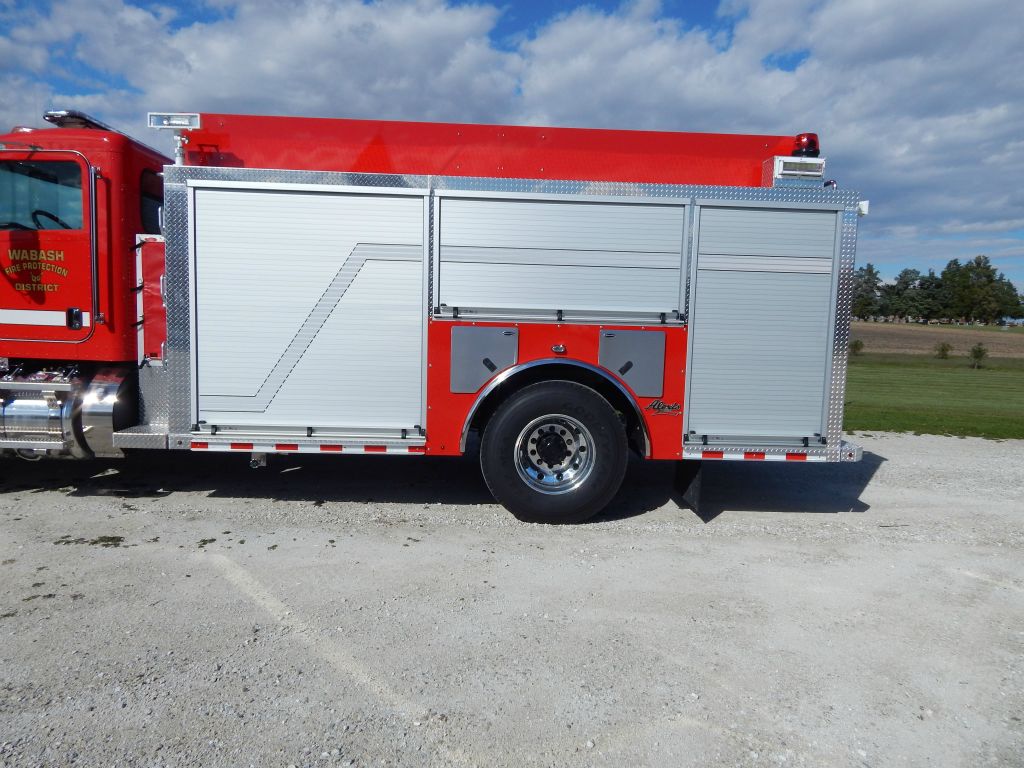

• ROM Roll Up compartment Doors
• 1000-Gallon Poly Tank
• One (1) 2 ½" Fireman's Friend Tank fill, rear
• Waterous CXVK, 1250-GPM Pump

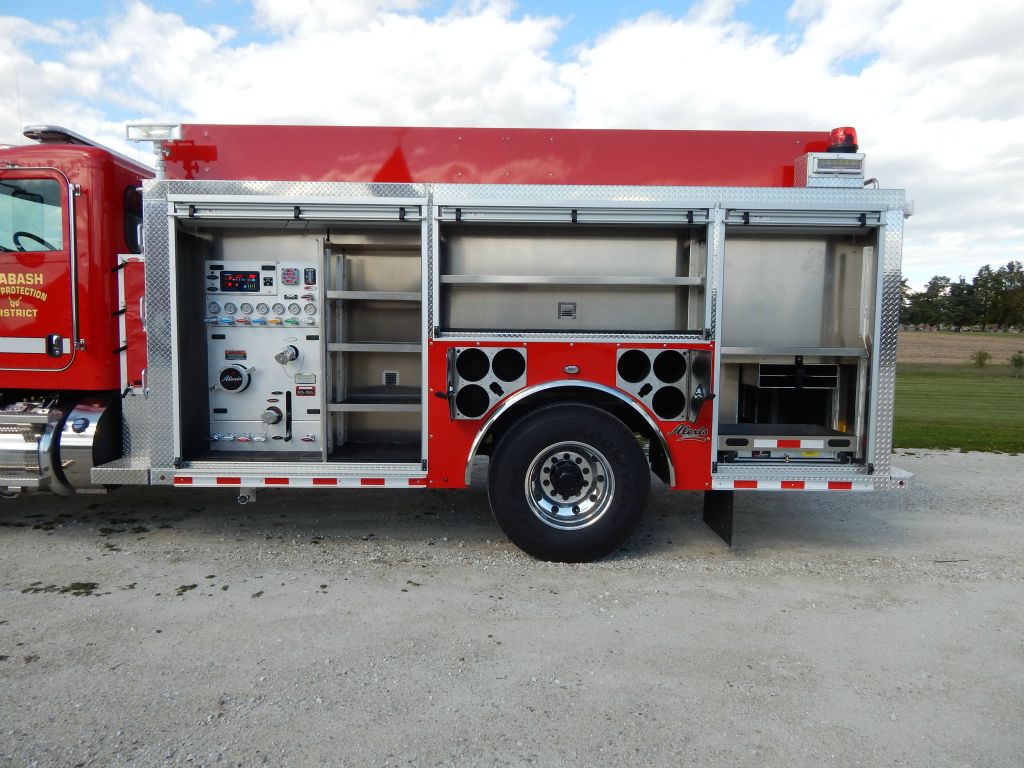

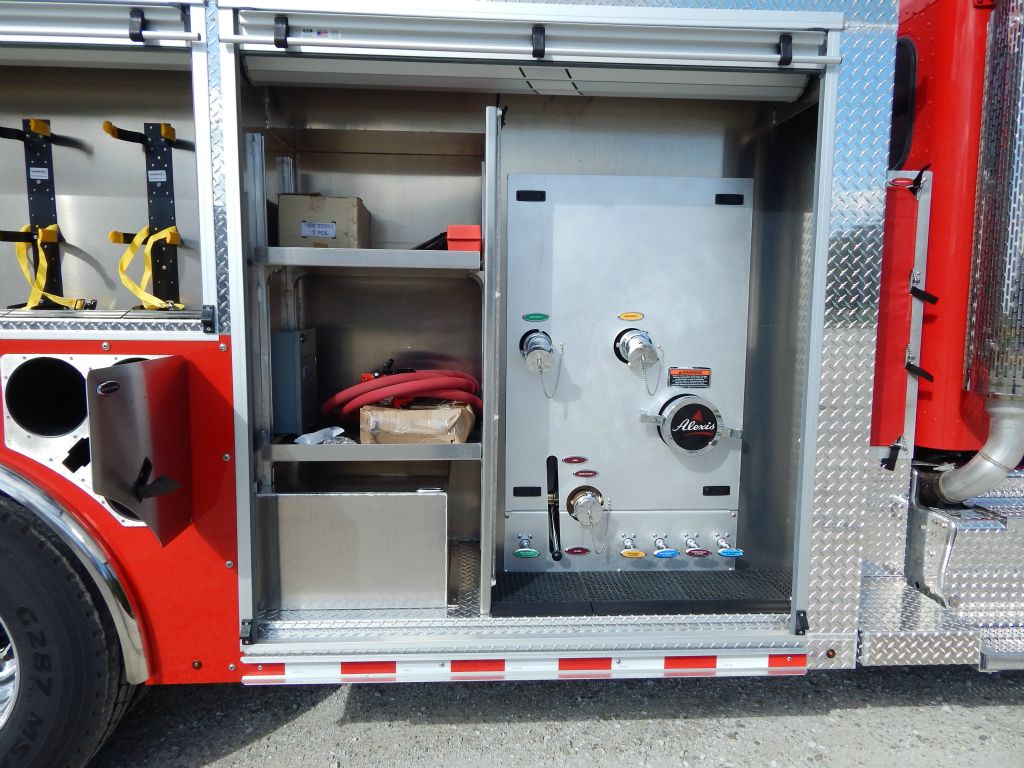

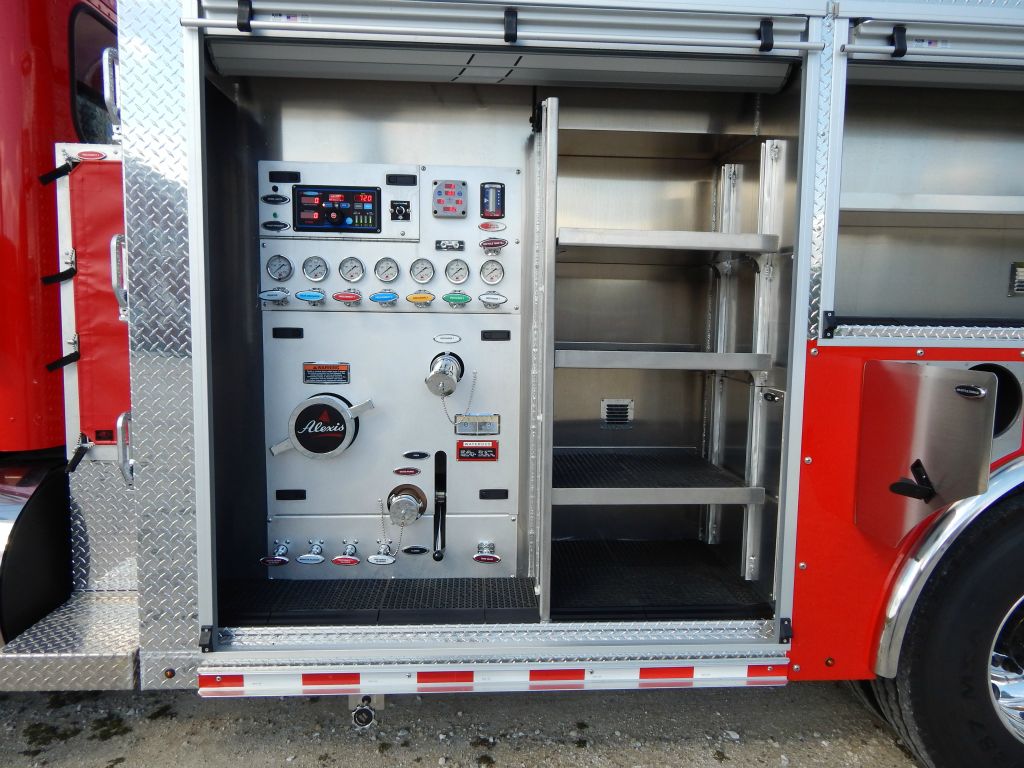

• Left side pump operator's panel behind roll up door
• Two (2) 2 ½" Discharges, one (1) each side
• Three (3) 3" Discharges, one (1) right side, one (1) rear and one (1) over pump
• Two (2) 2 ½" Gated Suction, one (1) each side
• Two (2) 1 ½" Cartridge Lay Preconnects, behind cab

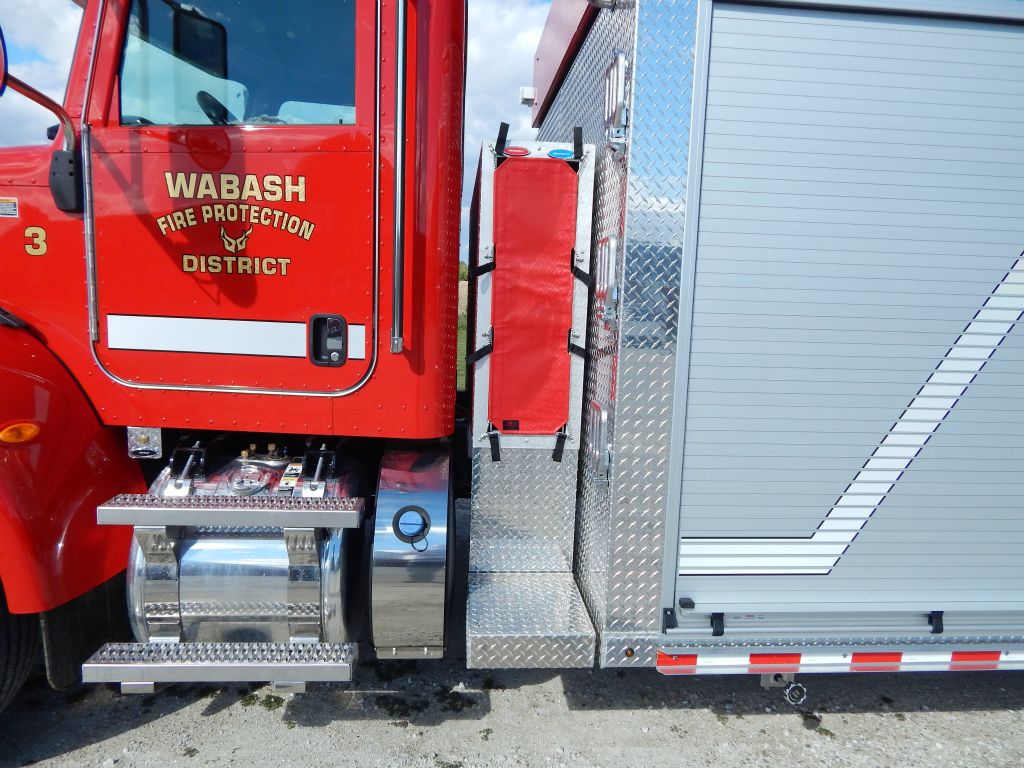

• Four (4) Triple bottle Air bottle compartments, two (2) each side wheel wells

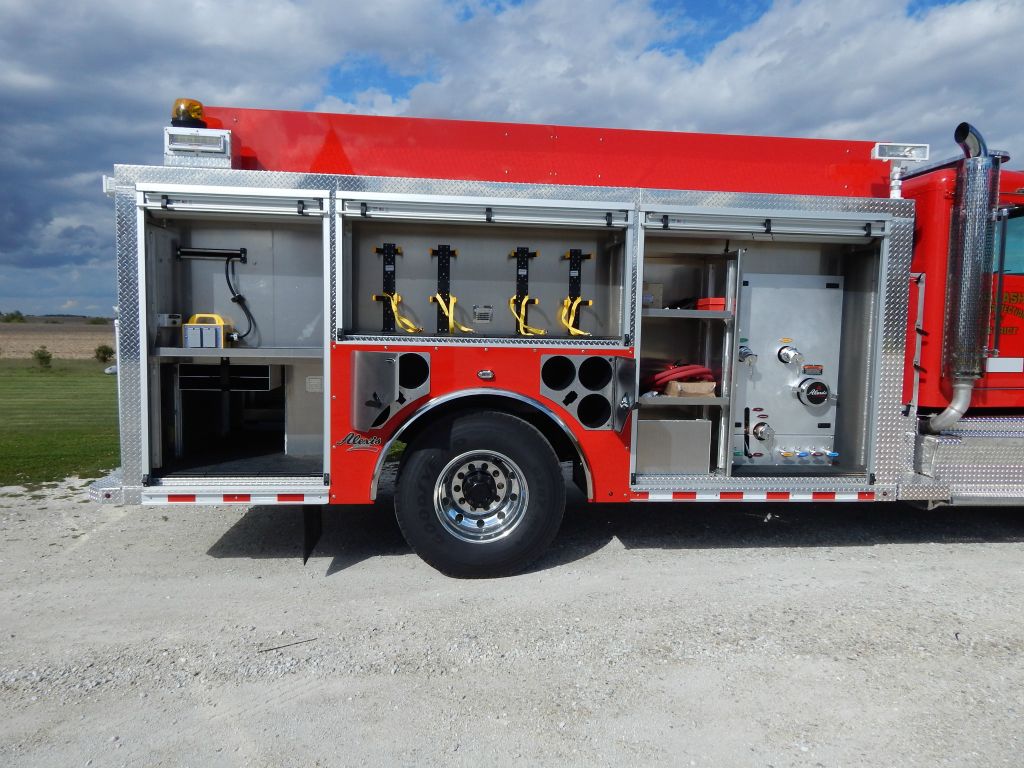

• Four (4) FlameFighter walk-away air pack brackets, right side

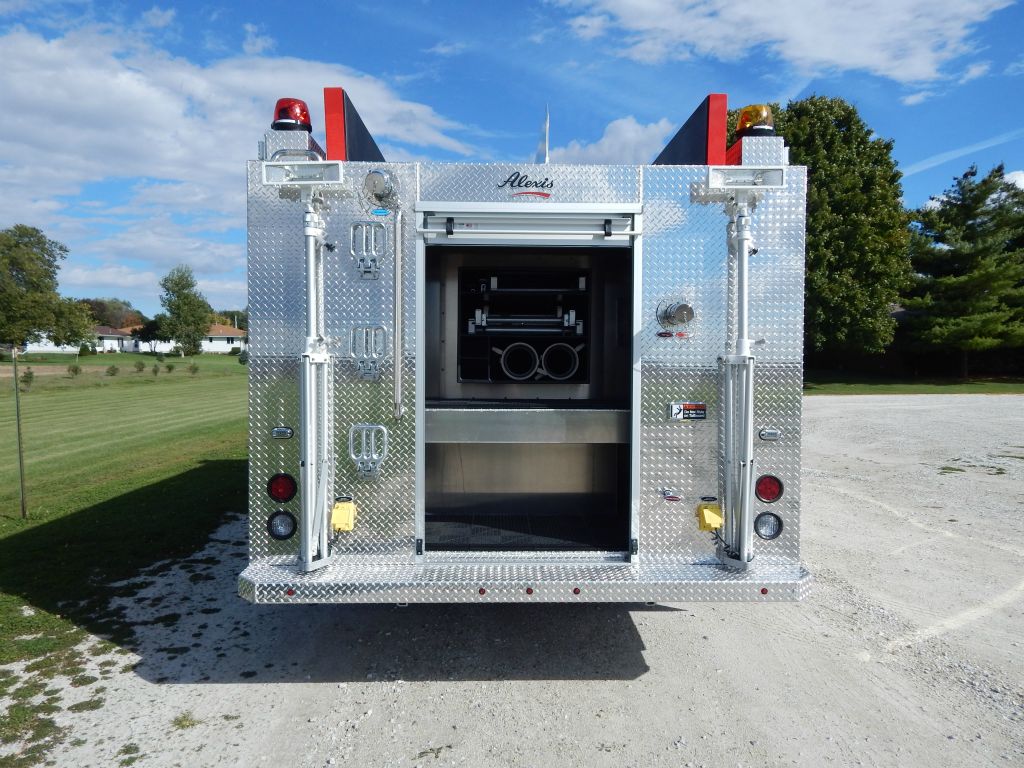

• One (1) Backboard rack, rear transverse compartment

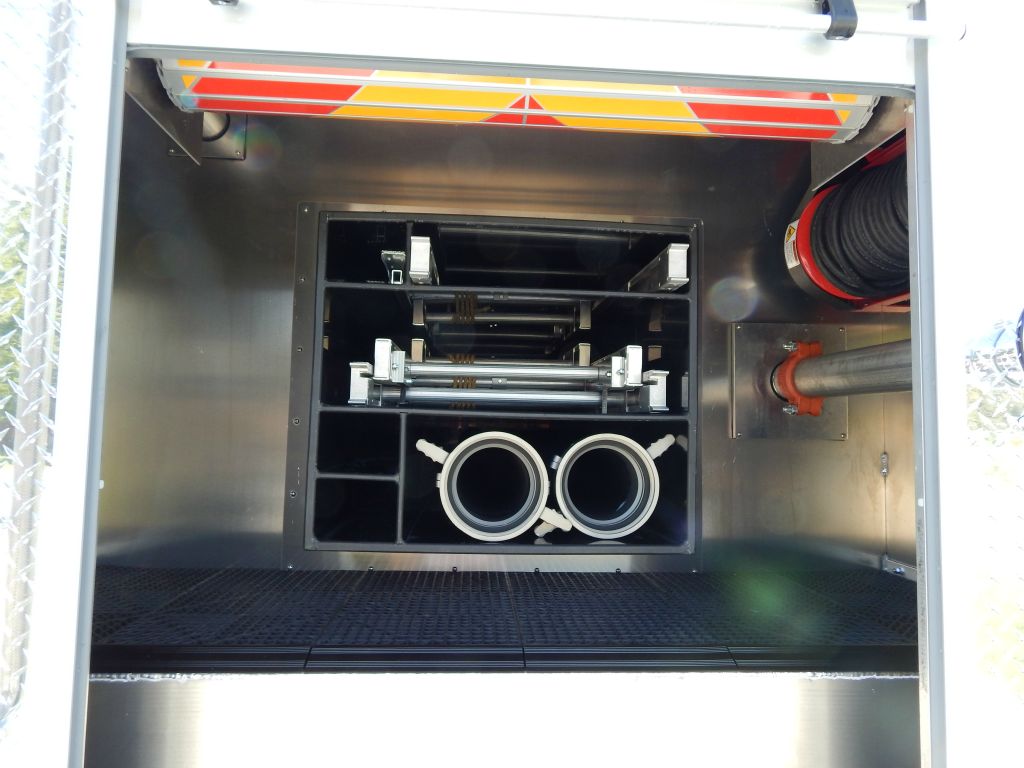

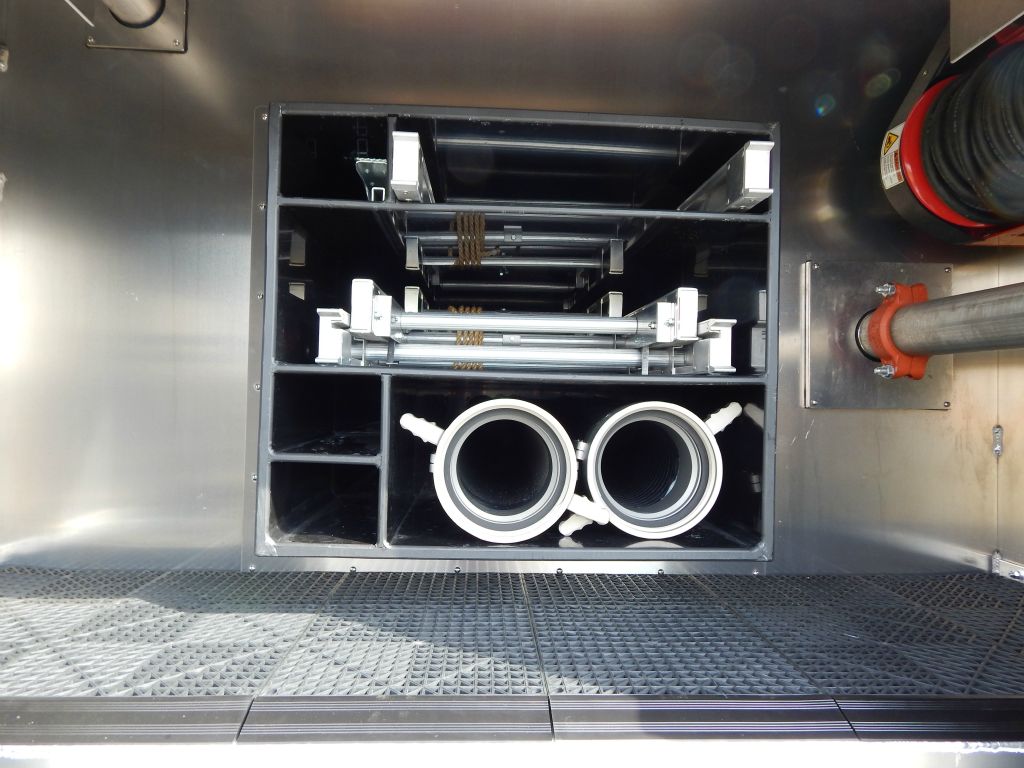

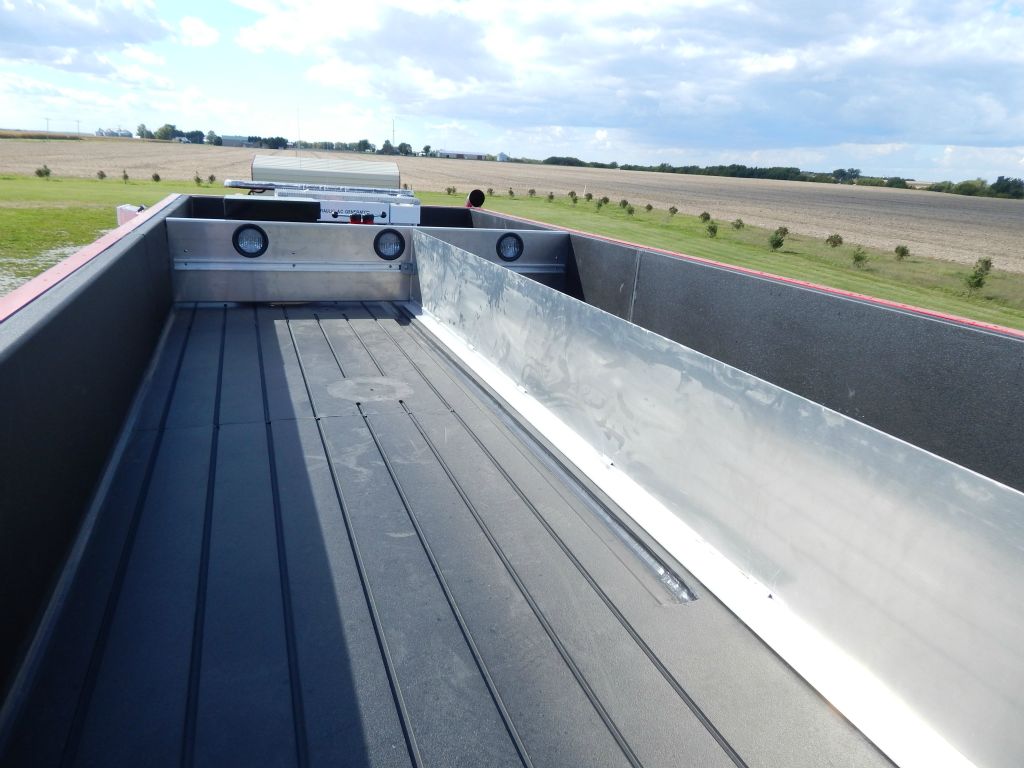

• Ladder/Suction hose storage compartment, through tank with rear access
• Turtle Tile on floors and/or shelves and trays of compartments
• Air coupling for external compressor
• Code 3 Electronic Siren with Cast Products speaker
• Two (2) Air Horns, one (1) each side of hood
• Three (3) FRC 12-volt LED Scene lights, one (1) each side and one (1) brow

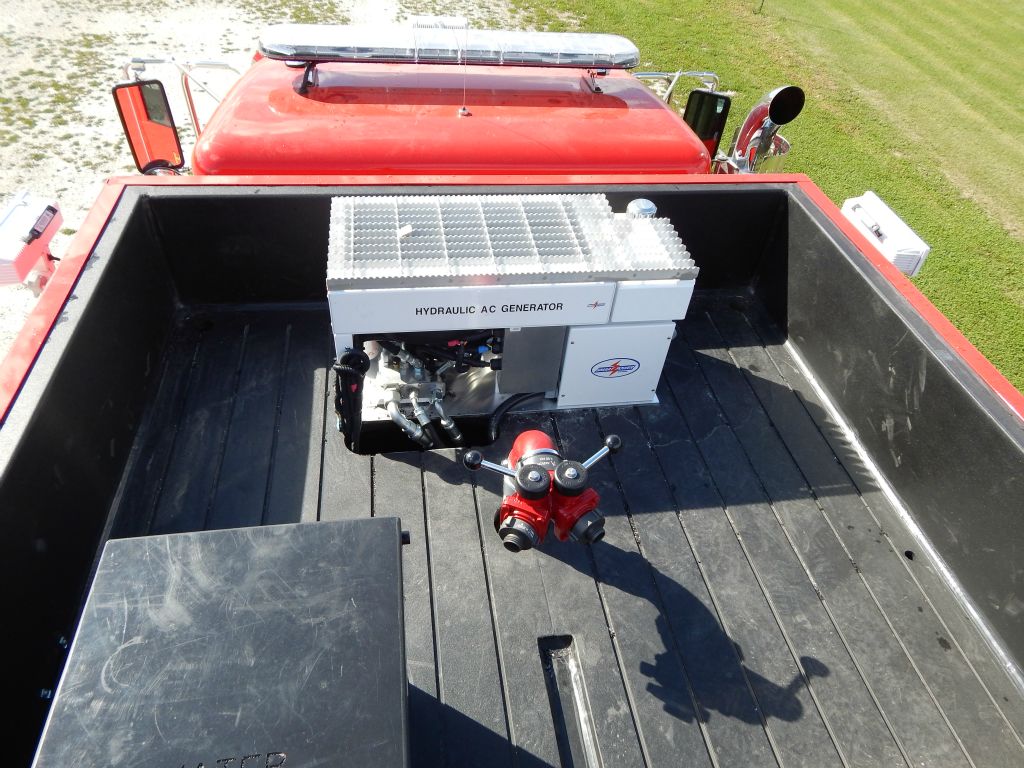

• Smart Power 5500-watt Generator with 120-volt system
• One (1) Electric cord reel with 100-ft of 10/3 cord and junction box, right side
• Two (2) Extenda-Lite 120-volt 750-watt telescopic lights, one (1) each side
• Two (2) Extenda-Lite 120-volt 750-watt telescopic tripod lights, rear
• Whelen LED Warning Light Package

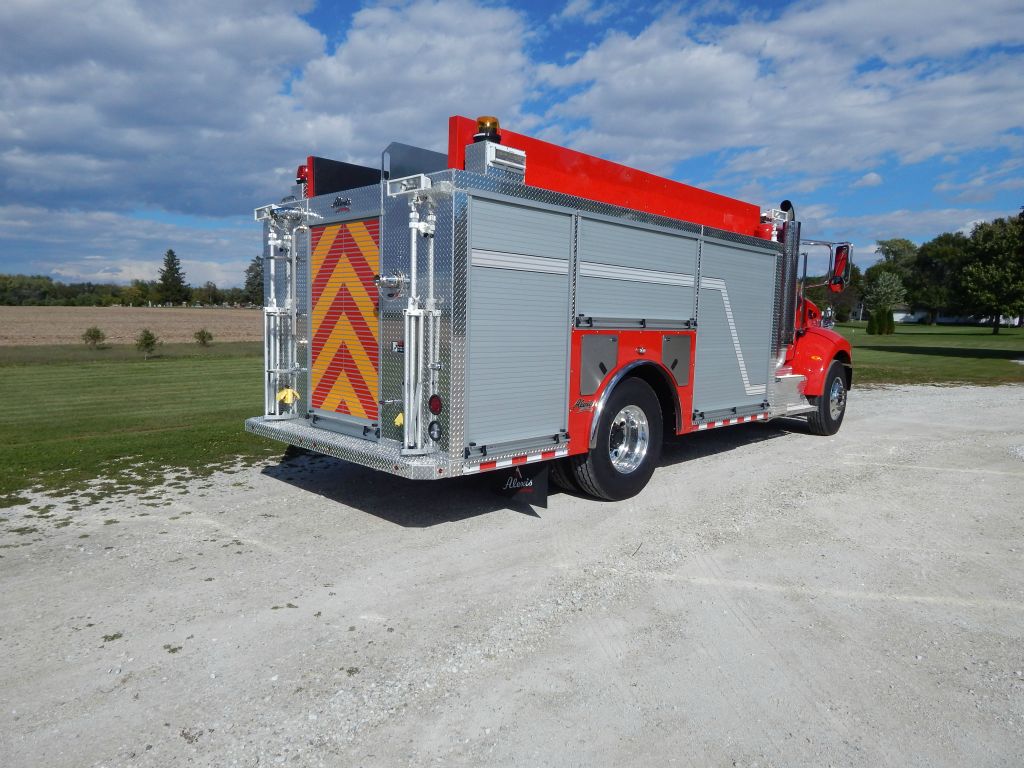

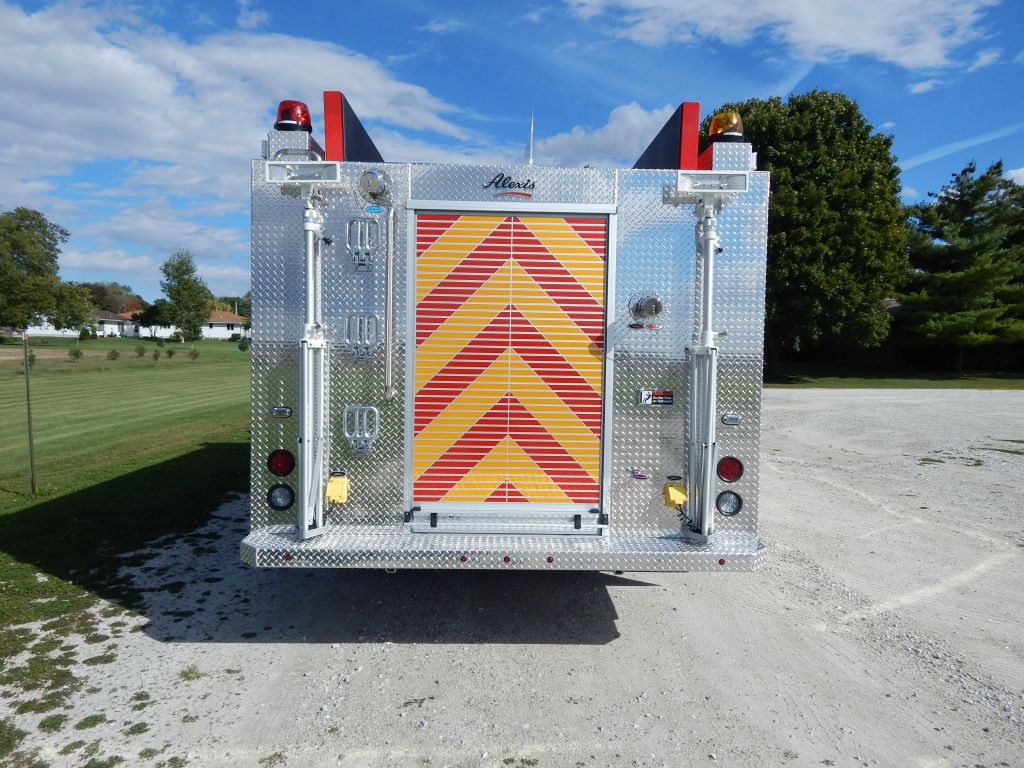

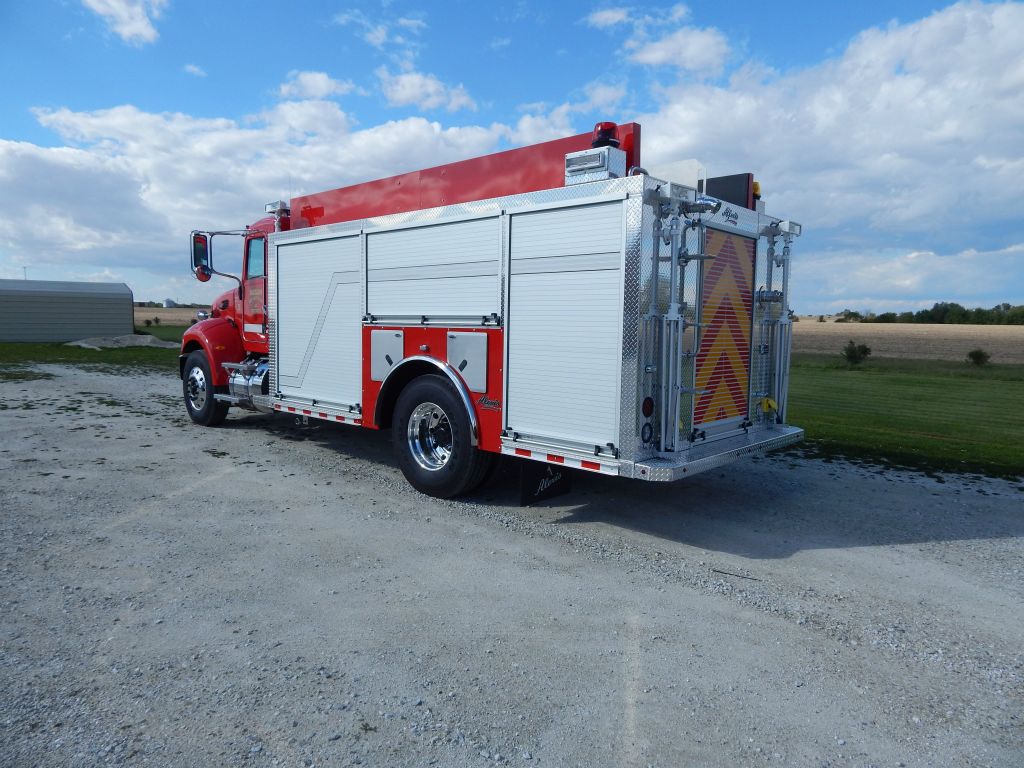

• Chevron pattern striping, rear
• 9' 10" Overall height
• 26' 10" Overall length
• 193" Wheelbase
• 123" Cab to Axle
• 12,000 FAWR
• 26,000 RAWR
• 38,000 GVWR
