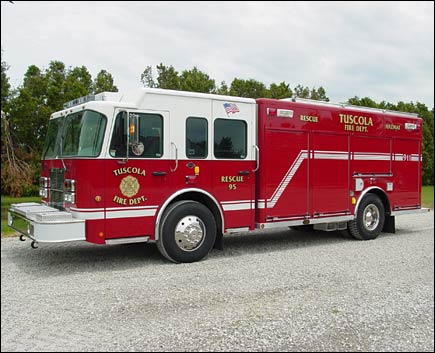

City Of Tuscola, Tuscola
Fire Department
Tuscola, Illinois
Technical Specs
Spartan Big Easy MFD (medium
four door) 10" raised roof Chassis
Caterpillar C7, 330-HP Diesel Engine
Allison 3000 EVS Automatic Transmission
Heavy Duty 3/16" Aluminum Body
ROM Roll Up Doors
Six (6) Upper storage compartments on the roof
with lift up doors, three (3) each side
Zico fold down roof access ladder, rear
Two (2) Bumper extension compartments with
treadplate covers, one (1) each side front bumper
Winch center front bumper storage area with
cover
Reese type trailer hitch/receivers, front and
rear
Ramsey QM 9000, 9000-lb. winch
Kussmaul 1200 Battery Conditioner with Viair
air compressor
Kussmaul Super Auto Eject 20-amp electrical
receptacle
Firecom Intercom system with six (6) headsets,
two (2) radio transmit capable
One (1) Hannay Dual Hydraulic hose reel, top
of rear compartment
Six (6) FlameFighter walk-away Air Pak brackets,
left side compartment
Three (3) Air Bottle compartments, one (1)
left side and two (2) right side
Onan 15-kw hydraulically driven Generator
One (1) Akron electric cord reel with 200-ft.
of cord, right side compartment
Four (4) Akron Brass Extenda Light 120-volt,
750-watt recess mounted floodlights
One (1) Akron Brass Extenda Light 120-volt,
1000-watt telescopic tripod light
One (1) Norcold 3.6-cu.ft. Refrigerator/Freezer,
left side compartment
Cascade System with four (4) 6000-psi bottles,
right side control panel
Dual Hadley Stuttertone 24" Air Horns,
front bumper extension
Code-3 Electronic siren with Federal 100-watt
speaker
Whelen Warning Light Package
9' 8" Overall height
31' 8" Overall length
200 /187"Wheelbase
146"/133" Cab to Axle
18,000 FAWR
27,000 RAWR
45,000 GVWR
|
