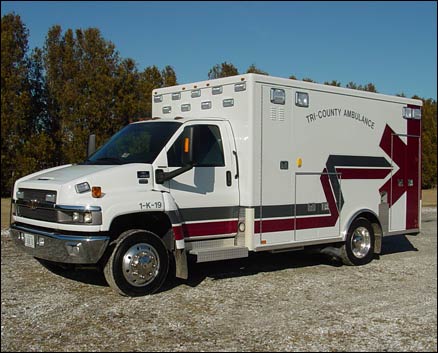

Tri-County Ambulance
Alpha, Illinois
Technical Specs
• GM 4500 2-dr Chassis
• 6.6 Durmax V-8 Diesel
• Alternator: Dual 105amp
• Allison EVS 1000 5spd transmission
• AEV Extruded Aluminum Body
• Whelen 900 series Scene Lights
• Whelen LED warning light package
• Six inch body drop on curb side
• Auto rear dump for easier loading and unloading
• Nine ft 4in ( 9. 4") overall height
• MX-1, Multiplex Electrical System
• Link Air Ride Suspenion
• Ext Lighting: Weldon LED
• Tail Lights: Weldon LED
• SceneLights: Whelen 900
• Lightbar: Whelen LED Wide Body 700Super LED
• (4) Side Whelen 900 super LED Red/Blue Split
• Power Door Locks: Module Doors-Full Mod
• Video Back-up system, Audiovox Color, 7"
Monitor LCD
• Interior: Mica Colors- Fleece Gloss over Khaki
Gloss
• Upholstery: Vacuum Formed- Seamless
• Mica Stripe: Burgandy
• Attendant Seat: Hi-back captains chair-Vacuum
Formed Uph
• Wall Cabinets: Doors, Sliding Lexan, Mitered
• AL Assy: Restocking Hinged Top, Gas Shock installed
to hold door open at 90% degree.
• Action Area: Surface- Wilsonart Material Color,
Acadia Melange
• Flooring: Lonplate II- Gun Metal ( Dk Gray)
• Stainless Rear Threshold 6" Wide x Full
Width at rear doors, installed with yellow safety stripes
nonskid tape over threshold.
• Exterior Door Handles: Tri-Mark 850 Large Chrome
Paddle Handle
• Body: 172x95x72"
• 165.5" Wheelbase
• 7,000lb FAWR
• 10,500 RAWR
• 17,500 GVWR
|
