VILLAGE OF TILTON FIRE DEPARTEMENT
TILTON, ILLINOIS
Technical Specs

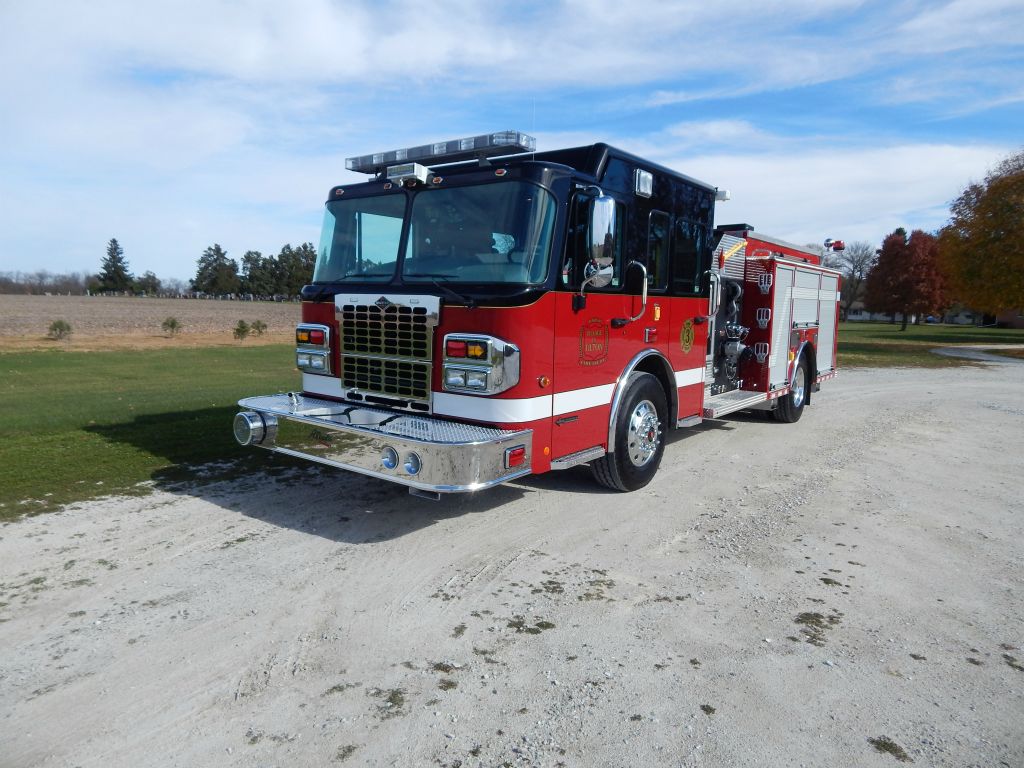

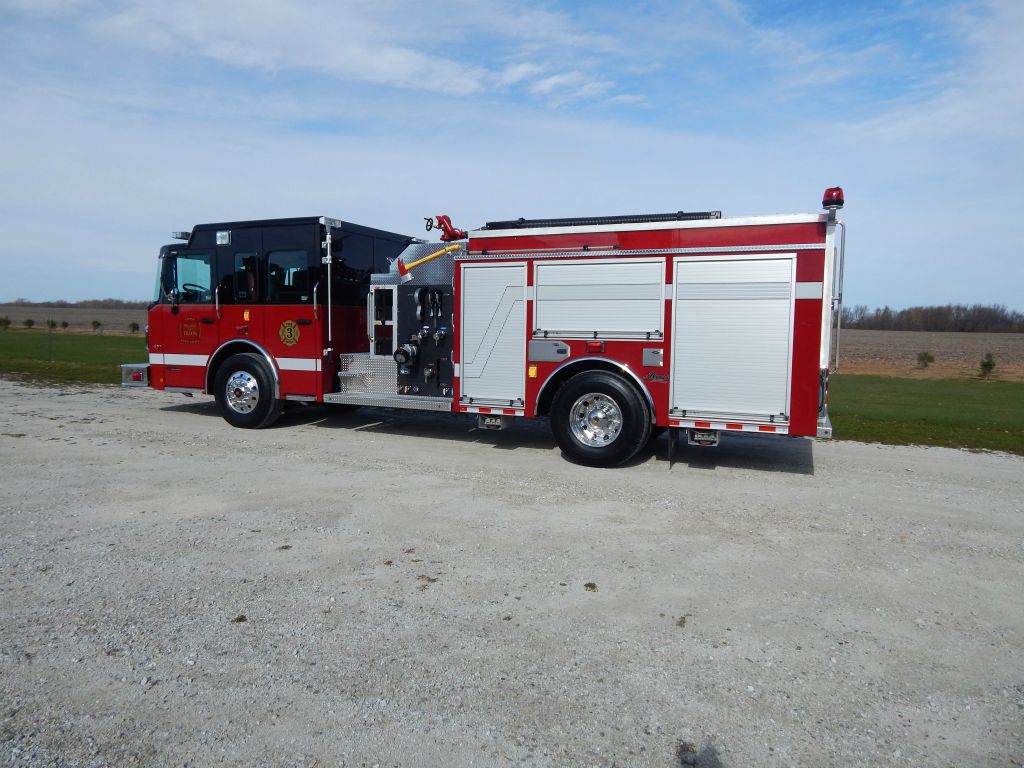

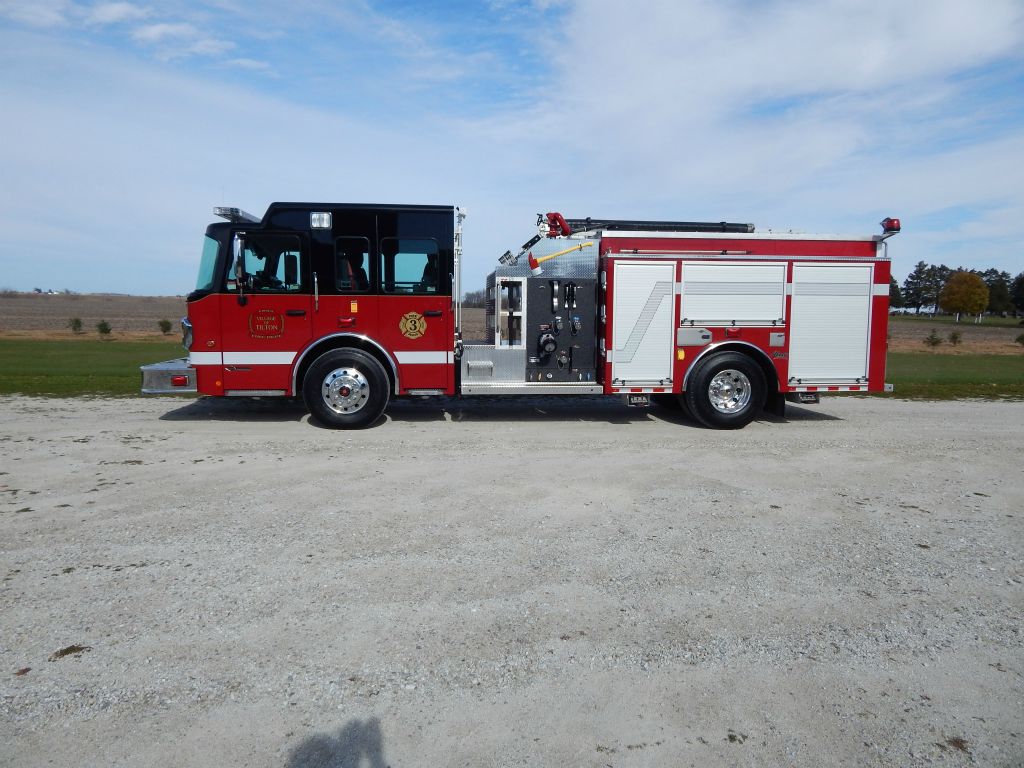

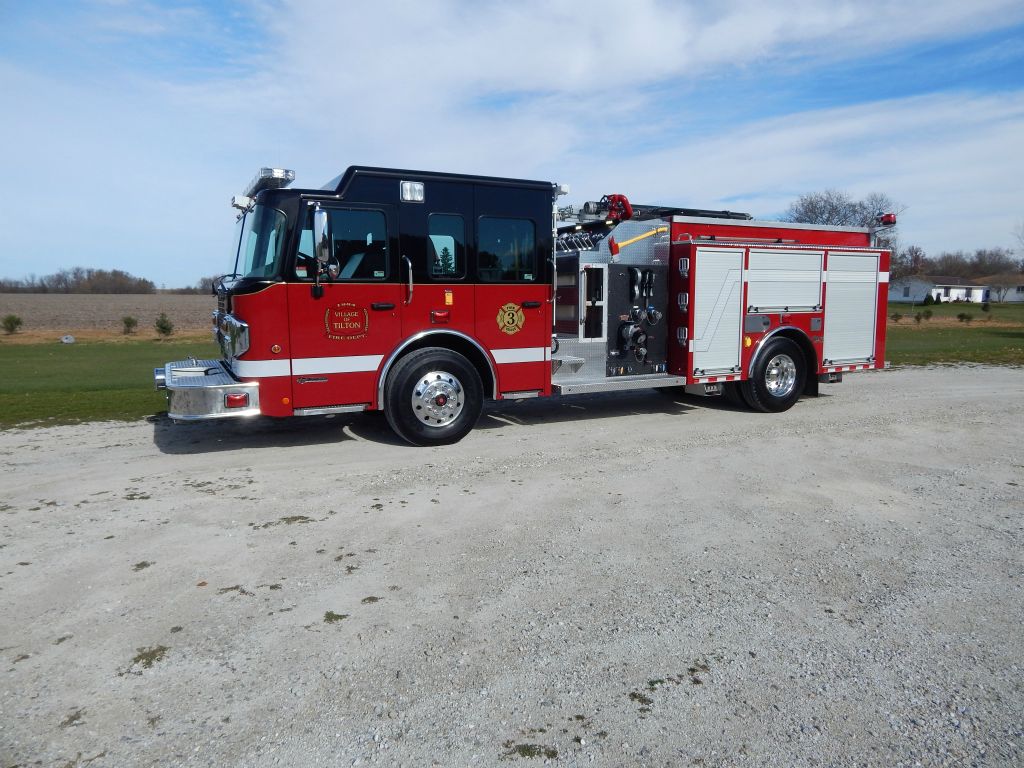

• Spartan Metro Star MFD 10" raised roof Chassis
• Cummins ISL9, 380-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Six (6) man cab seating with five (5) SCBA seats
• Heavy Duty 3/16" Aluminum Body with ROM Roll Up Doors

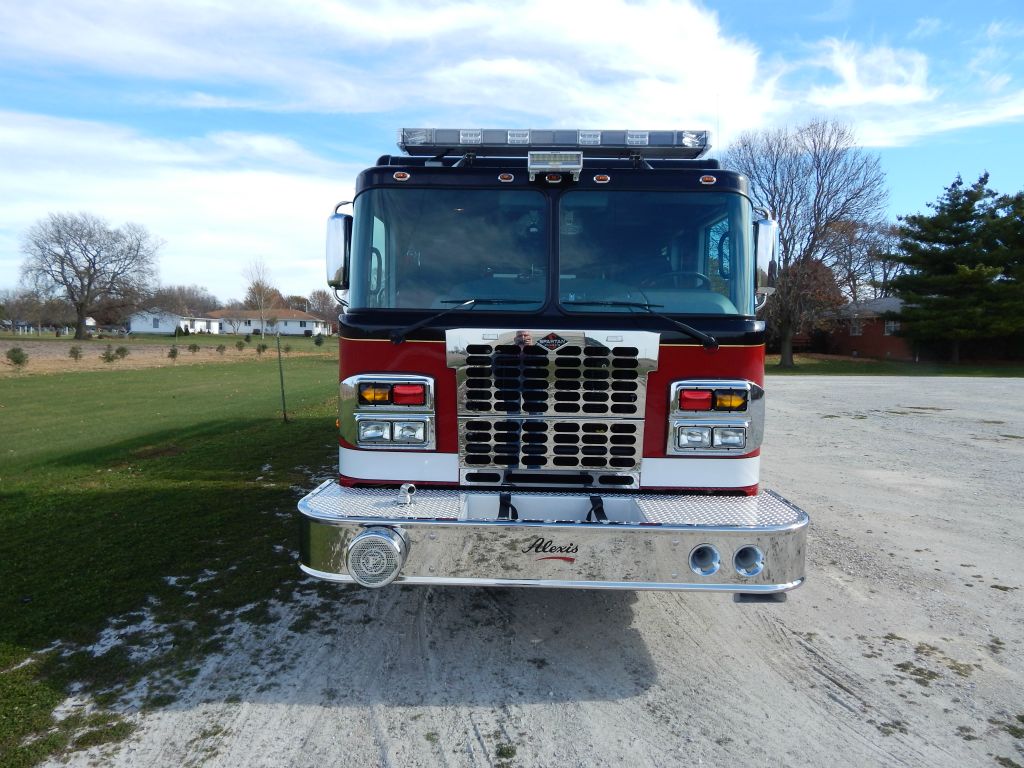

• 24" front bumper extension
• 1000-Gallon Poly Tank

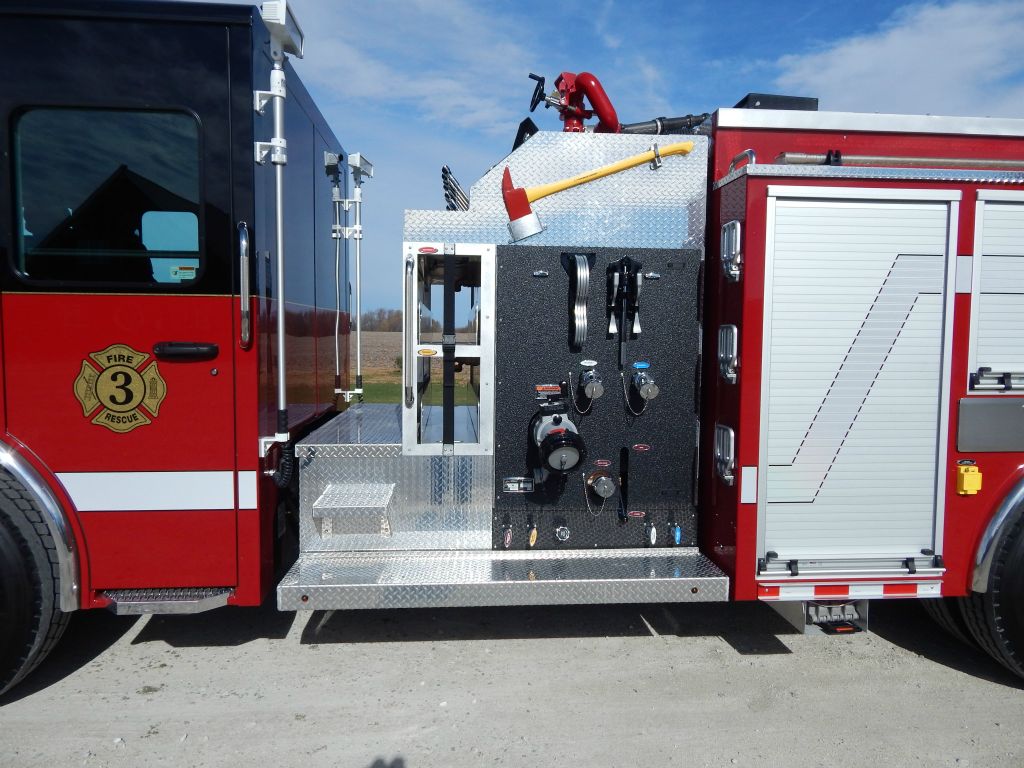

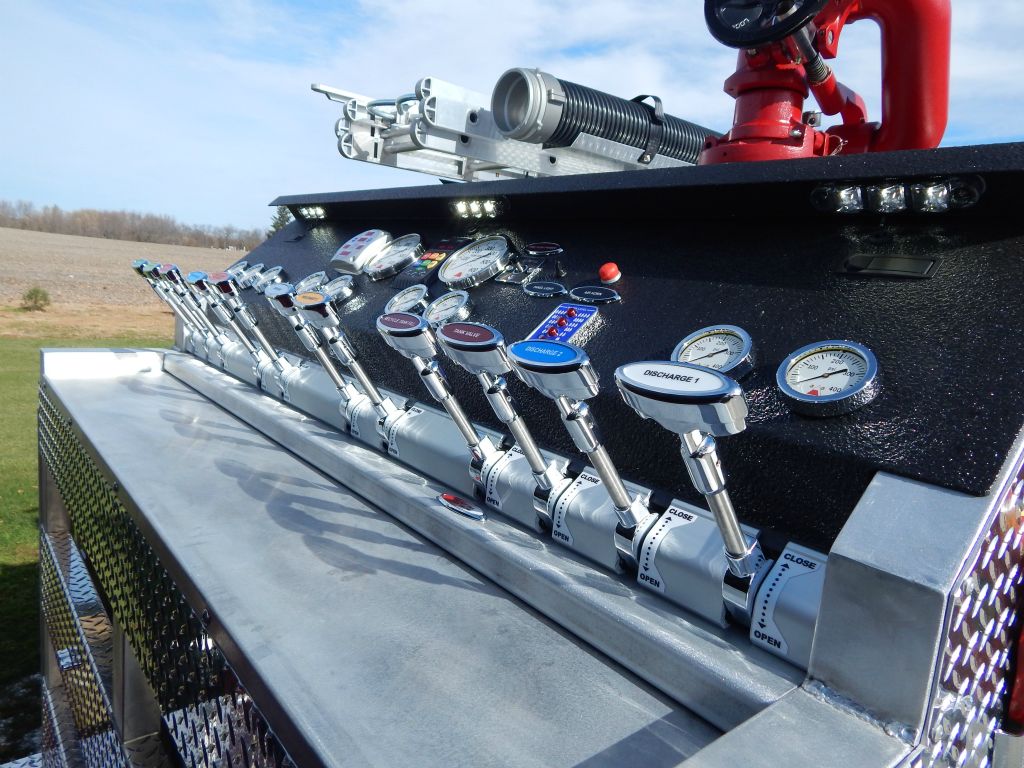

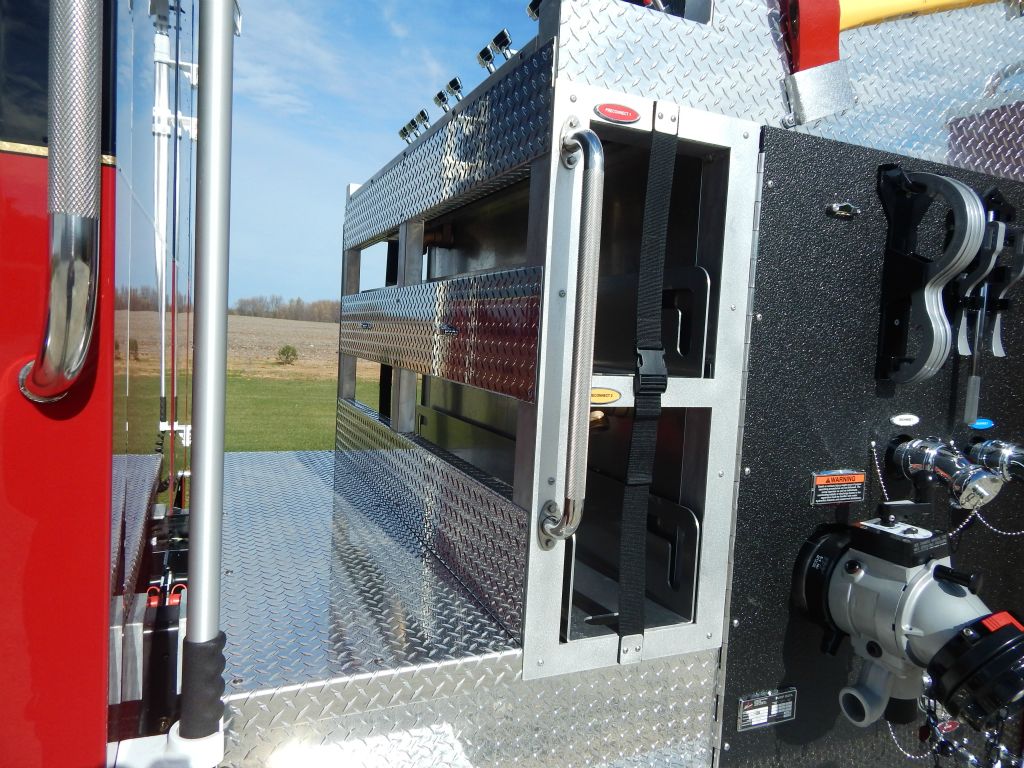

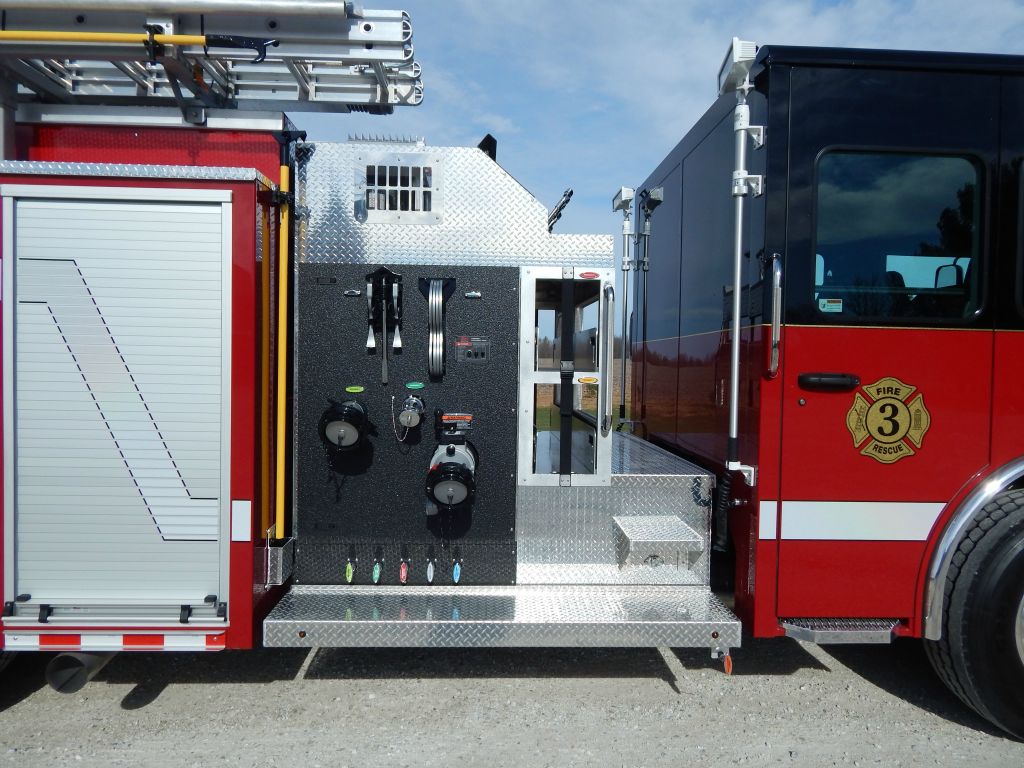

• Hale DSD 150, 1500-GPM Pump with operator's panel across top of apparatus
• Four (4) 2 ½" Discharges, two (2) left, one (1) right side and one (1) rear
• Two (2) 3" Discharges, one (1) right side and one (1) over pump for deck gun
• One (1) Akron Apollo monitor with stream shaper, tips and mounts
• Two (2) 1 ½" Cartridge Lay Preconnects, front of body

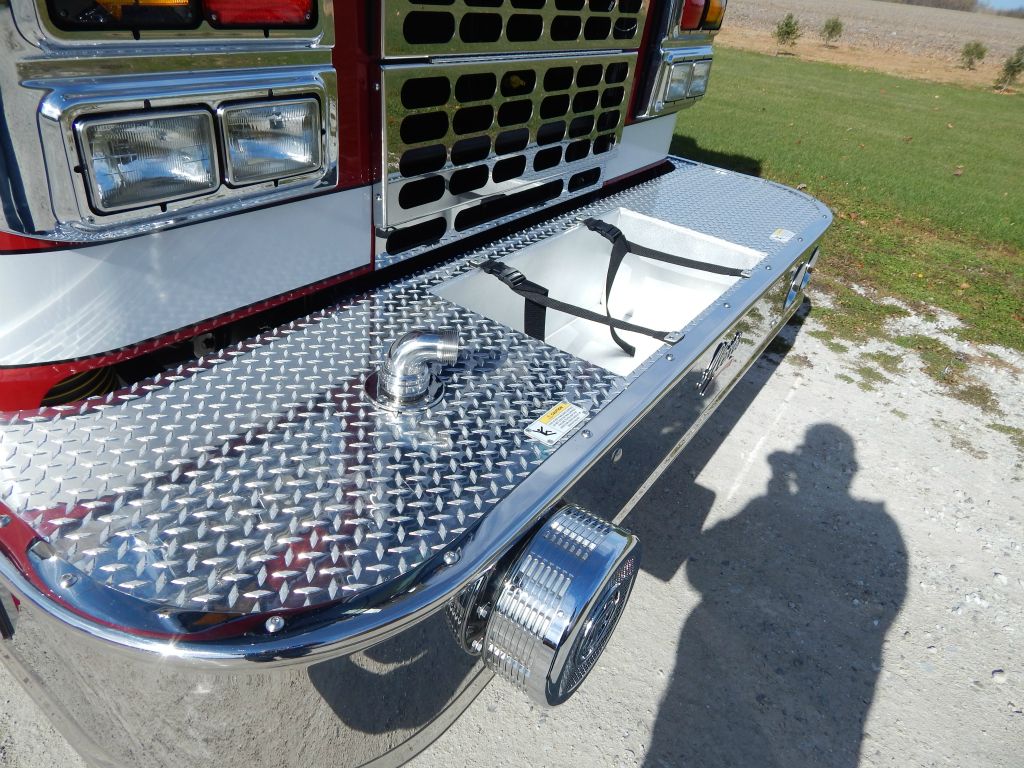

• One (1) 1 ½" Preconnect, front bumper
• One (1) 2 ½" Gated Suction, left side

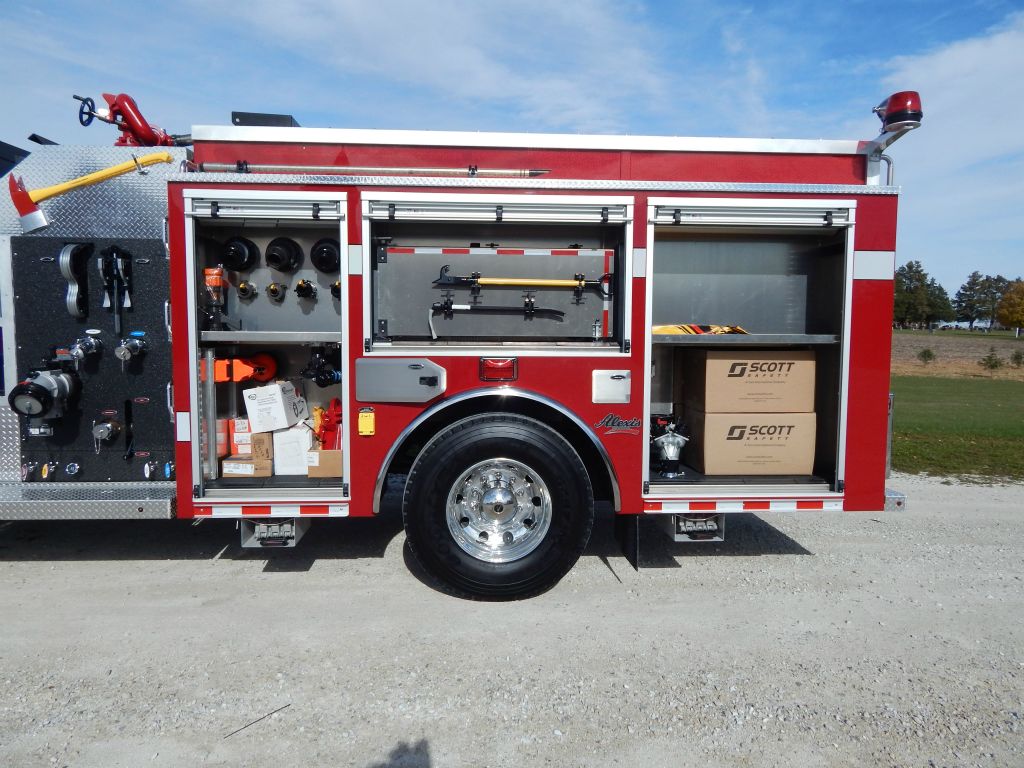

• Three (3) Dual bottle Air bottle compartments, one (1) left and two (2) right side

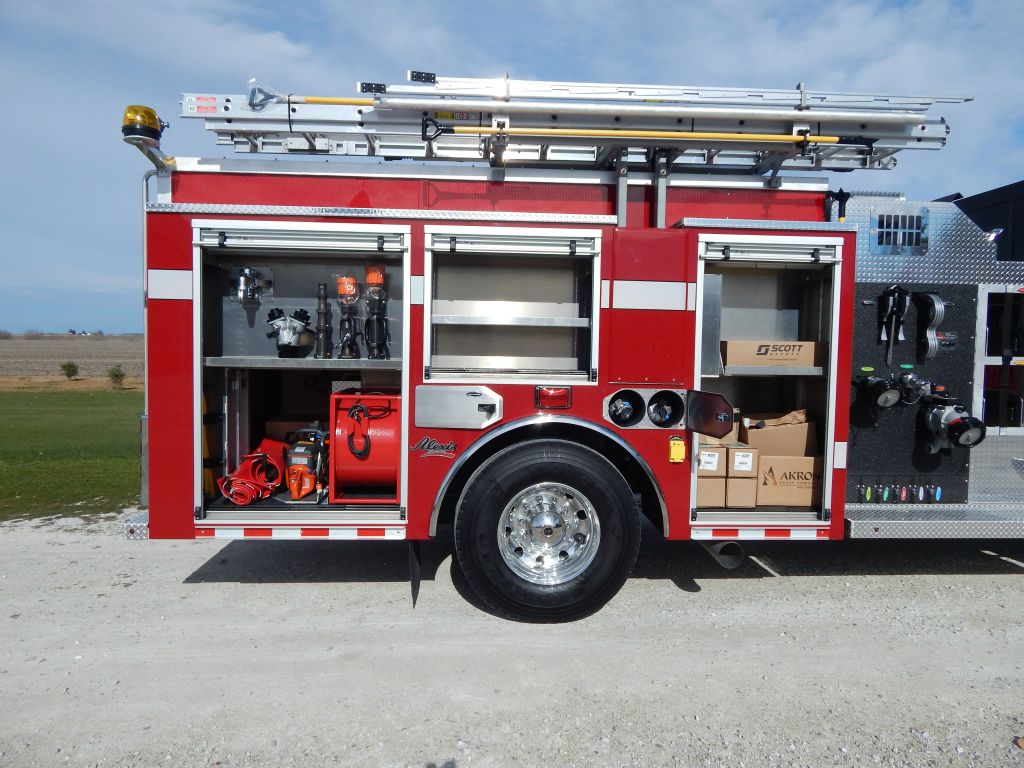

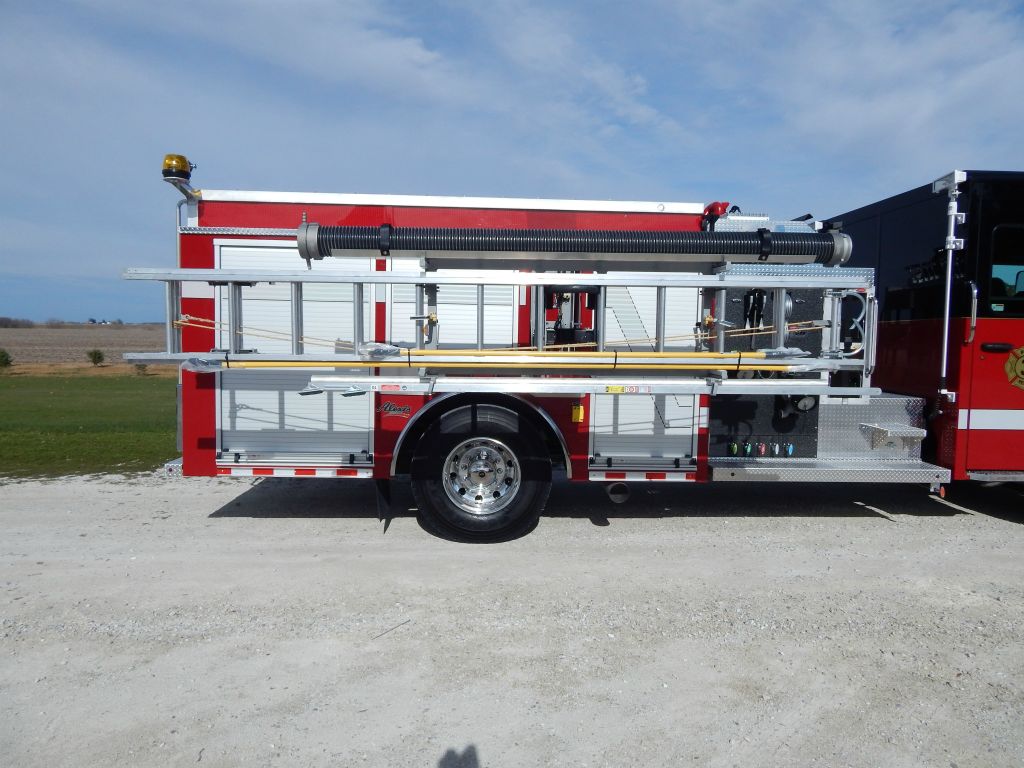

• Zico Hydraulic ladder rack with one (1) suction hose and pike pole storage

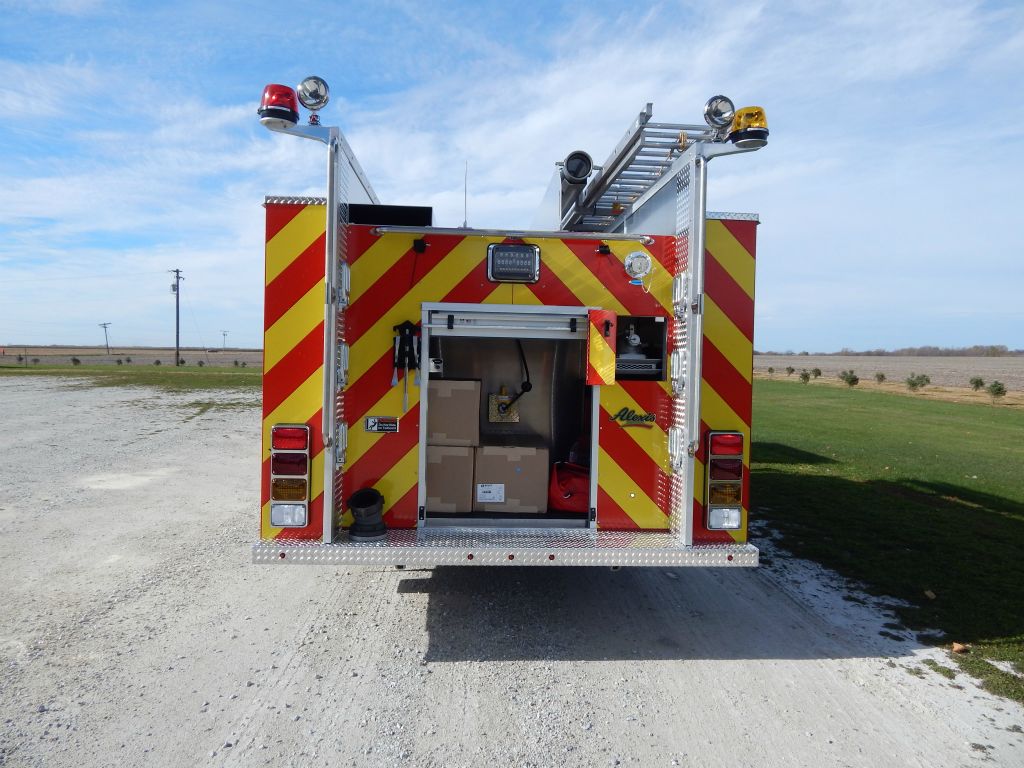

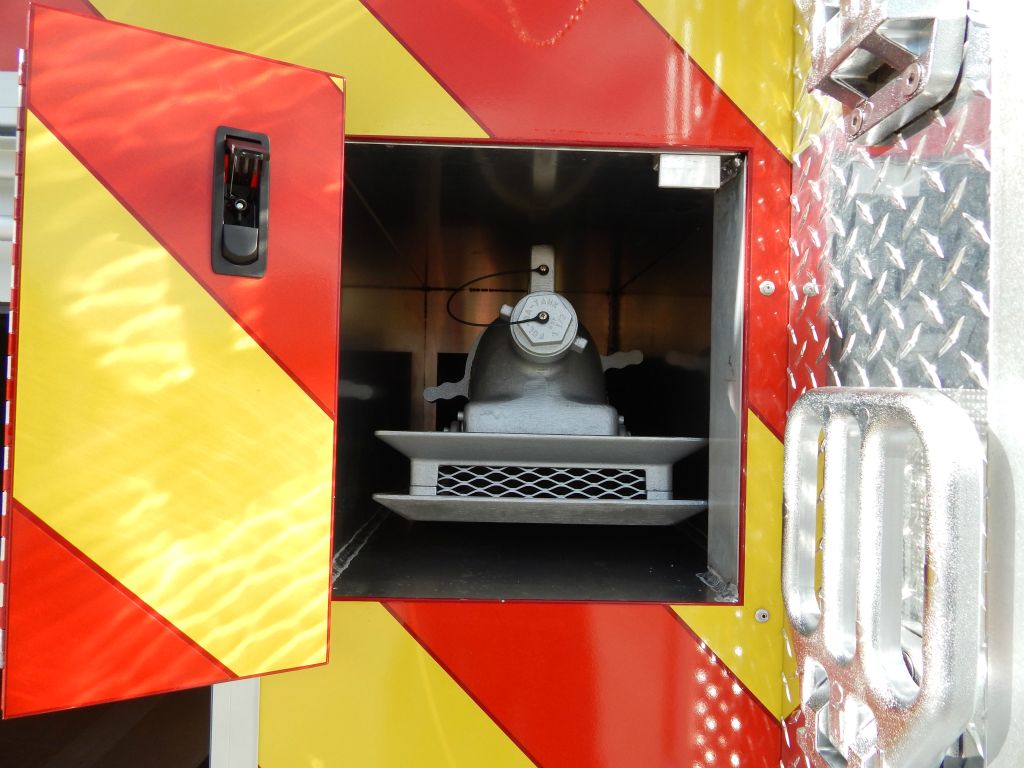

• Suction hose storage compartment for one (1) hose with rear access
• One (1) Hinged aluminum tool board, left side
• Backboard storage in the left side of the hose bed
• Turtle tile on the floors and/or shelves and trays of compartments
• Code 3 Electronic Siren with 100-watt Cast Products speaker
• Federal Q2B mechanical siren, front bumper
• Kussmaul 1200 pump plus on-board battery charger/air compressor
• Whelen LED scene light package and Two (2) Unity Deck lights, rear
• One (1) FRC Evolution 12-volt LED brow light
• Smart Power 5500-watt hydraulic generator with 120-volt system
• One (1) Akron Electric cord reel with 150-ft of 10/3 cord and junction box
• Two (2) Akron Extenda-Lite 120-volt 750-watt telescopic lights, one (1) each side
• Whelen LED Warning Light Package

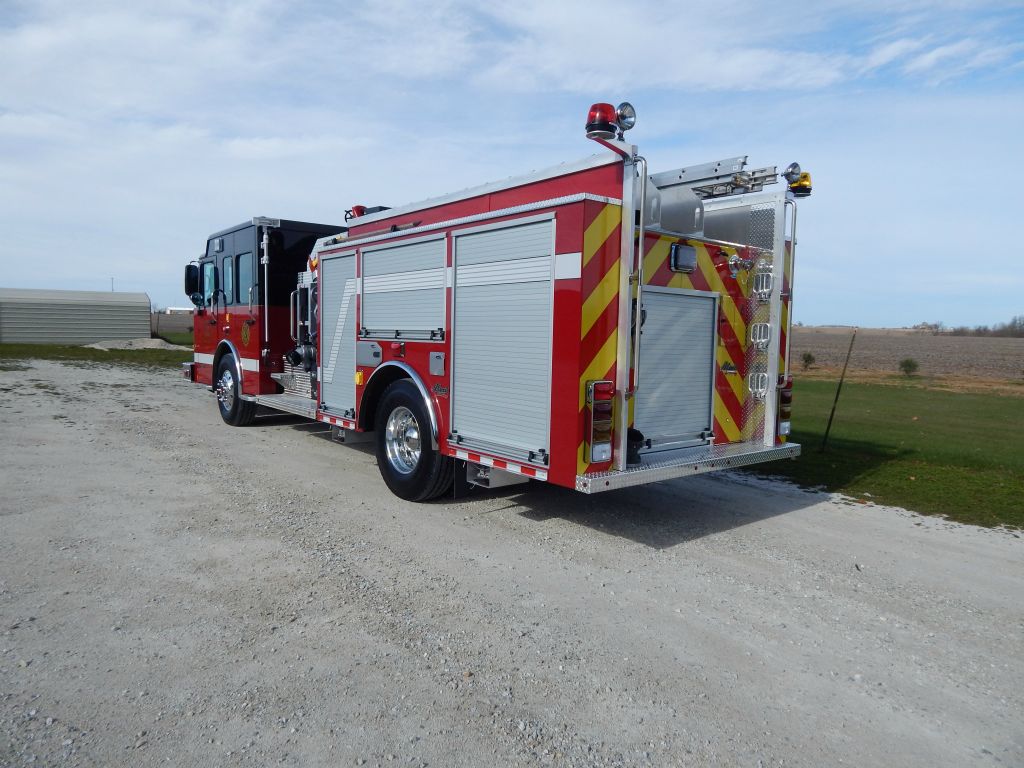

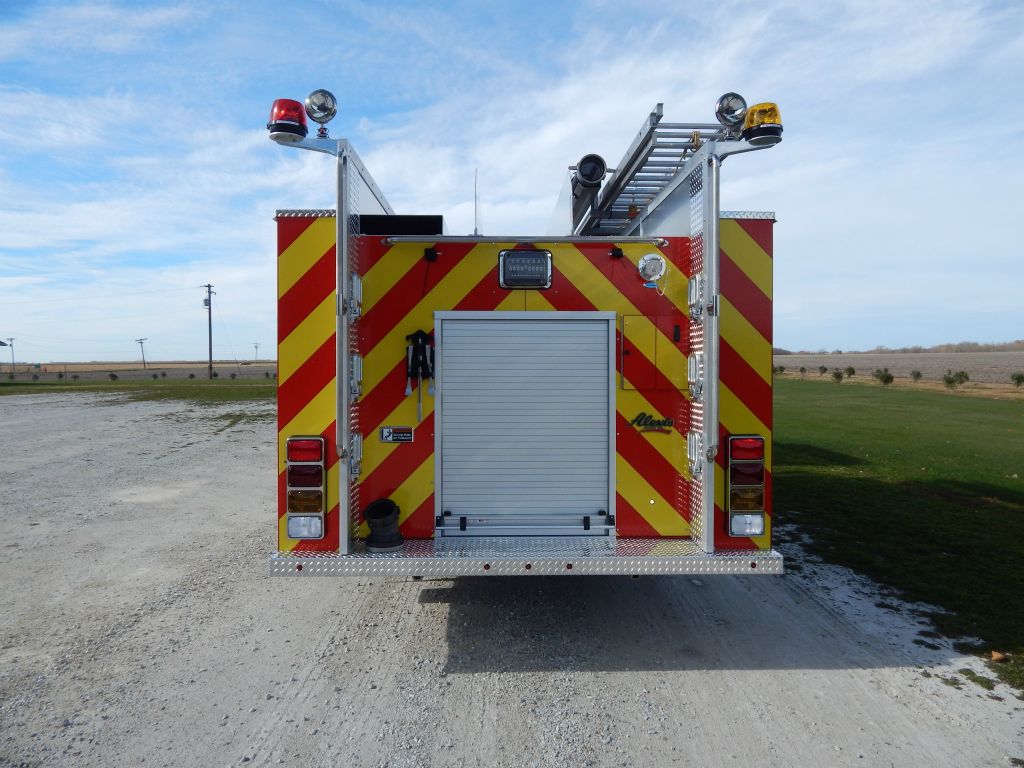

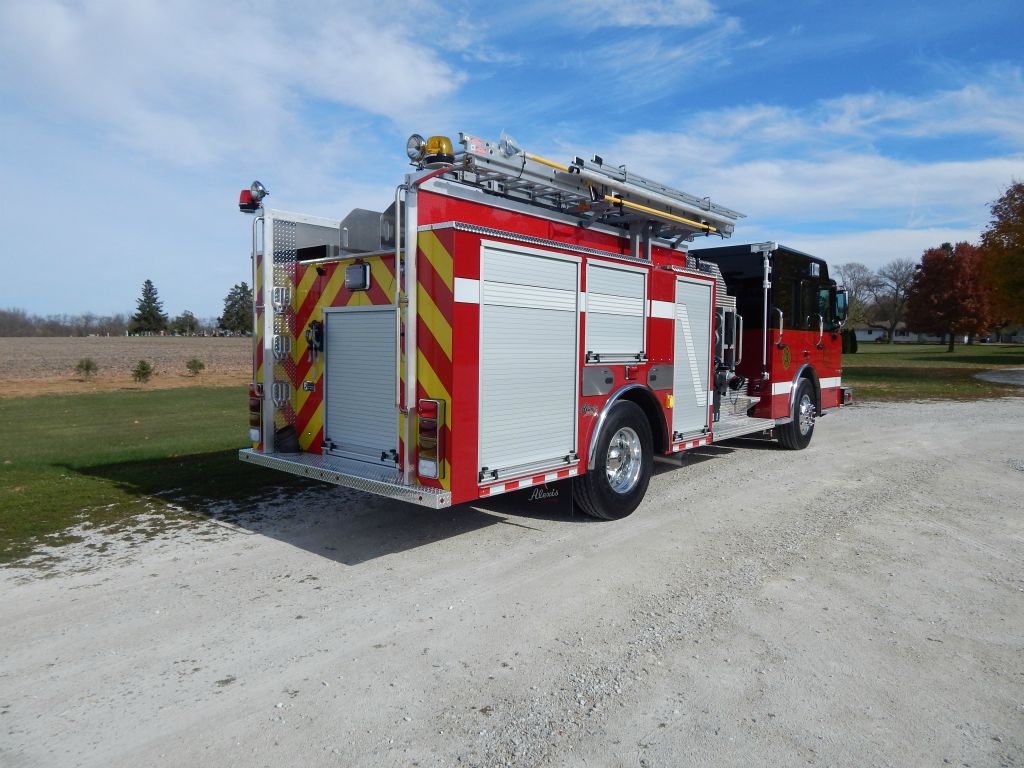

• Chevron pattern striping, rear
• 10' 1" Overall height
• 32' 9" Overall length
• 200" Wheelbase
• 146" Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
