New Deliveries
SPRINGVILLE FIRE DEPARTMENT

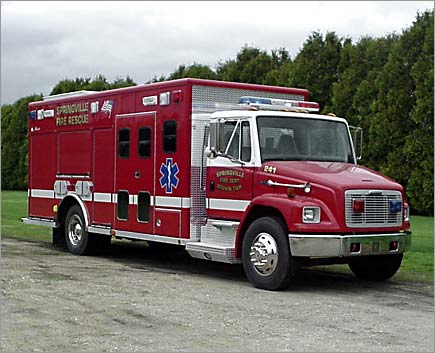

20' RESCUE UNIT

Alexis Fire Equipment Company would like to thank members
of the Springville Fire Department for their business.

Click to Download more specifications and pictures.

• Freightliner FL-70 two door chassis
• Cummins ISC-315 315 HP diesel engine
• Allison MD 3060P automatic transmission
• Onan 10 KW hydraulic generator
• Crew enclosure behind the cab with seating for six with SCBA backrests
• Ample floor space in crew enclosure
• Interior access to exterior compartments L1 and R1
• Compartmentation under the seating in the crew area
• Refrigerator in crew enclosure
• Interior storage compartments over the seats in the crew enclosure
• Two adjustable shelves in L1
• Compartment divider with two adjustable shelves and one floor mounted roll out tray in L3
• Two adjustable shelves in R1
• One vertical pull out tool board, one twelve air bottle rack and air control panel in R3
• One full depth roll out tray in the rear compartment, along with a stretcher storage compartment
• Six bottle cascade system with the bottles accessible from the roof of the apparatus
• Two upper storage compartments with shoebox lids
• Roof access ladder at the rear
• 10’-8” Overall height
• 30’-0” Overall length
• 222” Wheelbase
• 160.4” Cab to axle
• 12,000 FAWR
• 19,000 RAWR
• 31,000 GVWR
