SHELDON DISTRICT FIRE DEPARTMENT
SHELDON, ILLINOIS
Technical Specs

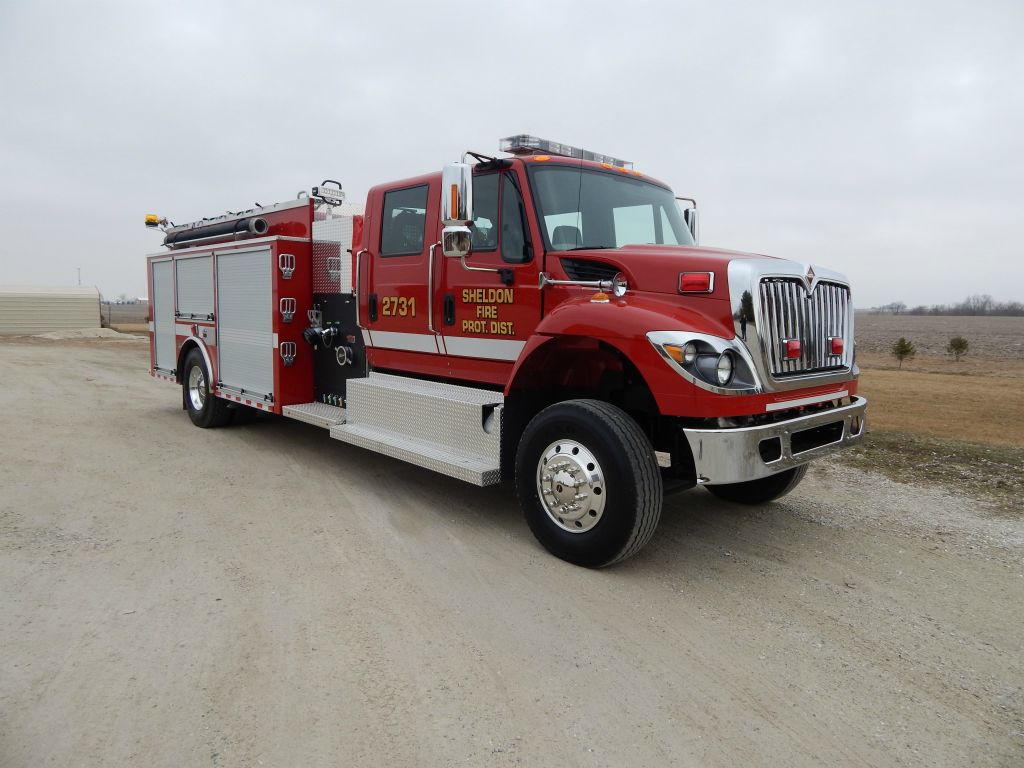

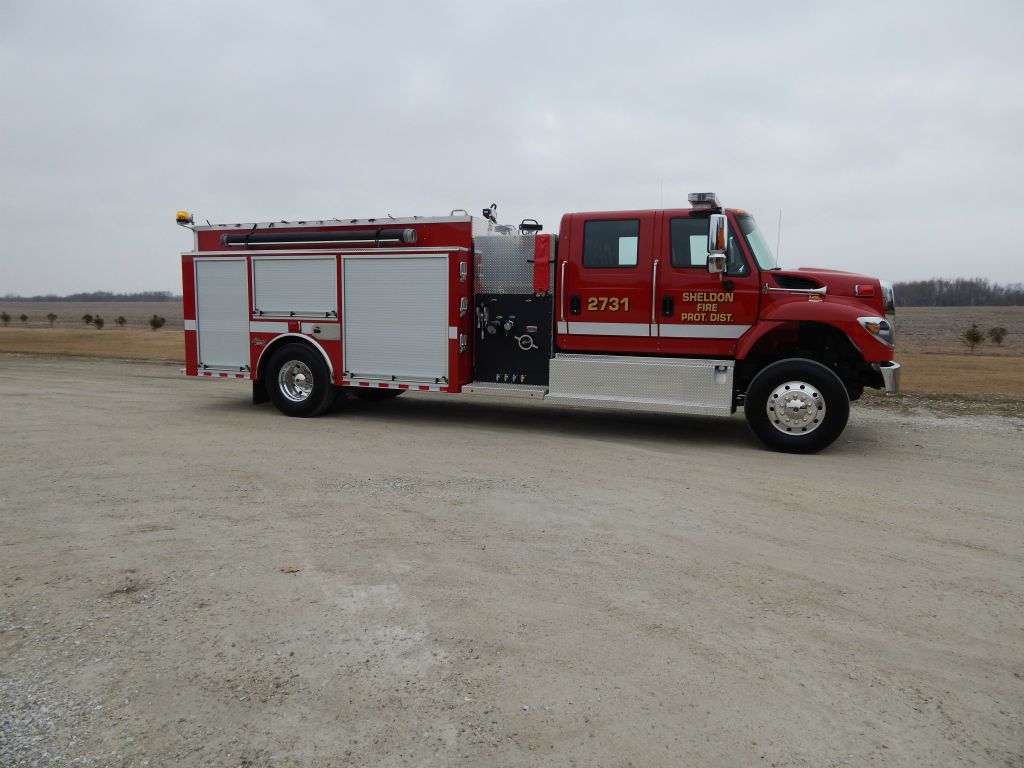

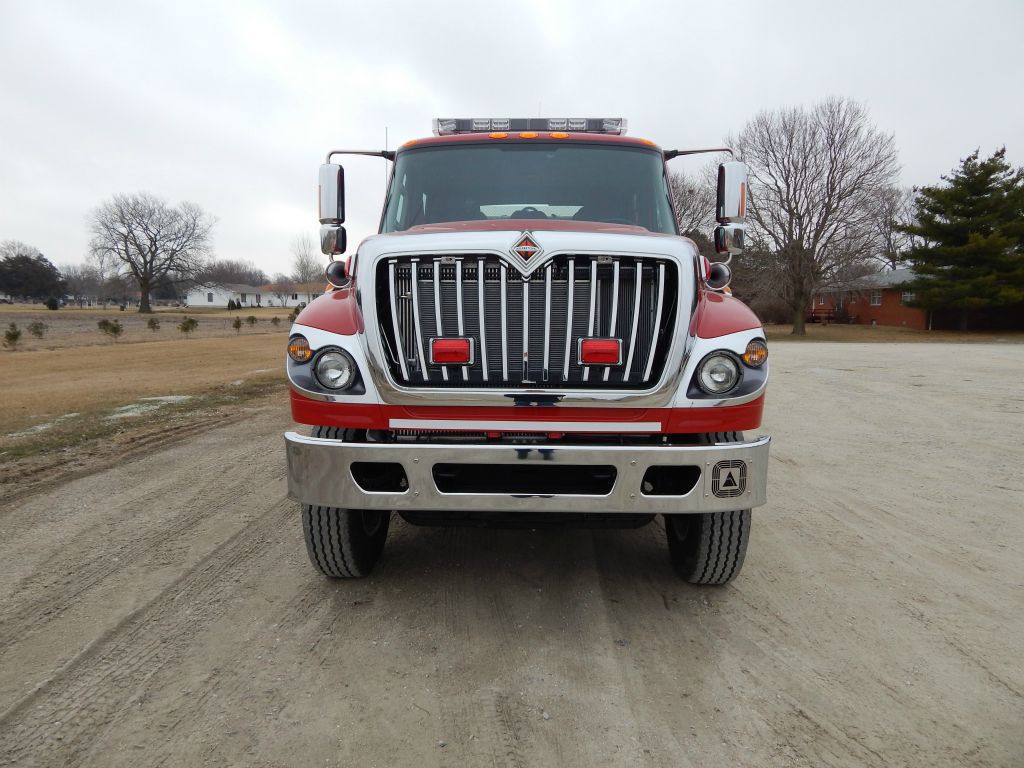

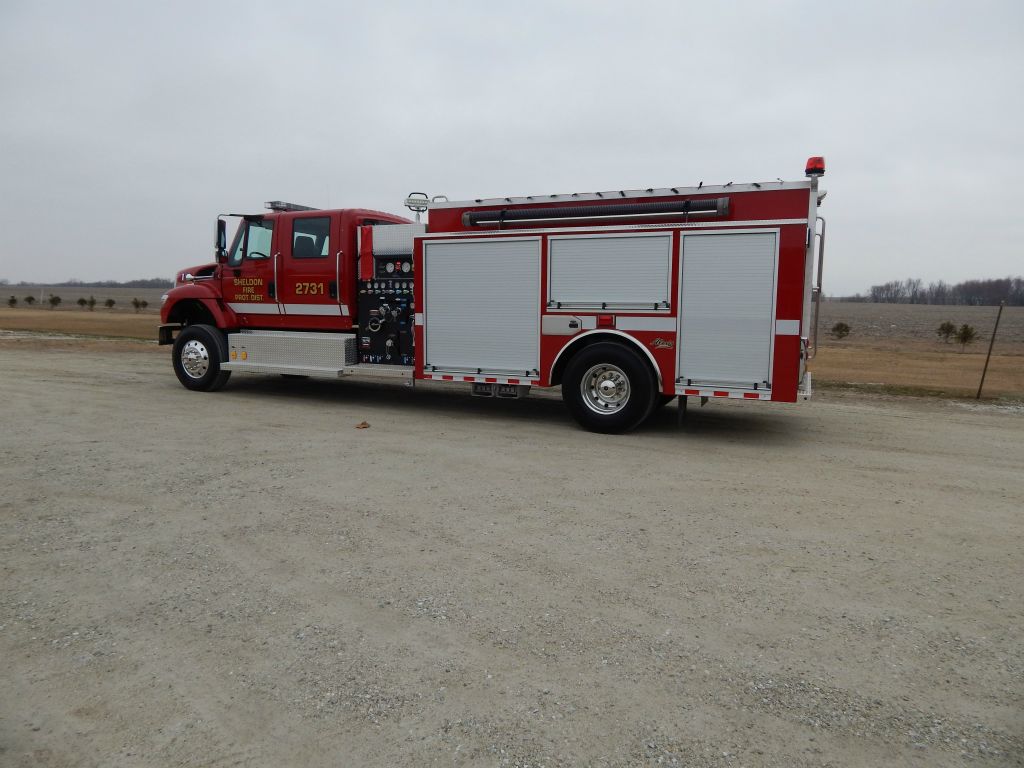

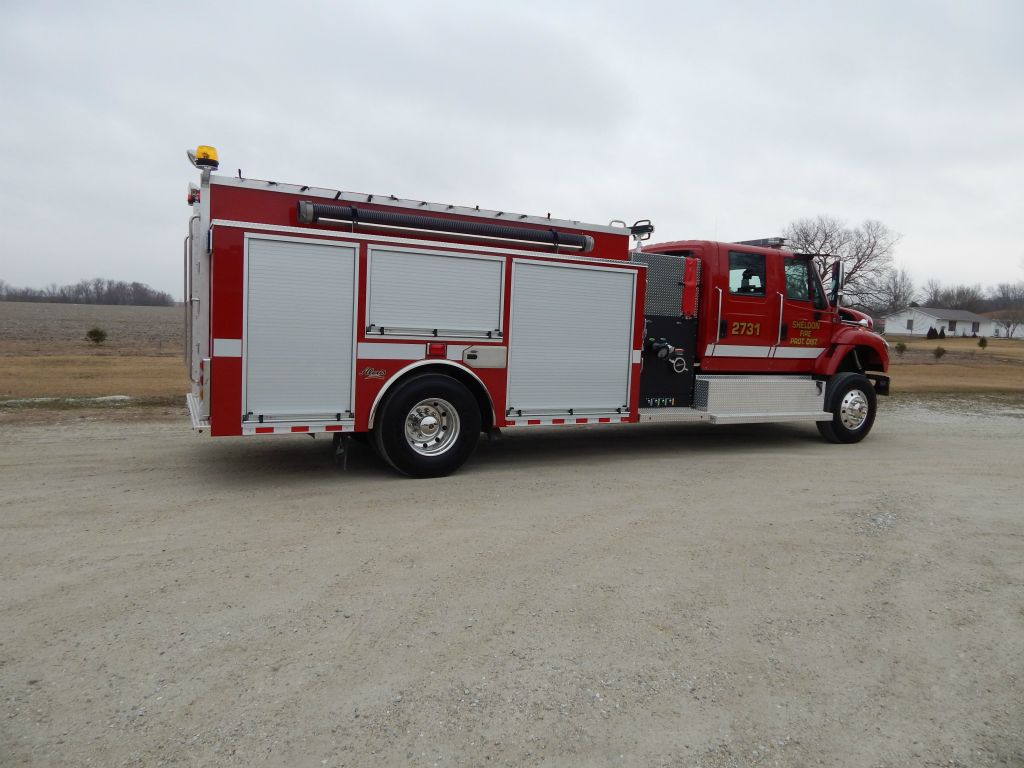

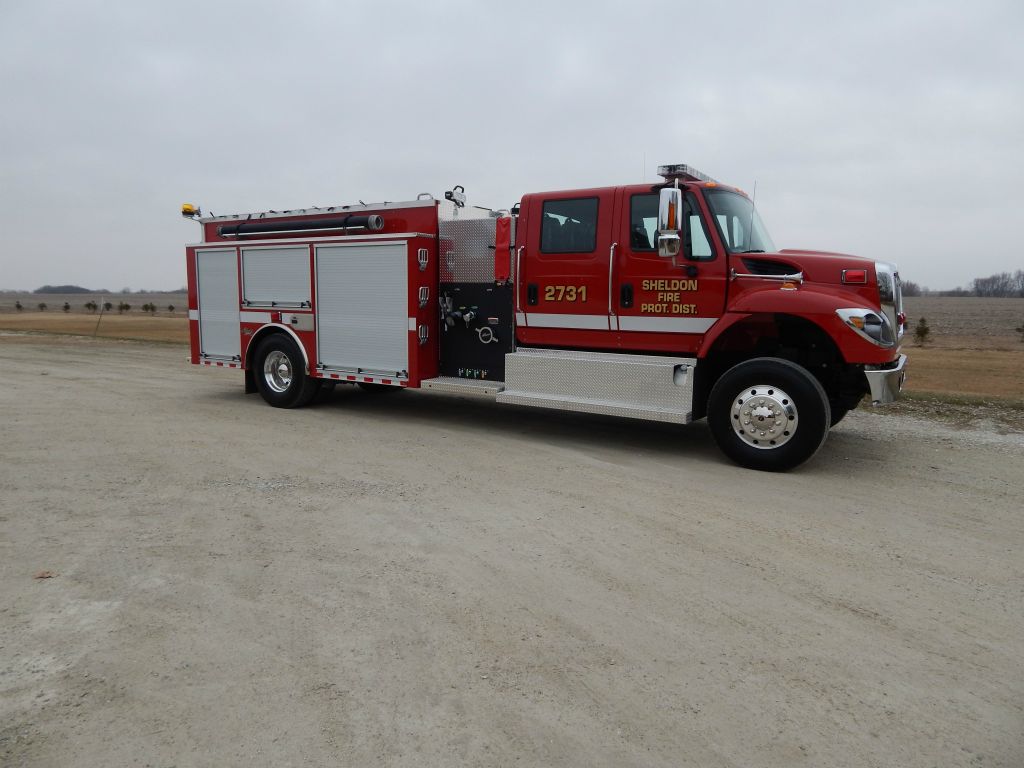

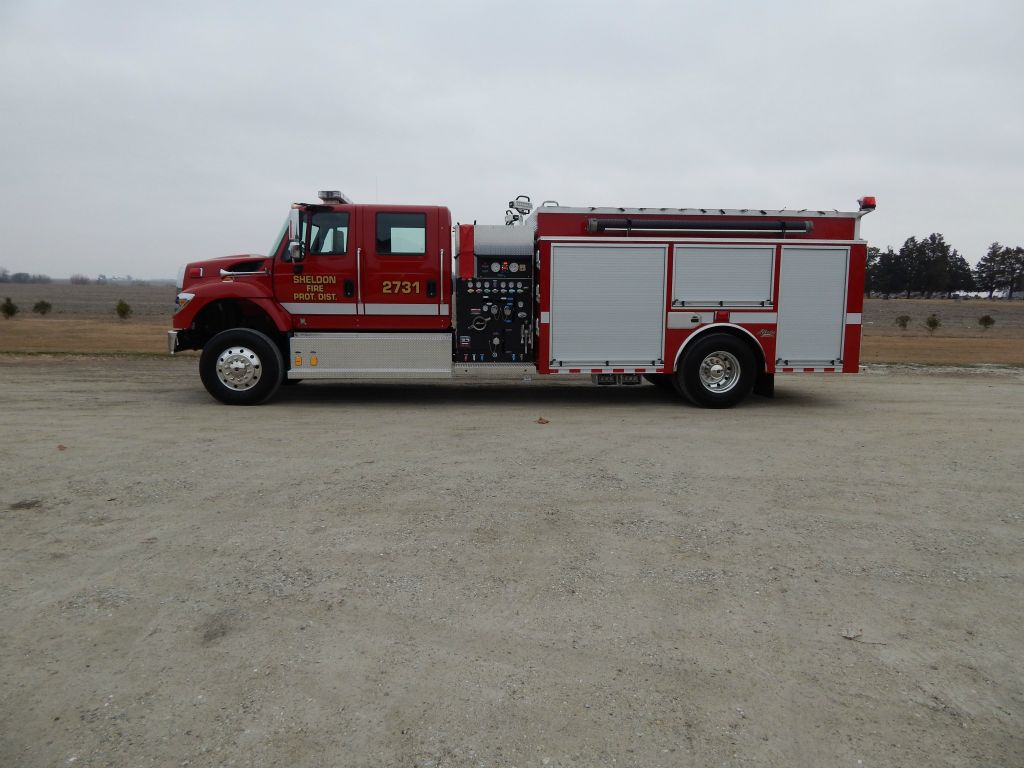

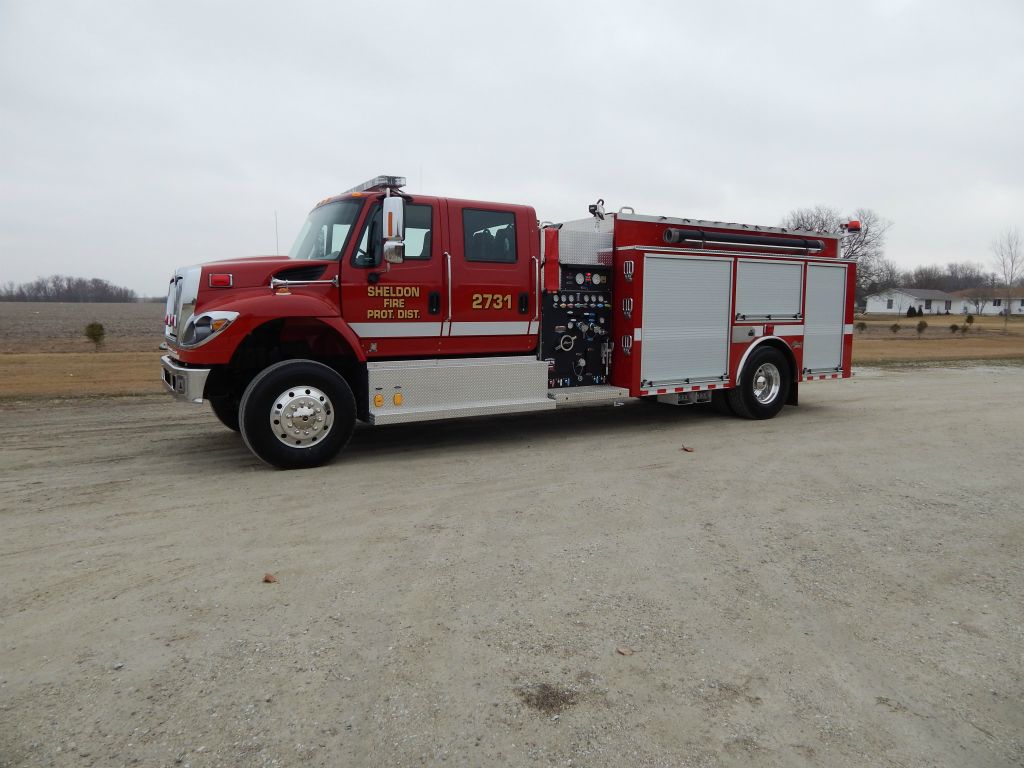

• International 7400 4-Door Chassis
• MaxxForce 9 330-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Five (5) man seating with four (4) SCBA seats
• Heavy Duty 3/16" Aluminum Body

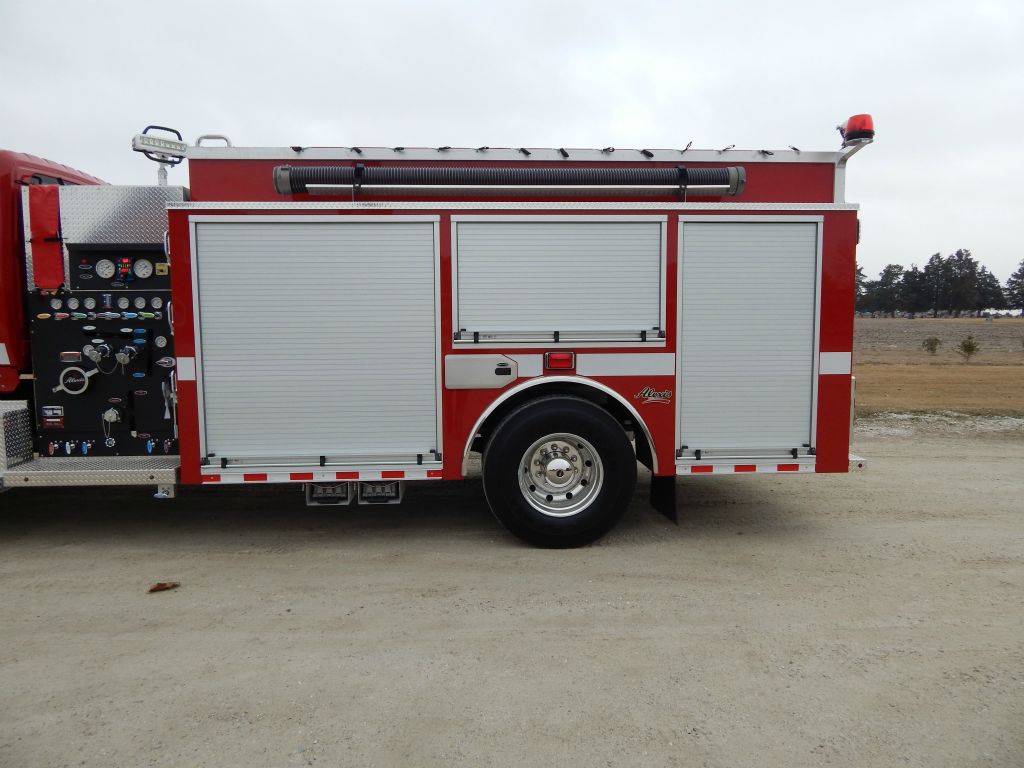

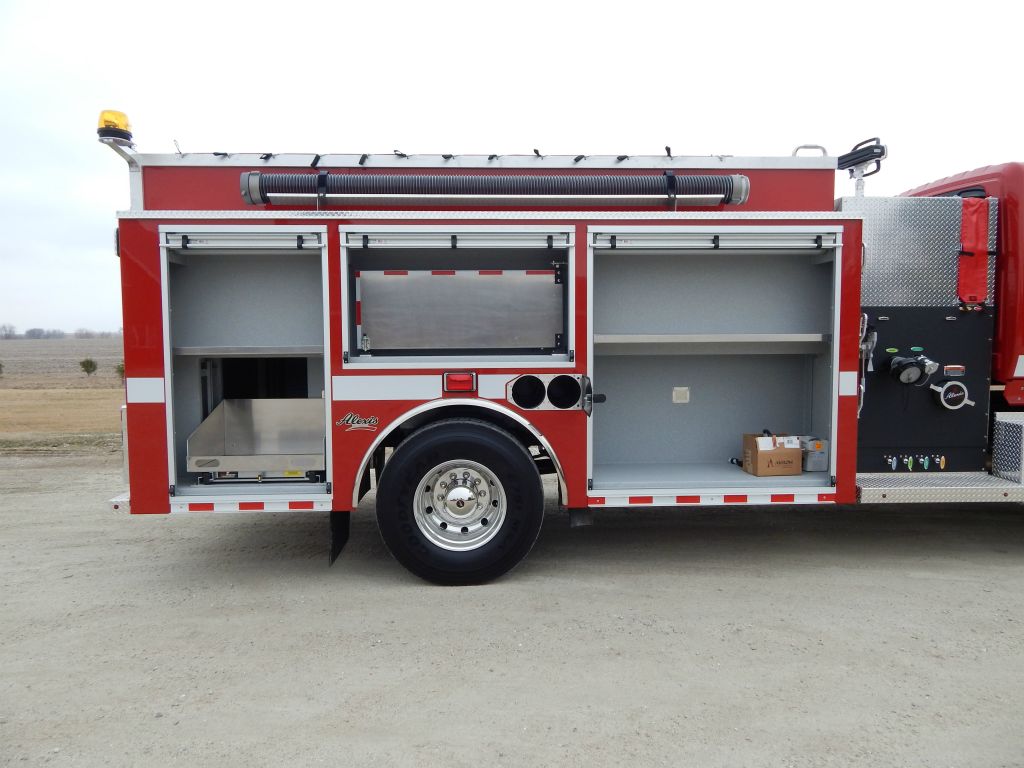

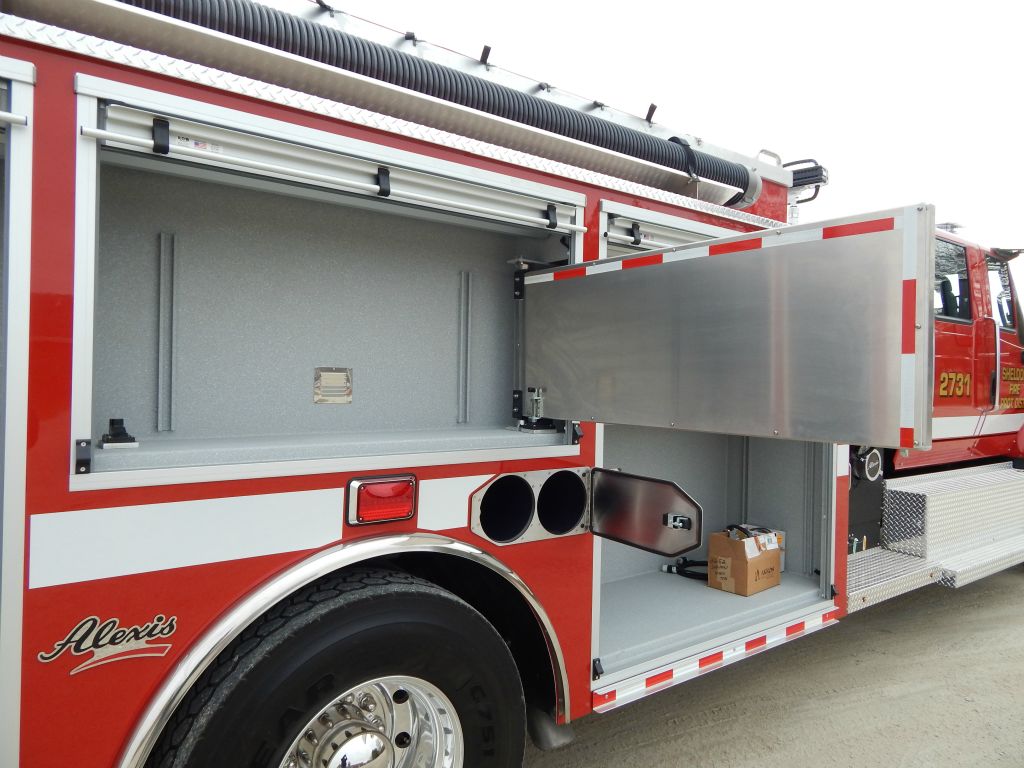

• ROM Roll Up Doors
• 1500-Gallon Poly Tank
• One (1) 2 ½" Fireman's Friend Tank fill, rear
• Waterous CXS, 1250-GPM Pump

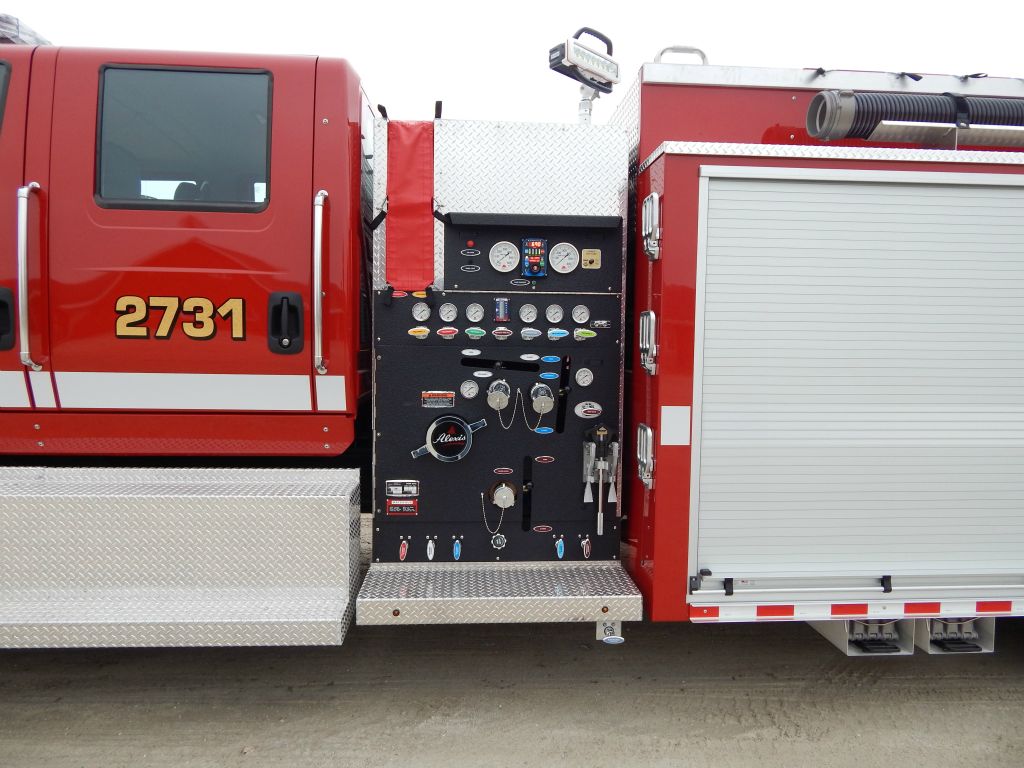

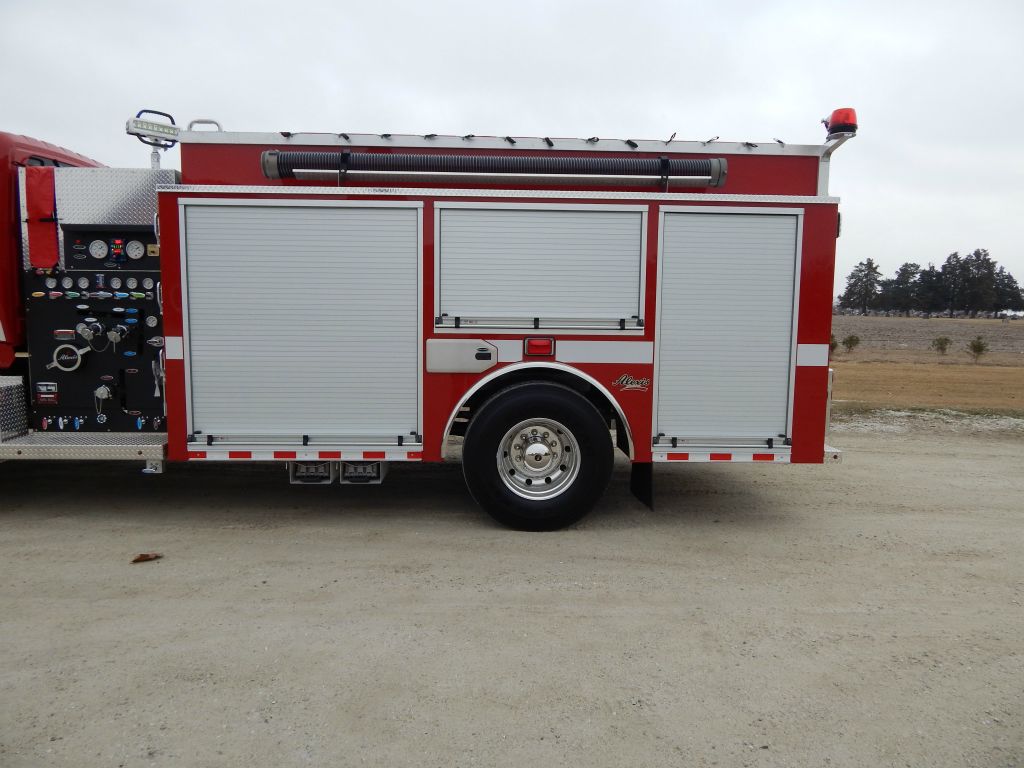

• Left side pump operator's panel
• Four (4) 2 ½" Discharges, two (2) left side, one (1) right side and one (1) rear
• One (1) 3" Discharge, right side
• One (1) 2 ½" Gated Suction, left side
• Two (2) 1 ½" Mattydale Preconnects, across top of body

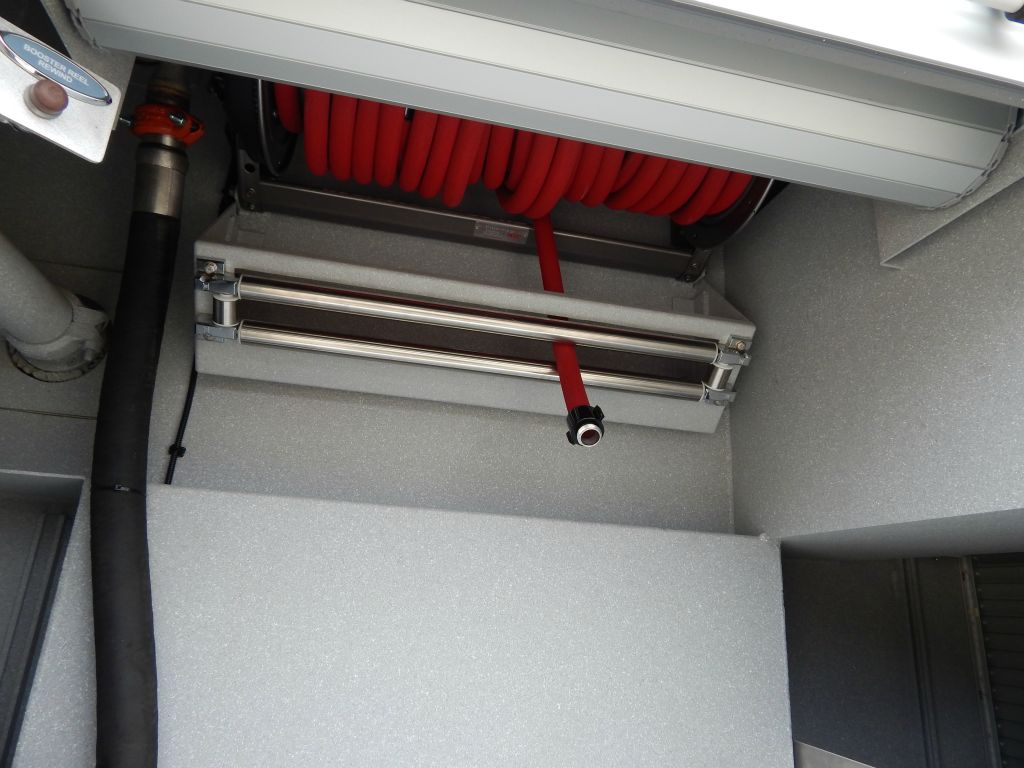

• One (1) Hannay electric booster Reel with 150-ft of 1" hose, rear
• Two (2) Dual bottle Air bottle compartments, one (1) each side wheel well
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline
• Kussmaul Air Eject

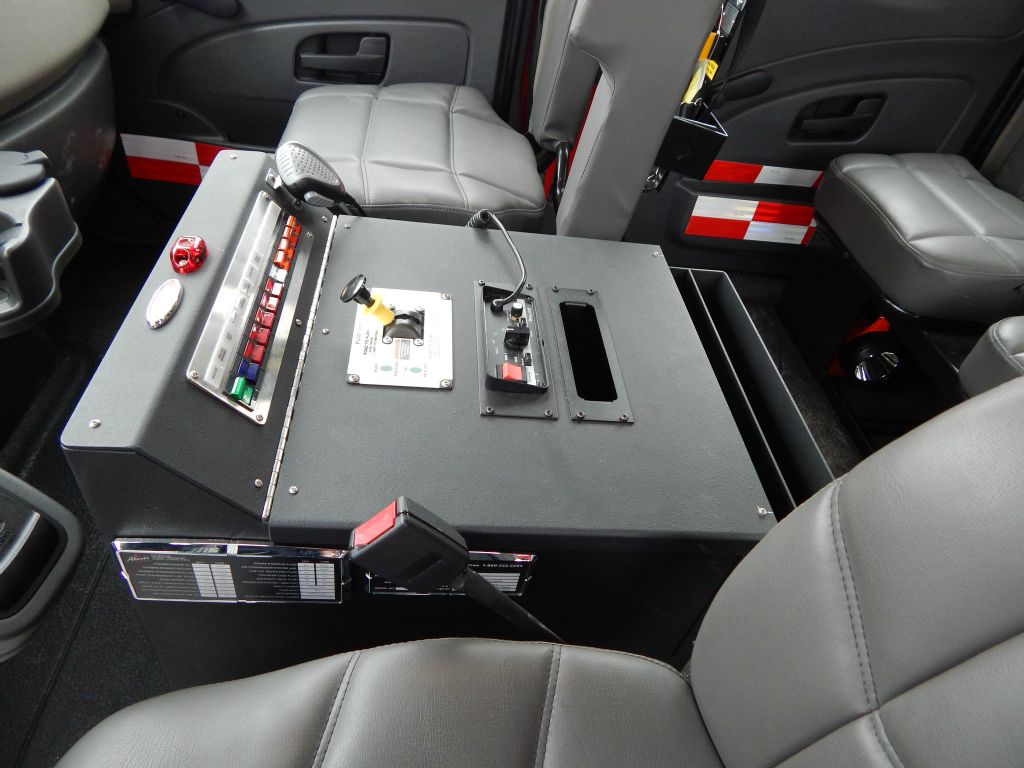

• Floor mounted console for emergency switches with map/binder storage, cab
• Two (2) Unity Deck lights, rear
• Two (2) Whelen LED scene lights, rear
• Two (2) Akron Extenda-Lite 12-volt 220-watt telescopic lights, one (1) each side
• Whelen Electronic Siren with 100-watt Whelen speaker
• Whelen LED Warning Light Package

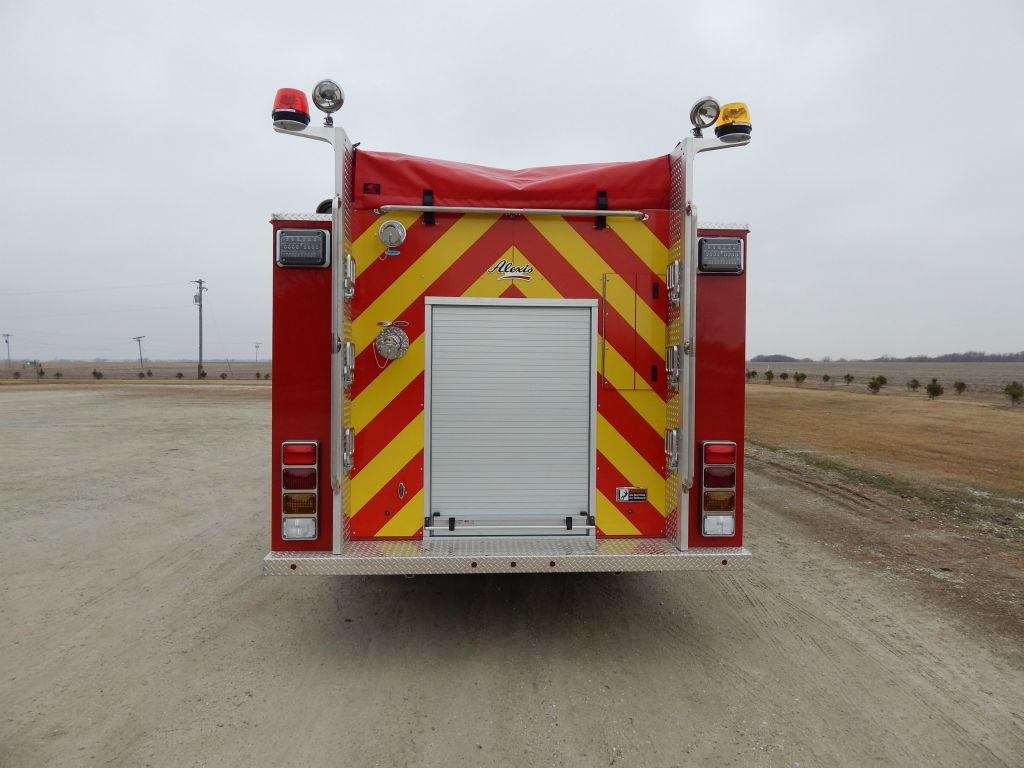

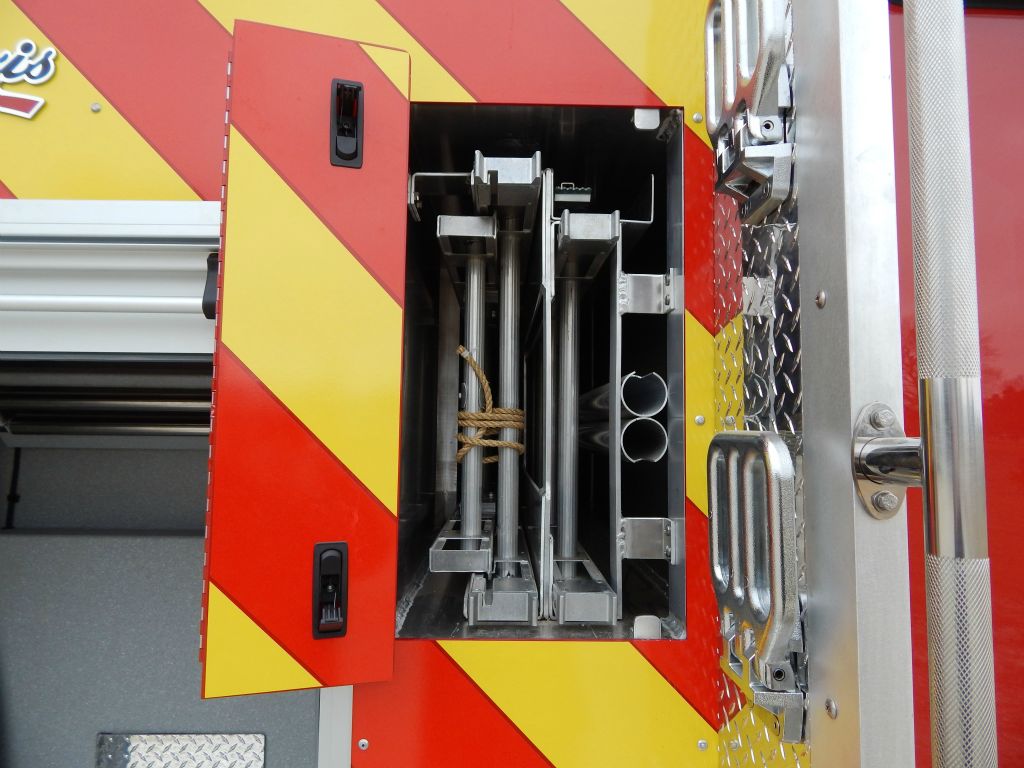

• Chevron pattern striping, rear
• 10' Overall height
• 32' 2" Overall length
• 260" Wheelbase
• 149" Cab to Axle
• 16,000 FAWR
• 30,000 RAWR
• 46,000 GVWR
