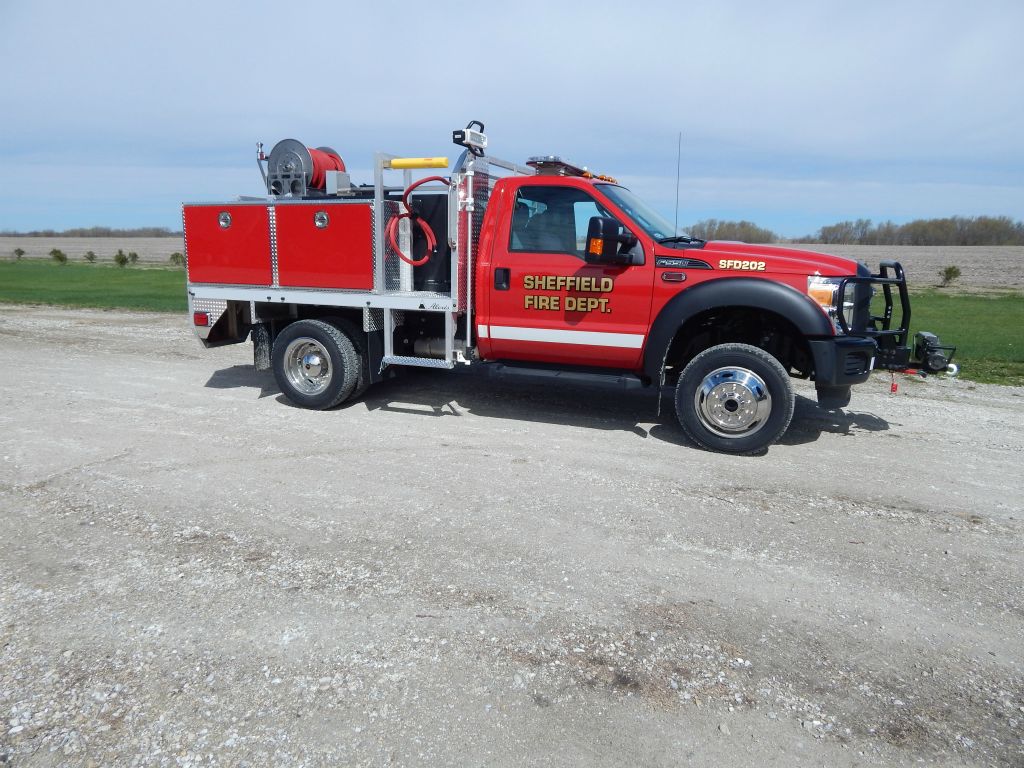

SHEFFIELD FIRE PROTECTION DISTRICT
SHEFFIELD, ILLINOIS
Technical Specs
• Ford F-550XL, 4x4 2-Door DRW Chassis
• Triton 6.8L V10, 362-HP Gasoline Engine
• TorqShift 5-speed Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• Reese type rear trailer hitch/Winch receiver with electrical connections
• Warn black brush guard with wrap around and front receiver
• One (1) Warn multi-mount 9000-lb Winch with electrical connections
• 300-Gallon Poly Tank and 12-gallon foam tank
• Waterous PB18-3030LE Pump with 20-HP Honda gasoline Engine
• One (1) 2 ½" Discharge, rear
• One (1) 2 ½" Gated Suction, rear
• Scotty Around the Pump foam inductor/mixer
• Two (2) 1" Booster lines with 10-ft hose each, walkway area
• One (1) Hannay Electric Booster Reel with 150-ft of 1" hose, rear
• Two (2) compartments with two (2) drop down doors each, one (1) each side
• One (1) hose tray with two (2) dividers, left side compartment top
• Progressive Dynamics on-board battery charger
• Manual 120-volt shoreline
• Jotto Desk console for emergency switches
• Whelen Electronic Siren with 100-watt Whelen speaker
• Two (2) Akron Extenda-Lite 12-volt 220-watt Telescopic lights, one (1) each side
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 8' 4" Overall height
• 19' 4" Overall length
• 140.8" Wheelbase
• 60" Cab to Axle
• 7,000 FAWR
• 13,660 RAWR
• 19,000 GVWR
