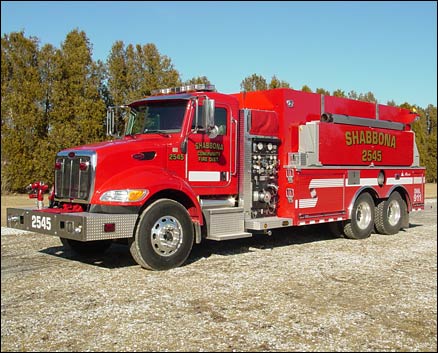

Shabbona Fire Protection
District
Shabbona, Illinois
Technical Specs
• Peterbilt 335, 2-Door
Tandem Axle Chassis
• Cummins ISC330, 330 -HP Diesel Engine
• Allison 3000EV Automatic Transmission
• Glass Fiber Reinforced Polyester body
• 3000-Gallon Tank Integral with body
• Hale PSD100, 1000-GPM Pump
• Front Bumper Extension with Hose Well
• Left Side Pump Controls
• ROM Roll Up Doors
• Four (4) 2 ½" Discharges, One (1)
left side, One (1) right side, One (1) front bumper
extension one (1) rear
• One (1) 2 ½" Gated Suction
• One (1) Elkhart Sidewinder Front Bumper Turret
with joystick control from cab
• Two (2) 2 ½" Mattydale Preconnects
• Four (4) Zico Walk-away Air Pak brackets, right
front compartment
• Three (3) EJ Metals round Tank Dumps, One (1)
each side and One (1) rear
• Ziamatic Electric Fol-Da-Tank Bracket, left
side
• One (1) set of ladder brackets, right side
• Manual Battery Recharge Receptacle, left side
• Six (6) Large GHSCENE Scene lights, Two (2)
each side and Two (2) rear
• Two (2) Grover Air Horns, One (1) each side
in front bumper
• Federal Electronic Siren with 100-watt speaker
• Whelen Warning Light Package
• 10' Overall height
• 32' 8" Overall length
• 233" Wheelbase
• 163.2" Cab to Axle
• 14,600 FAWR
• 40,000 RAWR
• 54,600 GVWR
|
