Serena Community Fire
Protection District
Serena, Illinois
Technical Specs

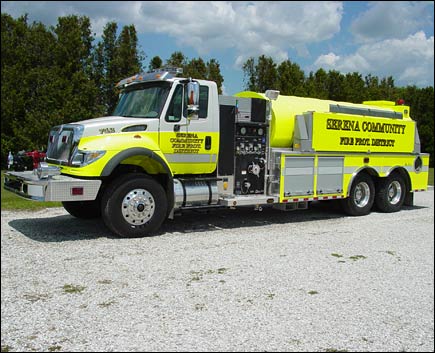

International 7600 2-Door
Tandem Chassis
Cummins ISM-425V, 410-HP Diesel Engine
Allison 4000 EVS-P Automatic Transmission
Heavy Duty 3/16" Aluminum Body
UPF 3000-Gallon Elliptical Poly Tank
Hale RSD100, 1000-GPM Pump
Three (3) 2 ½" Discharges, one
(1) left side and two (2) right side
Two (2) 1 ½" Cartridge lay Preconnects
and one (1) 2 ½" Cartridge lay preconnect
with Hypalon covers
One (1) Elkhart Sidewinder Front Bumper Turret
controlled from the cab
One (1) 5" Front suction
Two (2) 2 ½" Tank fills, rear
ROM Roll Up Doors
Four (4) FlameFighter Walk-away Air Pac brackets
on vertical pull out board right side compartment
Three (3) EJ Metals air operated 12" round
Dumps with 22" extensions
One (1) Ziamatic Electric Folding Tank bracket
with storage for one (1) suction hose and two (2) pike
poles, left side
One (1) Ziamatic Electrically controlled Ladder
rack with storage for one (1) suction hose and two pike
poles, right side
One (1) Kussmaul Pump Plus 1200 Air compressor/automatic
battery charger
One (1) Kussmaul Super Auto Eject 120-volt
shoreline
Four (4) Federal GHSCENE Scene lights, One
(1) each side and two (2) rear
Two (2) Akron Night Breaker 12-volt 150-watt
telescopic lights, one (1) each side
One (1) Audiovox Color observation back-up
Camera
Two (2) Grover Air Horns, front bumper
One (1) Federal Q2B 12-volt Siren, flush mounted
front bumper
Whelen Warning Light Package
10' 1" Overall height
34' 10" Overall length
256" Wheelbase
188.9" Cab to Axle
16,000 FAWR
40,000 RAWR
56,000 GVWR
|
