SCIPIO TOWNSHIP
LA PORTE, INDIANA
Technical Specs
• HME 1871-W MFDxL with 12" raised roof Chassis
• Cummins ISL-9 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Six (6) man cab seating with five (5) SCBA seats
• Heavy Duty 3/16" Aluminum Body with ROM Roll Up Doors
• 1000-Gallon Poly Tank with 10-Gallon foam tank and one (1) 2 ½" Tank fill

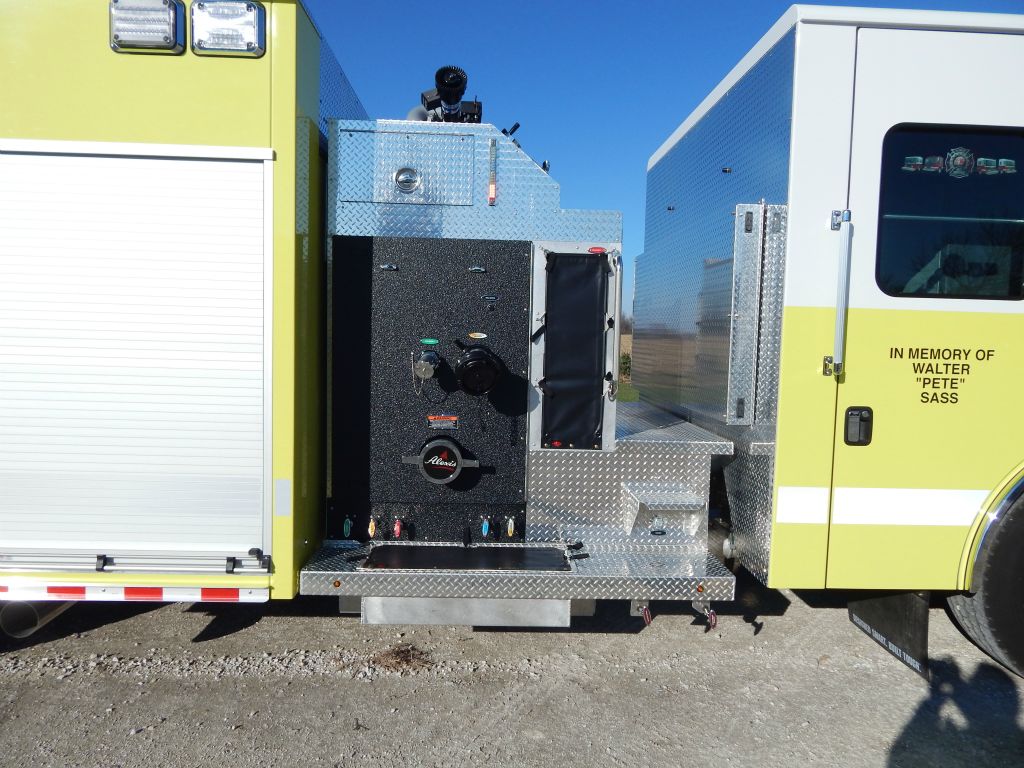

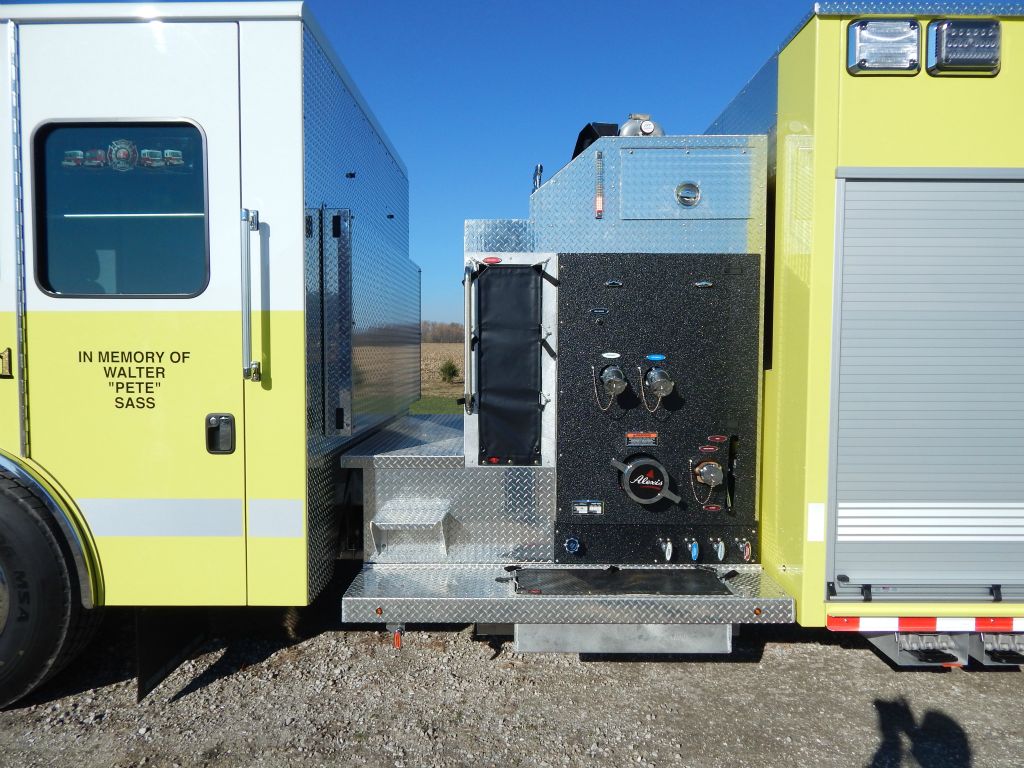

• Darley LDM 1500-GPM Pump with operator's panel across top of apparatus
• Four (4) 2 ½" Discharges, two (2) left, one (1) right side and one (1) rear
• One (1) 4" Discharge, right side and one (1) 3" Discharge, over pump
• TFT Hurricane RC remote controlled monitor with telescoping pipe
• Two (2) 1 ½" Cartridge Lay Preconnects, front of body
• One (1) 1 ½" Front bumper Preconnect with center hose well
• One (1) 2 ½" Gated Suction, left side
• Two (2) 5" Suctions, one (1) front and one (1) rear
• Foam Pro 1600 Foam System
• Three (3) Triple bottle Air bottle compartments, one (1) left and two (2) right side
• Aluminum Tread plate self supporting Hose bed cover
• Custom EMS compartment and map box, cab
• One (1) Horizontal Fire Extinguisher rack, right side
• Ladder/Pike Pole Storage compartment, left side vertical with rear access
• Four (4) bottle 6000-PSI Cascade System with control panel and single fill
• Backboard storage compartment, behind cab in pump operator's walkway
• FireCom Wireless Intercom system
• Federal Q2B mechanical Siren and Whelen Electronic Siren with speaker
• Smart Power 8000-watt Hydraulically driven Generator with 120-volt system
• Two (2) Akron Electric Cord reels with 150-ft of 10/3 cord and junction box each
• Two (2) Akron Extenda-Lite 120-volt 750-watt Tripod lights, rear
• One (1) Command Knight light tower with six (6) FRC Halogen 750-watt lights
• Whelen LED Scene Light Package
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 9' 11" Overall height
• 34' 8" Overall length
• 225" Wheelbase
• 165" Cab to Axle
• 18,740 FAWR
• 27,000 RAWR
• 45,740 GVWR
