SCHUYLER COUNTY FIRE PROTECTION DISTRICT
RUSHVILLE, ILLINOIS
Technical Specs

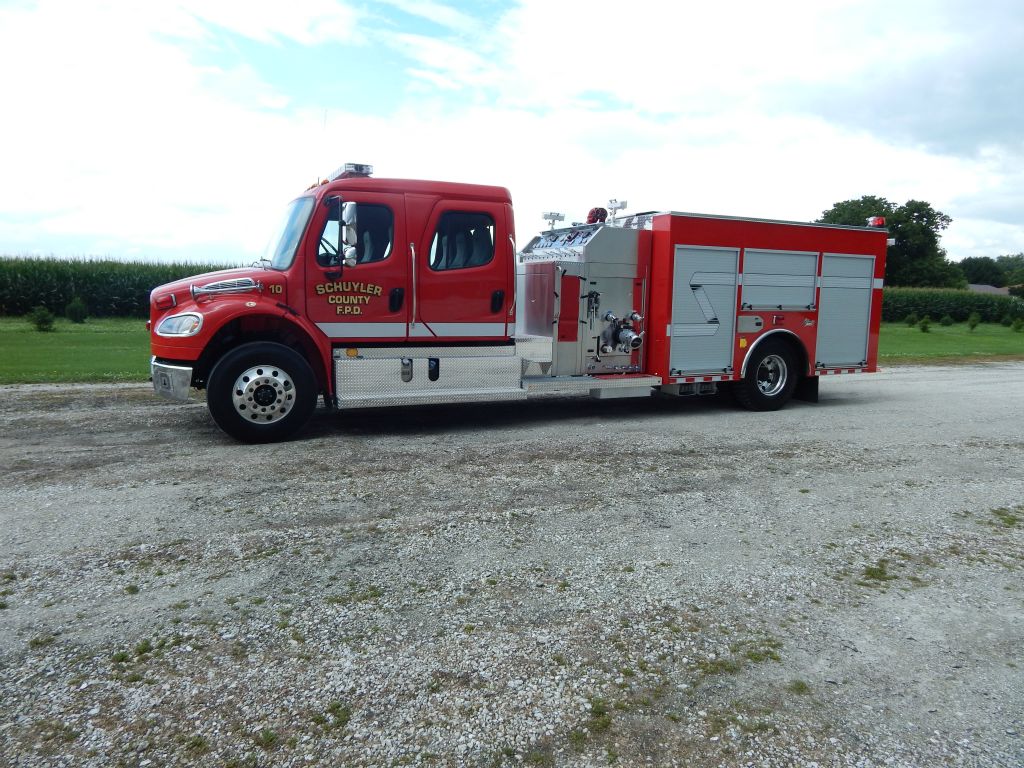

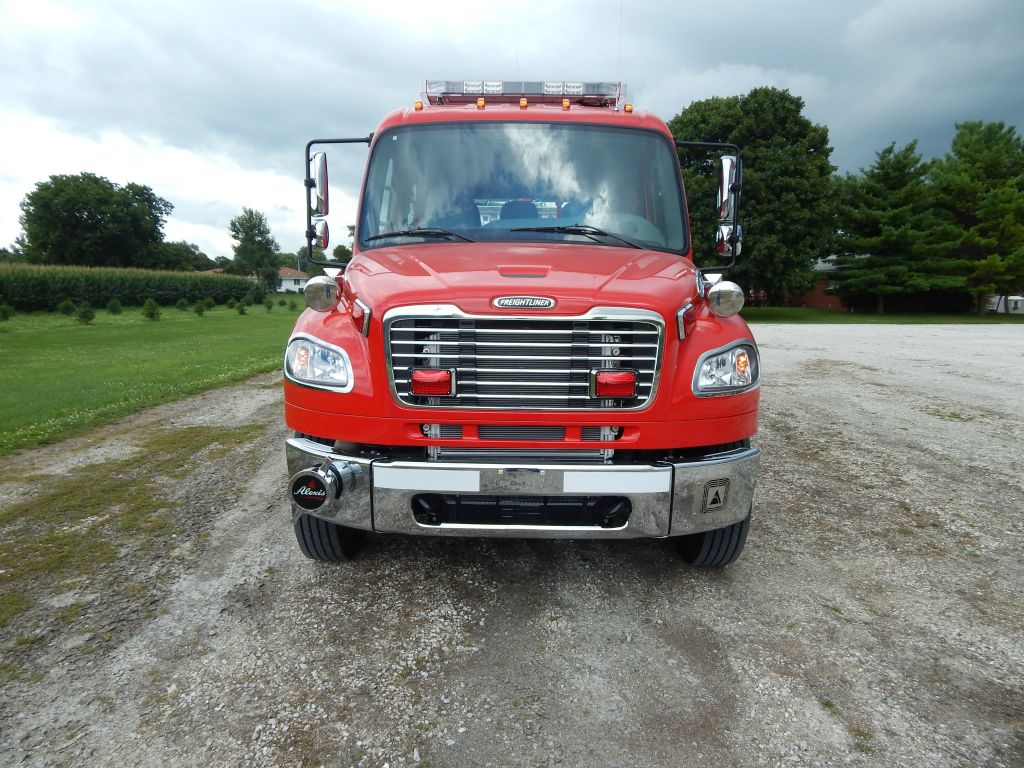

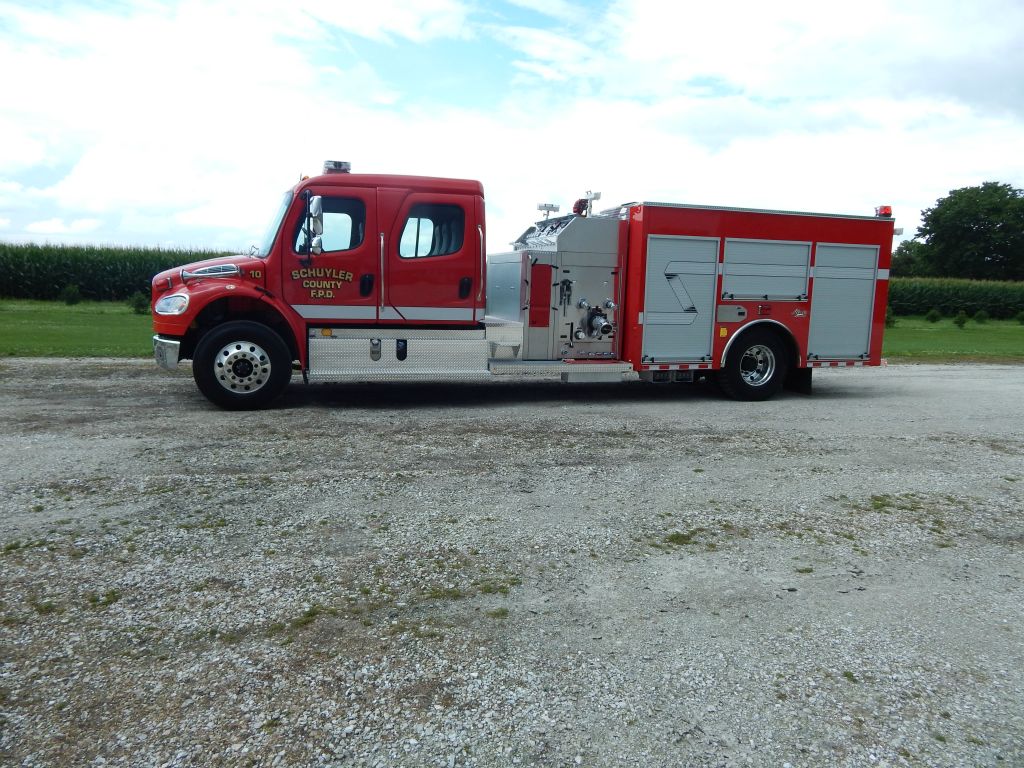

•Freightliner M2 106 4-Door Chassis
• Cummins ISL, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission

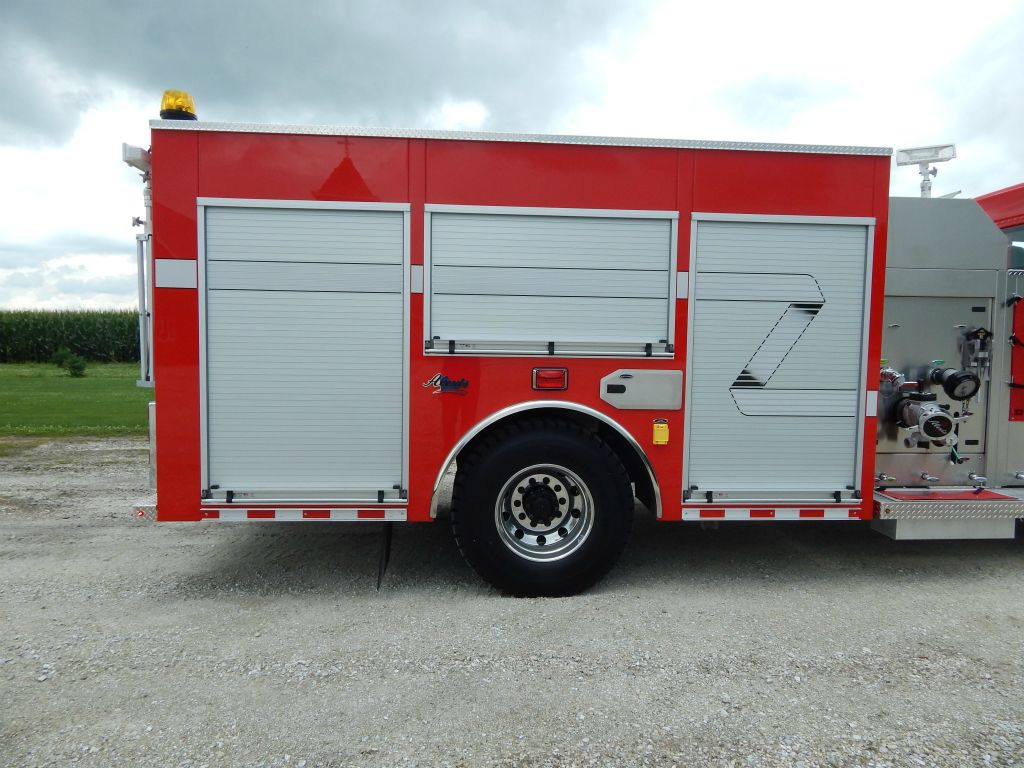

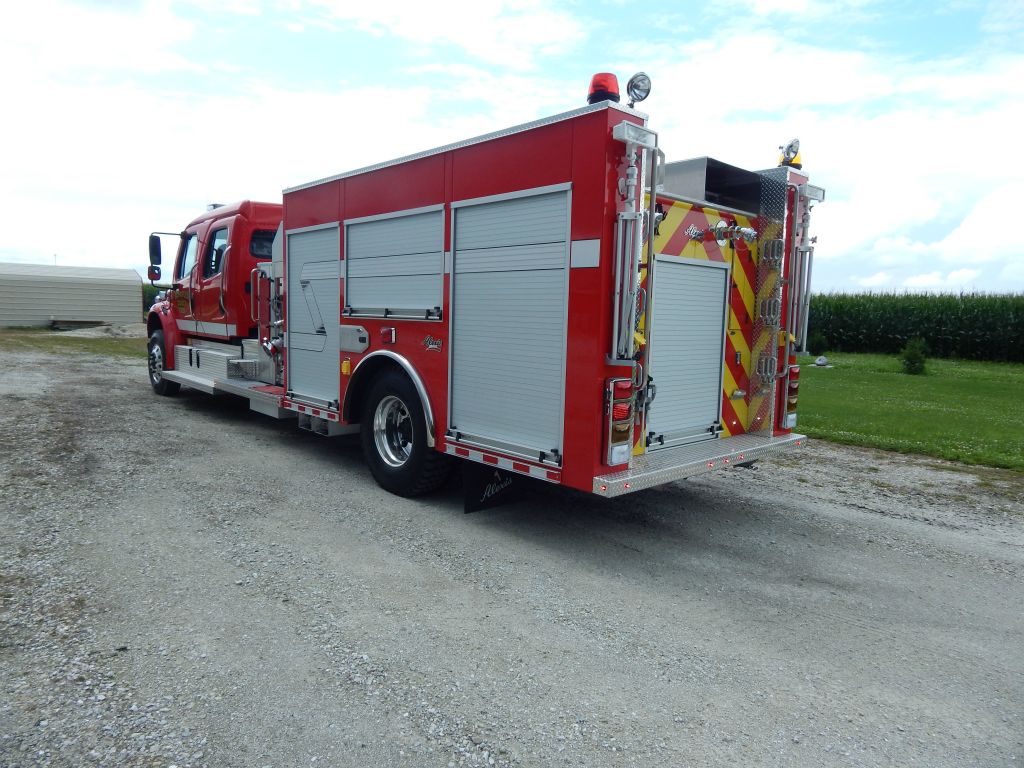

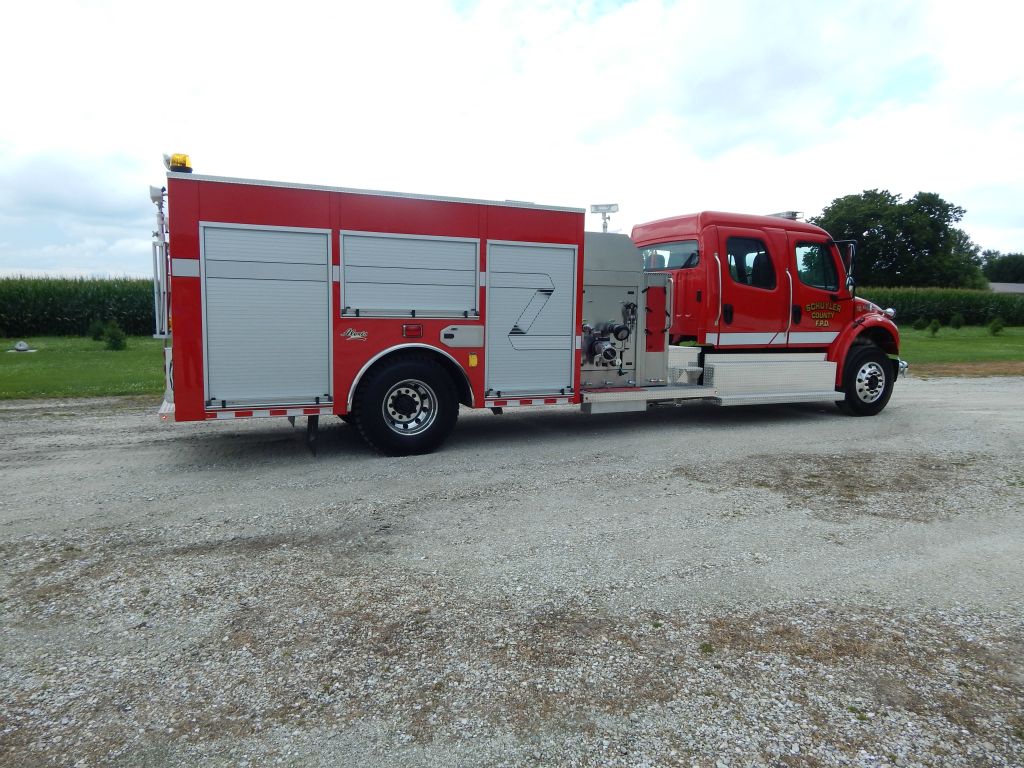

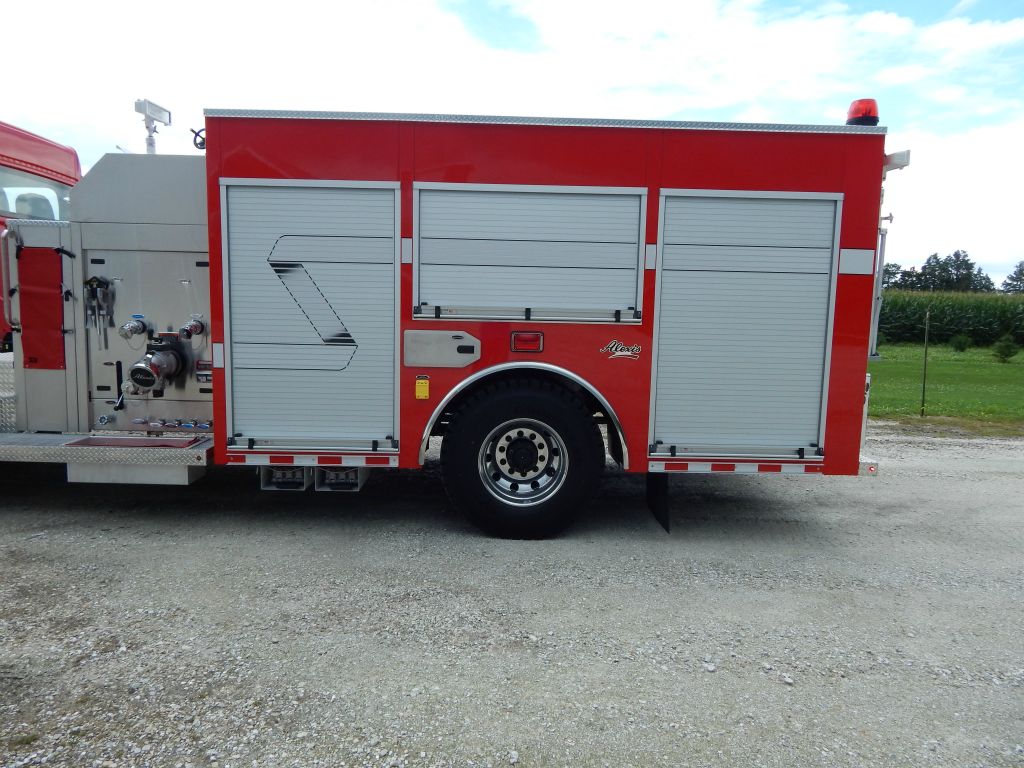

• Heavy Duty 3/16" Aluminum Body with ROM Roll Up Doors
• 1000-Gallon Poly Tank
• One (1) Newton 10" square electric dump with 36" extension, rear
• One (1) 2 ½" Fireman's Friend Tank fill, rear

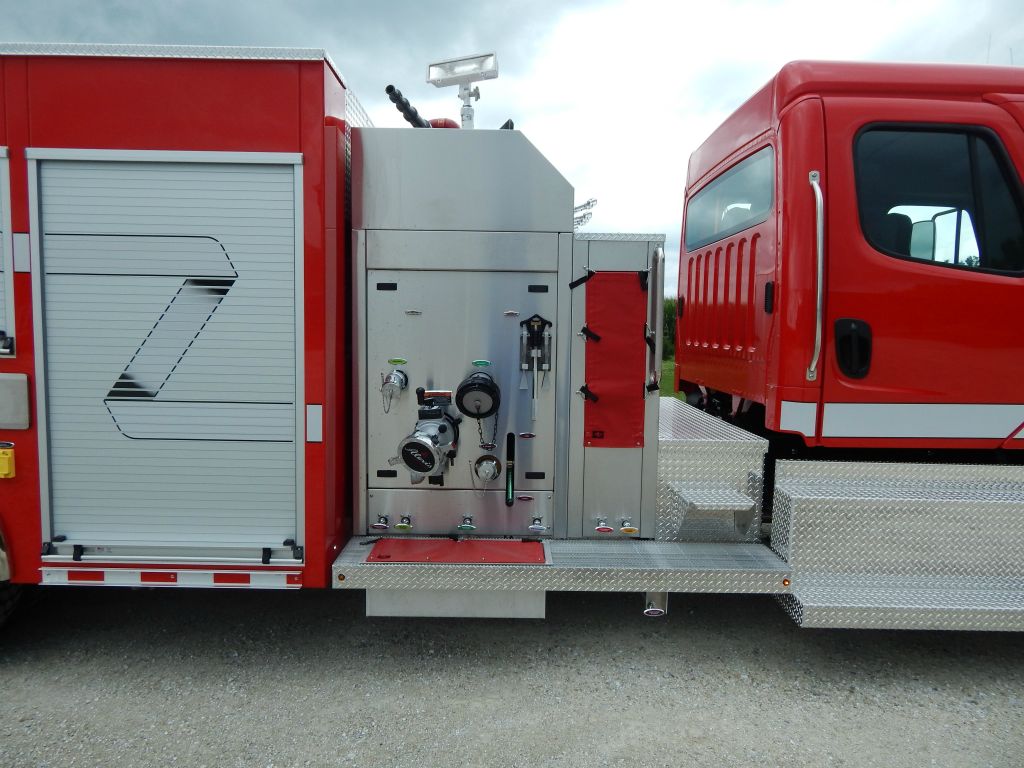

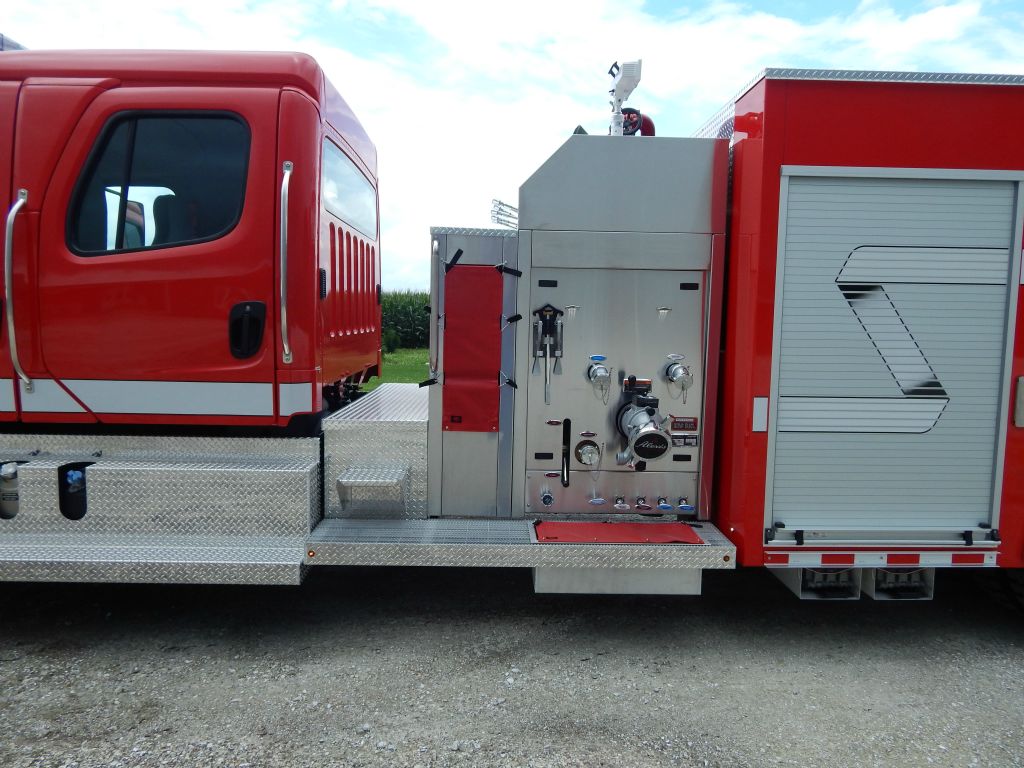

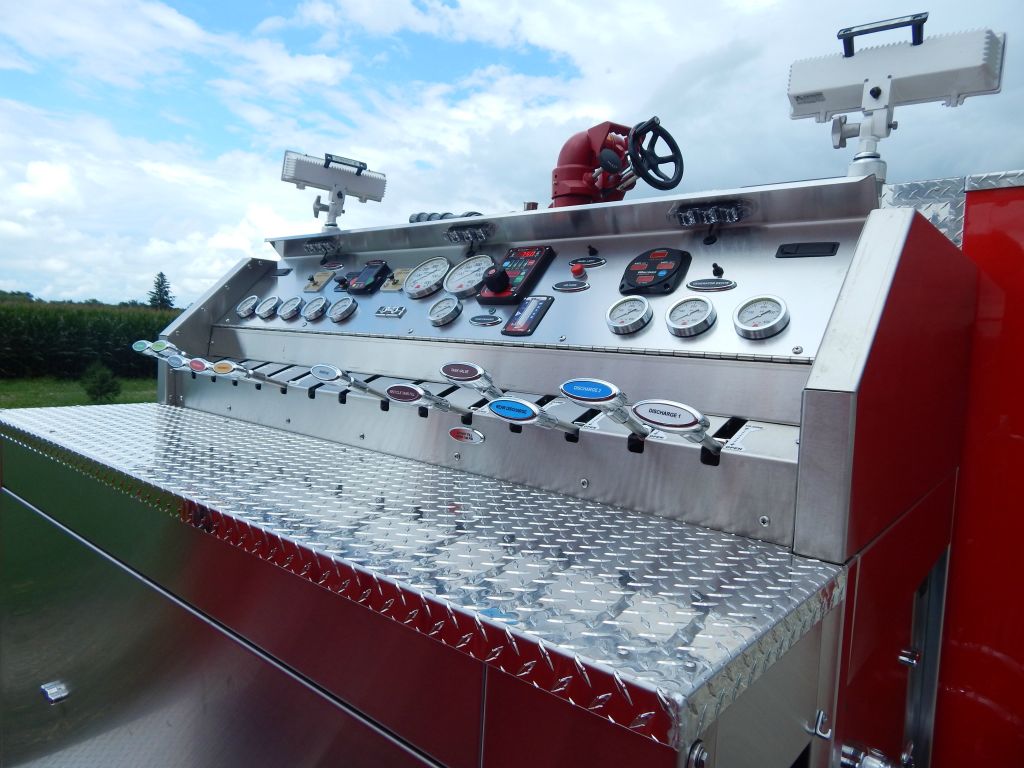

• Waterous CSU, 1500-GPM Pump with Pump Operator's panel across top
• Four (4) 2 ½" Discharges, two (2) left side, one (1) right side and one (1) rear
• Two (2) 3" Discharges, one (1) right side and one (1) over pump for deck gun
• One (1) Akron Apollo Deck Gun with stream shaper, tips and mounts
• Two (2) 2 ½" Gated Suction, one (1) each side
• Two (2) 1 ½" Cartridge Lay Preconnects, front of body

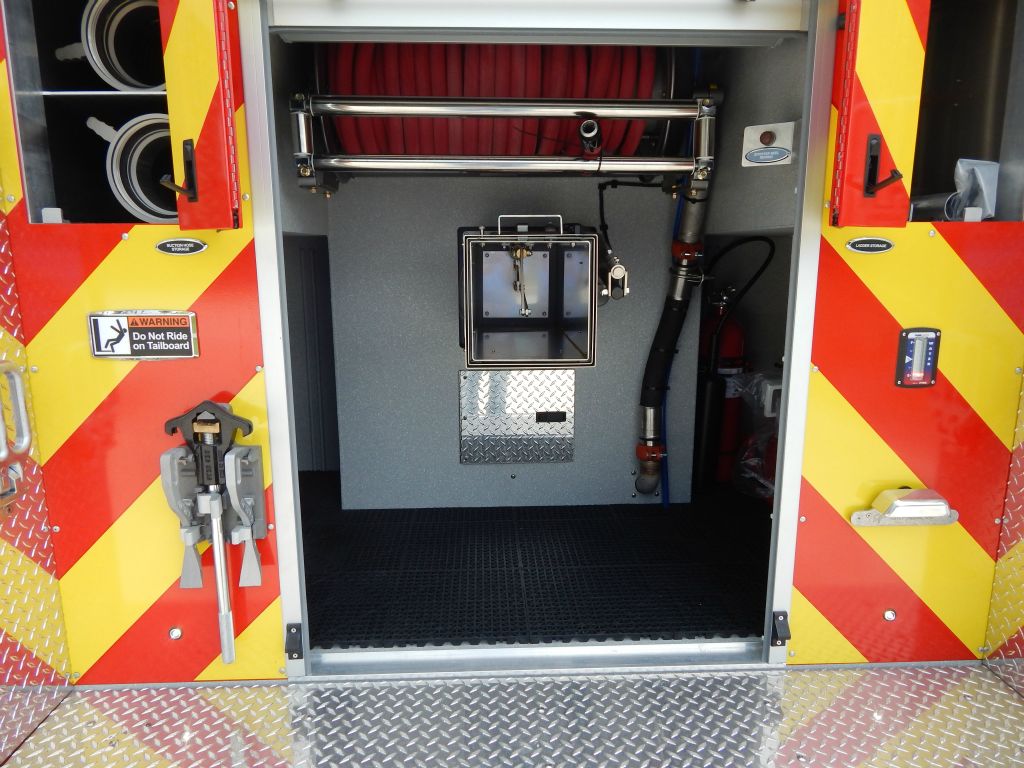

• One (1) Hannay Electric booster reel with 100-ft of 1" hose, rear
• Two (2) Dual bottle Air bottle compartments, one (1) each side wheel well

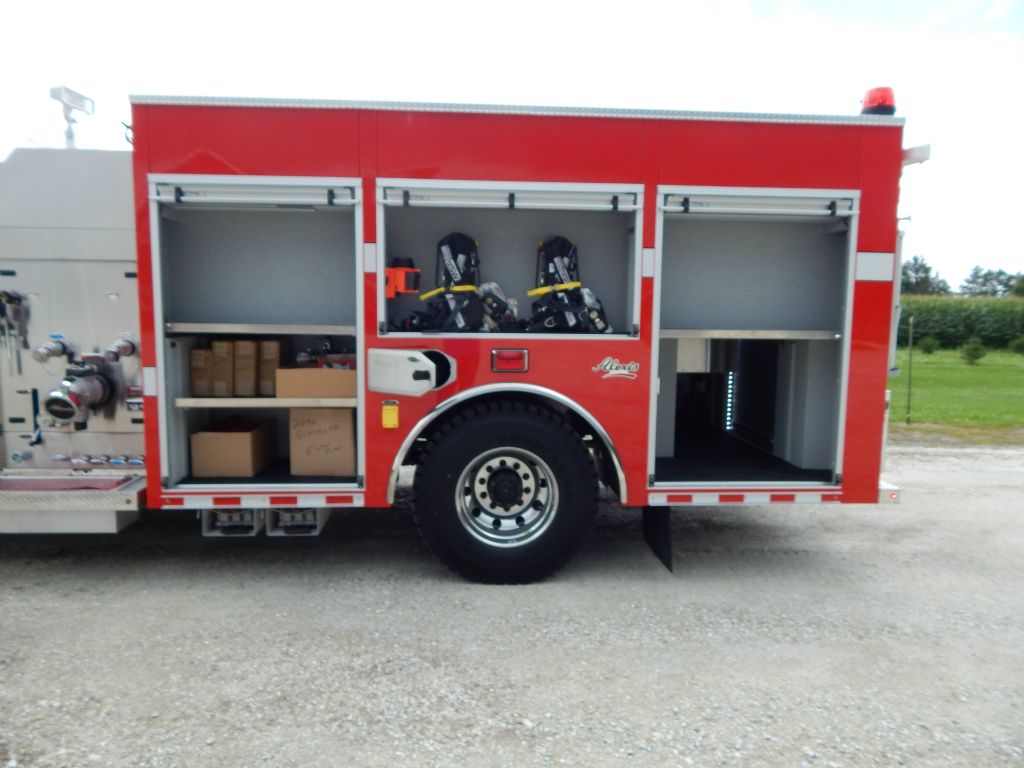

• Four (4) FlameFighter walk-away Air pack brackets, two (2) each side
• One (1) 5" Front Suction through the bumper
• Two (2) Free floating hose wells, one (1) each side running board

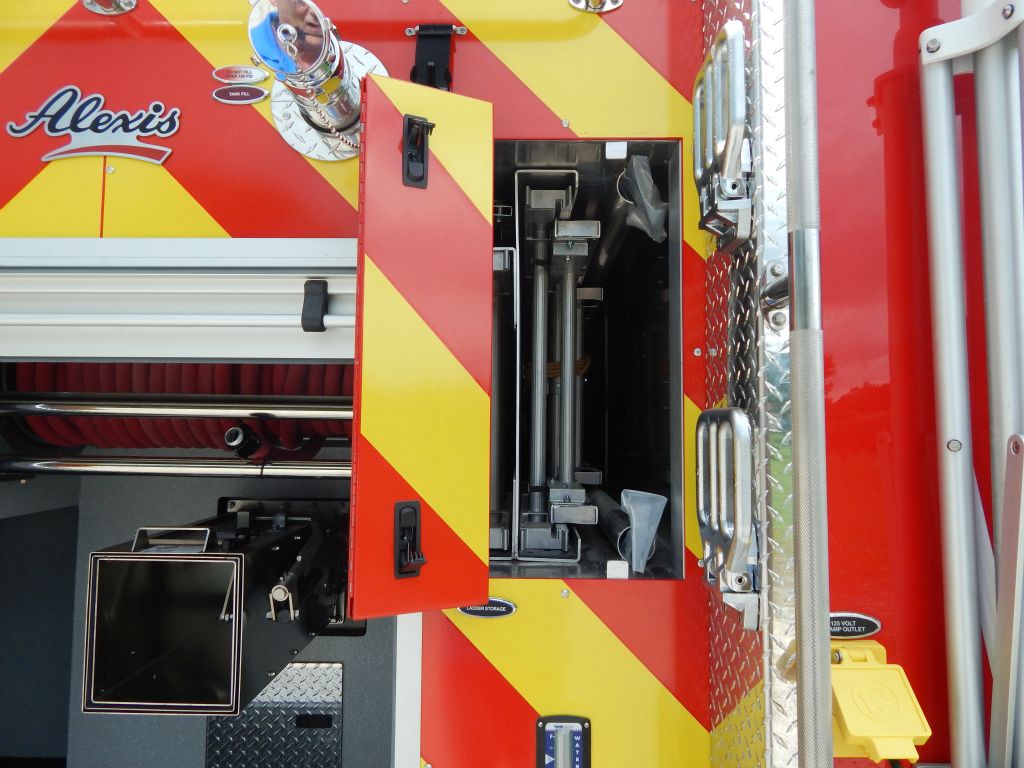

• Ladder/Pike pole storage right side vertical with rear access
• Folding Tank storage for 1000-Gallon tank, hosebed

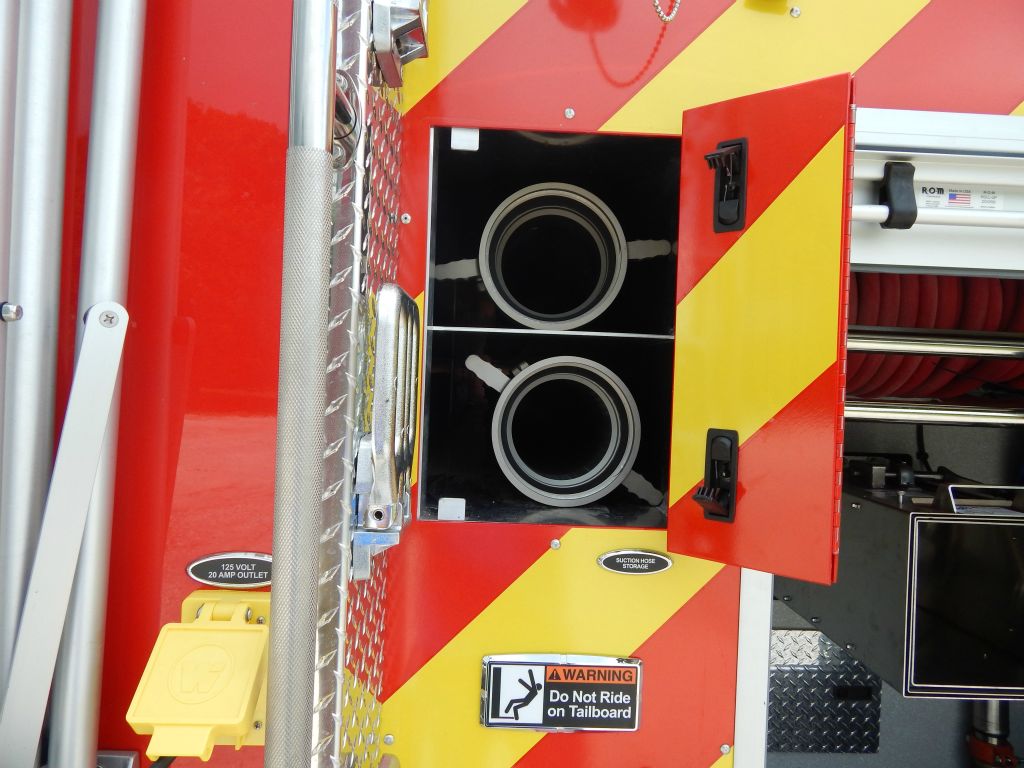

• Suction hose storage compartment for two (2) hose with rear access, left side
• Progressive Dynamics on-board battery charger with Viair air compressor
• Kussmaul Super Auto Eject 120-volt shoreline

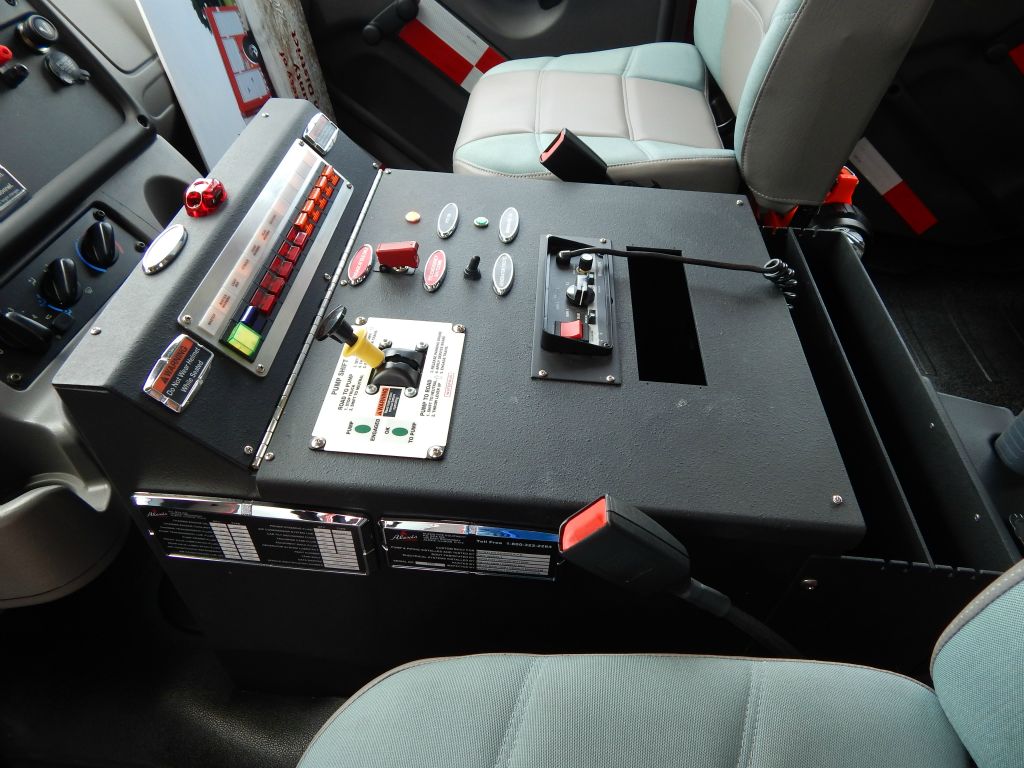

• Floor mounted console for emergency switches with map/binder storage
• Whelen Electronic Siren with 100-watt Whelen speaker
• Harrison 8000 watt hydraulically driven Generator with 120-volt system
• Two (2) Akron10" portable electric cord reels with 100-ft of 14/3 cord and light
• Two (2) Akron Extenda-Lite 120-volt 750-watt telescopic lights, one (1) each side
• Two (2) Akron Extenda-Lite 120-volt 750-watt telescopic tripod lights, rear

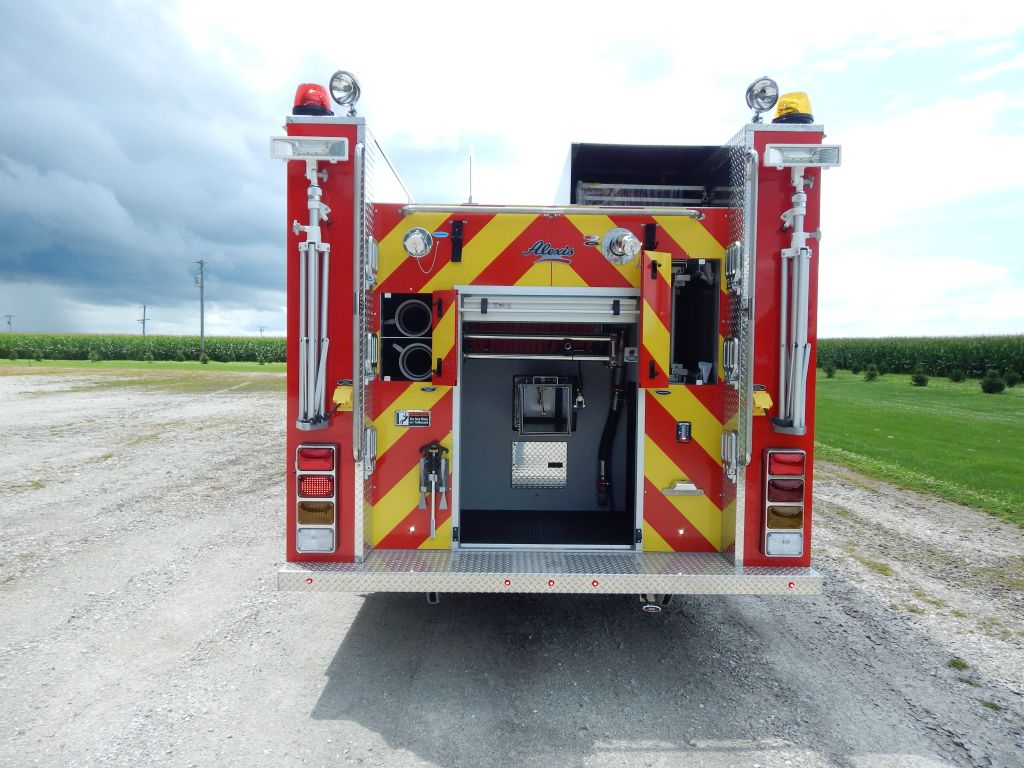

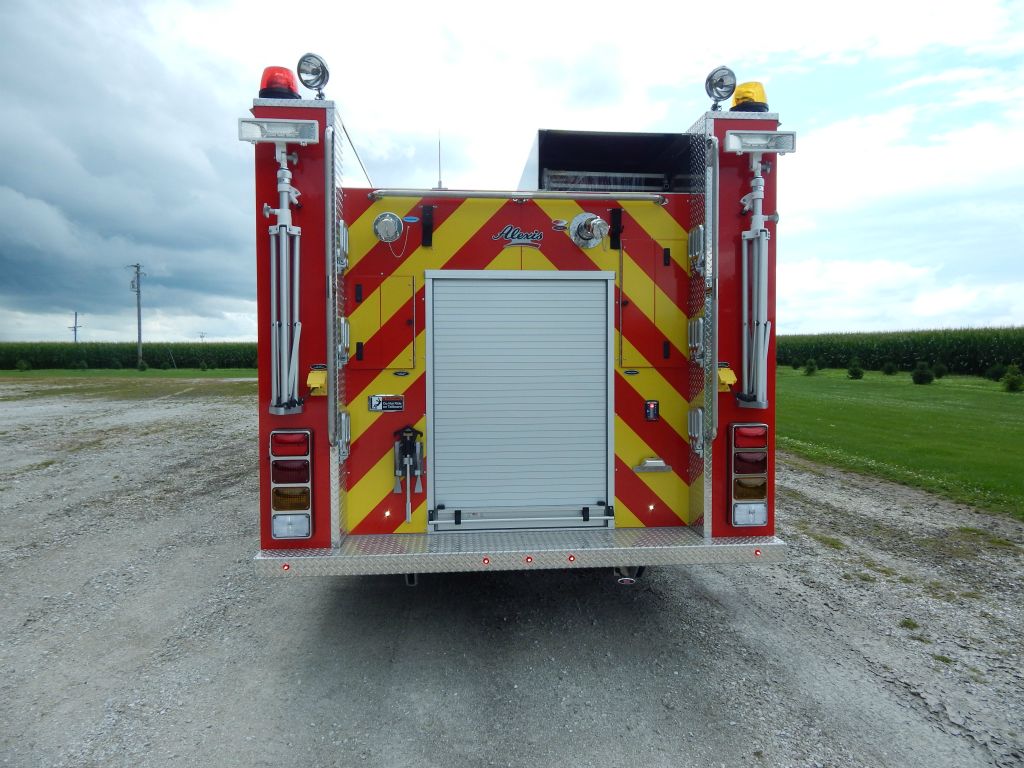

• Whelen LED Warning Light Package and Chevron pattern striping, rear
• 9' 9" Overall height
• 33' 8" Overall length
• 271" Wheelbase
• 158.2" Cab to Axle
• 12,000 FAWR
• 27,000 RAWR
• 39,000 GVWR
