Prospect Heights Fire
Protection District
Prospect Heights, Illinois

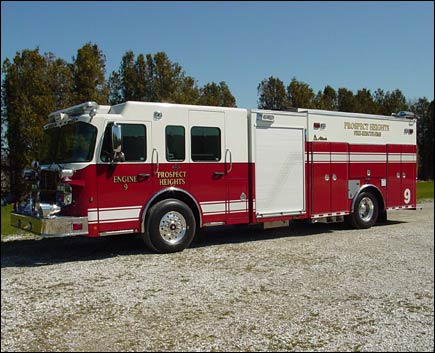

Technical Specs
• Spartan Gladiator ELFD
Flat Floor 10" raised roof Chassis
• Detroit Series 60 14.0-L, 490-HP Diesel Engine
• Allison 4000-EVPR Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF Rectangular 750-Gallon Poly Tank
• Waterous CSU, single stage 2000-GPM Pump
• Four (4) 2 ½" Discharges, one (1)
each side and two (2) rear
• One (1) 3 ½" discharge with NST LHF
x 5" Storz 30 degree elbow, right side
• One (1) 2 ½" Gated suction, left
side and one (1) 5" front suction
• Two (2) 1 ½" and one (1) 2 ½"
Cartridge Lay Preconnects
• Foam Pro 2002 Foam system with one (1) 10-gallon
and one (1) 60-gallon tank
• One (1) Electrically controlled Elkhart Vulcan
RF, 1250-GPM monitor system
• Box Type Doors, side compartments
• One (1) Hannay Electric Booster Reel, rear
• Two (2) EMS compartments and one (1) map box
in cab interior
• Kussmaul Auto Charge 35/10, 35-amp battery conditioner/10-amp
power supply
• Kussmaul Super Auto Eject 20-amp shoreline
• Two (2) Air bottle compartments with three bottle
capacity each, one each side
• One (1) Firecom Intercom system with five (5)
headsets, three (3) intercom only
• Two (2) Federal GHSCENE halogen scene lights,
one (1) each side of cab
• Six (6) Federal GHSCENE large scene lights, two
(2) each side and two (2) rear
• Onan CMSD 7.5 kW Diesel driven Generator
• One (1) Command Light Tower with four (4) 500-watt,
120-volt lights, all electric
• Two (2) Havis-Shields 2100, 120-volt 750-watt,
one (1) each side pump module
• One (1) Havis-Shields Magnafire 3000, 120-volt
750-watt scene lights, front roof
• Two (2) Grover Air Horns recessed in front bumper,
one (1) each side
• One (1) 12" Chrome Bell electrically controlled
• One (1) Federal Q2B 10" Electric Siren with
sound deflector shield
• One (1) Federal Electronic Siren with Two (2)
100-watt Federal Speakers
• Two (2) MARS Traffic Breaker Pedestal lights,
One (1) on each cowl of the cab
• Code-3 Upper and Whelen Lower Warning Light Packages
• 10' 5" Overall height
• 35' Overall length
• 228" Wheelbase
• 154" Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR
|
