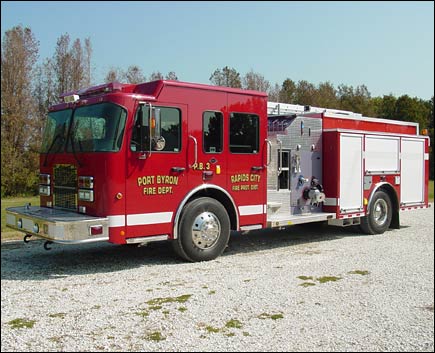

Village Of Port Byron
/
Port Byron Fire Department
Port Byron, Illinois
Technical Specs
• Spartan Big-Easy Chassis
• Cummins ISC330, 330-HP Diesel Engine
• Allison 3000 EVP Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1000-Gallon T-type Poly Tank
• Hale QMAX150, 1500-GPM Pump
• Four (4) 2 ½" Discharges, two (2)
left side, one (1) right side and one (1) rear
• One (1) 2 ½" Preconnect, front
of hose bed
• Two (2) 3" Discharges, one (1) right side
and one (1) over pump for deck gun
• Two (2) 1 ½" Cartridge lay Preconnects
with capacity for 150-ft of 1 ¾" hose
• One (1) 1 ½" Preconnect, front
bumper with capacity for 100-ft of 1 ½"
hose
• One (1) 2 ½" Gated suction, left
side
• ROM Roll Up Doors
• Three (3) Dual Air bottle compartments, two
(2) right side and one (1) left side
• One (1) Back board compartment, pump operator's
walkway
• One (1) Hinged tool board, left side compartment
• Three (3) FlameFighter Walk-away Air Pak brackets,
right side compartment
• Zico Hydraulic Ladder Rack with attic ladder
bracket, right side
• Two (2) Hard suction hose storage, top of left
side compartments
• FireCom Intercom System with six (6) headsets
(two (2) radio transmit capable)
• One (1) Kussmaul Pump-Plus 1200 Air compressor/battery
charger
• Two (2) Kussmaul Super Auto Eject 120-volt
shorelines, one (1) each side cab
• Code-3 Electronic Siren with 100-watt Federal
speaker
• One (1) Federal GHSCENE scene light, front
of hosebed
• Onan 10-kW Hydraulically driven Generator
• One (1) Akron Brass Extenda-Lite 750-watt Brow
light, cab roof front
• One (1) Akron Brass Extenda-Lite telescopic
tripod 120-volt 500-watt light, rear
• One (1) Tempest Light Tower with four (4) dual
tilt/turn 1500-watt lights
• Code-3 Upper Warning Light Package
• Whelen Lower Warning Light Package
• 9' 9" Overall height
• 32' 8" Overall length
• 200" Wheelbase
• 146" Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
|
