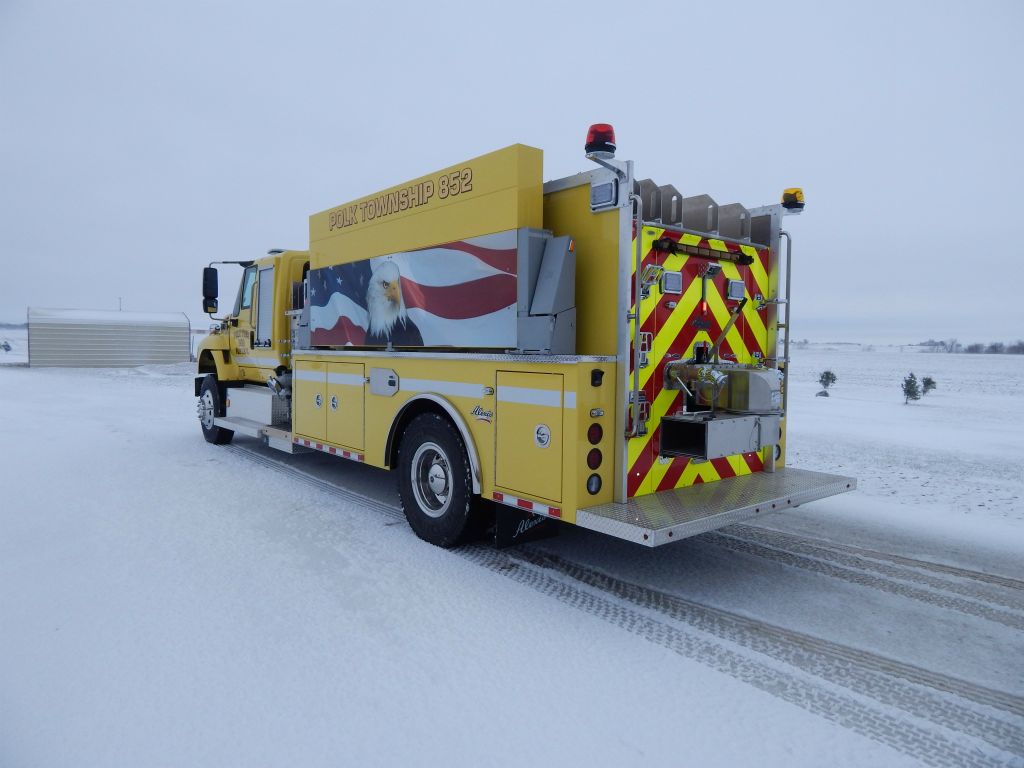

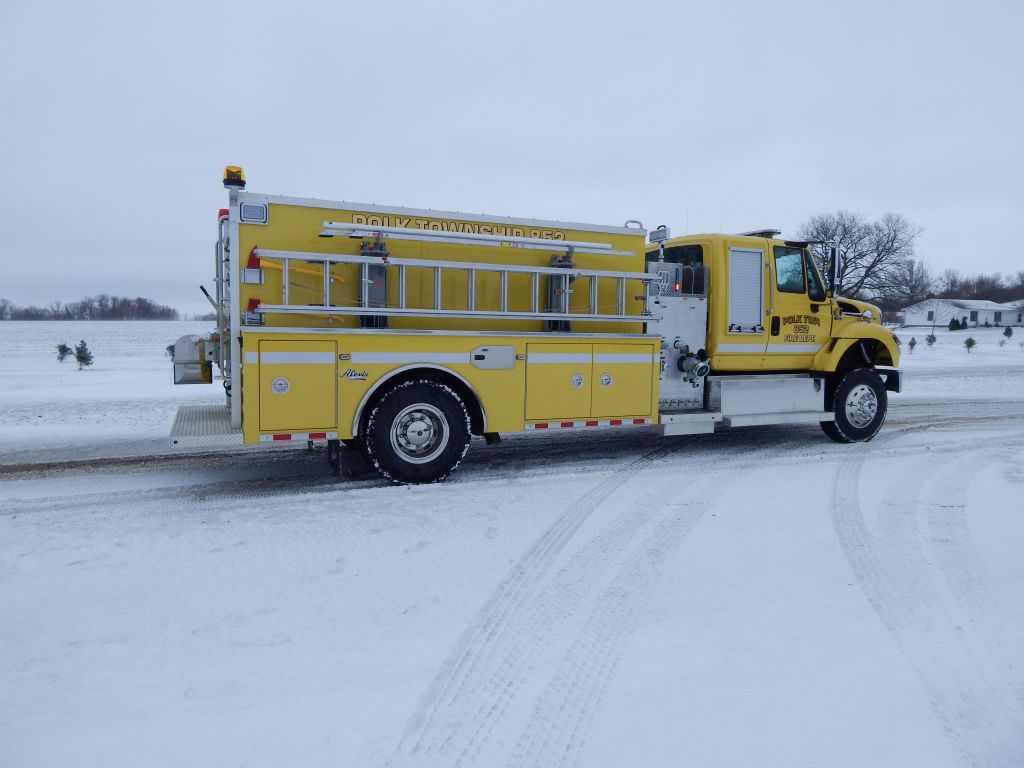

POLK TOWNSHIP FIRE DEPARTMENT
PLYMOUTH, INDIANA
Technical Specs

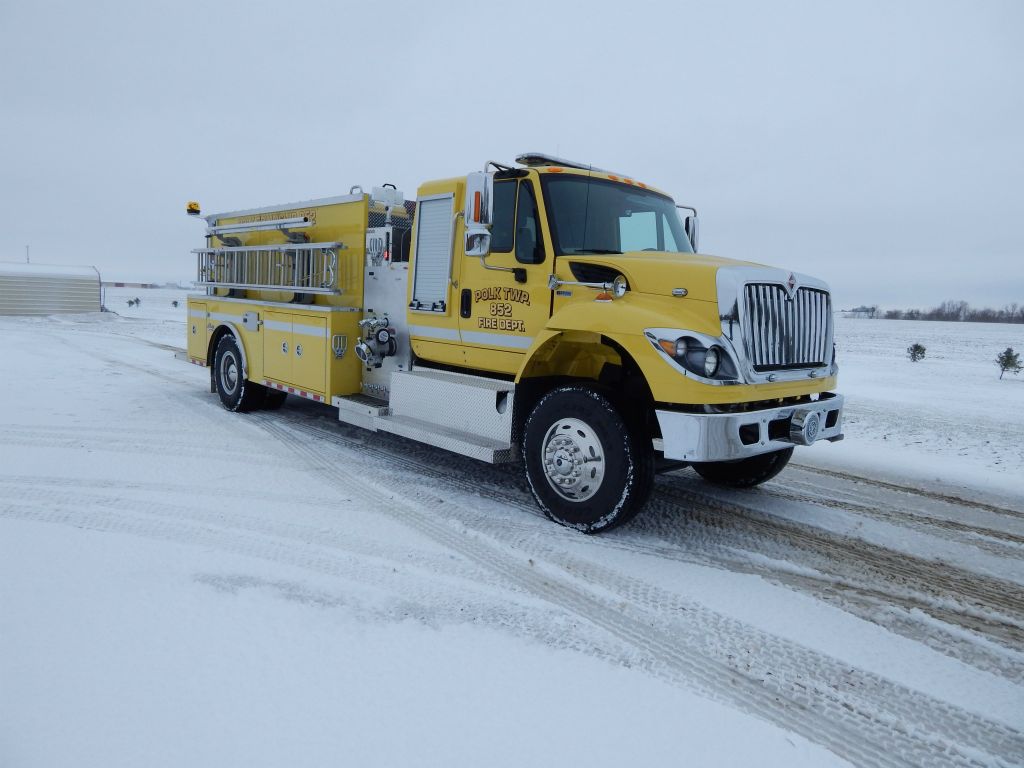

• International 7500 extended cab Chassis
• MaxxForce 10, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body with Box type flush doors
• 1900-Gallon Poly Tank
• Two (2) 2 ½" Tank fills, rear

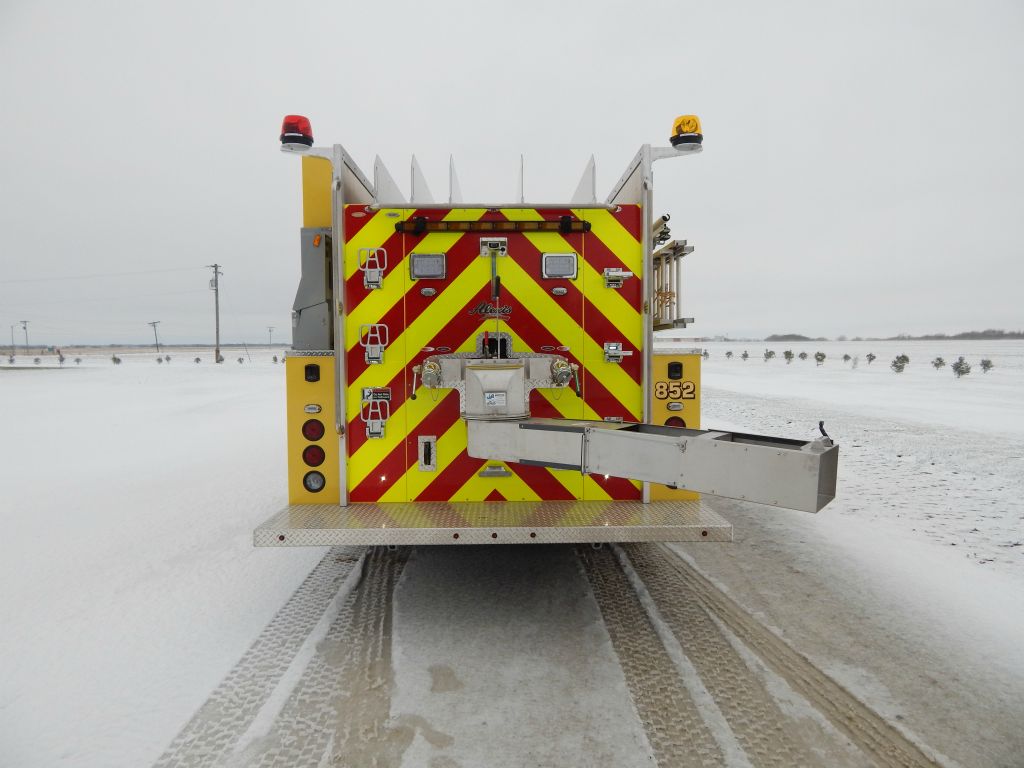

• One (1) 10" square manual Newton swivel tank dump with 36" extension, rear

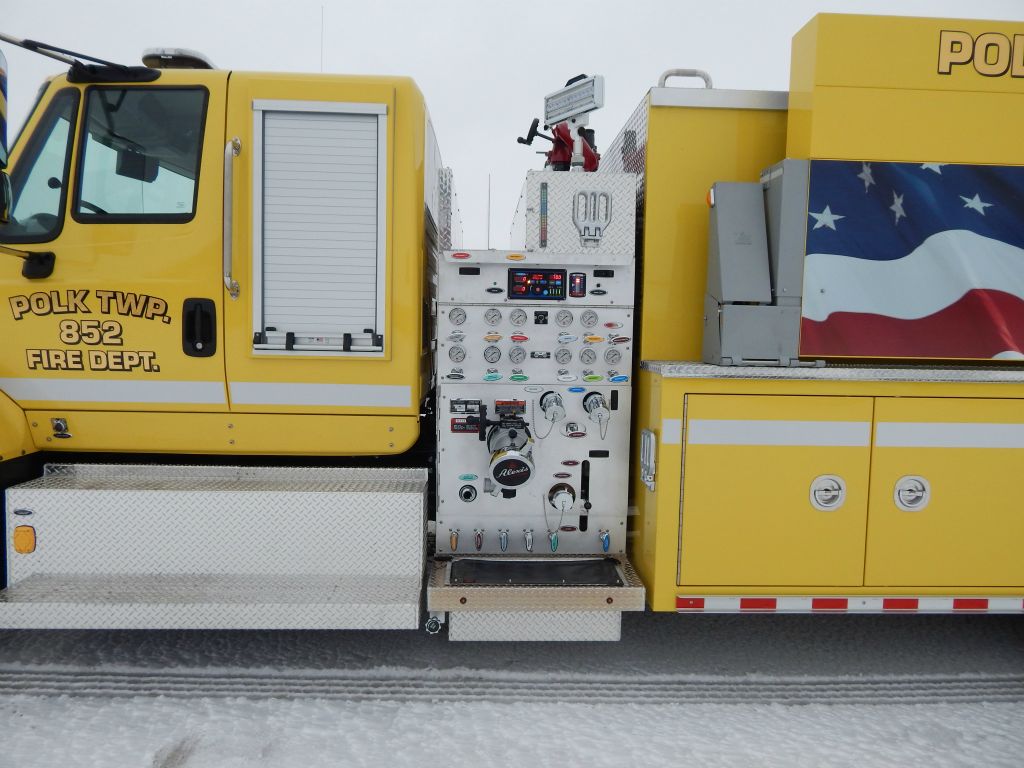

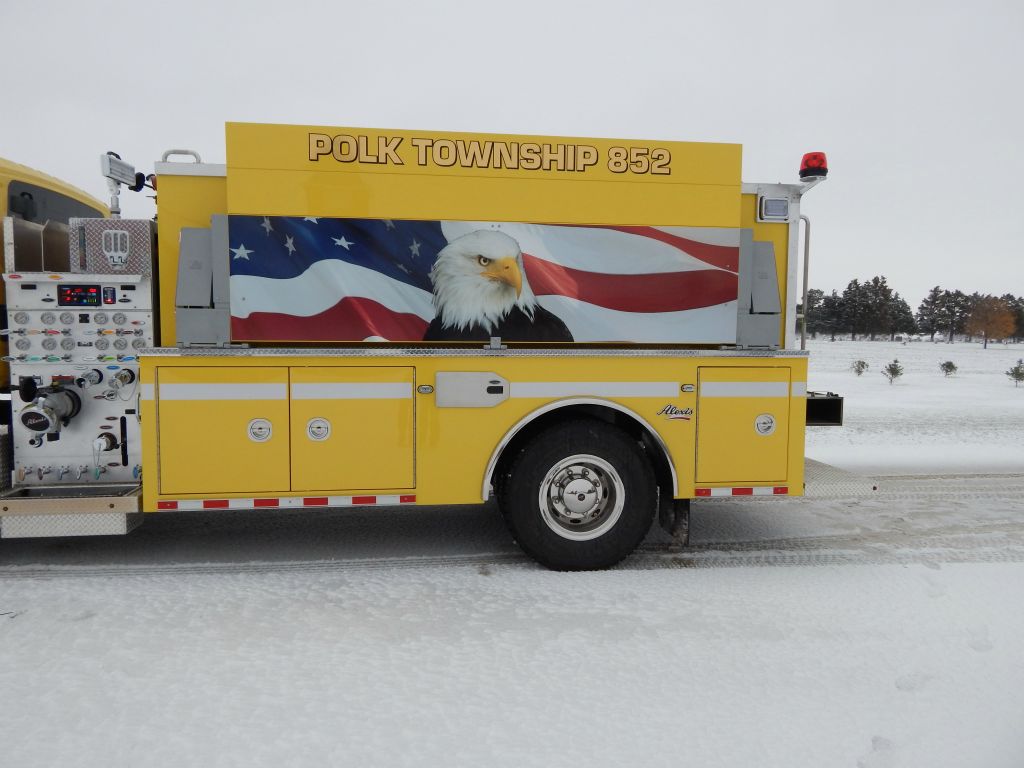

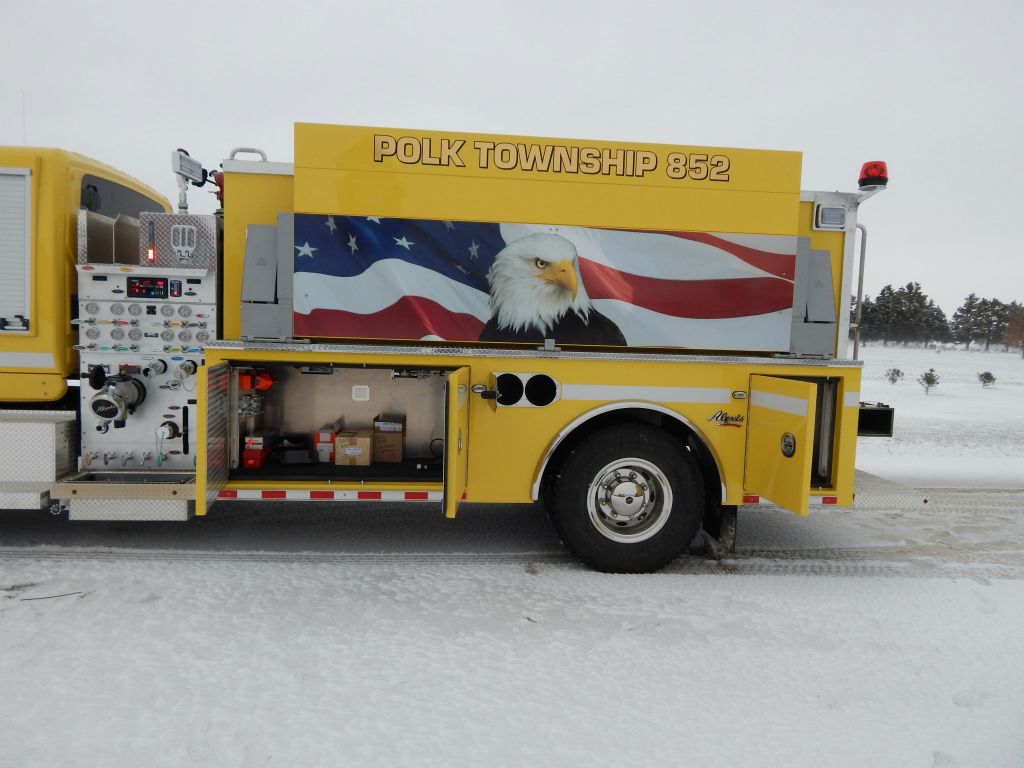

• Waterous CXVK 1250-GPM Pump with left side pump operator's panel
• Four (4) 2 ½" Discharges, two (2) each side
• Two (2) 1 ½" Mattydale Preconnects, across top of apparatus
• Two (2) 1 ½" Preconnects, one (1) each side running board hose wells
• Two (2) 1 ½" Mattydale Preconnects, across top of body
• Two (2) 2 ½" Gated Suctions, one (1) each side
• One (1) 3" Discharge, over pump for deck gun
• One (1) TFT Crossfire Deck Gun with portable monitor top and Extend-a-gun
• Two (2) free floating hose wells, one (1) each side running board
• Two (2) Dual bottle Air bottle compartments, one (1) each side

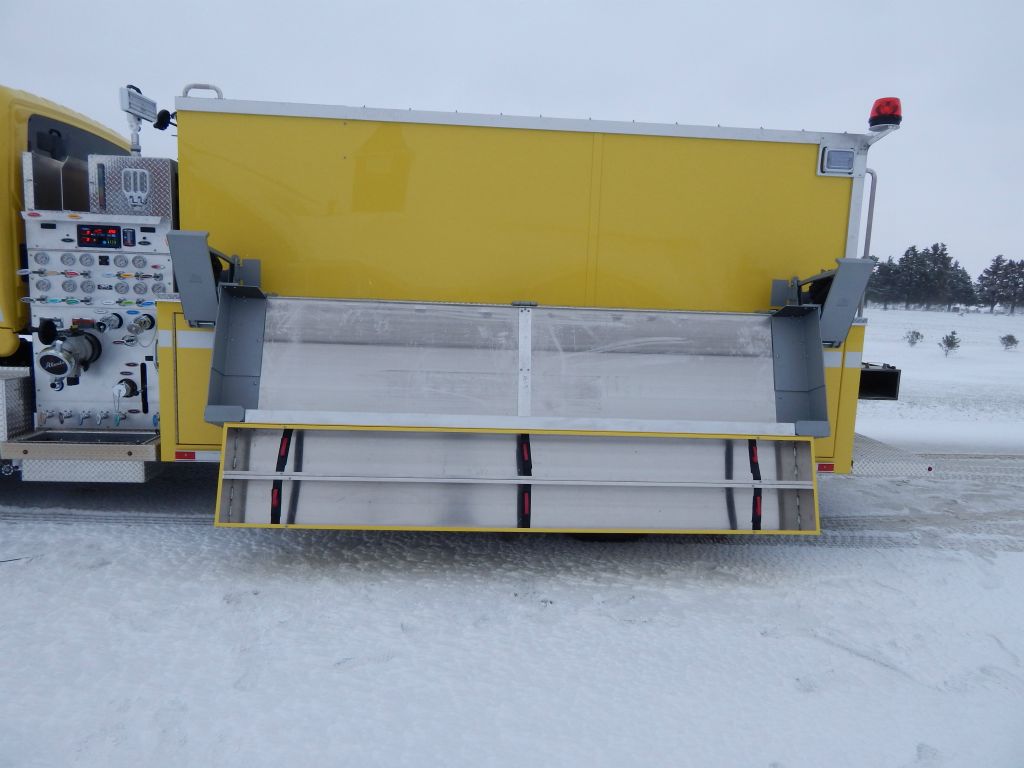

• Ziamatic electric hinged folding tank rack for 2100-gallon tank, left side
• Two (2) Suction hose storage, on folding tank rack

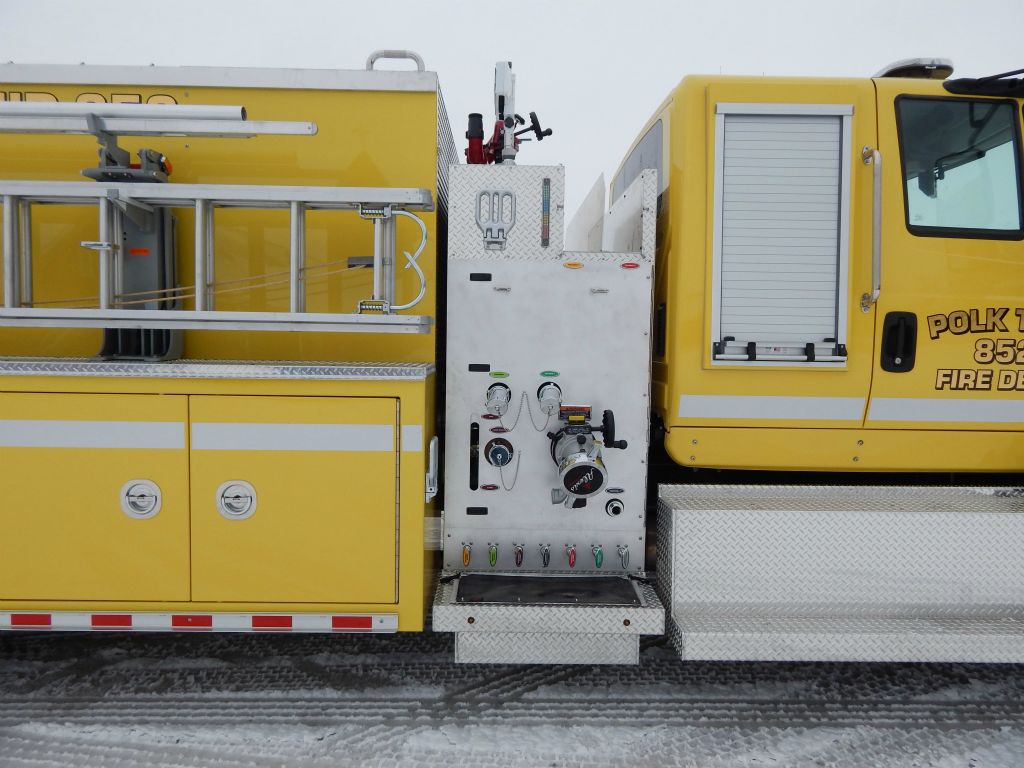

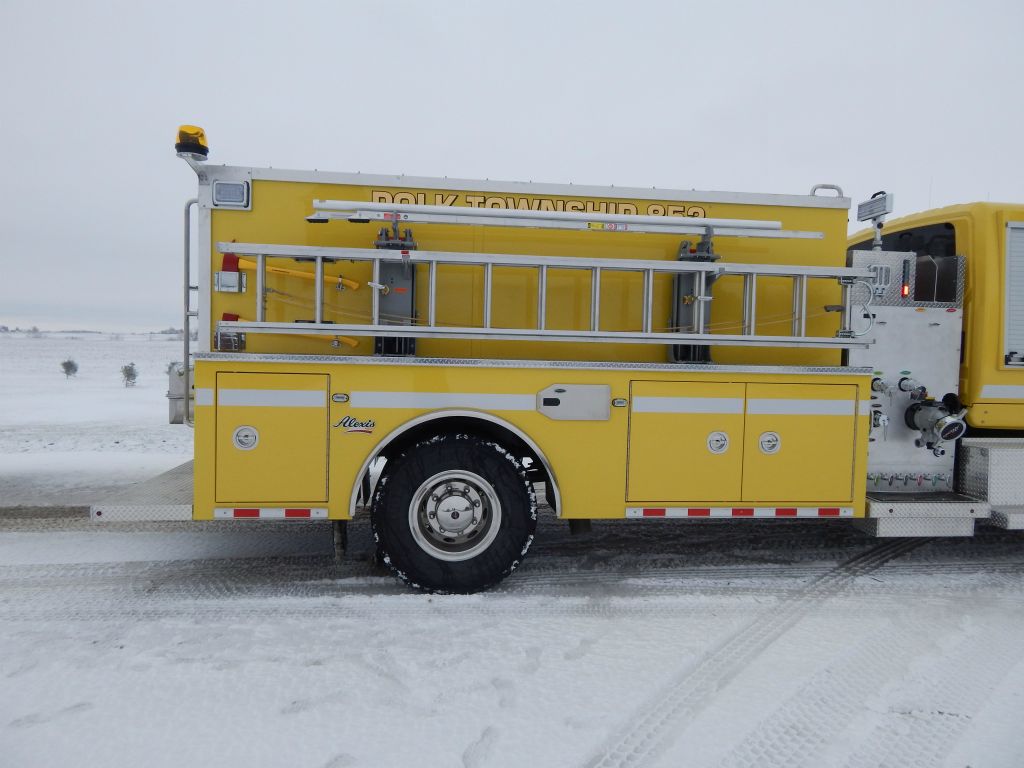

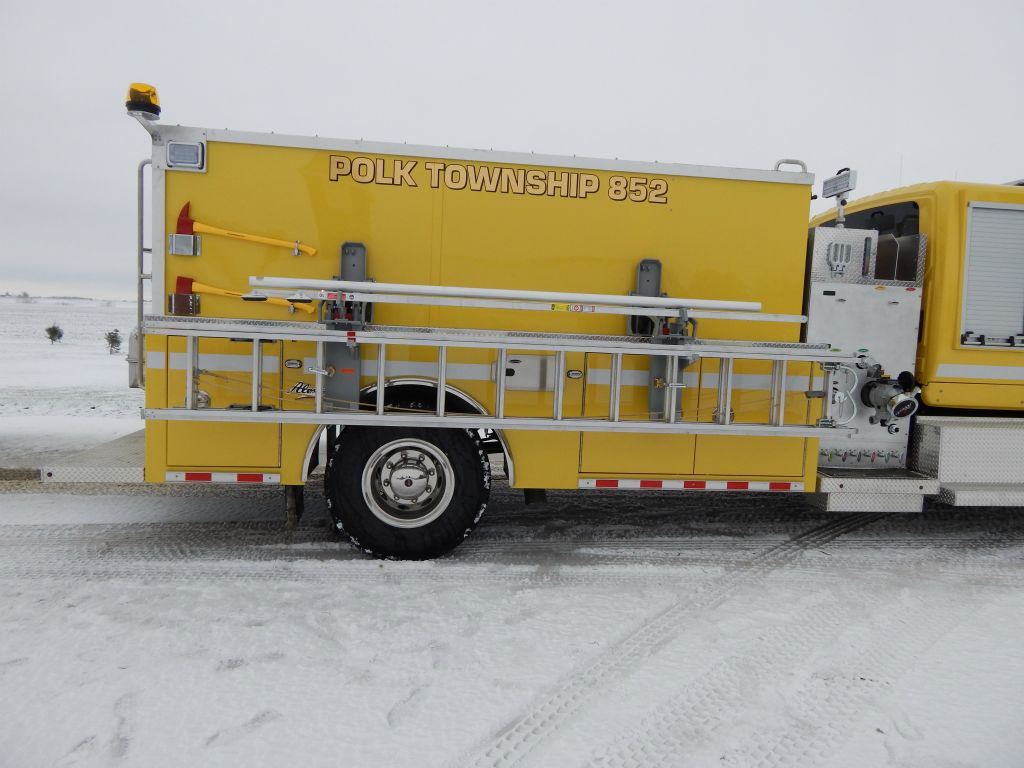

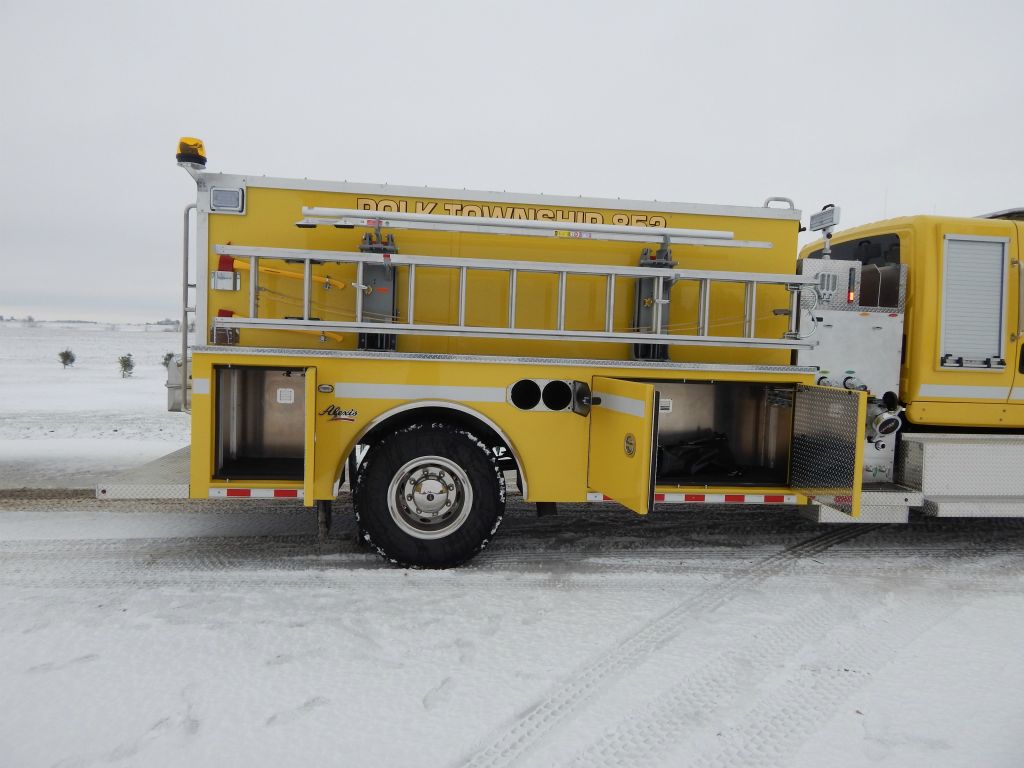

• Zico Electric Ladder rack, right side
• Turtle Tile on floors of compartments
• Progressive Dynamics on-board battery charger with Viair air compressor
• Kussmaul Super Auto Eject 120-volt shoreline
• AudioVox back-up camera with 7" color monitor

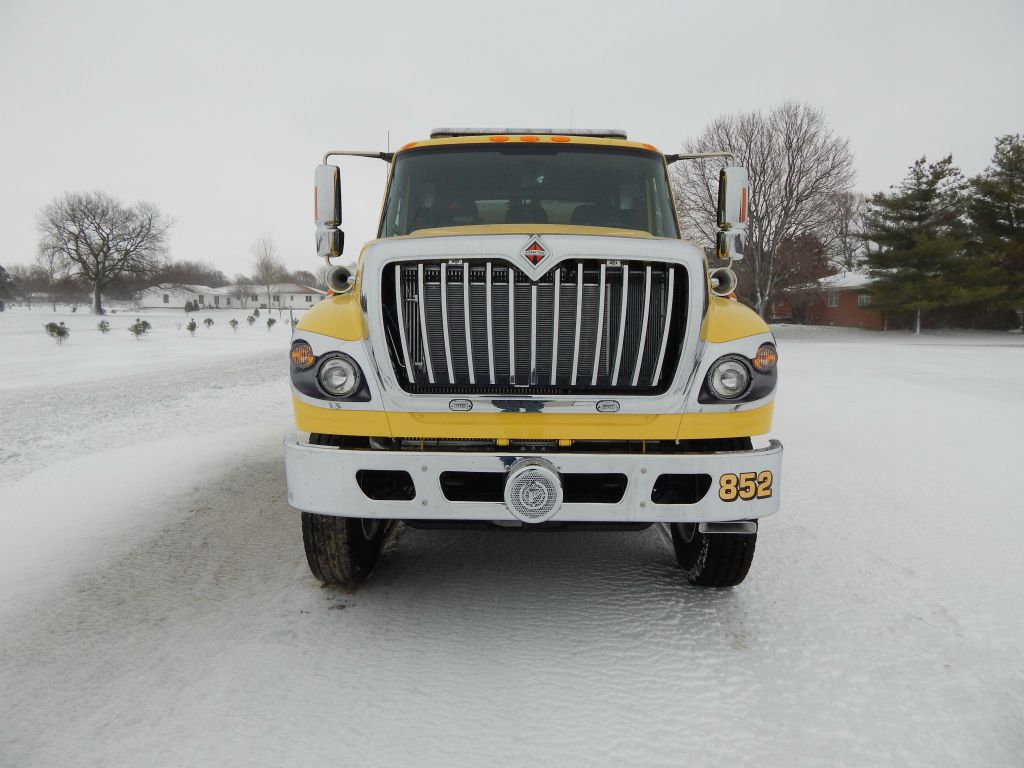

• Two (2) Air Horns, one (1) each side of hood
• Federal Q2B mechanical Siren, flush mounted front bumper
• Whelen Electronic Siren with Cast Products speaker
• Four (4) FRC Spectra LED Scene lights, one (1) each side and two (2) rear
• Two (2) FRC 12/24-volt Spectra LED telescopic lights, one (1) each side
• Whelen LED Warning Light Package

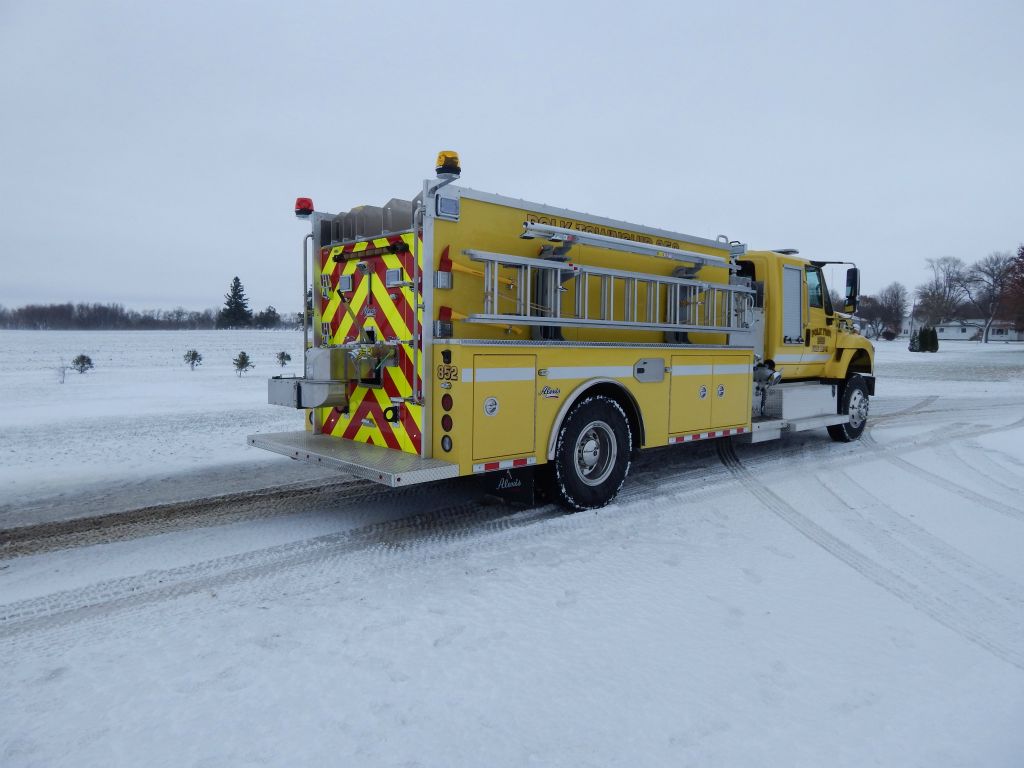

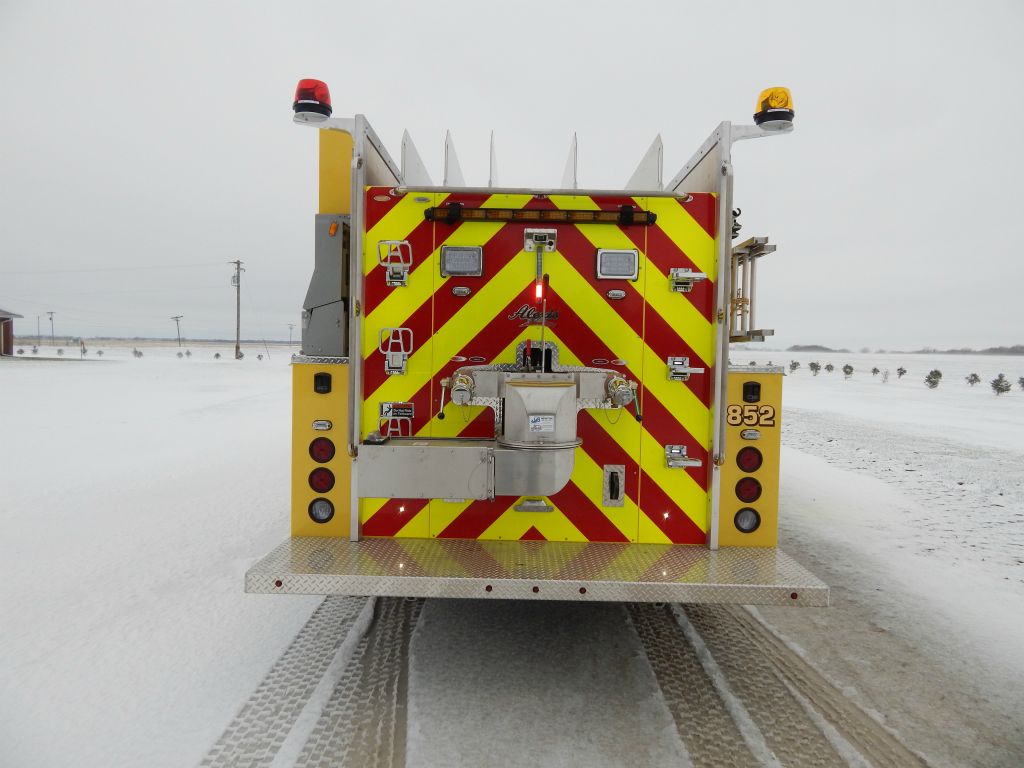

• Diamond Grade Chevron pattern striping, rear
• 9' 5" Overall height
• 31' Overall length
• 244" Wheelbase
• 150.9" Cab to Axle
• 14,000 FAWR
• 30.000 RAWR
• 44,000 GVWR
