Pleasantville Emergency
Services Department
Pleasantville, Iowa
Technical Specs

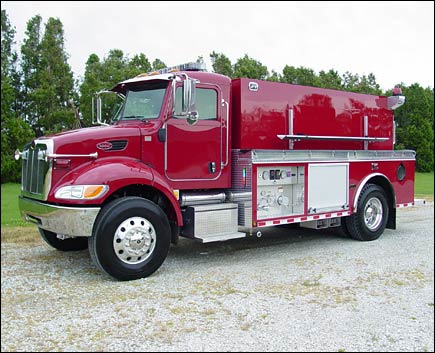

• Peterbilt 340 2-Door
Chassis
• Paccar PX8 360, 360-HP Diesel Engine
• Allison 3000EVS-P Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 2000-Gallon Wetside Poly Tank
• Waterous CLVK500, 500-GPM Pump
• Pump Operator's panel left side under tank
• One (1) 4" Suction, left side
• One (1) 2 ½" Discharge, left side
• One (1) 2 ½" Preconnect, front
of hose bed
• One (1) 1 ¾" Preconnect, left side
compartment top
• ROM Roll Up Doors
• On Spot automatic tire chains
• One (1) Kussmaul Air Eject
• Three (3) EJ Metals 10" round air operated
dumps with 22" extensions, one (1) each side and
one (1) rear
• One (1) Hannay electric booster Reel with 150-ft.
of 1" hose, right side compartment
• Ziamatic electric folding tank bracket with
one (1) suction hose gutter, right side
• One (1) Suction hose gutter, left side above
hose tray
• Six (6) Whelen large scene lights, two (2)
each side and two (2) rear
• Two (2) Grover air horns, one (1) each side
of chassis hood
• Code -3 Electronic Siren with 100-watt Federal
speaker
• Whelen Warning Light Package
• 9' 8" Overall height
• 25' 7" Overall length
• 194" Wheelbase
• 124.2" Cab to Axle
• 14,600 FAWR
• 30,000 RAWR
• 44,600 GVWR
|
