Village Of Peoria Heights
Fire Department
Peoria Heights, Illinois
Technical Specs

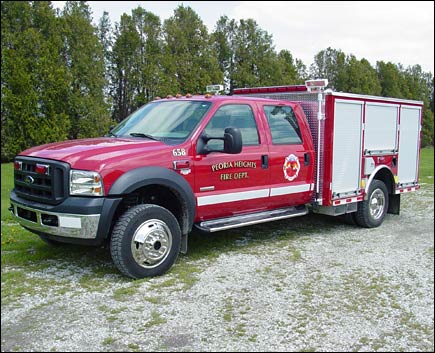

Ford F-550 4-Door 4x4
DRW Chassis
Powerstroke 6.0L V-8, 325-HP Diesel Engine
Ford TorqShift 5-speed Automatic Transmission
Heavy Duty 3/16" Aluminum Body
UPF 200-Gallon T-type Poly Tank
Hale HPX200, 60-GPM Pump with Honda 20-HP Gasoline
engine
One (1) 2 ½" Gated suction
One (1) 2 ½" Discharge, rear
One (1) Akron electric booster reel with 150-ft.
of 1" hose
ROM Roll Up Doors
Luverne stainless steel running boards
Two (2) Air bottle compartments, one (1) each
side
One (1) Backboard and stokes basket storage
rack, front transverse compartment
One (1) Hannay Dual hydraulic hose reel, right
side compartment
Two (2) Walk-away Air Pak brackets, left side
compartment
One (1) rolled up hose storage tray, side compartment
One (1) Vertical pull out board, left side
rear compartment
Vanner On board Automatic battery charger/conditioner
One (1) Kussmaul Super Auto Eject 120-volt
shoreline
Two (2) Weldon large scene lights, one (1)
each side
One (1) PowerAll 5000-watt under hood Generator
Two (2) Akron Extenda-Lite 120-volt 750-watt
telescopic lights, one (1) each side
Two (2) 120-volt 20-amp twist lock exterior
outlets, one (1) each side
Two (2) 120-volt eight (8) outlet power strips,
one (1) right side compartment and one (1) cab console
Code-3 Electronic Siren with 100-watt Federal
speaker
Weldon Warning Light Package
7' 4" Overall height
23' Overall length
176.2" Wheelbase
60" Cab to Axle
7000 FAWR
13,660 RAWR
17,950 GVWR
|
