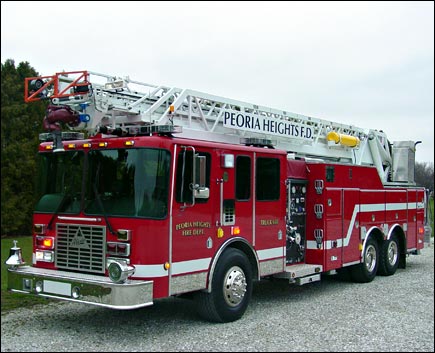

100' ALEXIS QUINT #1909
Peoria Heights Fire Department
Peoria Heights, IL

Technical Specs
• HME 1871 MFDXL Custom Cab
• Heavy Duty 3/16" Aluminum Body
• Caterpillar C13 470 HP Diesel Engine
• Allison 4000 EVS Automatic Transmission
• 300 Gallon UPF Poly Tank IIE
• Waterous CSU150 1500 GPM Pump
• Two (2) 1½" and one (1) 2½" Mattydale preconnects
• Akron Electric Monitor at the tip of the ladder
• Turntable Control Console with Soft Touch Controls
• Rear outrigger controls
• Ladder turntable access steps on left side
• 6000 psi Breathing air bottles mounted one each side of base section
• Side Control Pump Operator's Panel
• Ladder and pike pole storage at the rear in the torque box
• Side stack hosebed on passenger side
• Whelen LED NFPA Warning Light Package
• Class 1 Es-Key Multiplex Electrical System
• Onan 8kw Hydraulic Generator with two (2) 750 Watt Telescopic Lights
• 11'-4" Overall Height
• 38'-7" Overall Length
• 232" WB
• 172" CA
• 21,500 FAWR
• 52,000 RAWR
• 73,500 GVWR


Alexis Fire Equipment would like to thank the members of the Peoria Heights Fire Department for their business.
