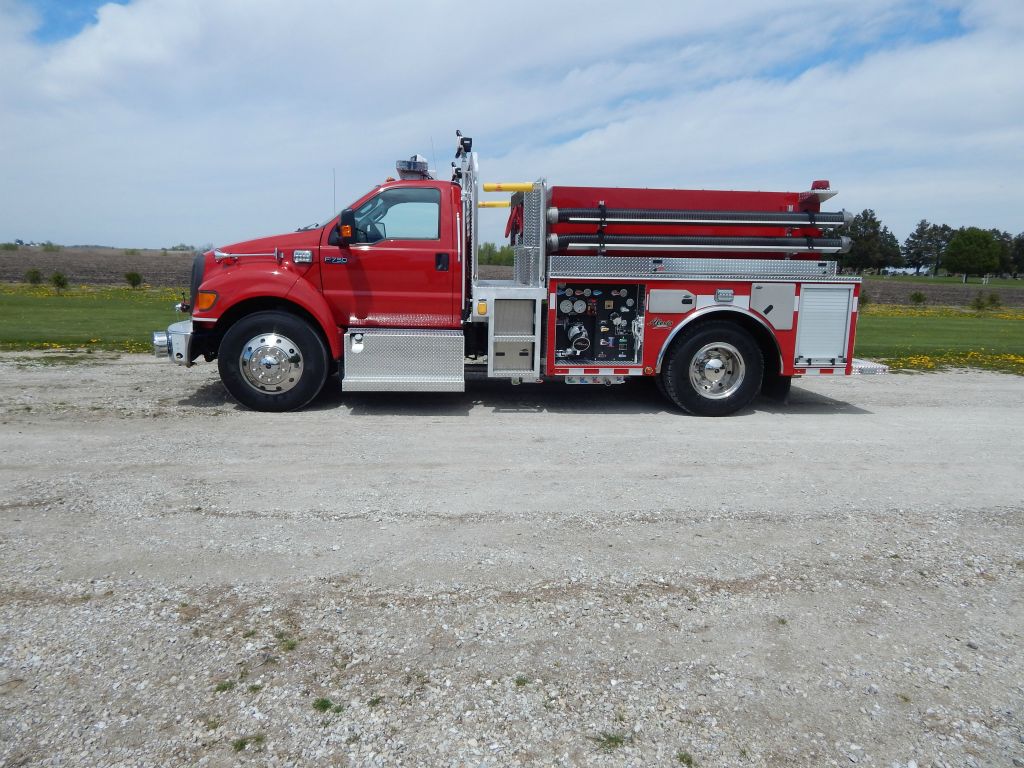

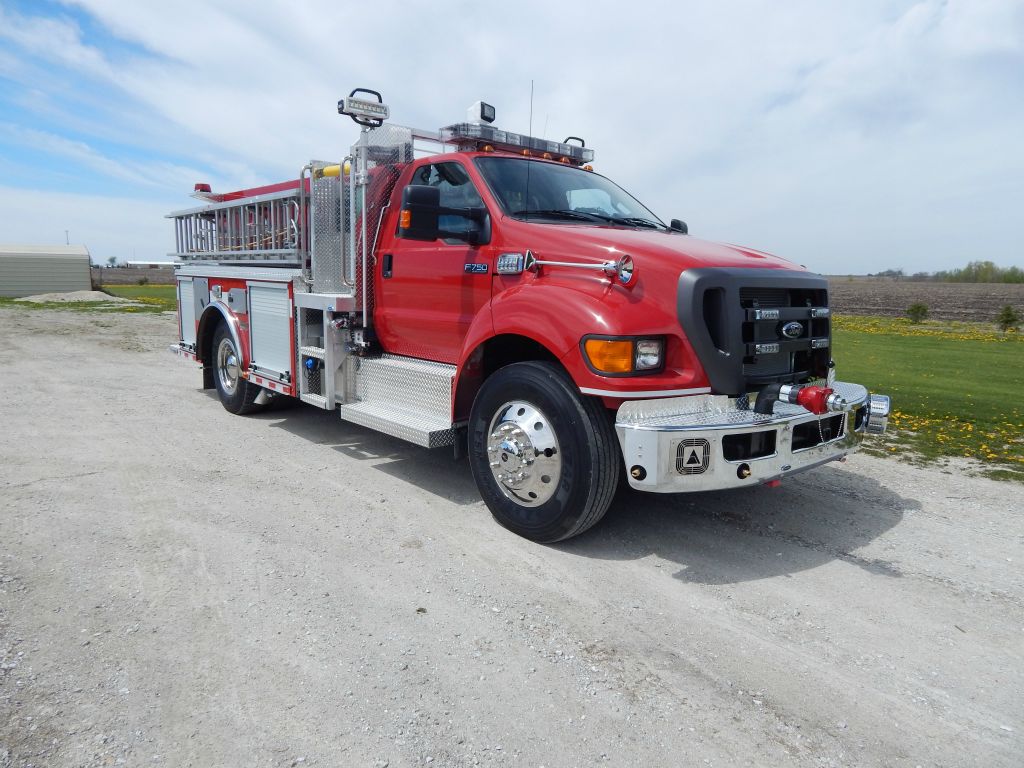

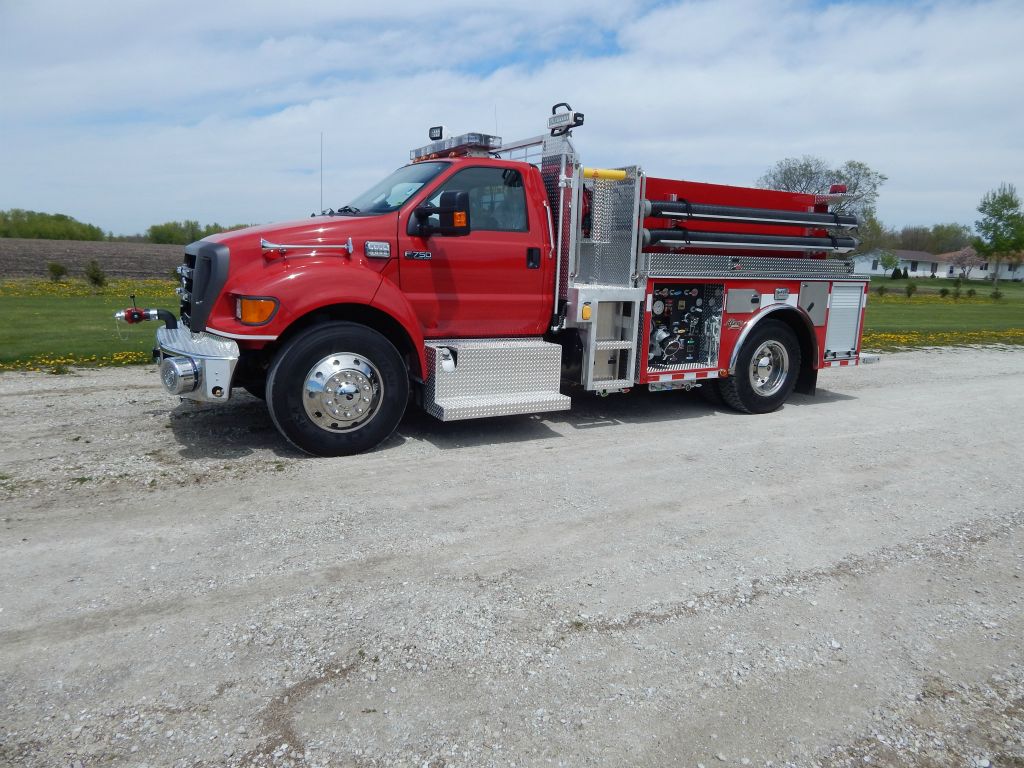

OTTO TOWNSHIP FIRE PROTECTION DISTRICT
CHEBANSE, ILLINOIS
Technical Specs

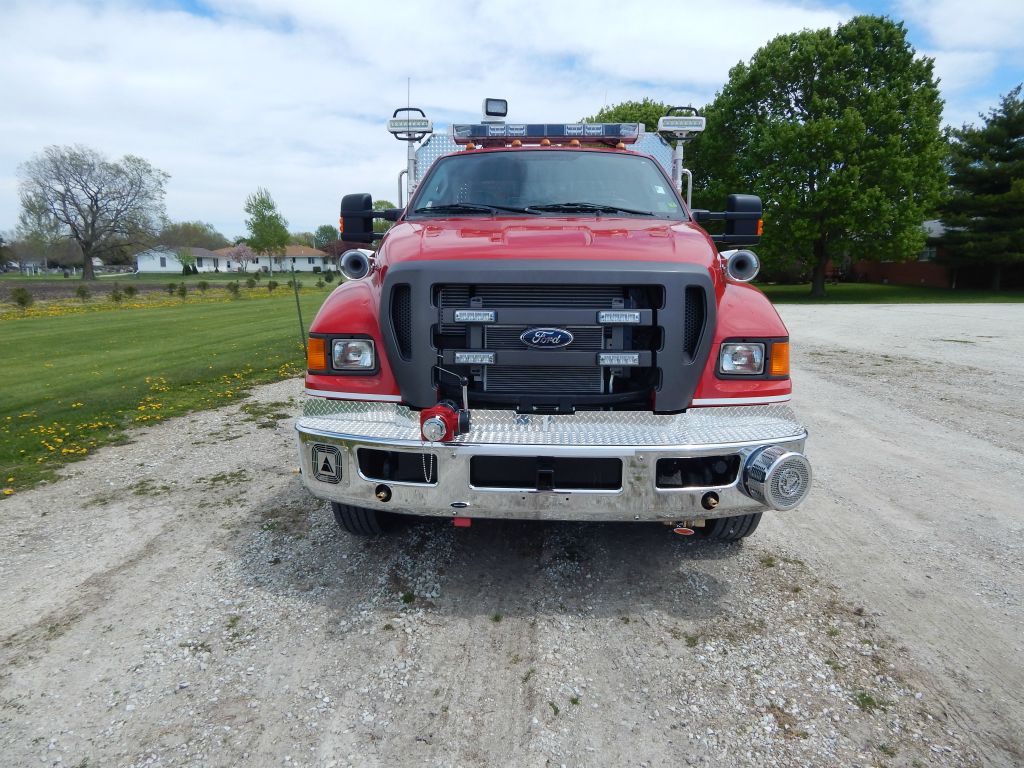

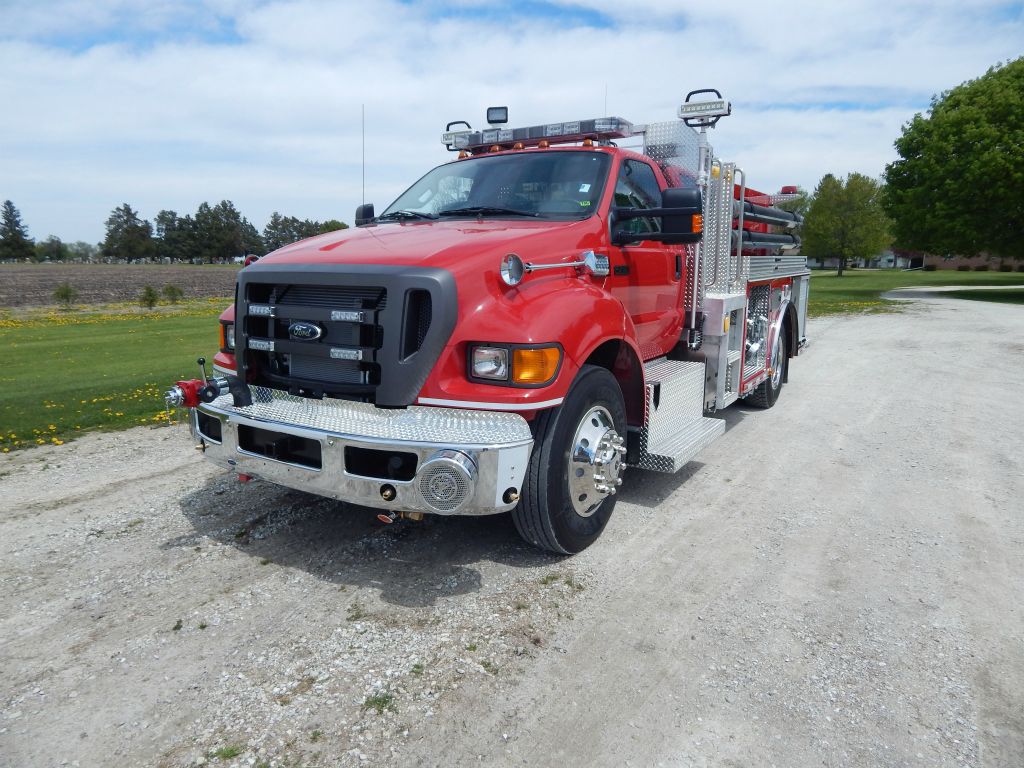

• Ford F-750 XLT 2-Door Chassis
• Cummins 6.7L, 340-HP Diesel Engine
• Allison 3000 EVS 6-speed Automatic Transmission
• Heavy Duty 3/16" Aluminum Body with ROM Roll Up Doors
• 750-Gallon Poly Tank
• One (1) 2 ½" Fireman's Friend tank fill, rear

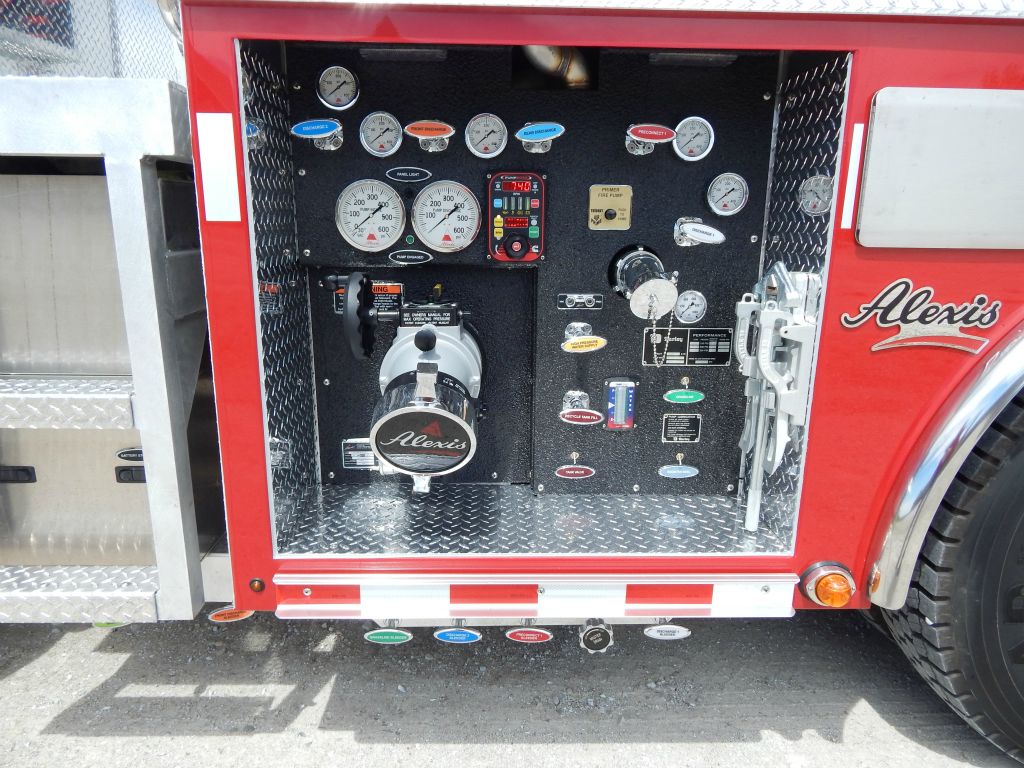

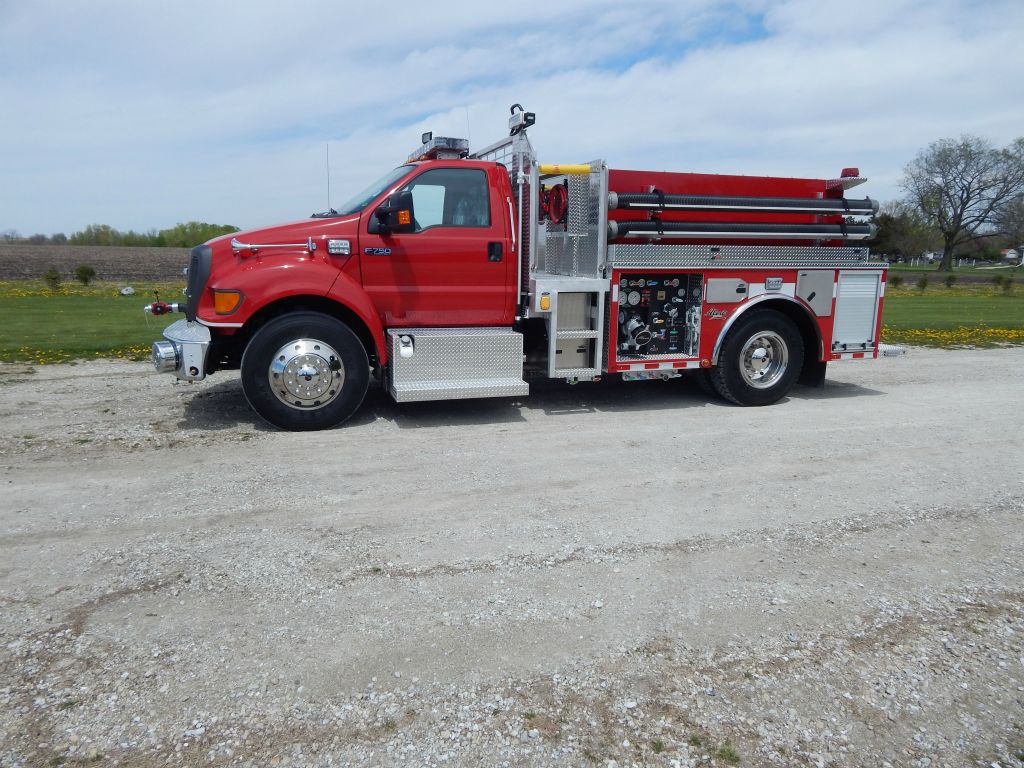

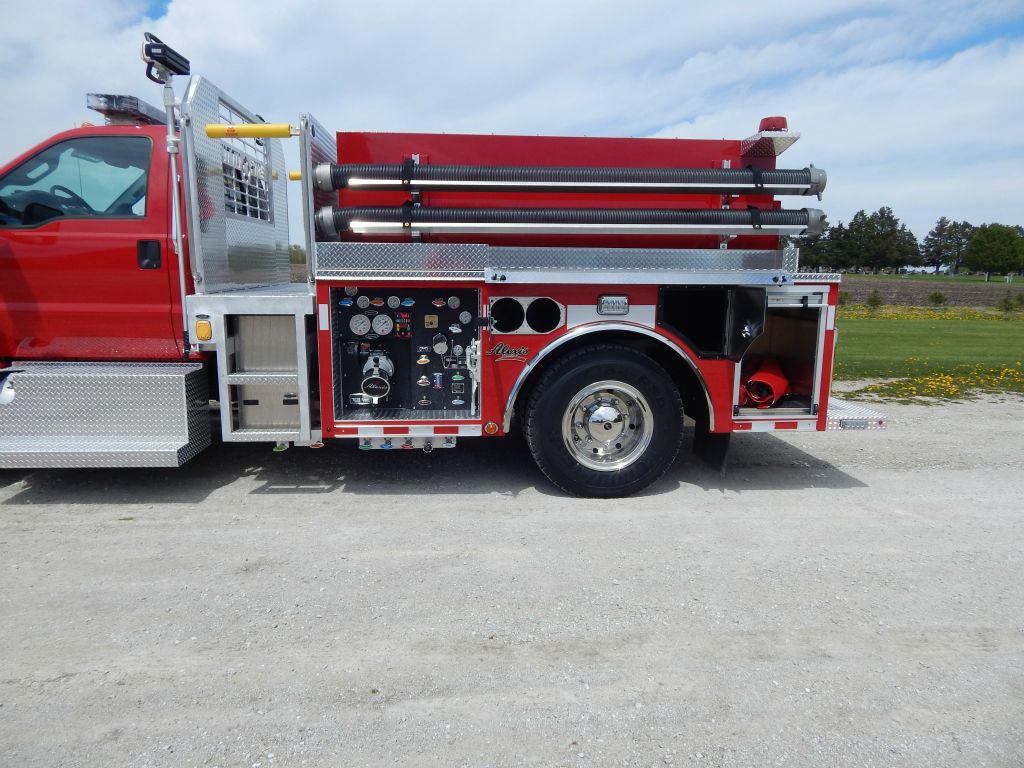

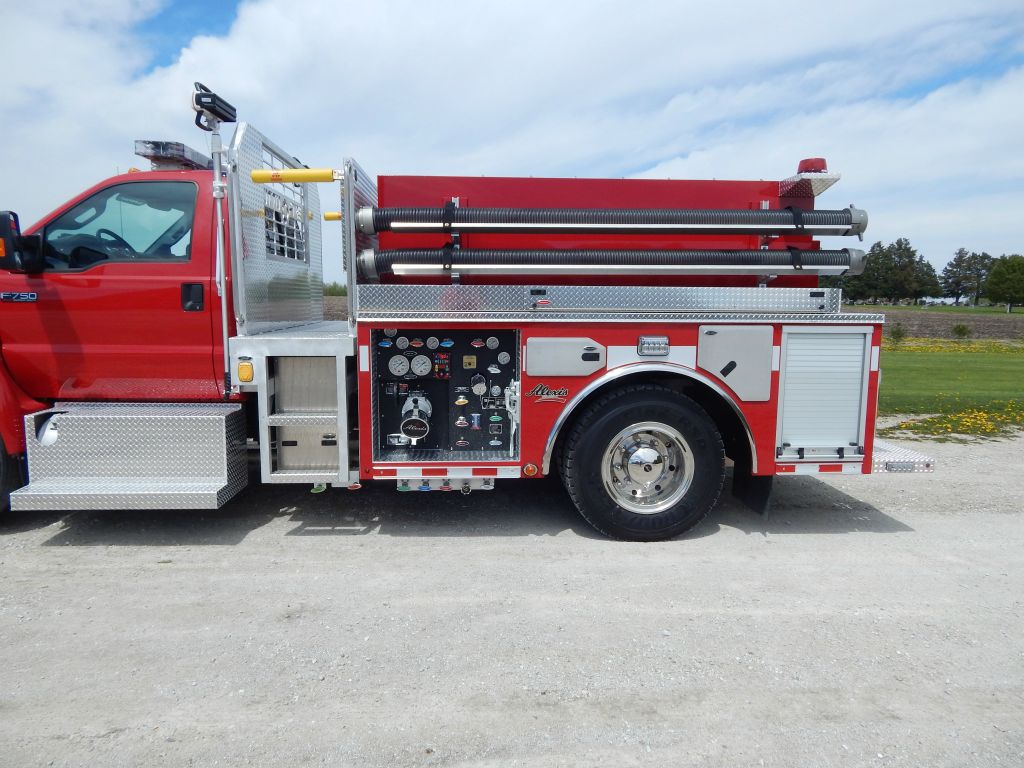

• Darley KSPAH, 750-GPM PTO Pump with left side operator's panel under tank
• Three (3) 2 ½" Discharges, one (1) each side and one (1) rear

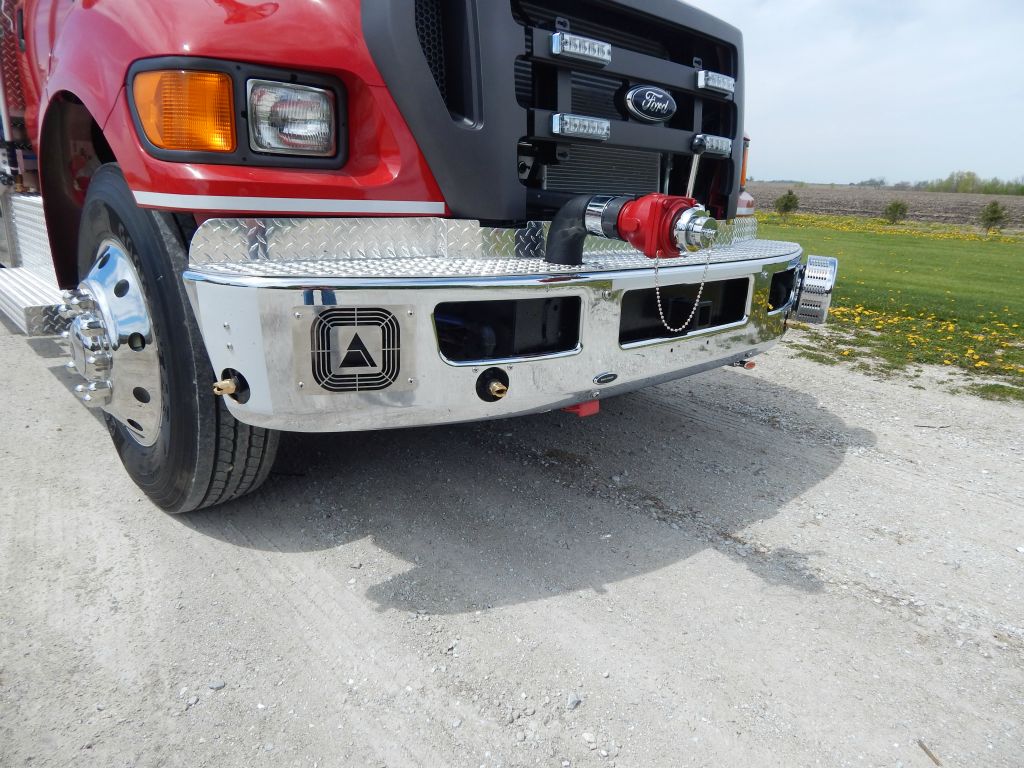

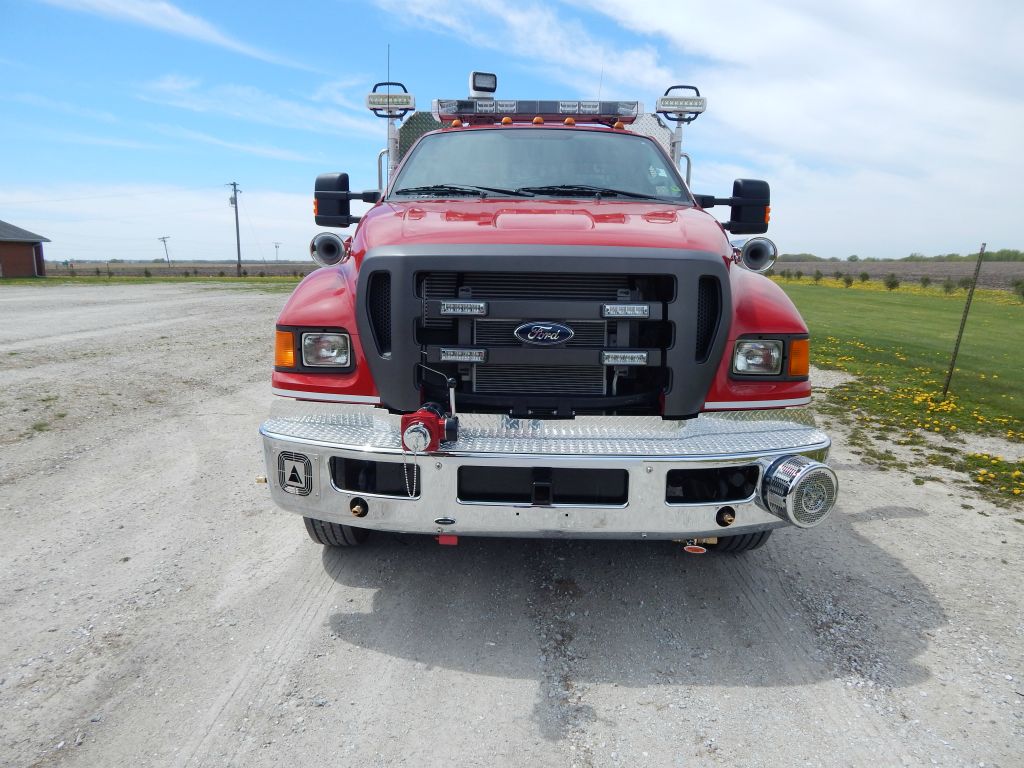

• One (1) 2 ½" Preconnect, front bumper extension
• One (1) 1 ½" Preconnect with hose tray, left side compartment top
• Four (4) Electrically controlled spray booms, two (2) each side front bumper

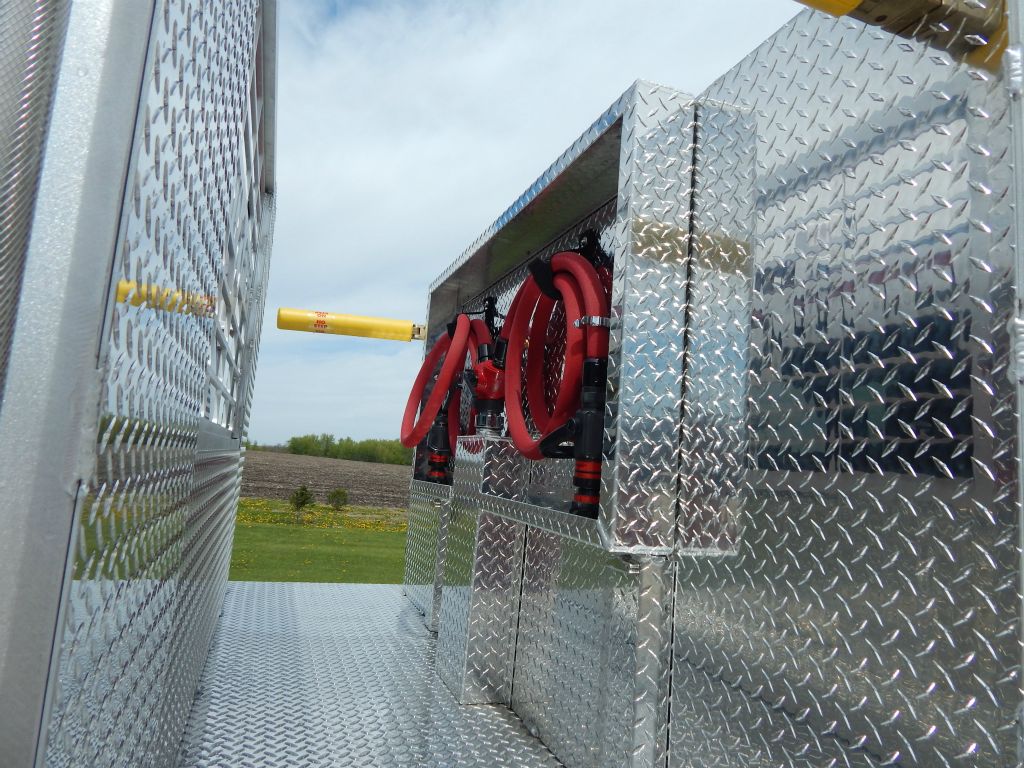

• Two (2) 1" booster lines with 6-ft of hose each, walkway area
• One (1) Hannay Electric booster reel with 100-ft of 1" hose, rear
• Front and Rear Winch/trailer hitches with electrical connections
• Two (2) Dual bottle Air bottle compartments, one (1) each side wheel well

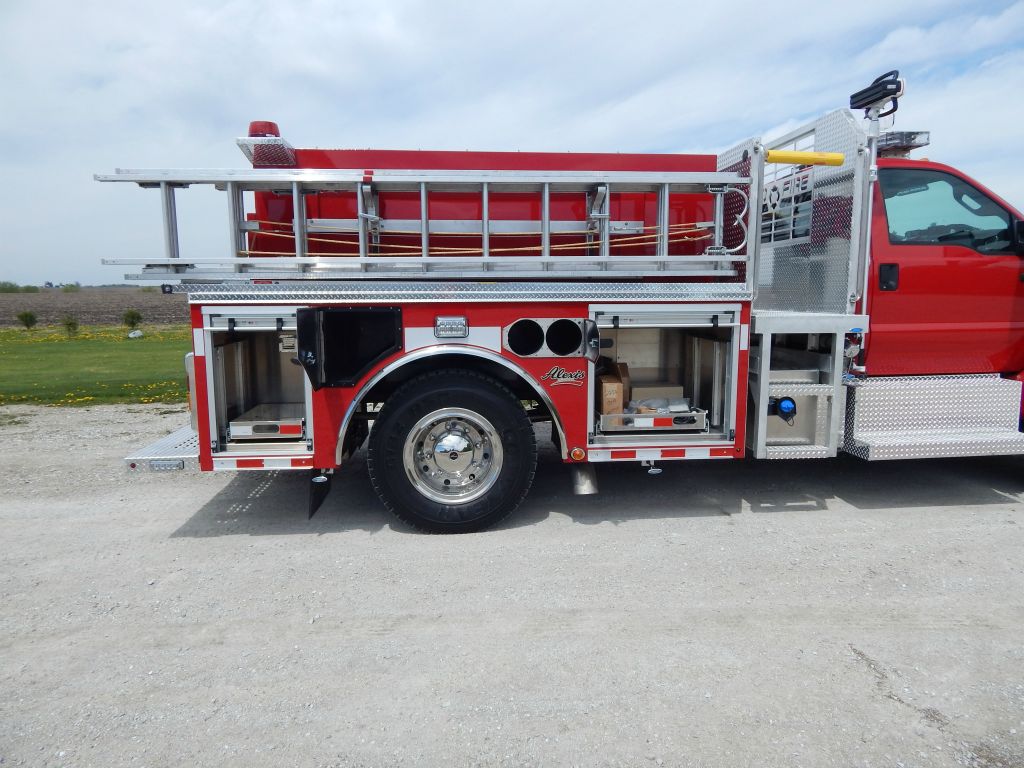

• Two (2) General storage compartments, one (1) each side wheel well

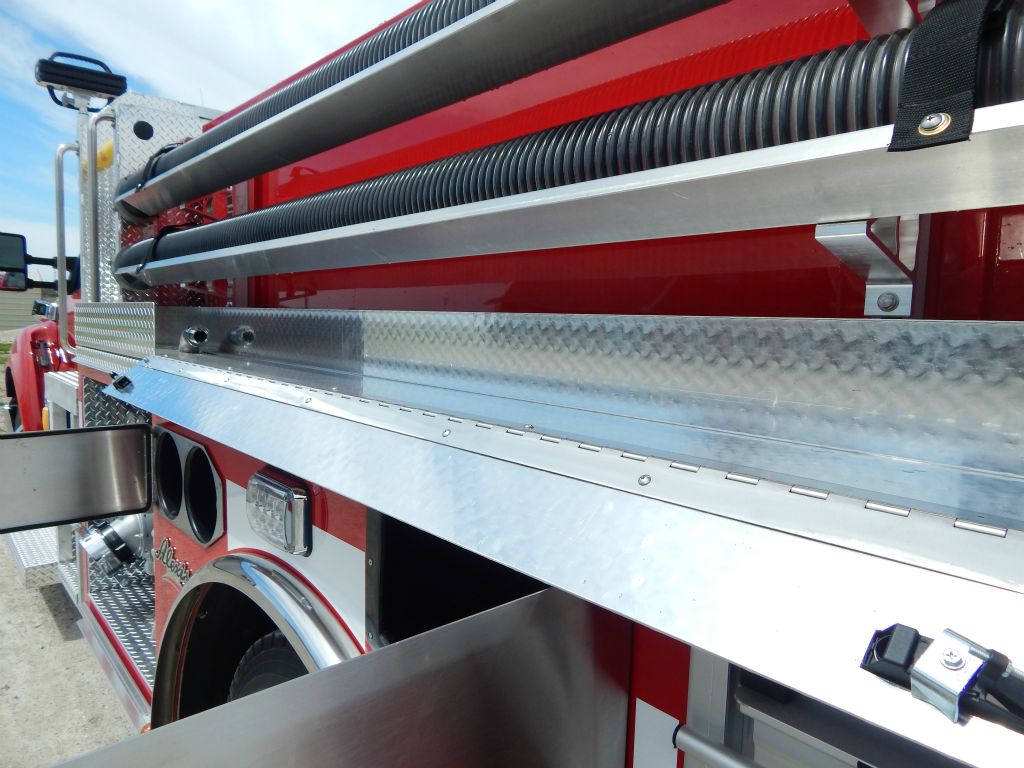

• Two (2) Suction hose storage gutters, left side
• One (1) Pike pole tube, left side

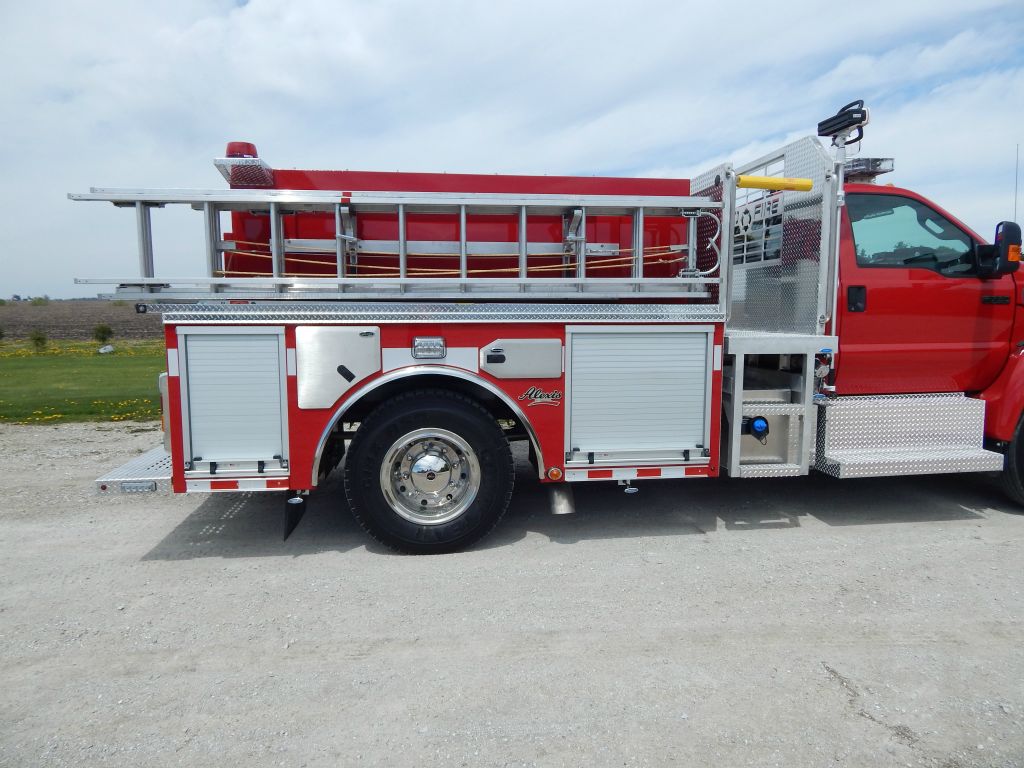

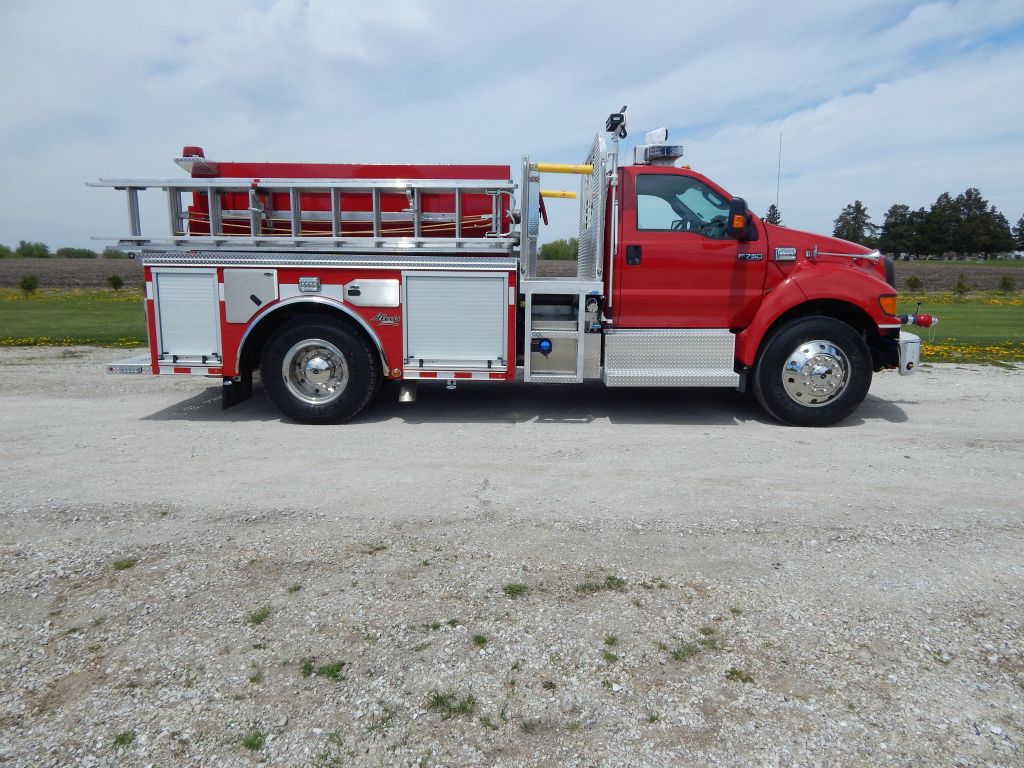

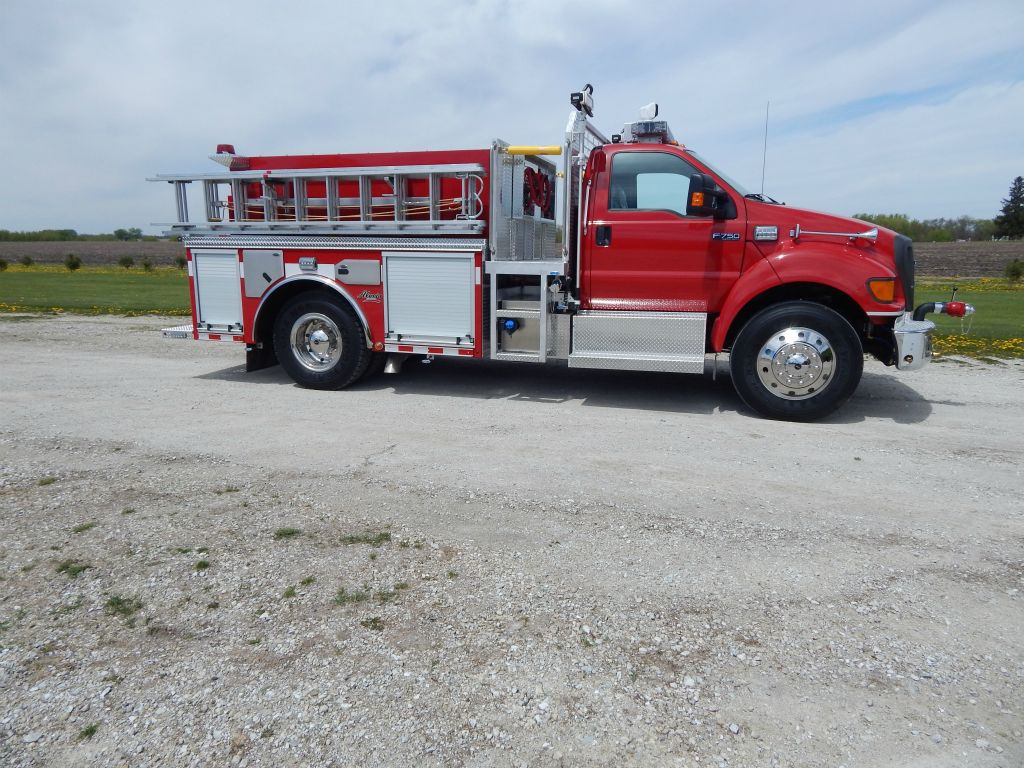

• Ladder storage brackets, right side
• Progressive Dynamics on-board battery charger with Viair air compressor
• Kussmaul Super Auto Eject 120-volt shoreline

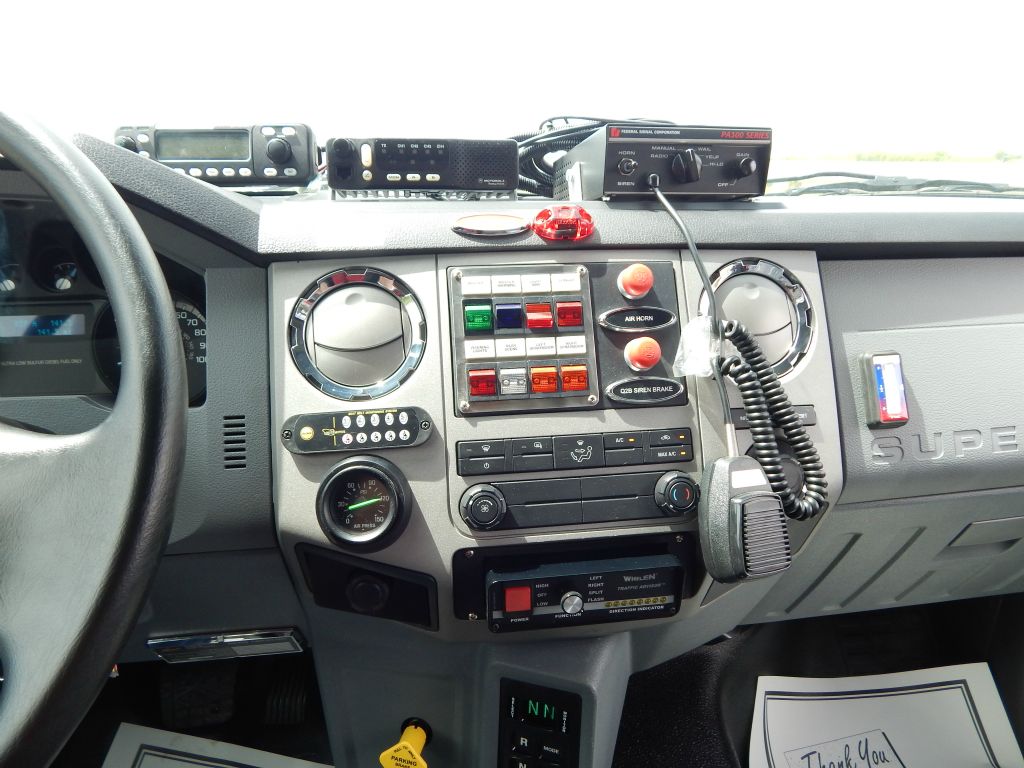

• Dash mounted panel for Emergency switches, cab
• Federal Electronic Siren with 100-watt Federal speaker
• Federal Q2B mechanical Siren, front bumper
• Two (2) Air Horns, one (1) each side of hood
• Two (2) Akron Extenda-lite 12-volt 220-watt telescopic lights, one (1) each side
• One (1) GOLIGHT LED remote controlled spotlight
• One (1) Akron LED 12-volt 150-watt scene light, recess mounted rear
• Whelen upper and Weldon lower LED Warning Light Packages

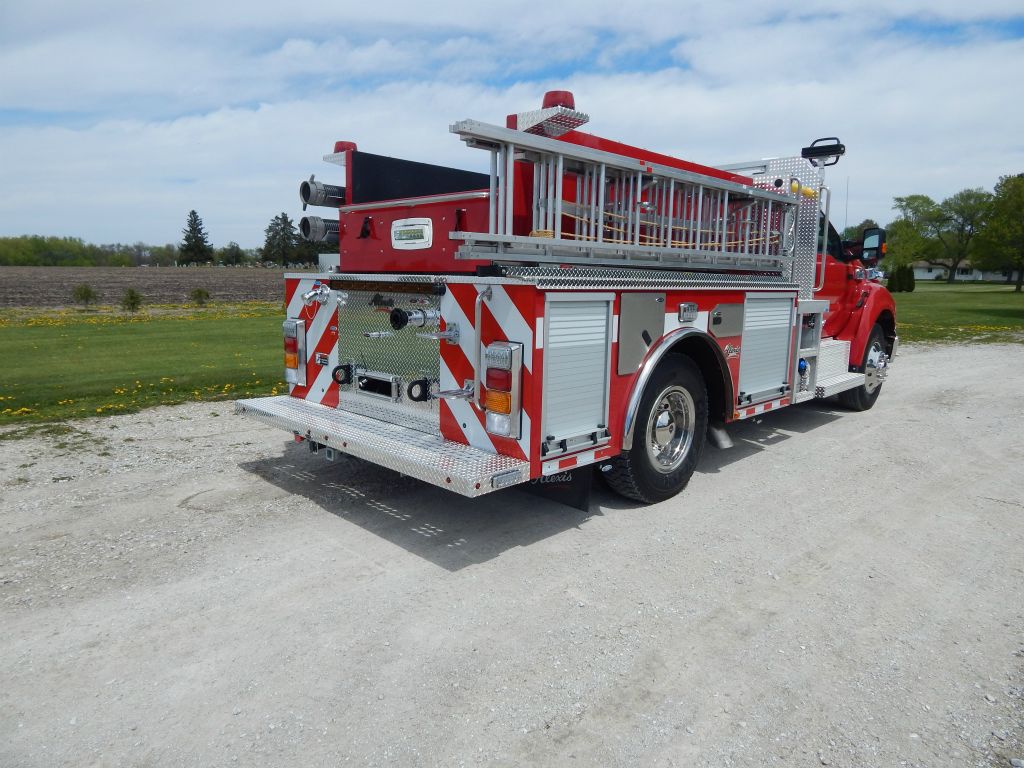

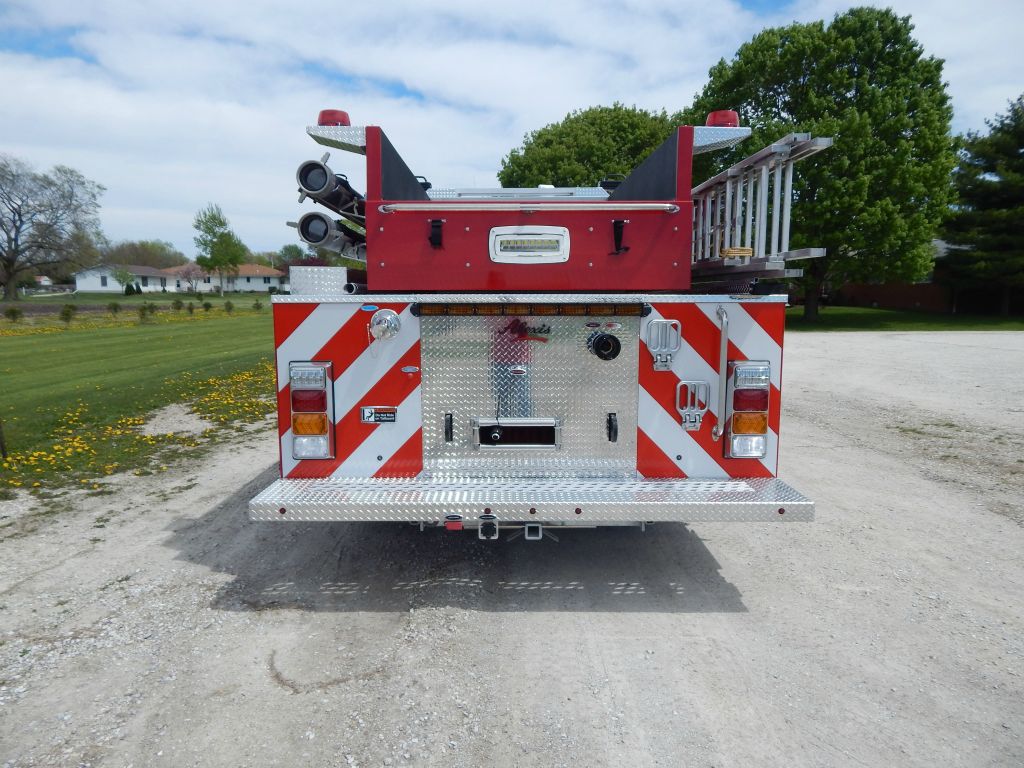

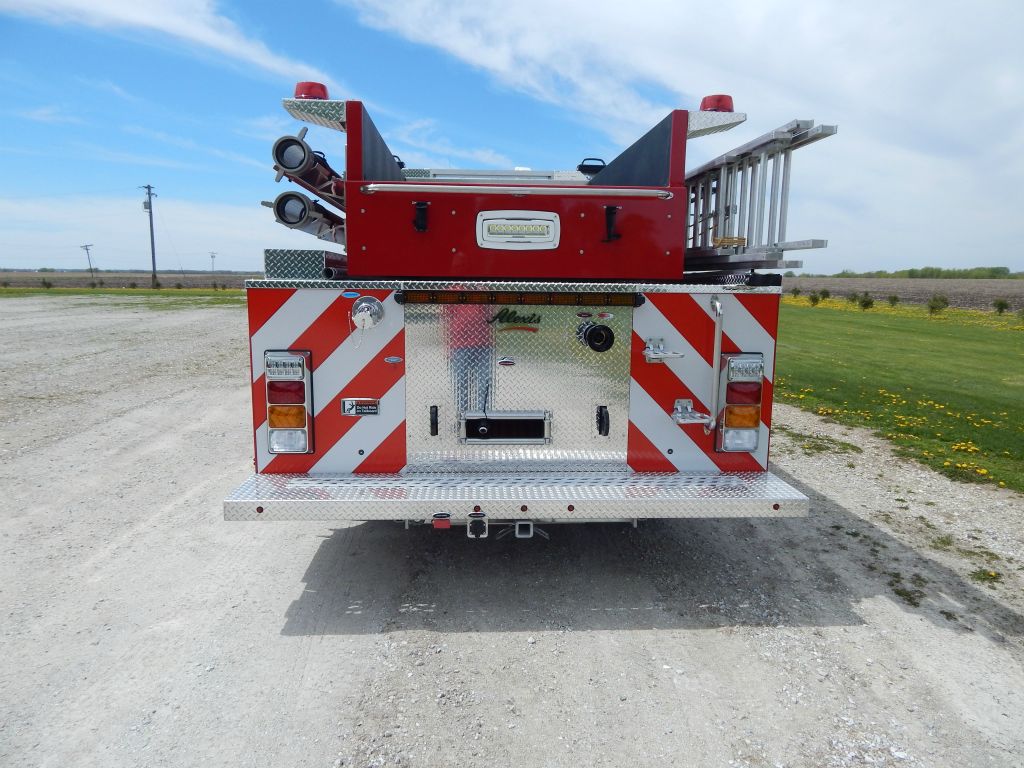

• Chevron pattern striping, rear
• 8' 10" Overall height
• 24' 6" Overall length
• 176" Wheelbase
• 102" Cab to Axle
• 10,000 FAWR
• 21,000 RAWR
• 31,000 GVWR
