MOKENA FIRE PROTECTION DISTRICT
MOKENA, ILLINOIS
Technical Specs

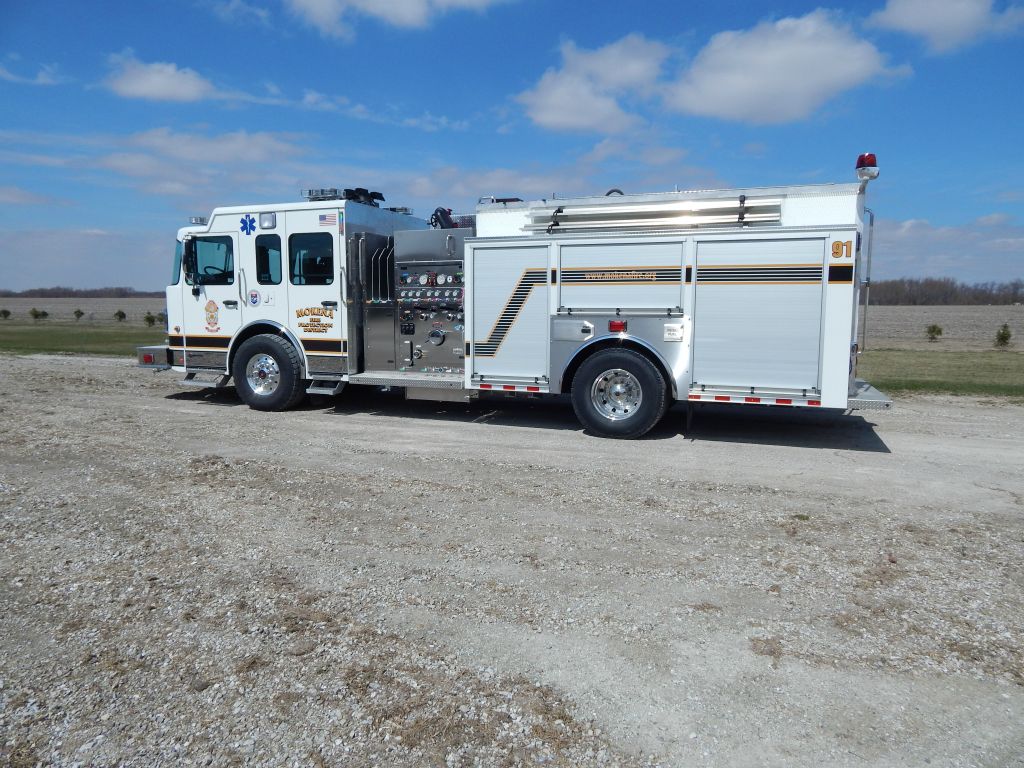

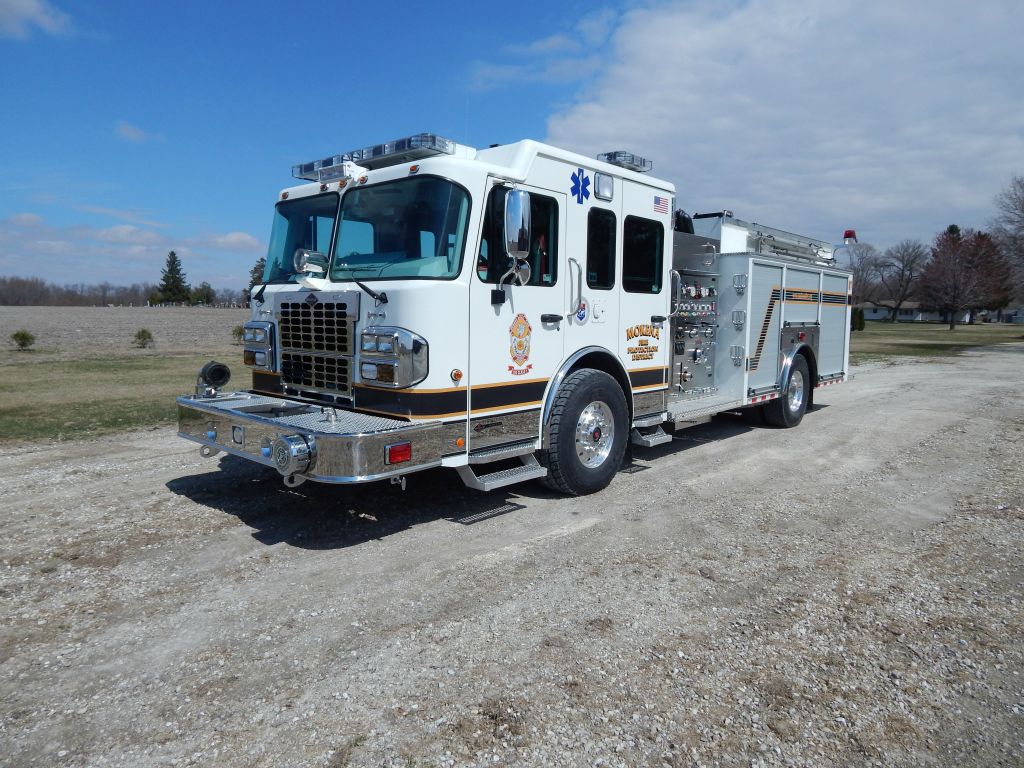

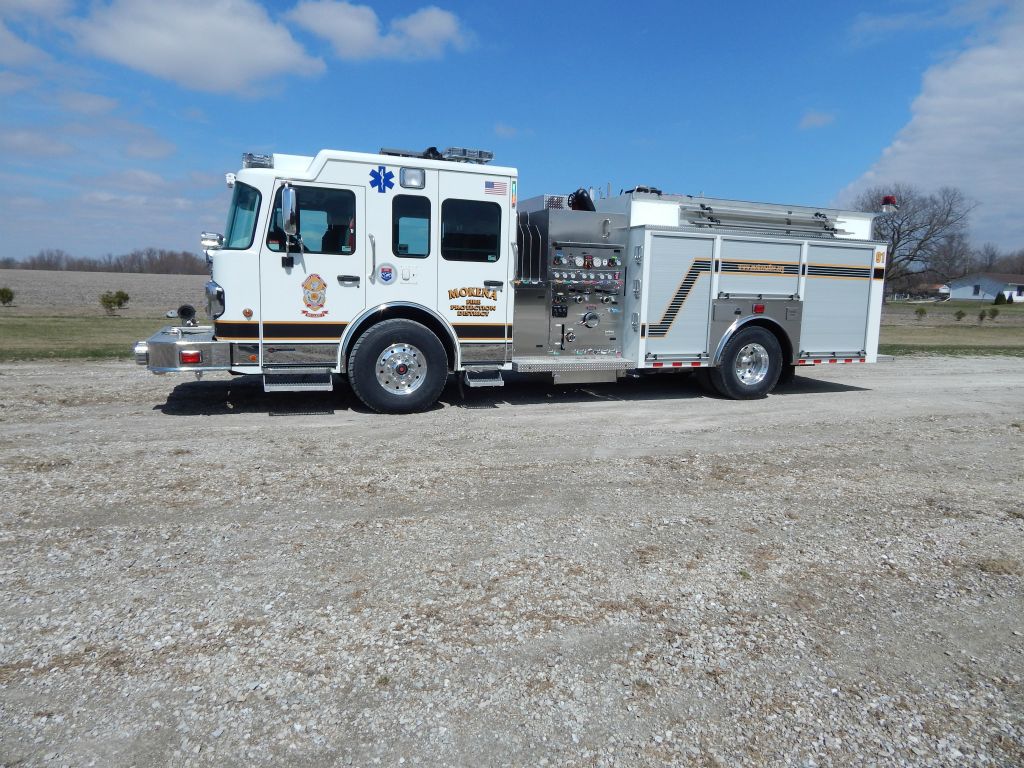

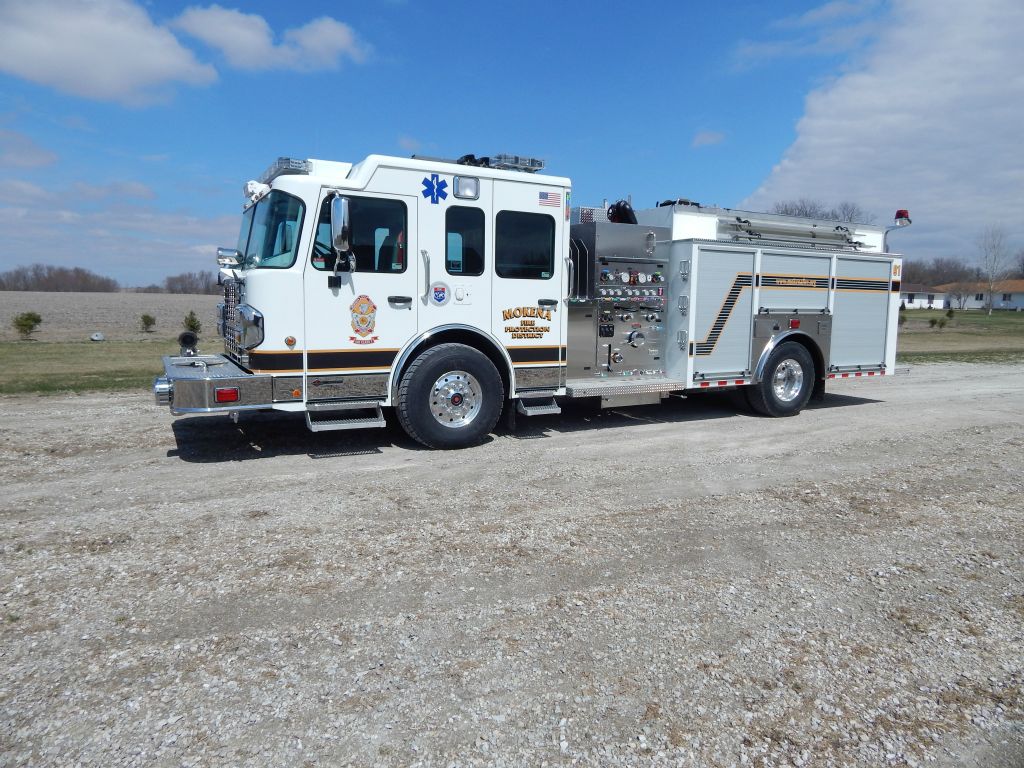

• Spartan Metro Star MFD 10" raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Four (4) man cab seating with three (3) SCBA seats

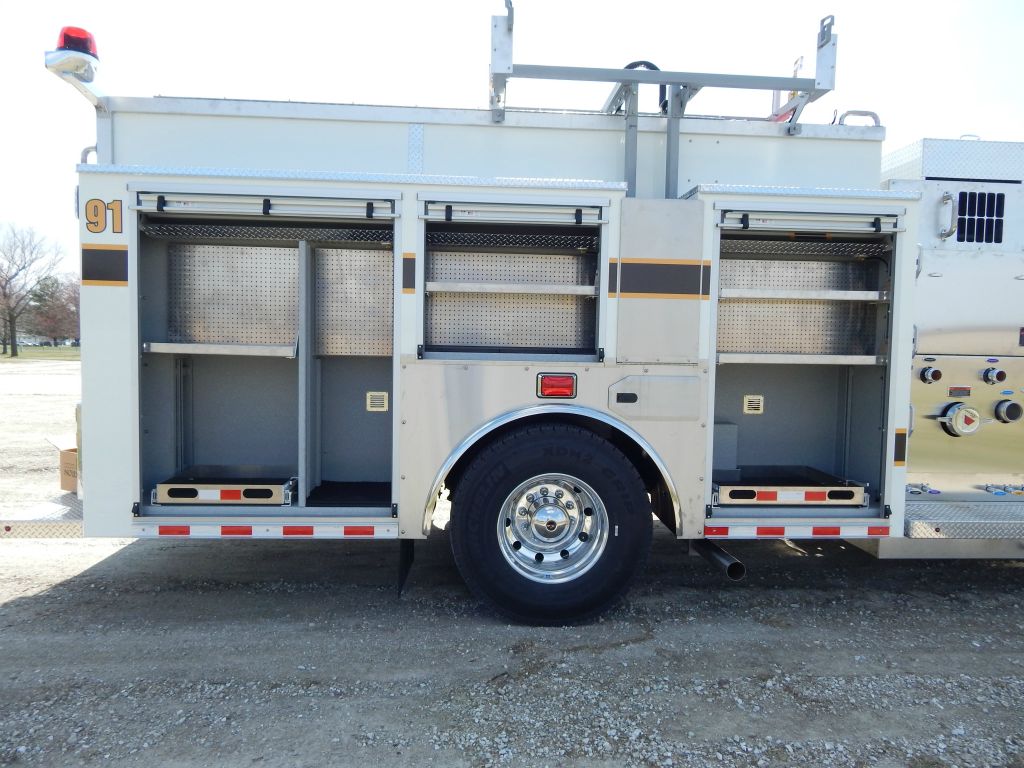

• Heavy Duty 12 gauge 304 Stainless Steel Body with ROM Roll Up Doors
• 1000-Gallon Poly Tank

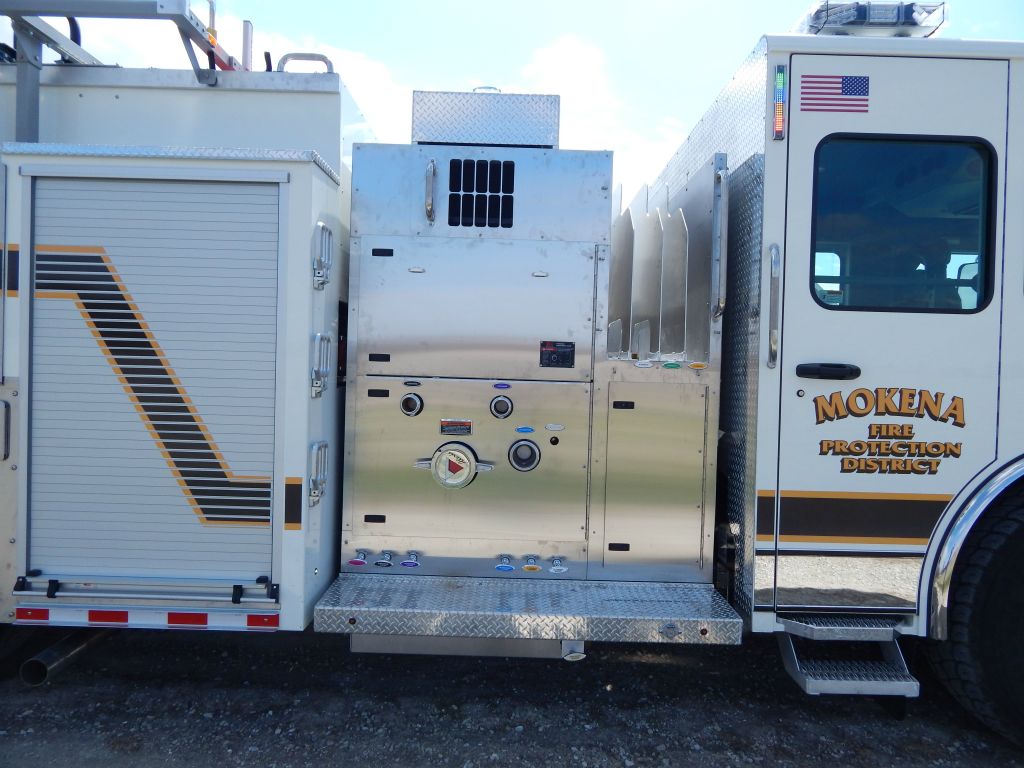

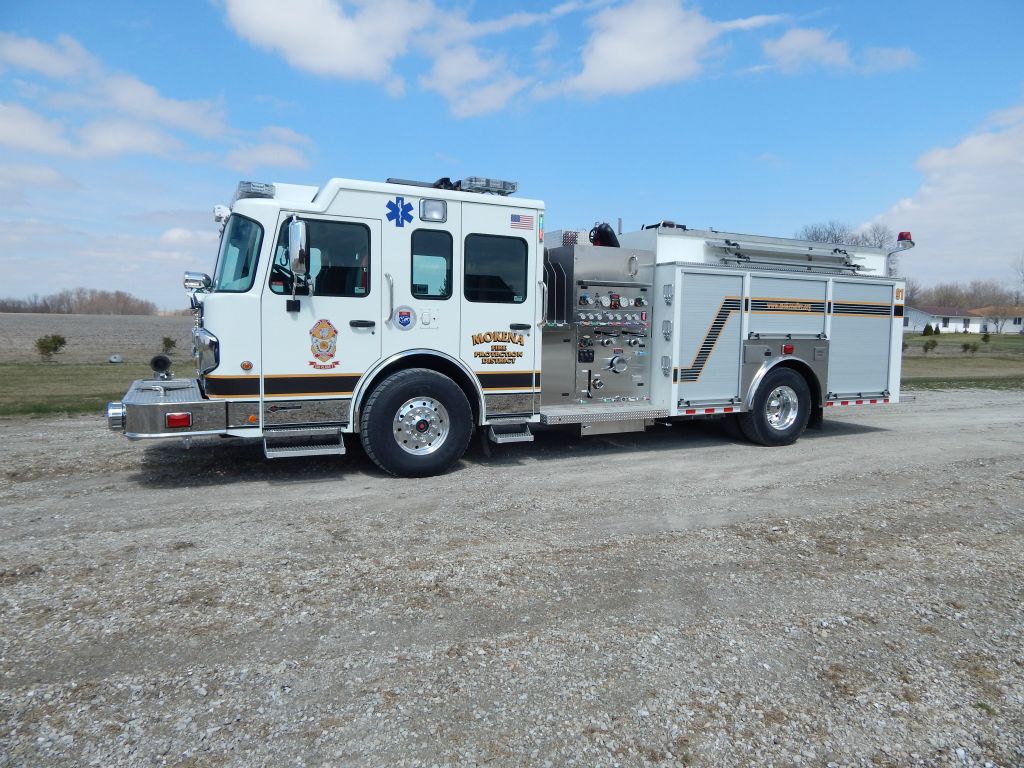

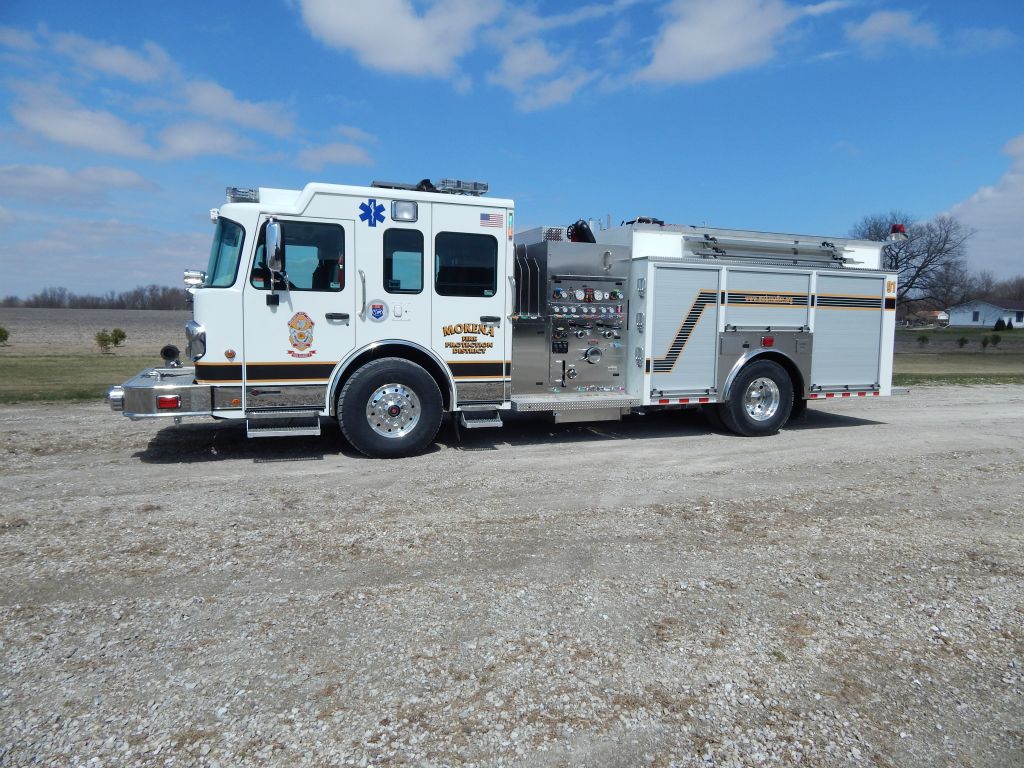

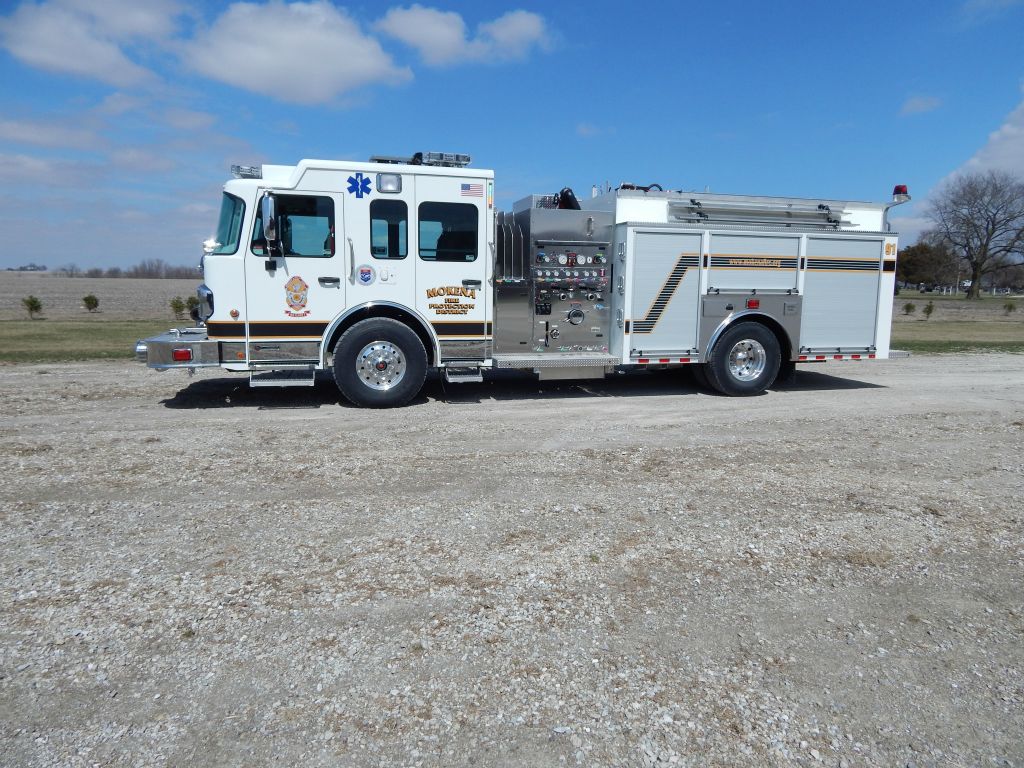

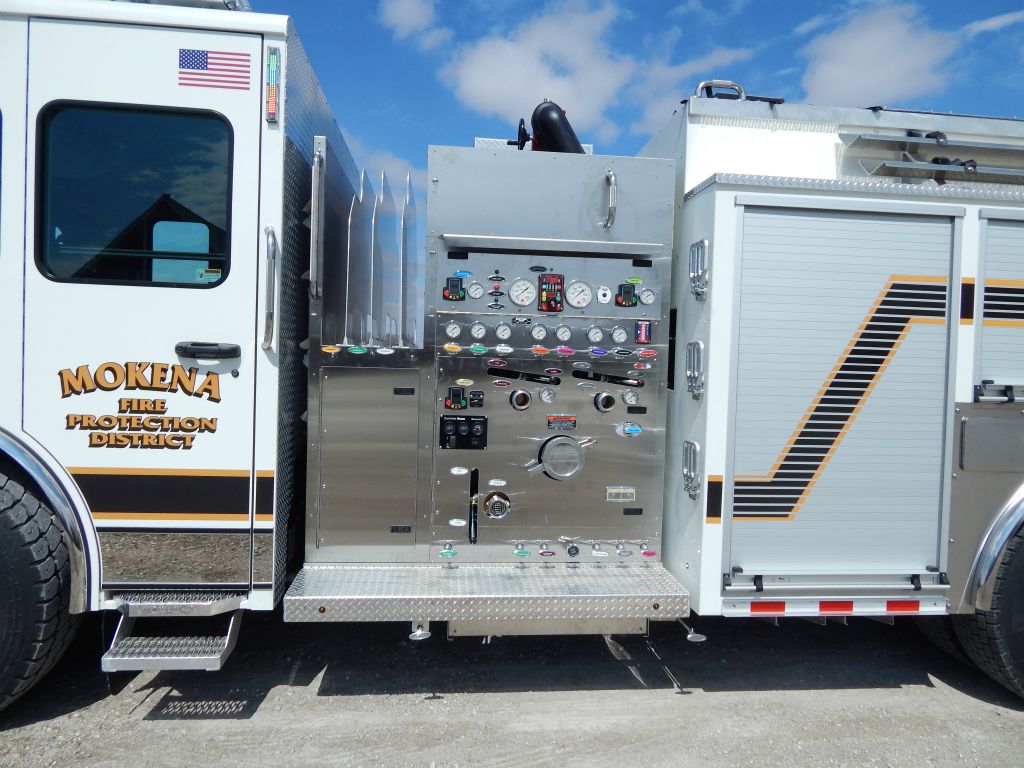

• Waterous CSU 1500-GPM Pump with left side pump operator's panel
• Five (5) 2 ½" Discharges, two (2) each side and one (1) rear
• One (1) 4" Discharge, right side and one (1) 3" Discharge, over pump
• One (1) Akron Apollo Deck Gun
• Three (3) Mattydale Preconnects, two (2) 1 ½" and one (1) 2 ½", across top
• One (1) 2 ½" Gated Suction, left side

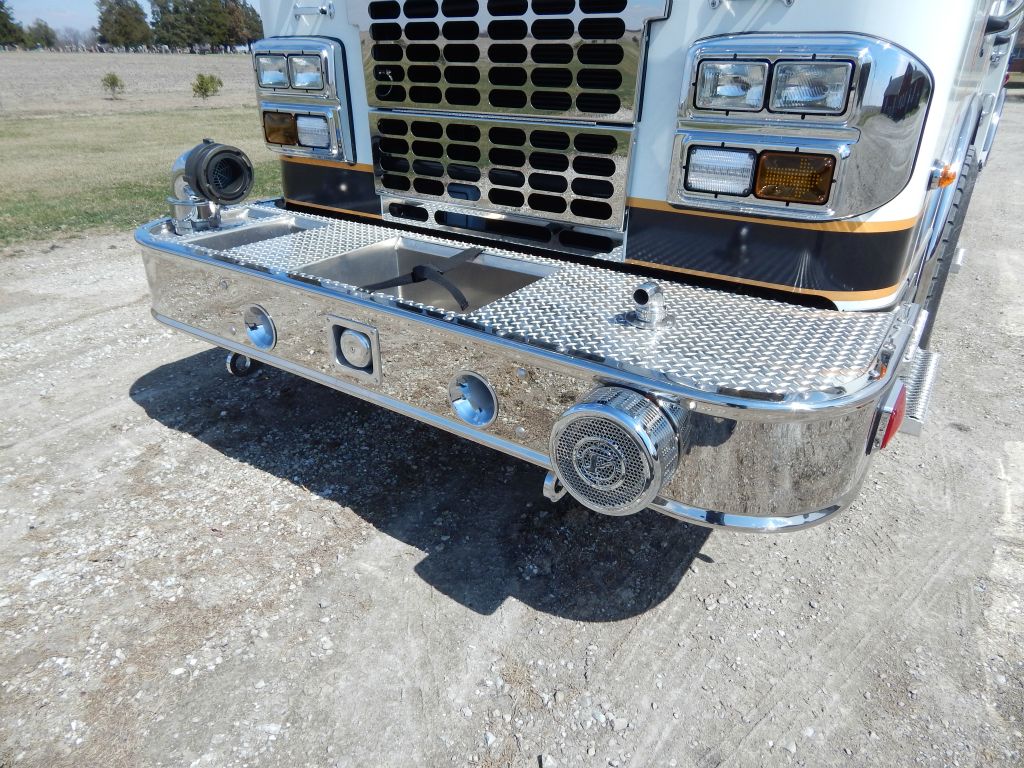

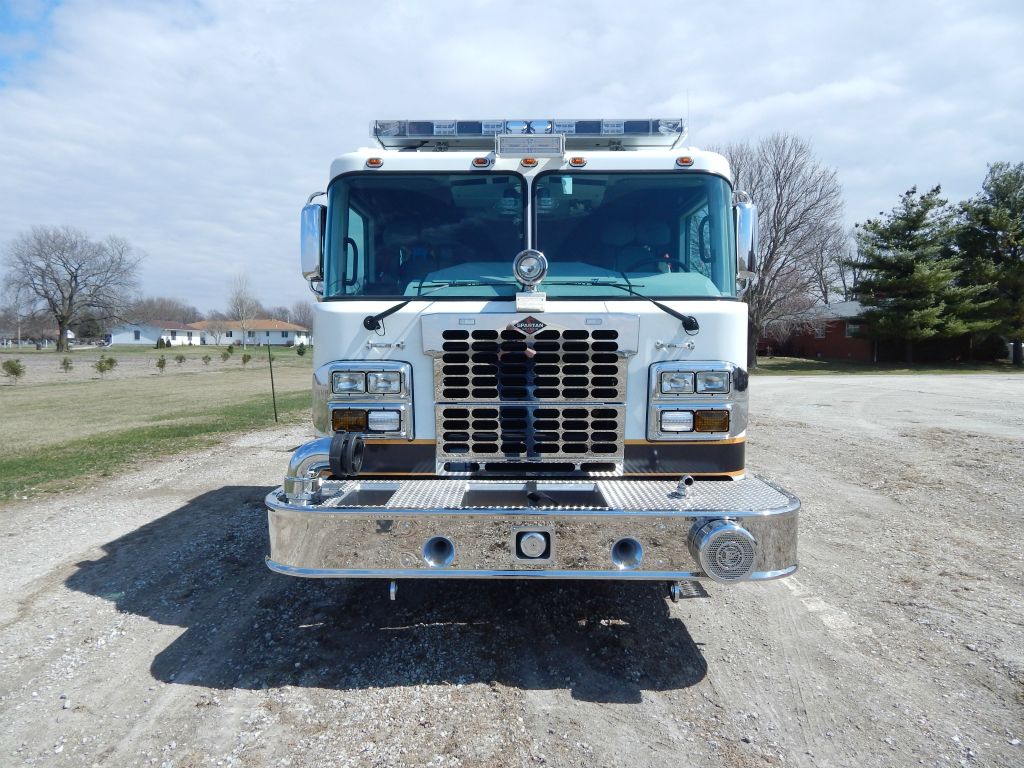

• 26" Front bumper extension with 1 ½" Preconnect, hosewell and 5" front suction
• TFT Blitzfire oscillating portable monitor package with tips and bracket
• Reese type rear hitch
• Two (2) EMS compartments, one (1) each side cab behind driver/officer seats
• Two (2) Dual bottle Air bottle compartments, one (1) each side wheel well

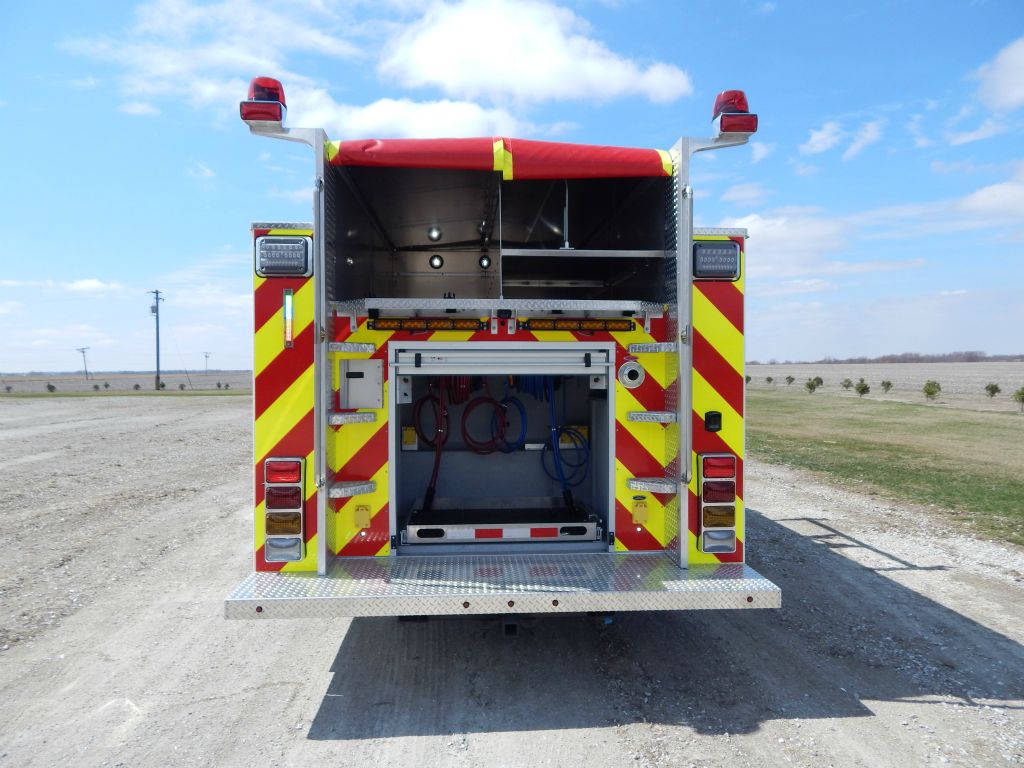

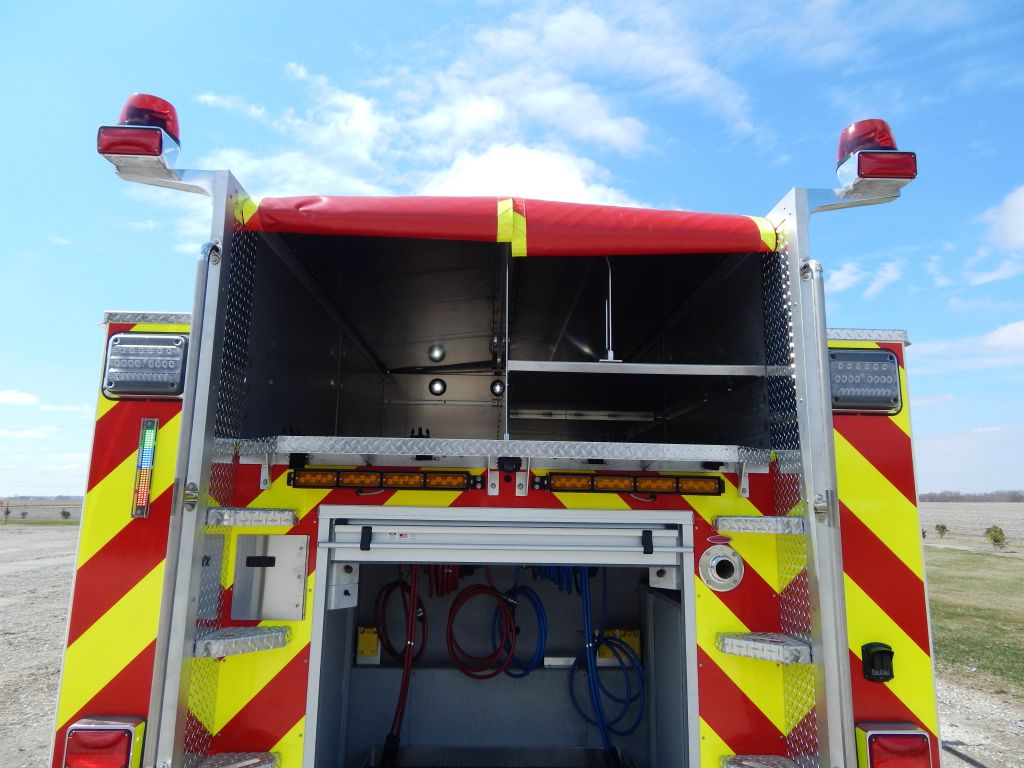

• Treadplate Electric hosebed cover with Hypalon end flaps
• Zico Hydraulic Ladder Rack, right side
• Pike Pole storage compartment, left side with rear access
• Two (2) Suction hose storage gutters, left side
• Turtle Tile on floors and/or shelves and trays of compartments
• Federal Q2B mechanical Siren and two (2) air horns, front bumper
• Whelen Electronic Siren with Casts Products 100-watt speaker
• Audiovox rear camera system with 7" monitor
• Kussmaul 1200 on-board battery conditioner with Kussmaul Auto Eject shoreline
• Whelen LED 12-volt Scene Light Package
• Onan 7500-Watt Diesel Generator with 120-volt system
• Command Light Knight Light Tower with six (6) 750-watt FRC Halogen lights
• Whelen LED Warning Light Package with Mars Warning light front

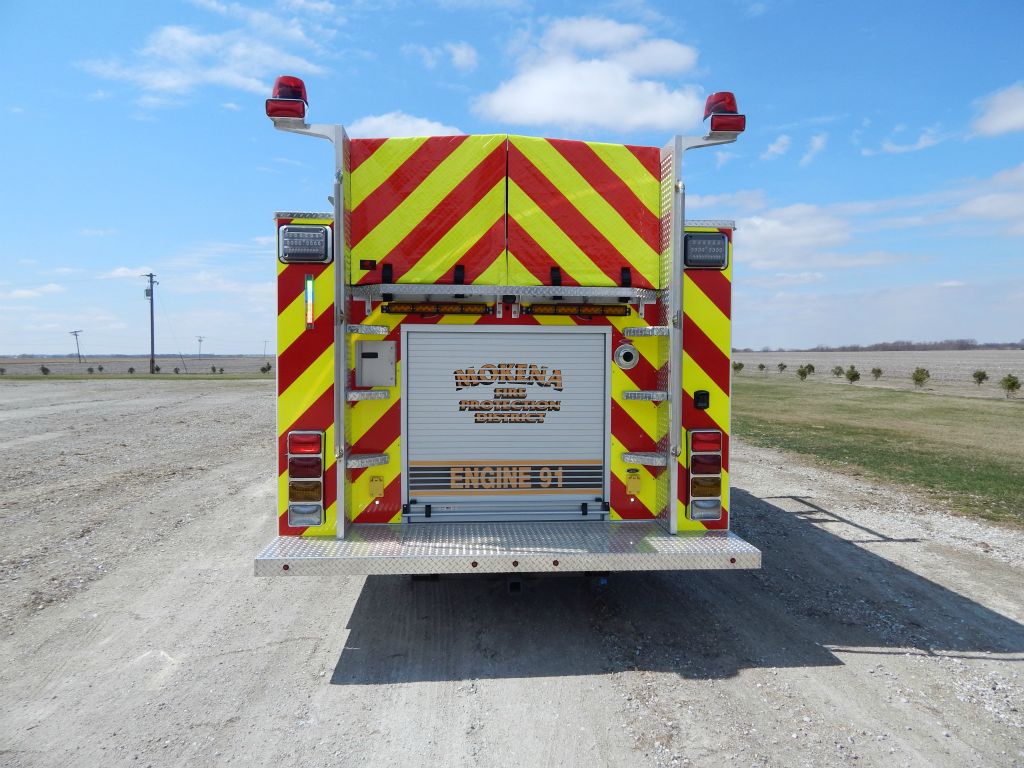

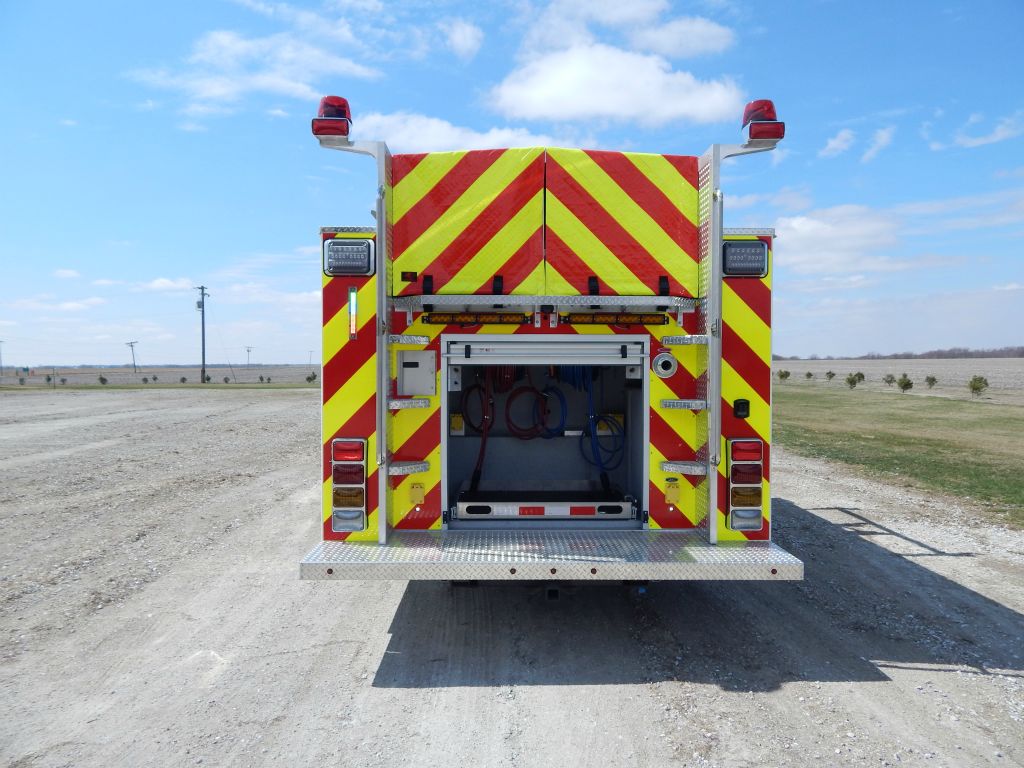

• Diamond Grade Chevron pattern striping, rear
• 10' 8" Overall height
• 34' 4" Overall length
• 199" Wheelbase
• 145" Cab to Axle
• 21,500 FAWR
• 31,000 RAWR
• 52,500 GVWR
