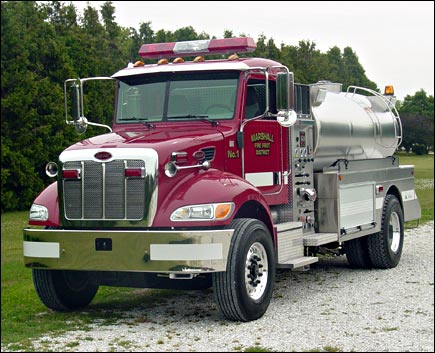

Marshall Fire Protection
District
Marshall, IL
Technical Specs
• Peterbilt 335 Regular
Cab Chassis
• Cummins ISC330 330 HP Diesel Engine
• Allison 3000EV Automatic Transmission
• 2000 Gallon UPF Poly Elliptical Tank with Stainless
Steel wrap
• Darley HM500 GPM PTO Pump
• One (1) storage compartment each side
• Pump control panel located between chassis and
tank
• Two (2) 1½" Mattydales located above
pump panel
• One (1) 2½" Mattydale located above
pump panel
• 2100 Gallon Folding Tank Storage on right side
• One (1) 10" Newton Dump at the rear
• One (1) 10" Newton Dump on each side at
rear
• Two (2) 2-1/2" tank fills at the rear
• Four (4) large scene lights located two (2) on
each side
• Two (2) large scene lights at rear
• Code 3 light package
• 9'-9" Overall Height
• 27'-3" Overall Length
• 16,000 FAWR
• 30,000 RAWR
• 46,000 GVWR
|
