LODA FIRE PROTECTION DISTRICT
LODA, ILLINOIS
Technical Specs
•Ford F-550XL 4-Door 4x4 DRW Chassis
• Ford Power Stroke 6.7L V8, 300-HP Diesel Engine
• Ford Torq Shift 6-speed Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• ROM Roll UP Doors
• Luverne stainless steel running boards

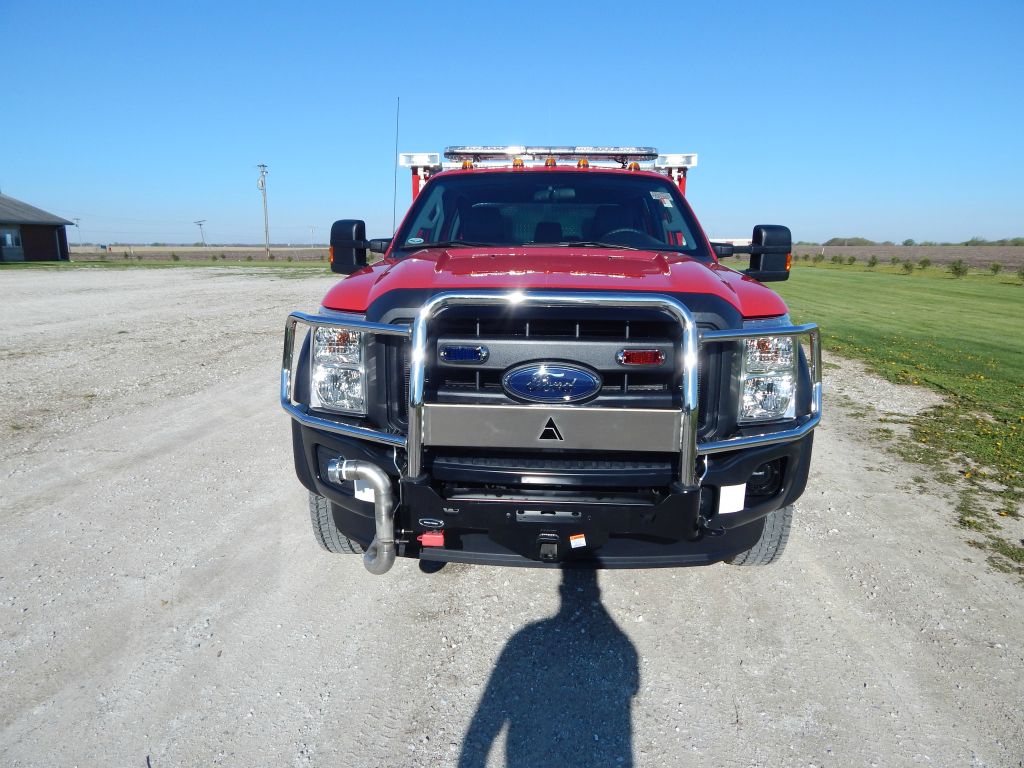

• Warn stainless steel brush guard with wrap around and front winch receiver
• One (1) Reese type rear hitch/winch receiver with electrical connections
• One (1) Warn multi-Mount 9000-lb winch
• 300-Gallon Poly Skid Tank with 10-Gallon foam tank
• Waterous PB18-3030LE Pump with Honda 20-HP gasoline engine
• One (1) 2 ½" Discharge, rear
• One (1) 1 ½" Discharge plumbed to right side hose tray
• One (1) 2 ½" Discharge, incorporated into front brush guard
• Scotty Around the Pump foam inductor/mixer
• One (1) Hannay electric booster reel with 100-ft of 1" hose, rear
• Suction hose/pike pole storage, right side roof
• Two (2) Air bottle compartments, right side wheel well
• Two (2) Vertical pull-out tool boards, right side
• One (1) Air Bag rack, right side
• One (1) cribbing containment compartment, right side
• Four (4) walk-away air pack brackets, left side
• Floor mounted console for emergency switches with map/binder storage, cab
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline
• Whelen Electronic Siren with 100-watt Whelen speaker
• Smart Power 5500-watt hydraulically driven generator with 120-volt system
• Two (2) Akron Extenda-Lite 120-volt 750-watt telescopic lights, one (1) each side
• Two (2) Akron Extenda-Lite 120-volt 750-watt tripod lights, rear
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 7' 11" Overall height
• 25' 4" Overall length
• 200" Wheelbase
• 84" Cab to Axle
• 7,000 FAWR
• 14,706 RAWR
• 19,500 GVWR
