JEFFERSON TOWNSHIP VOLUNTEER FIRE DEPARTMENT
ROANOKE, INDIANA
Technical Specs

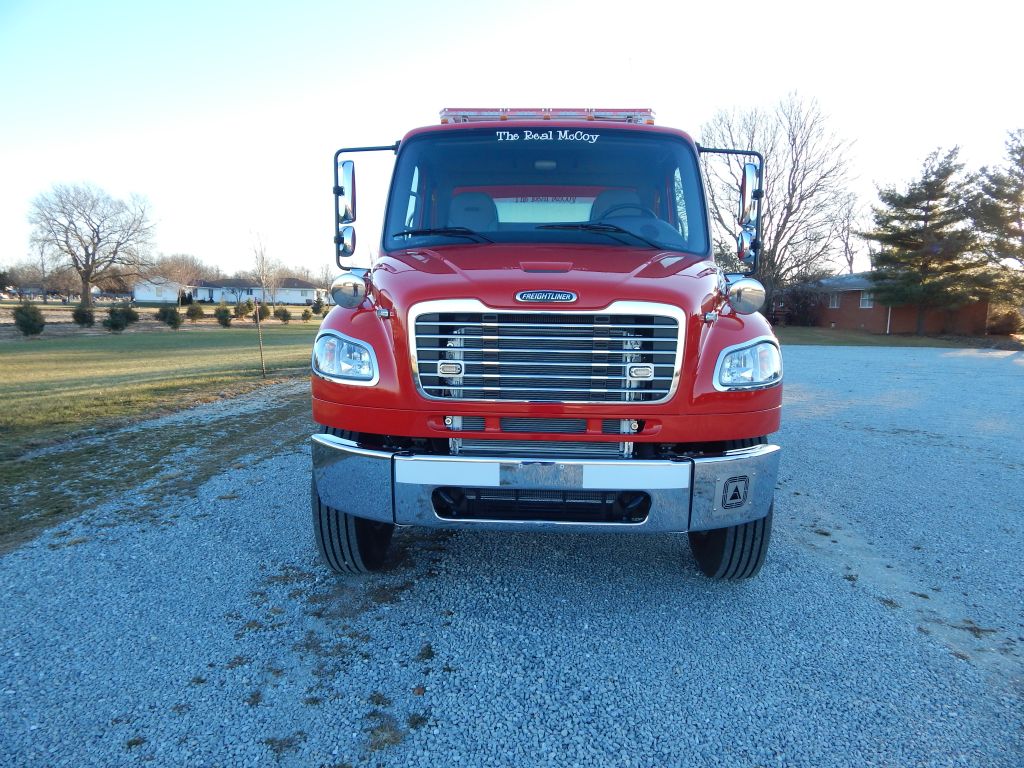

• Freightliner M2 106 2-Door Chassis
• Cummins ISL, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty Stainless Steel Body
• ROM Roll Up Doors
• 2000-Gallon Wet Side Poly Tank
• One (1) 2 ½" Fireman's Friend Tank fill, rear
• One (1) Newton 10" square manual swivel tank dump with 36" extension, rear
• Darley PSM, 1250-GPM Pump
• Pump Operator's panel under tank on left side
• Two (2) 2 ½" Discharges, one (1) each side
• One (1) 3" Discharge, right side
• One (1) 1 ½" and one (1) 2 ½" Mattydale Preconnects
• One (1) 2 ½" Gated Suction, left side
• Folding Tank rack storage, top of compartments, right side
• Suction Hose storage tray, top of compartments, left side
• Floor mounted console for Emergency switches, cab
• Progressive Dynamics on-board battery charger with Kussmaul Auto Eject
• Air coupling for external compressor
• Code 3 Electronic Siren with 100-watt Code 3 speaker
• Code 3 LED Scene Light Package
• Code 3 LED Warning Light Package
• Diamond Grade Chevron pattern striping, rear
• 9' 8" Overall height
• 27' 1" Overall length
• 212" Wheelbase
• 146.45" Cab to Axle
• 14,600 FAWR
• 30,000 RAWR
• 44,600 GVWR
