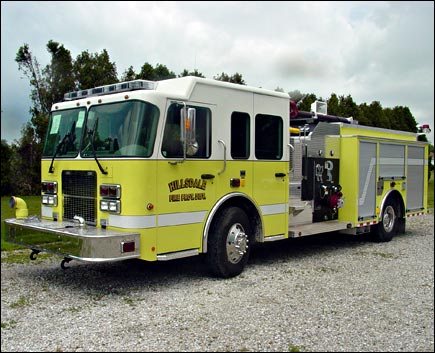

Hillsdale Fire Protection
District
Hillsdale, Illinois
Technical Specs
• Spartan Advantage-Big
Easy, 10" raised roof Chassis
• Caterpillar C7, 330 HP Diesel Engine
• Allison 3000EVP Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 1000-gallon T-type Poly Tank
• Hale QMAX 150, 1500-GPM Pump
• Top Mount Pump Controls
• Four (4) 2 ½" discharges, two (2)
left side, one (1) right side and one (1) rear
• One (1) 3" discharge, right side
• One (1) 2 ½" gated suction, left
side and One (1) 5" suction, front
• Two (2) 2 ½" cartridge lay Preconnects
• One (1) 2 ½" preconnect in bumper
extension
• Foam Pro 2001 foam system with 30-gallon tank
• ROM Roll Up Doors
• Akron Apollo Deck Gun with TFT Extend-A Gun
• Three (3) Air bottle compartments One (1) Left
side and Two (2) right side
• Four (4) FlameFighter Walk-away Air-pak brackets
in left compartment
• Pump-Plus 1200 air compressor/automatic battery
charger
• Kussmaul Super Auto Eject 120-volt shoreline
• Two (2) Unity Deck lights, rear
• Yamaha 6600-watt gasoline generator
• Two (2) Extenda Pod 500-watt telescoping/tripod
lights, rear
• Zico Hydraulic Ladder Bracket with attic ladder
brackets, right side
• Federal Siren and speaker
• Whelen Warning Light package
• 10' 2" Overall height
• 33' 6" Overall length
• 210" Wheelbase
• 156" Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
|
