Harlem Roscoe Fire Protection
District
Roscoe, Illinois
Technical Specs

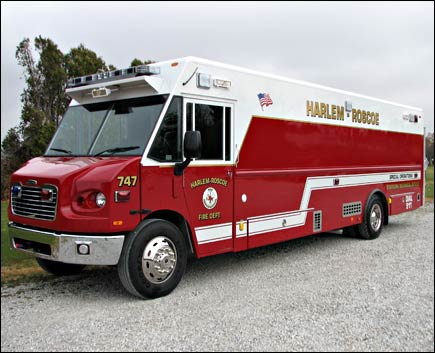

Freightliner MT55 Van
Chassis
Cummins ISB260, 260-HP Diesel Engine
Allison 2500, Automatic Transmission
Heavy Duty 3/16" Aluminum Body
Reese front and rear Trailer hitches
Crew area with two (2) man Squad Bench in front
section of van body
Incinolet electric incinerating 120-volt toilet
Hot and Cold Oasis water cooler system
Equipment storage area in rear section of van
body
Zico three (3) man drop down spring loaded
bench over left side wheel well
Motorized 12-volt Roll-Up Awning with side
curtains, right side
Four (4) Under Floor Drawer Storage compartments,
two (2) each side
One (1) exterior compartment, left side
Cascade System with Two (2) 6000-PSI Bottles
Four (4) FlameFighter walk-away air Pak brackets,
left side interior wall
Kussmaul Pump-Plus 1200 air compressor/battery
charger
Kussmaul Super Auto Eject 120-volt shoreline
Norcold 1.7 Cu-Ft refrigerator/freezer 12-volt/120-volt
120-volt Electric cord reel, left exterior
compartment
Tomar 1860 Preemption System
Four (4) Whelen large scene lights, two each
side
Onan 10-kW hydraulically driven Generator
One (1) Beta 4000, 500-watt light, mounted
front of chassis cab
Four (4) Extenda-Lite 120-volt recess mounted
flood lights, two (2) each side
Code-3 Electronic Siren with Federal Speaker
Whelen Warning Light Package
10' 5" Overall height
34' 10" Overall length
250" Wheelbase
10,000 FAWR
20,000 RAWR
30,000 GVWR
|
