VILLAGE OF HAMPTON FIRE DEPARTMENT
HAMPTON, ILLINOIS
Technical Specs
• HME 1871-W, MFDxL 12" raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Six (6) Man Cab Seating with five (5) SCBA seats

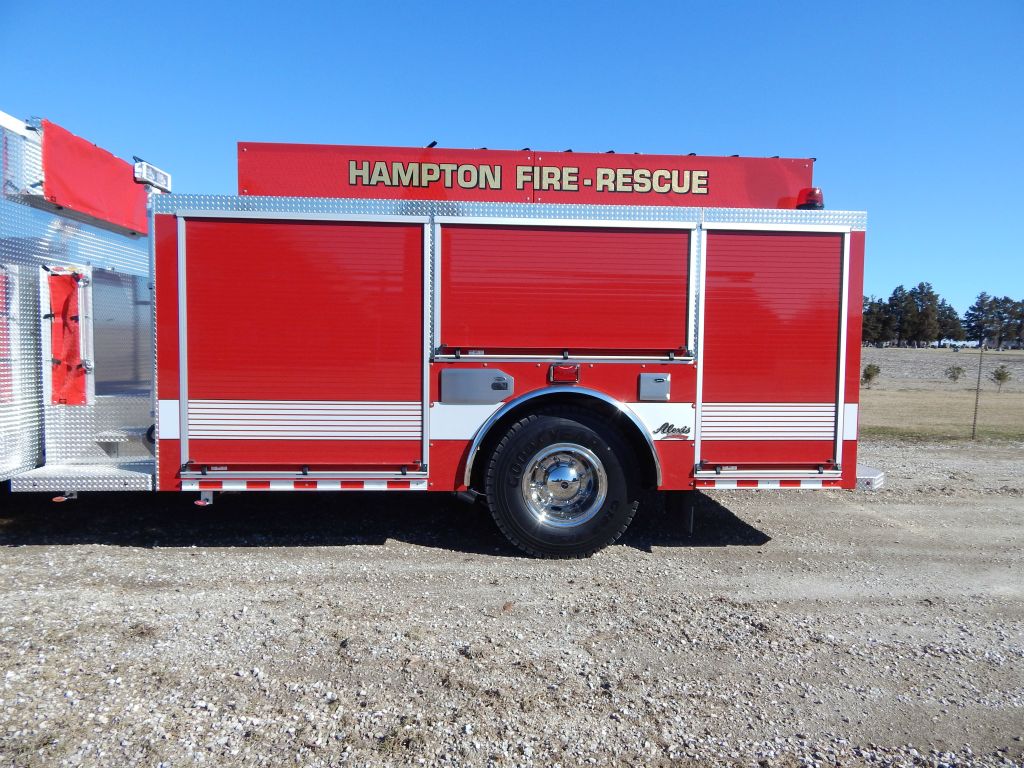

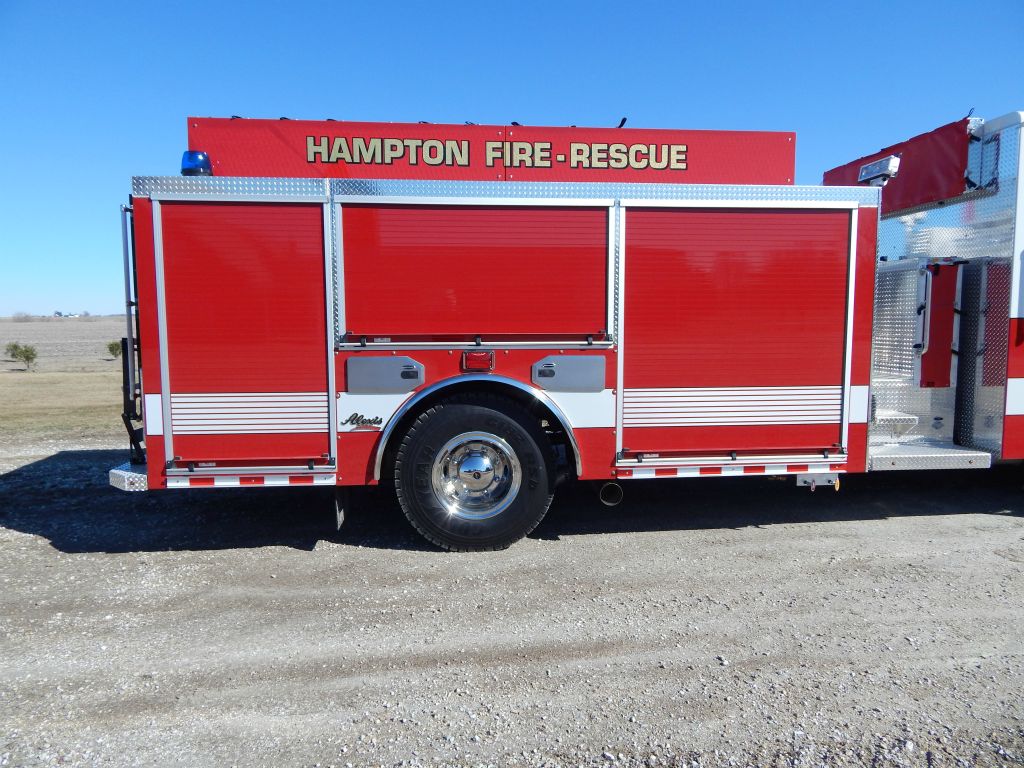

• Heavy Duty 3/16" Aluminum Body
• ROM Painted Roll Up Doors
• 1000-Gallon Poly Tank
• Darley PSM 1500-GPM Pump

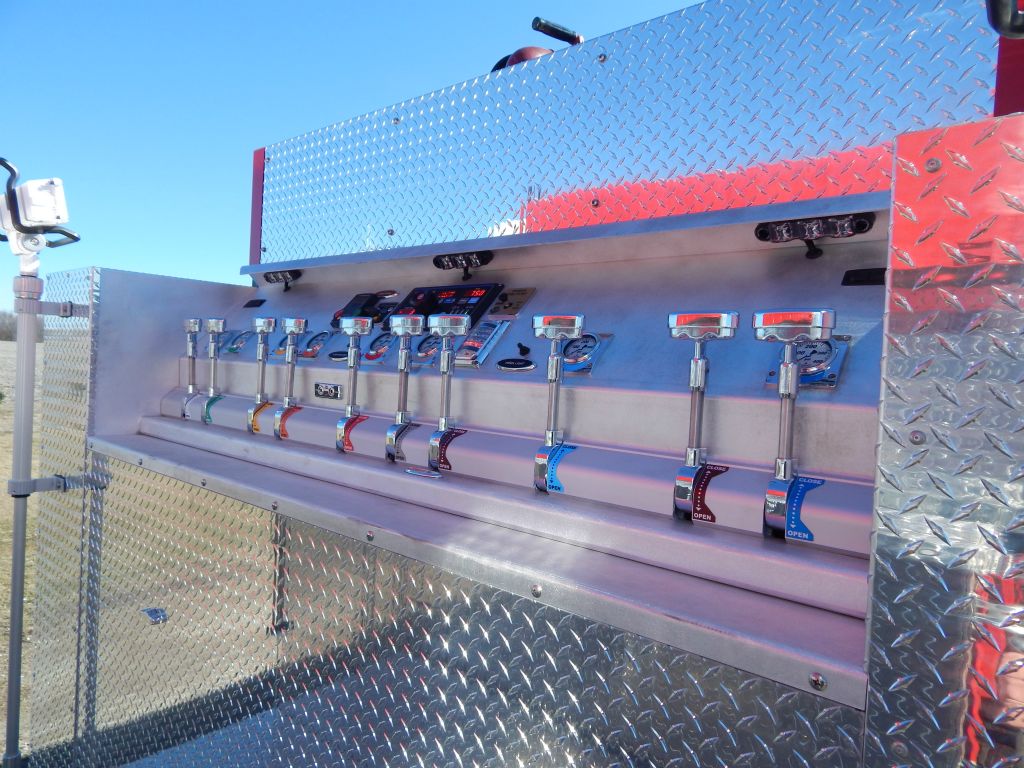

• Pump operator's panel across top of body
• Two (2) 2 ½" Discharges, one (1) each side
• Three (3) 3" Discharges, one (1) right, one (1) rear and one (1) over pump
• One (1) 2 ½" Gated Suction, left side
• Two (2) 1 ½" Mattydale Preconnects, behind cab

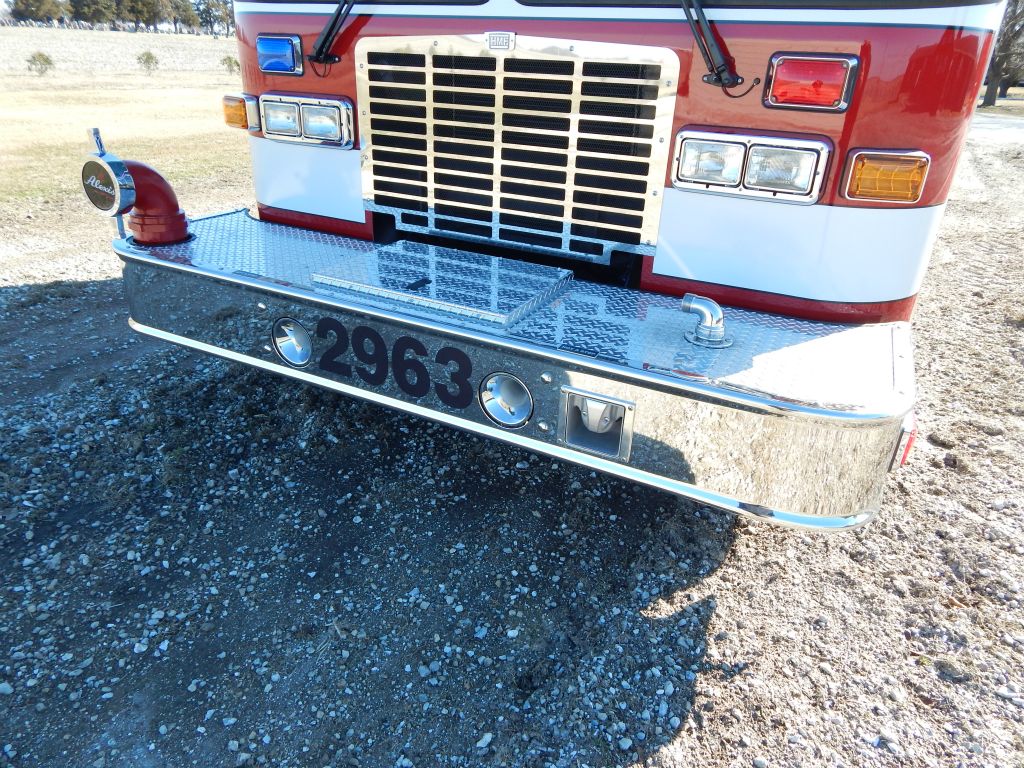

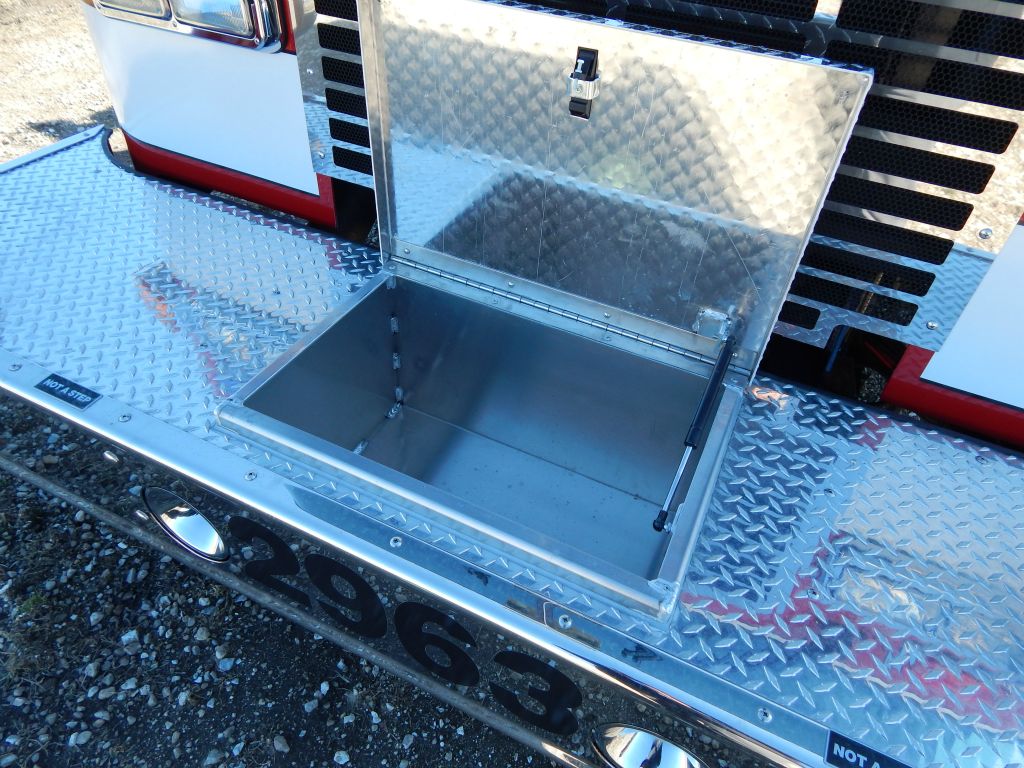

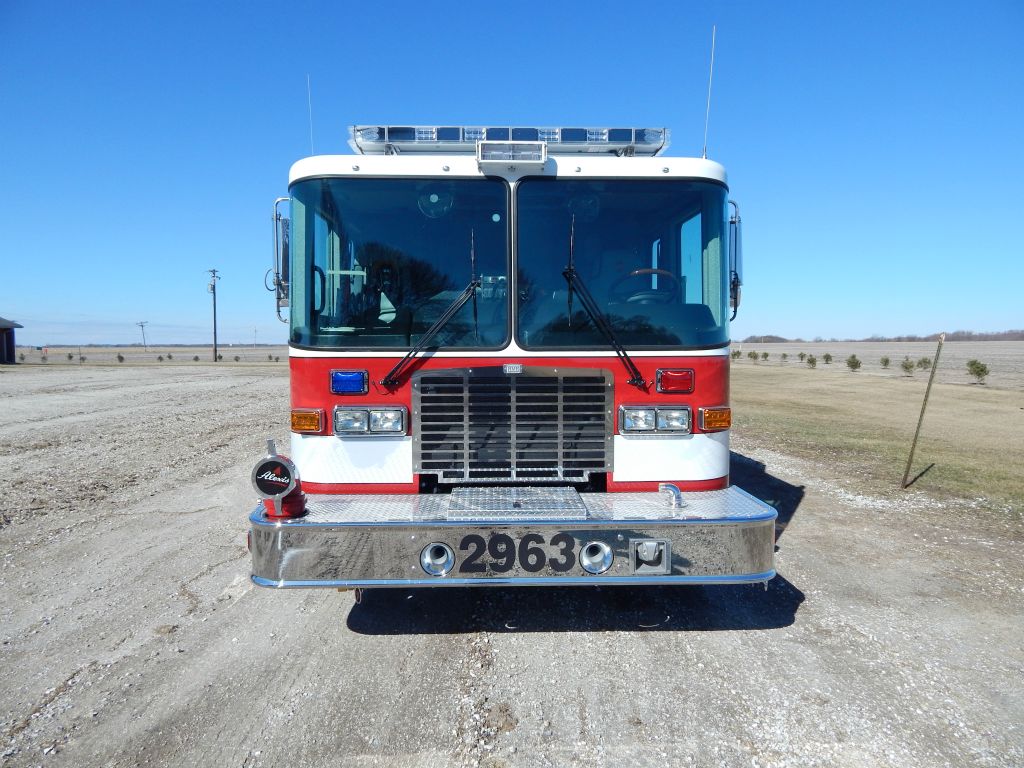

• 24" Front bumper extension with 6" suction, 1 ½" Preconnect and center hosewell
• On Spot Automatic Tire chains
• FireCom Intercom system

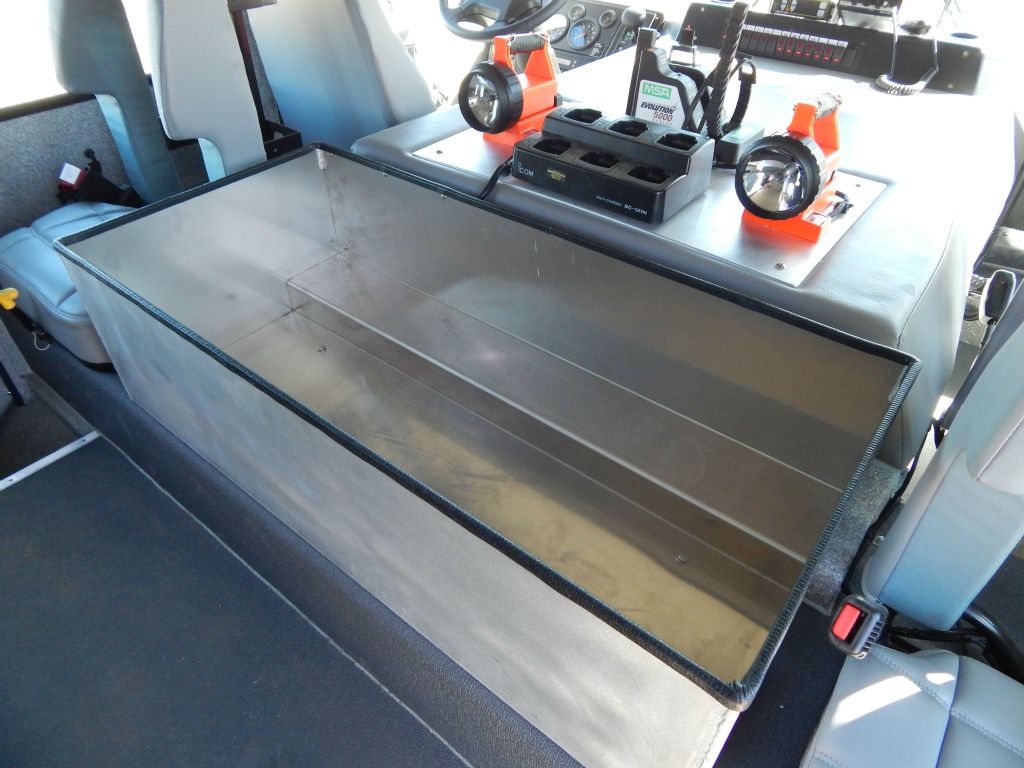

• EMS storage box, cab

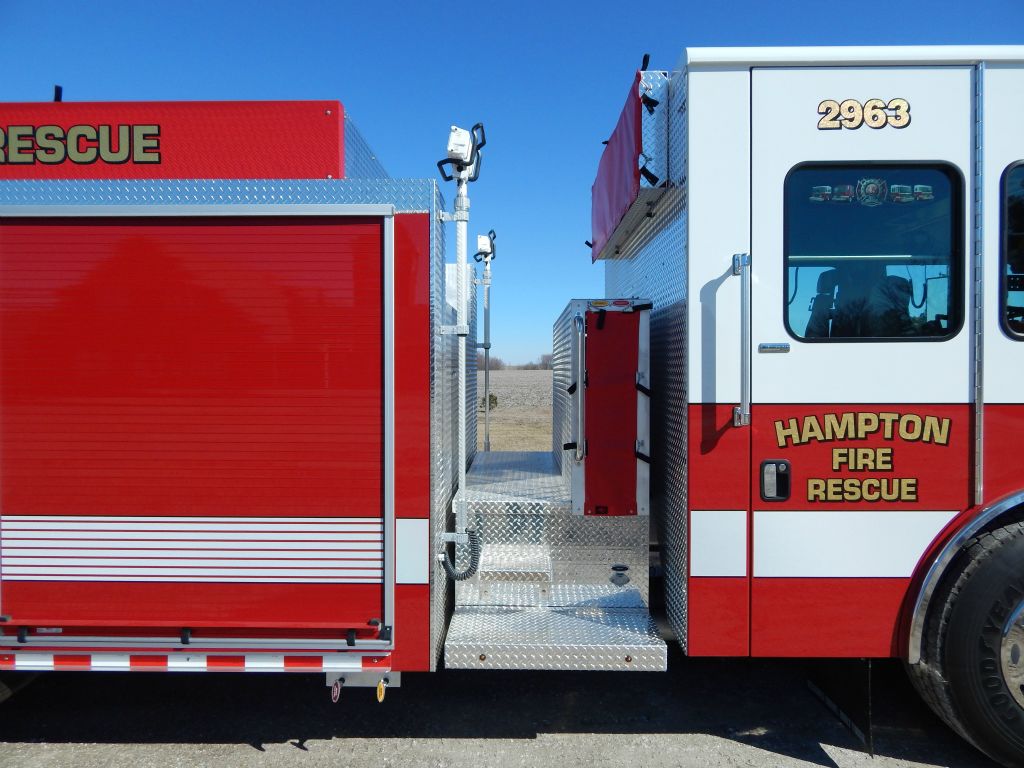

• Custom Backboard storage compartment, back of cab
• Three (3) Dual bottle Air bottle compartments, one (1) left and two (2) right side

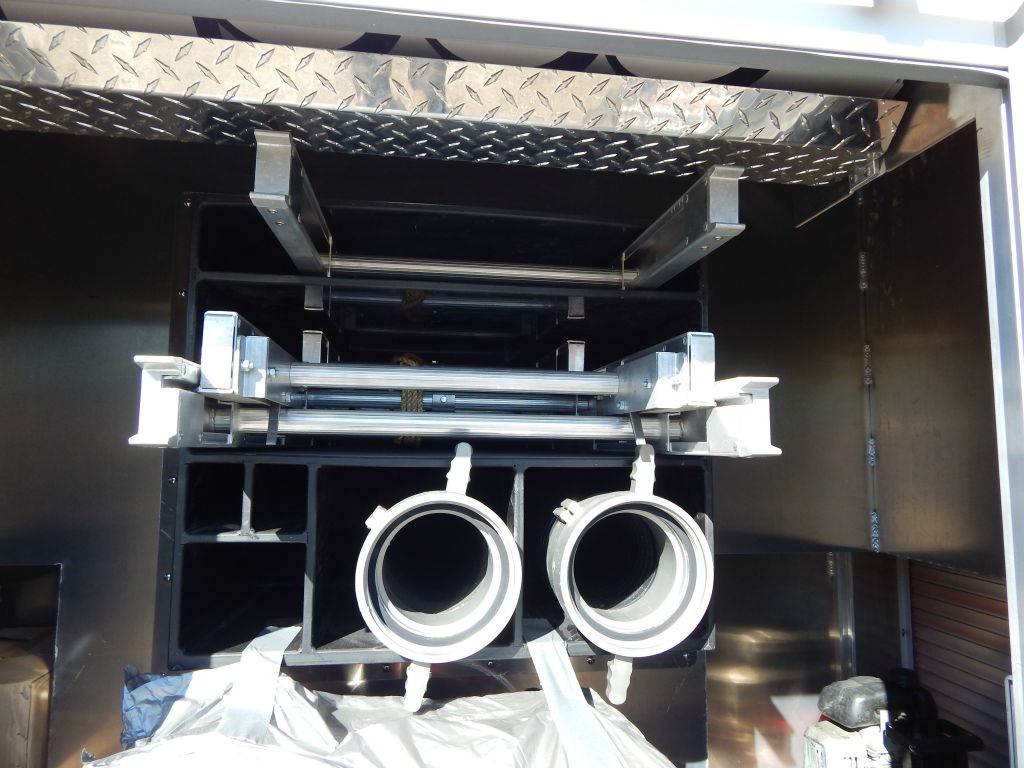

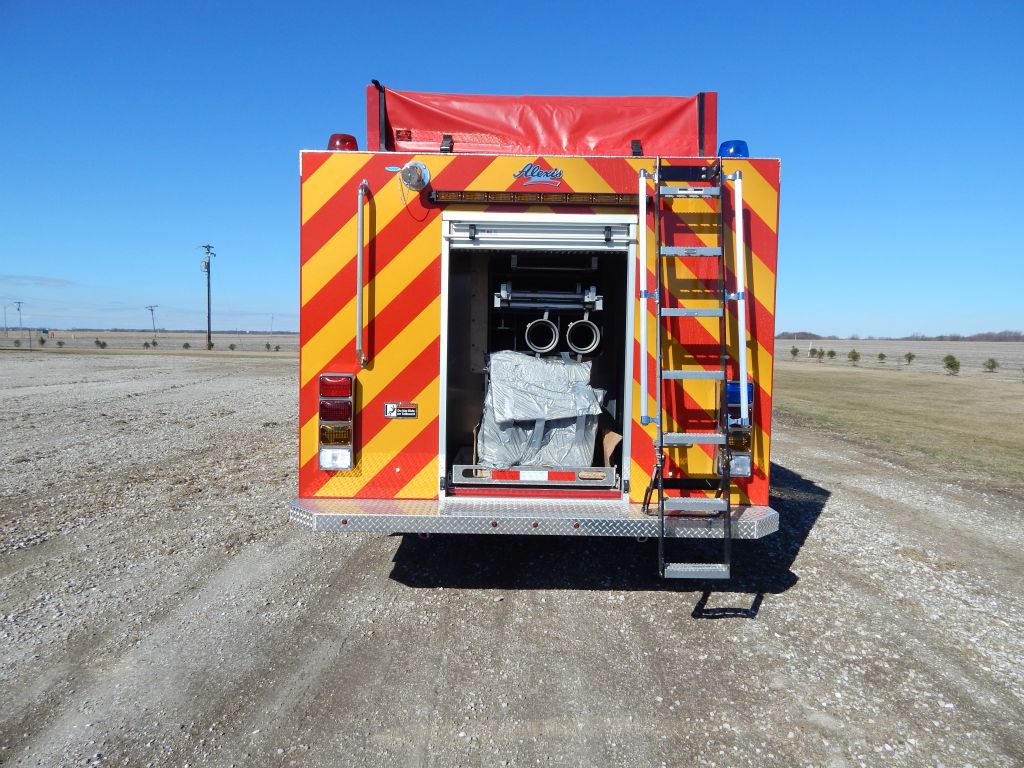

• Ladder, Suction hose and Pike pole storage through the tank with rear access

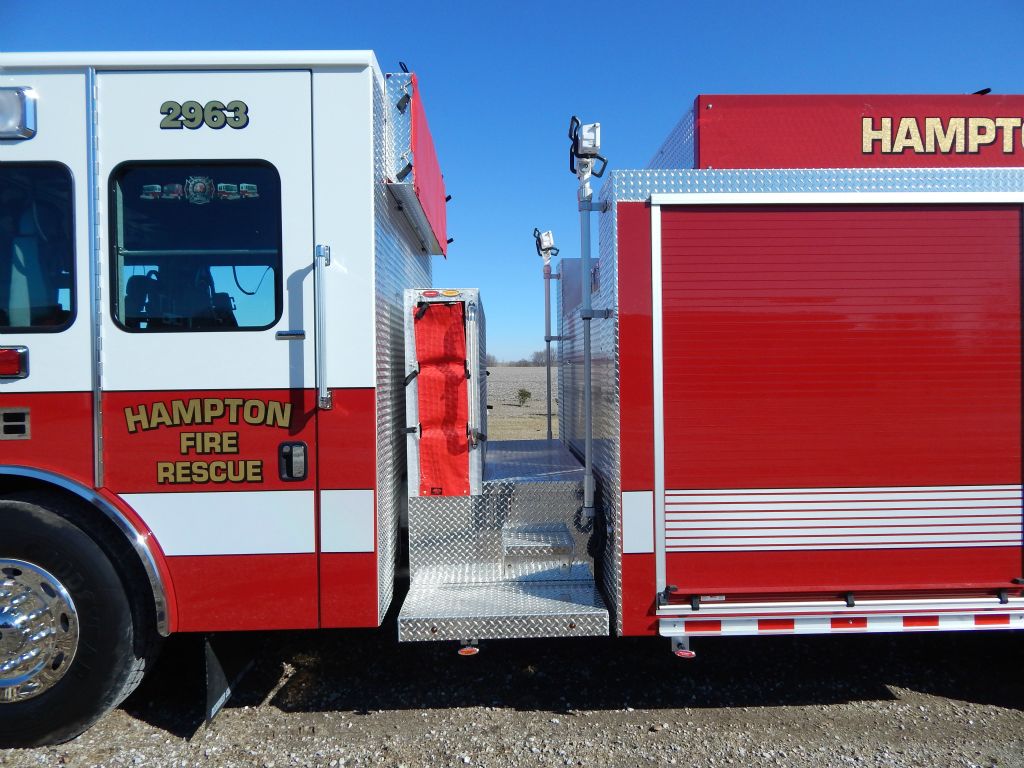

• One (1) Sure-Step Top access Ladder, rear mounted
• Two (2) Air Horns, front bumper
• Kussmaul Pump Plus on-board battery charger/air compressor with Auto Eject
• Whelen Electronic Siren with 100-watt Cast Products speaker
• One (1) Optronics hand held Spotlight, cab
• Whelen Scene Light Package
• Whelen LED Warning Light Package

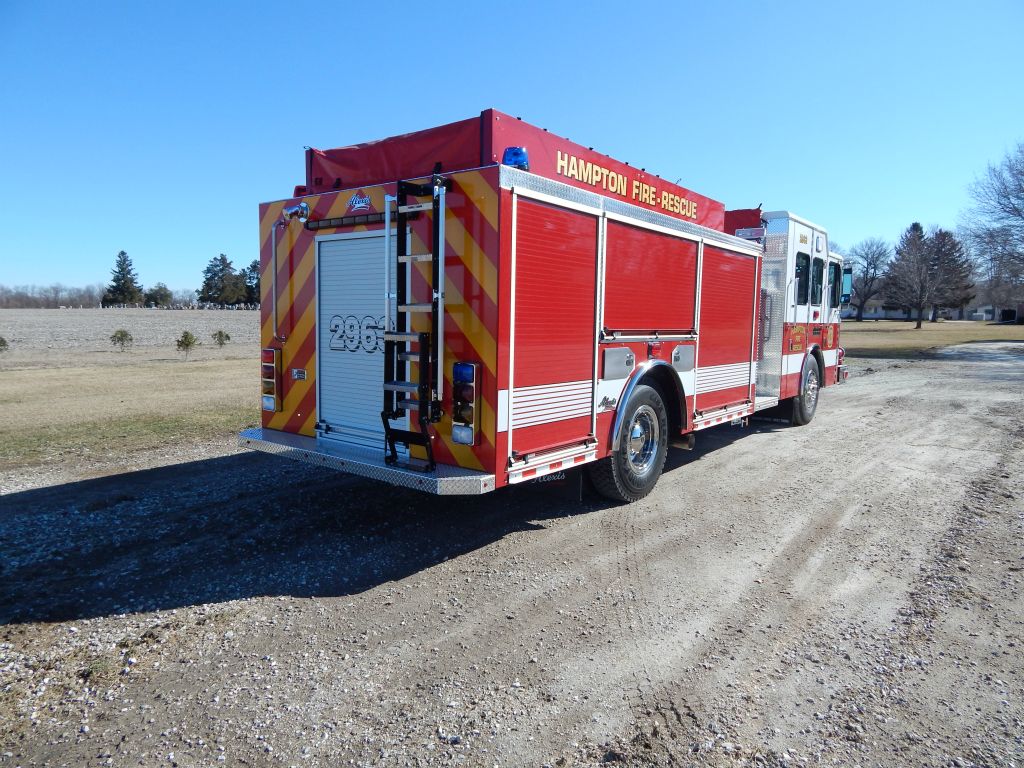

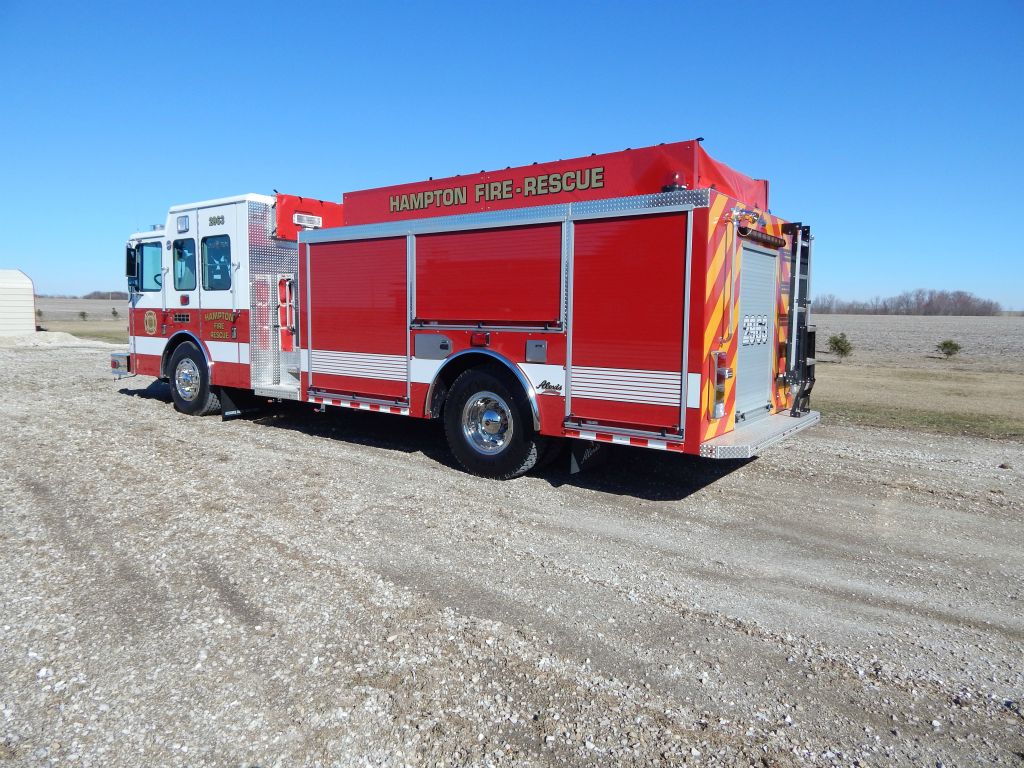

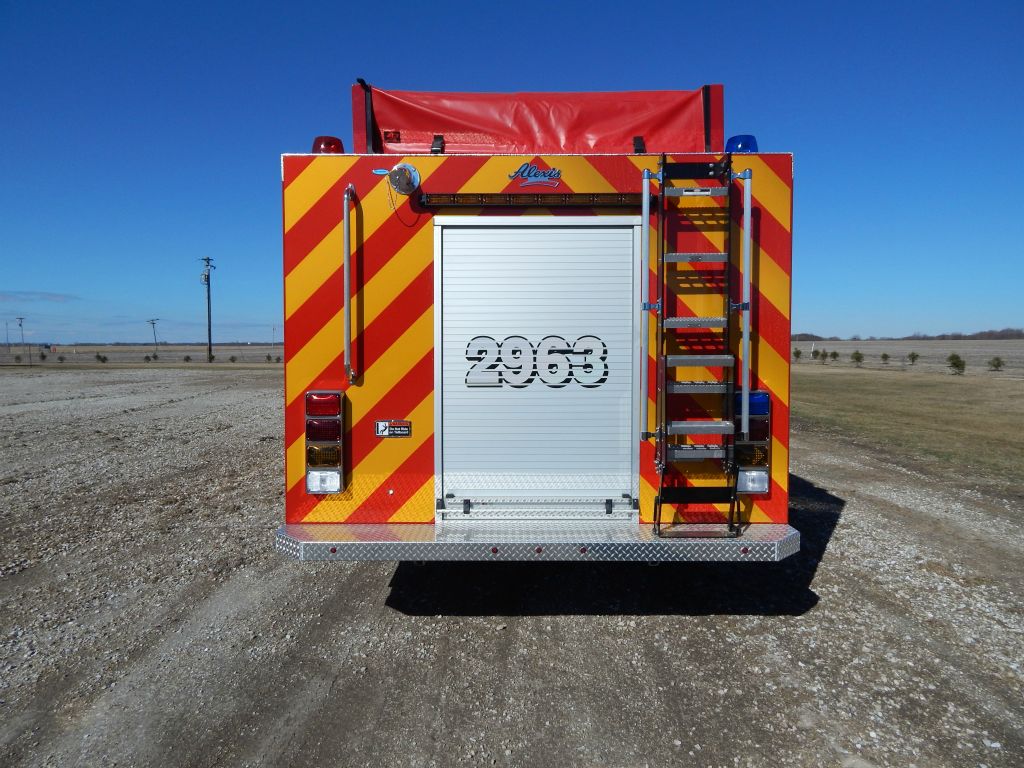

• Chevron pattern striping, rear
• 9' 10" Overall height
• 33' 2" Overall length
• 205" Wheelbase
• 145" Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
