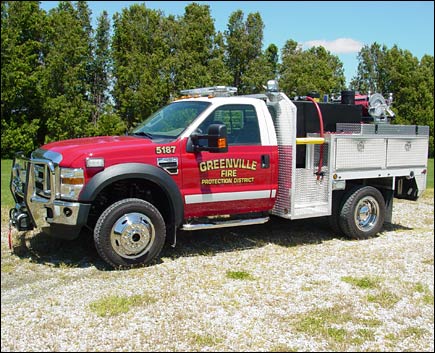

Greenville Fire Protection
District
Greenville, Illinois
Technical Specs
• Ford F-450 2-Door 4x4
DRW Chassis
• Ford Triton 6.8L V10, 362-HP Gasoline Engine
• Ford 5-speed TorqShift w/OD Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 350-Gallon Rectangular Poly Tank with 12-Gallon
foam cell
• Hale HPX200, 60-GPM Pump with 20-HP Honda Gasoline
engine
• One (1) 2 ½" Gated Suction
• One (1) 2 ½" Discharge and one
(1) 1 ½" Discharge, rear
• Two (2) 1" Booster lines with 10-ft long
hose
• Two (2) Electrically controlled Spray Booms,
in the front bumper
• One (1) Hannay Electric Booster Reel with 200-ft.
of ¾" hose
• Two (2) Hose Trays, one (1) each side over
compartments
• Scotty Around the Pump foam inductor /mixer
• Reese type trailer hitches for winch with 12-volt
connections, front and rear
• One (1) Ramsey QM 9000, 9000-lb. winch
• One (1) Luverne Chrome Brush Guard with wrap
around grill guard
• One (1) Permanently mounted bottle rack with
capacity for four (4) bottles, between headache rack
and water tank
• Two (2) Compartments with two (2) drop down
doors each, one (1) each side
• Two (2) Drop down platforms, one each side
behind headache rack
• One (1) Rear compartment with drop down door,
centered under flatbed body
• Four (4) 5-gallon Indian Pumps with brackets,
two (2) each side front compartment top
• Jotto Desk Console Mate in cab dash for switches
• Two (2) Federal Visibeam 100-watt spotlights
with remote control one (1) each side
• Code-3 Electronic Siren with 100-watt Federal
speaker
• Code-3 Warning Light Package
• 8' 3" Overall height
• 19' 7" Overall length
• 140.8" Wheelbase
• 60" Cab to Axle
• 7,000 FAWR
• 12,000 RAWR
• 16,000 GVWR
|
