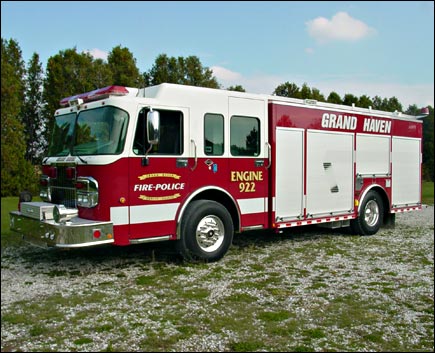

Grand Haven Fire Department
Grand Haven, Michigan
Technical Specs
• Spartan Gladiator Flat
Floor MFD 10" raised roof Chassis
• Detroit 60, 455-HP Diesel Engine
• Allison 4000 EVP Automatic Transmission
• Heavy Duty 12 gauge Stainless Steel Body
• UPF 750-Gallon Rectangular Poly Tank with Two
(2) 30-Gallon foam tanks
• Waterous CXVK-1250, 1250-GPM Pump
• Left side Rear Compartment Pump controls
• Flowminder Class 1 Valve system
• One (1) 2 ½" Gated Suction, rear
• One (1) 3" Discharge, rear
• Two (2) 2 ½" Discharges, rear
• One (1) 2 ½" Preconnect, left side
• Three (3) 1 ½" Cartridge Lay Preconnects
• One (1) 5" Front Suction
• One (1) RC3, Remote Controlled 3" Telescoping
Waterway
• ROM Roll Up Doors
• Ladder Storage Compartment under hosebed
• Foam Pro 2002 foam system
• Three (3) Air bottle compartments, one (1)
left side and two (2) right side
• Fire Extinguisher Rack with five (5) extinguisher
capacity, left side compartment
• Eight (8) Zico Walk-away Air Pak brackets,
left side compartment
• Hanny Booster Reel in front bumper extension
• Reese type Hitch, rear
• Norcold 2.7 cu.ft. Built-in Refrigerator
• Smart power 10-kW Hydraulically driven Generator
• Two (2) Electric 120-volt cord reels
• One (1) Beta 4000, 500-watt cab-mounted light
• Four (4) Extenda-light 120-volt, 750-watt floodlights,
two (2) each side
• One (1) 3000-watt Night Scan Chief light Tower
with remote control
• Two (2) Whelen large Scene lights, rear
• PowerArc LED Warning light Package
• 10' 3" Overall height
• 33' 3" Overall length
• 190" Wheelbase
• 136" Cab to Axle
• 20,000FAWR
• 27,000 RAWR
• 47,000 GVWR
|
