GENESEO FIRE PROTECTION DISTRICT
GENESEO, ILLINOIS
Technical Specs
• Spartan Metro Star LFD 10" raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Five (5) man cab seating with three (3) SCBA seats
• Heavy Duty 3/16" Aluminum Body
• ROM painted Roll Up Doors
• 3000-Gallon Poly Tank

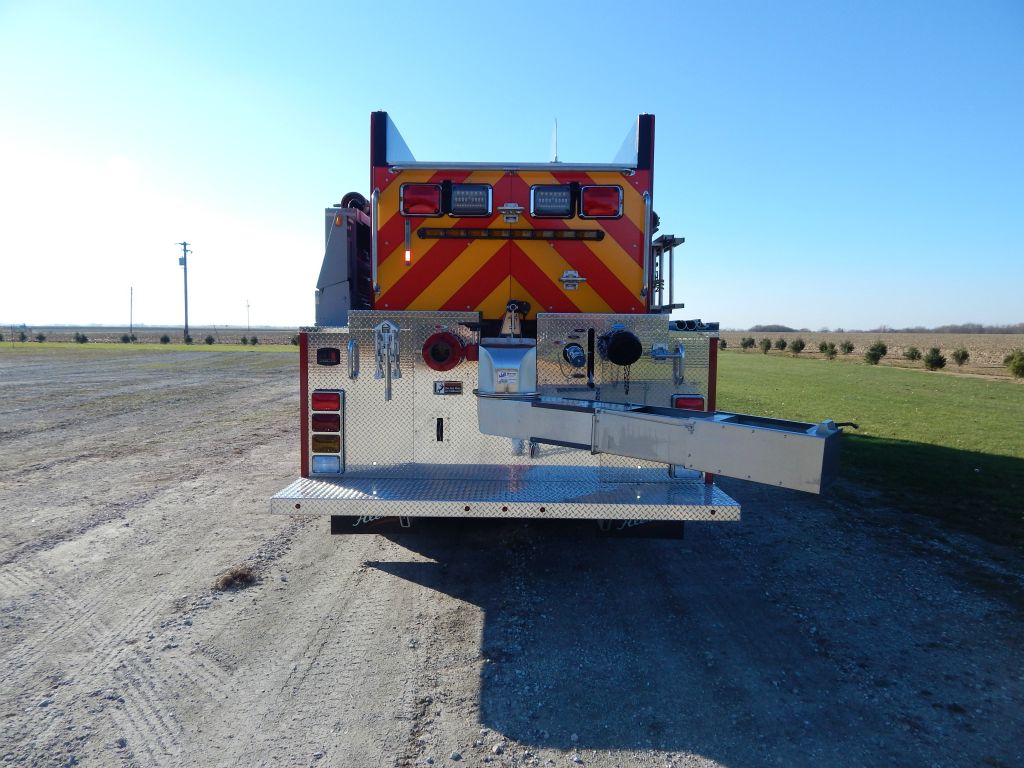

• One (1) Newton 10" electric swivel dump with 36" extension, rear
• One (1) 2 ½" and one (1) 4" tank fill, rear

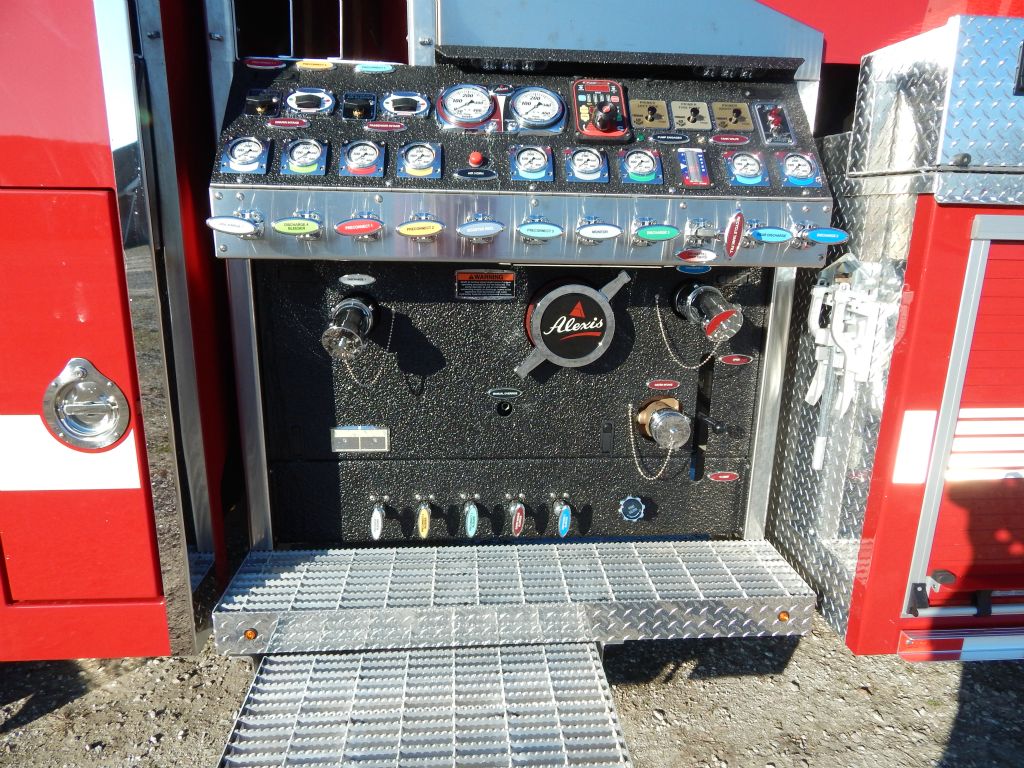

• Waterous CXS, 1500-GPM Pump
• Three (3) 2 ½" Discharges, two (2) left and one (1) right side
• Three (3) 3" Discharges, one (1) right, one (1) rear and one (1) over pump
• One (1) 2 ½" Gated Suction, left side
• Three (3) Mattydale Preconnects, one (1) 2 ½" and two (2) 1 ½", top of body
• One (1) Hannay electric Booster Reel with 150-ft of 1" hose, right side
• One (1) Ziamatic Hydraulic folding tank rack fro 3000-gallon tank, left side
• Ladder brackets and two (2) Suction hose storage gutters , right side
• EMS cabinet with cargo netting, cab
• Progressive Dynamics on-board battery charger with Viair air compressor
• Norcold built-in refrigerator, cab
• Two (2) Air Horns, front bumper
• Federal Signal Electronic Siren with Whelen 100-watt speaker
• Whelen LED Scene light Package
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 9' 8" Overall height
• 36' 11" Overall length
• 252.5" Wheelbase
• 185" Cab to Axle
• 23,000 FAWR
• 44,000 RAWR
• 67,000 GVWR
