FRANKLIN GROVE FIRE PROTECTION DISTRICT
FRANKLIN GROVE, ILLINOIS
Technical Specs
• Freightliner M2 106, 2-Door Chassis
• Cummins ISL, 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• 12" Bumper Extension with guard railing and skid plate
• 1500-Gallon Poly Tank and 10-Gallon foam tank
• One (1) 2 ½" Fireman's Friend Tank fill, rear
• One (1) Newton 10" square manual swivel tank dump with 36" extension
• Darley JMP, 500-GPM PTO Pump

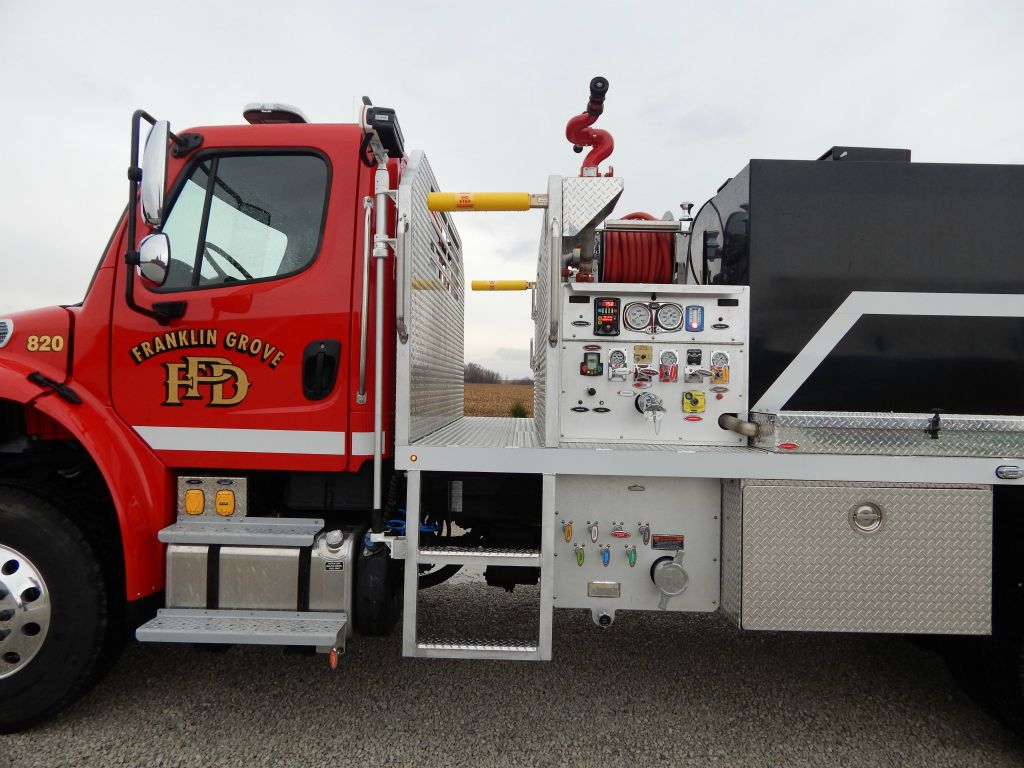

• Left side pump operator's panel
• Two (2) 2 ½" Discharges, left side
• One (1) 2 ½" Discharge, right side
• Two (2) 2" Discharges, top of pump compartment for Fire Pro monitors
• Trident "Foamate" around the pump foam system
• One (1) Akron Forestry monitor front turret
• Two (2) 1 ½" Preconnects, one (1) each side front with hose trays
• One (1) Hannay Electric Booster Reel with 100-ft of 1" hose
• Two (2) Under body compartments, one (1) each side ahead of rear wheels
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline
• Kussmaul Air Eject
• Floor mounted console for emergency switches with map/binder storage, cab
• Federal 200-watt Siren
• One (1) Federal GHSCENE scene light, rear
• Two (2) Whelen LED scene lights, one (1) each side
• Whelen LED Warning Light Package
• Diamond Grade Chevron pattern striping, rear
• 9' 8" Overall height
• 26' 6" Overall length
• 192" Wheelbase
• 126.45" Cab to Axle
• 12,000 FAWR
• 26,000 RAWR
• 38,000 GVWR
