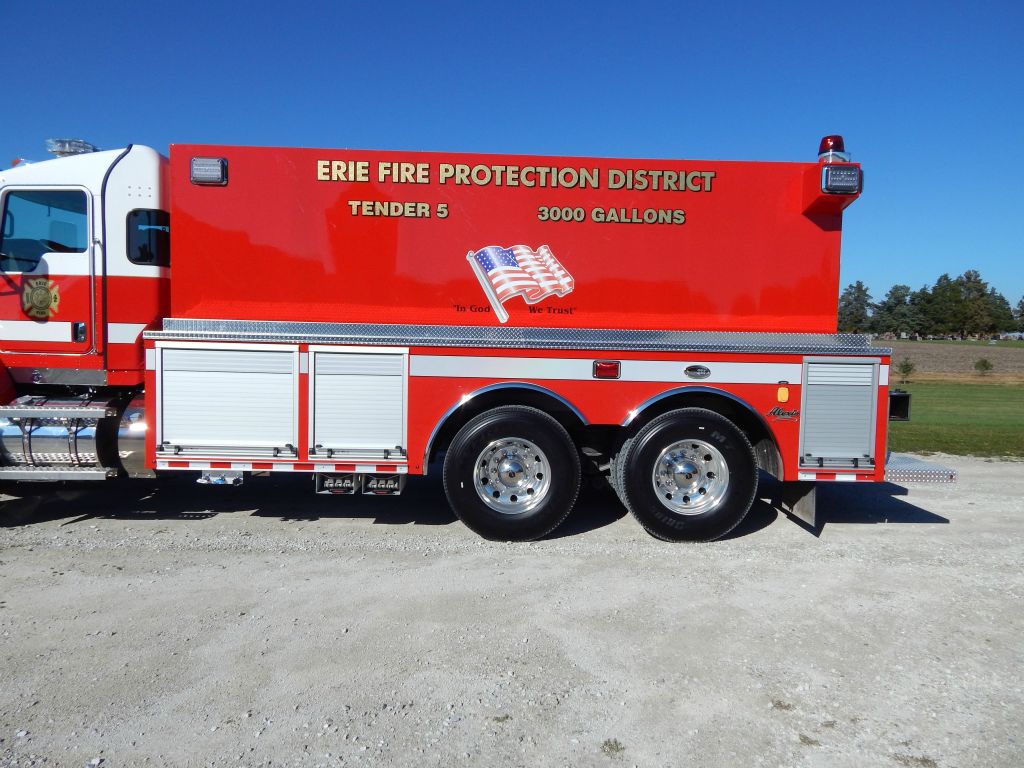

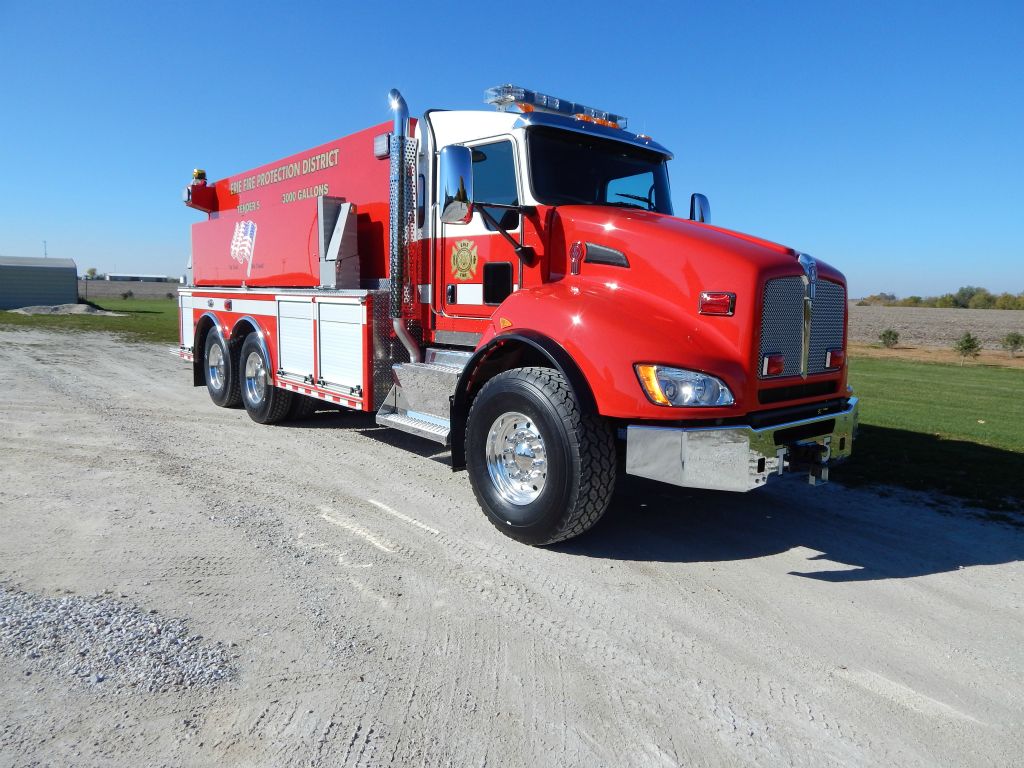

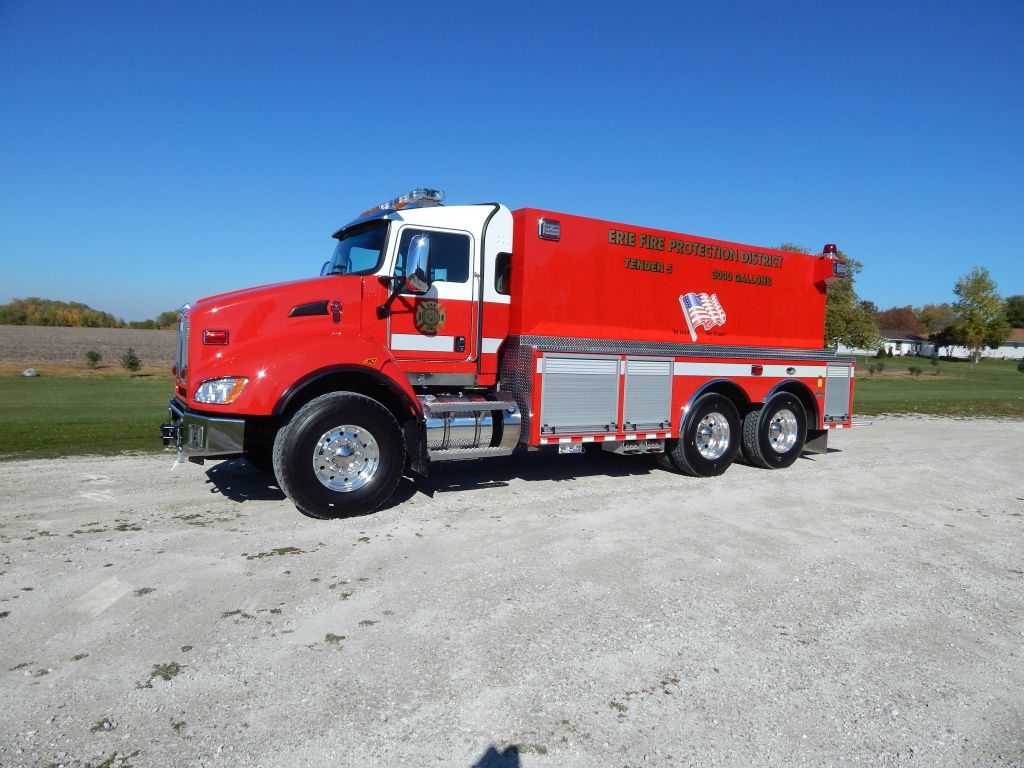

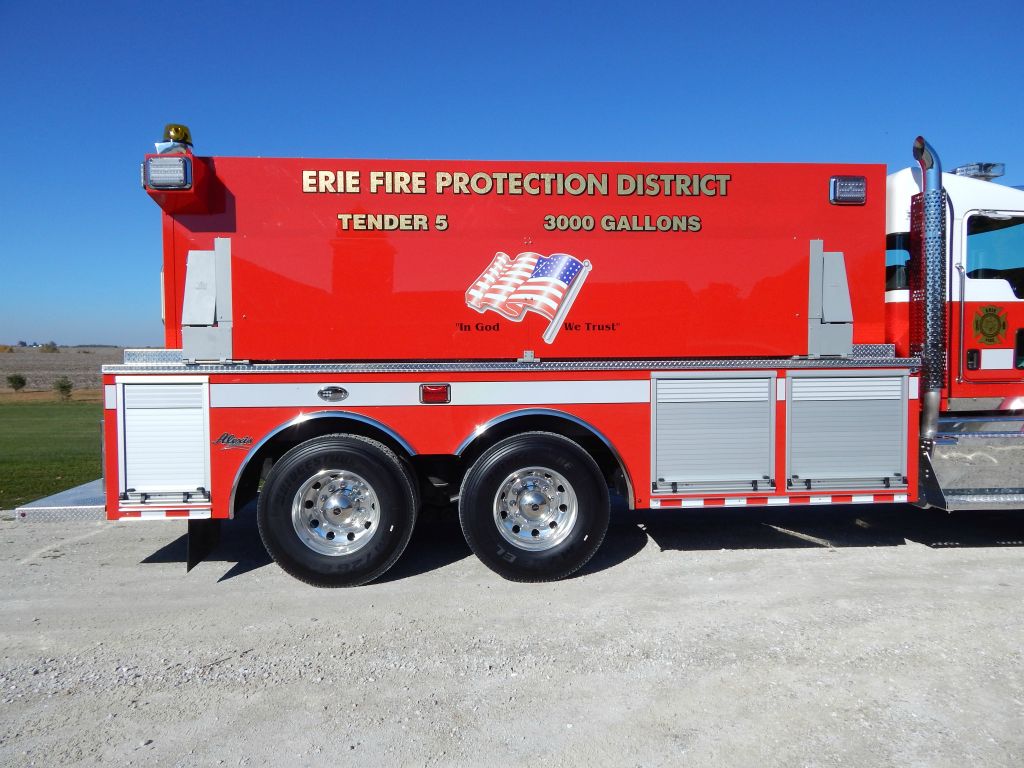

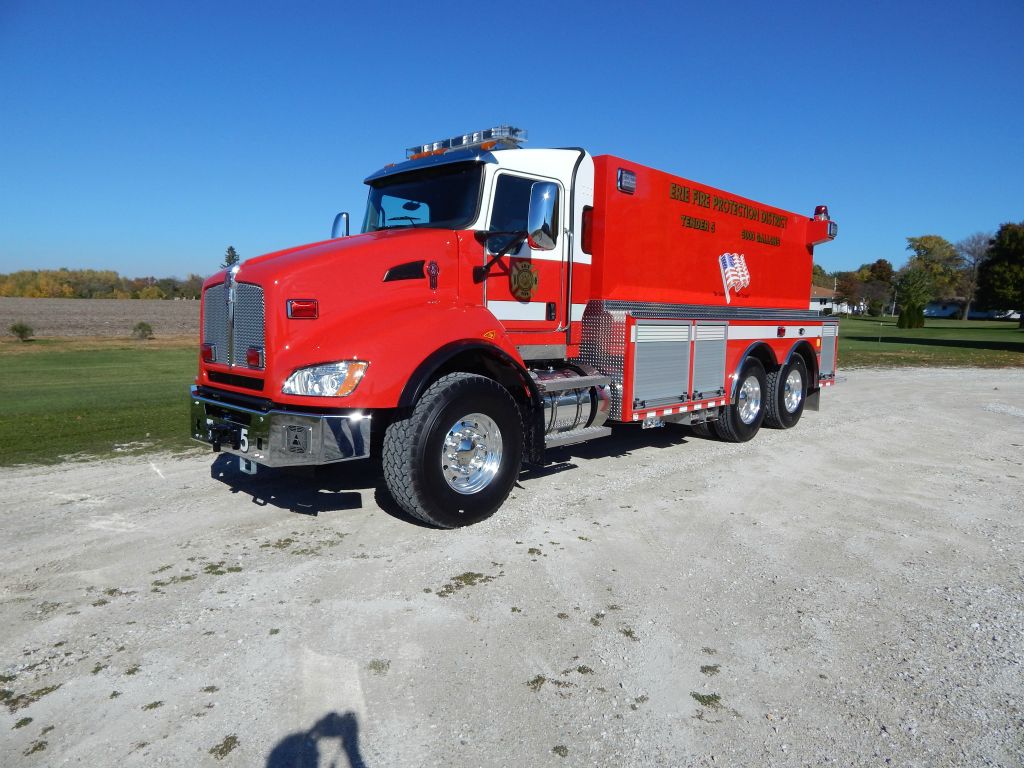

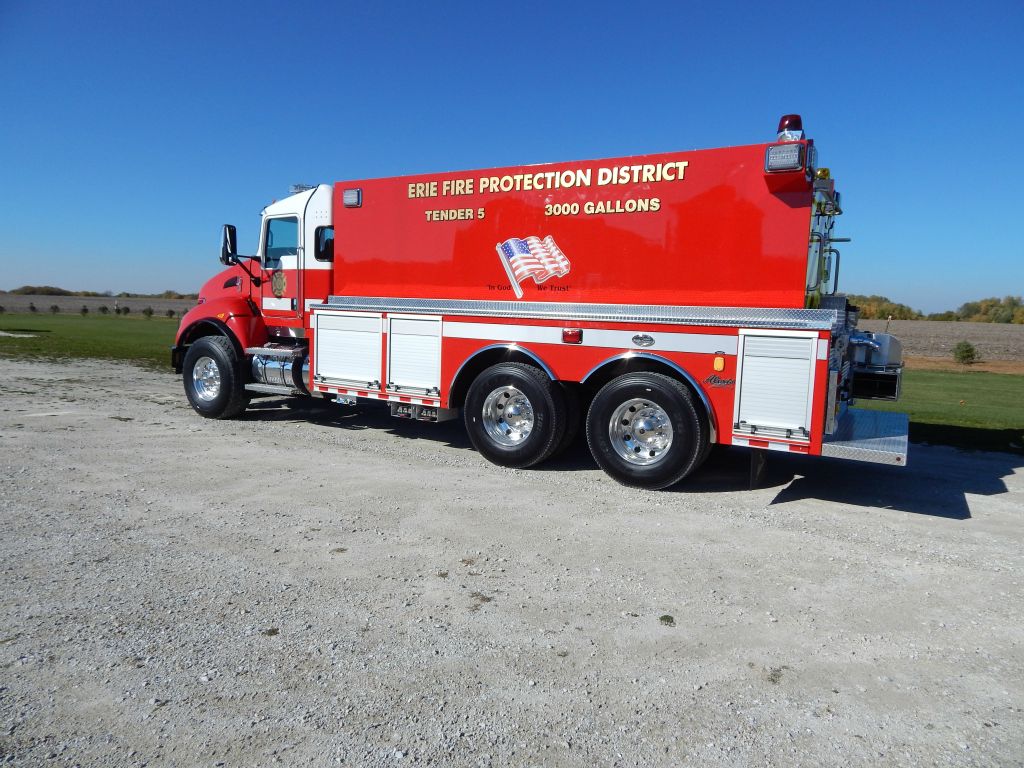

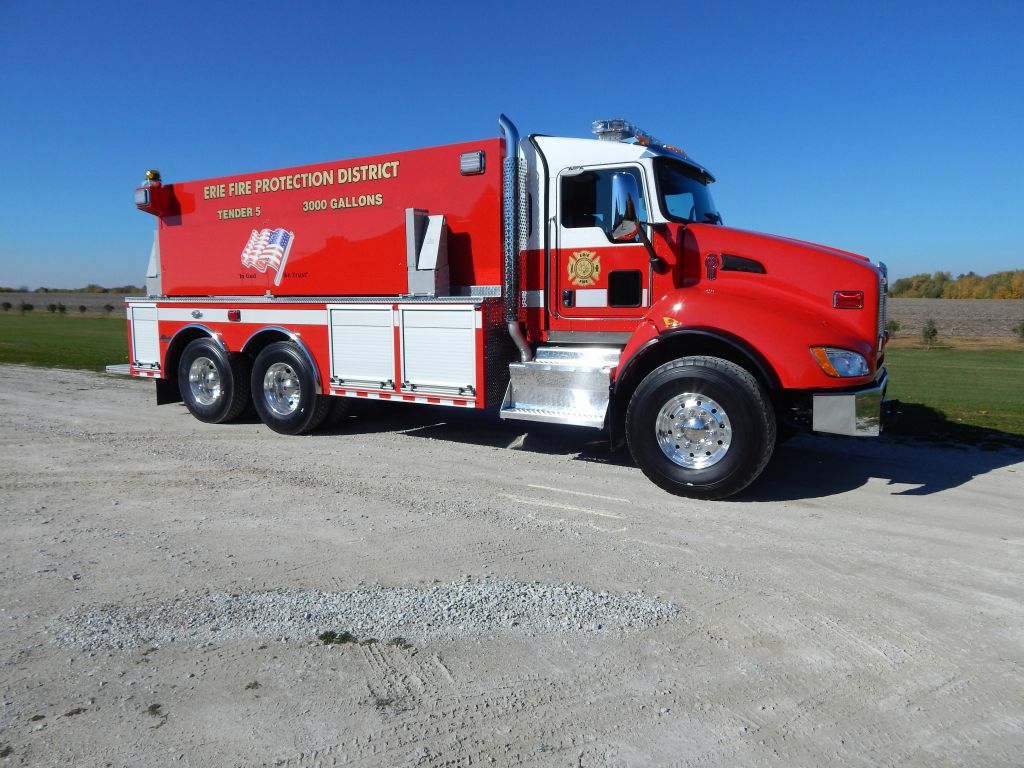

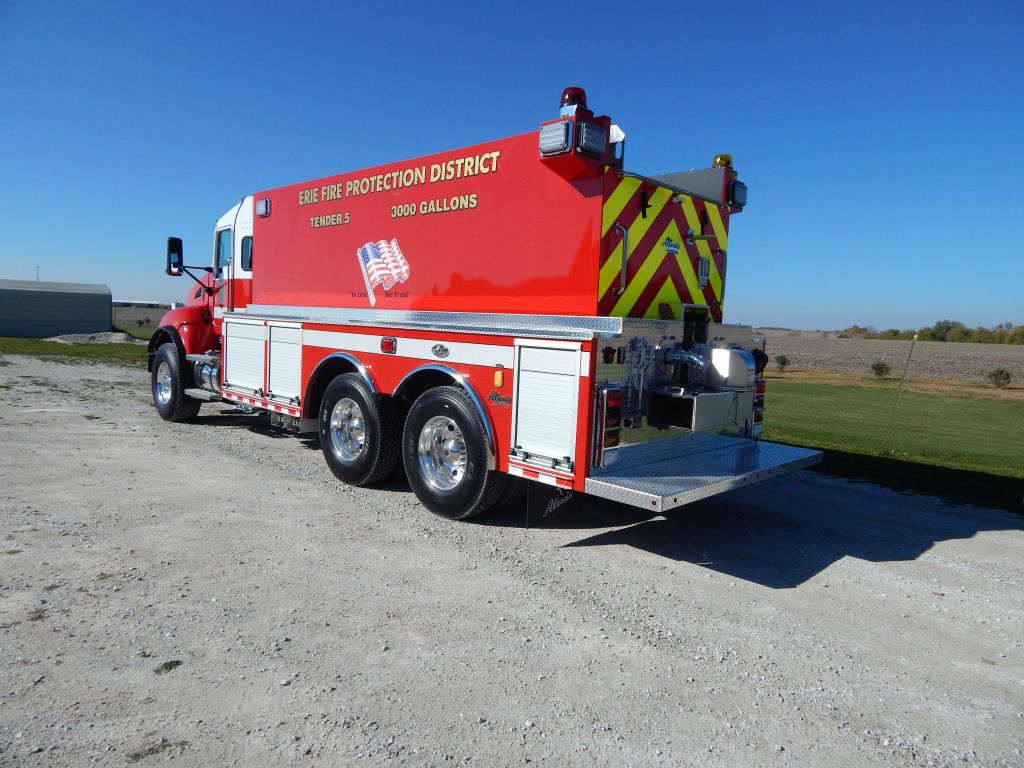

ERIE FIRE PROTECTION DISTRICT
ERIE, ILLINOIS
Technical Specs

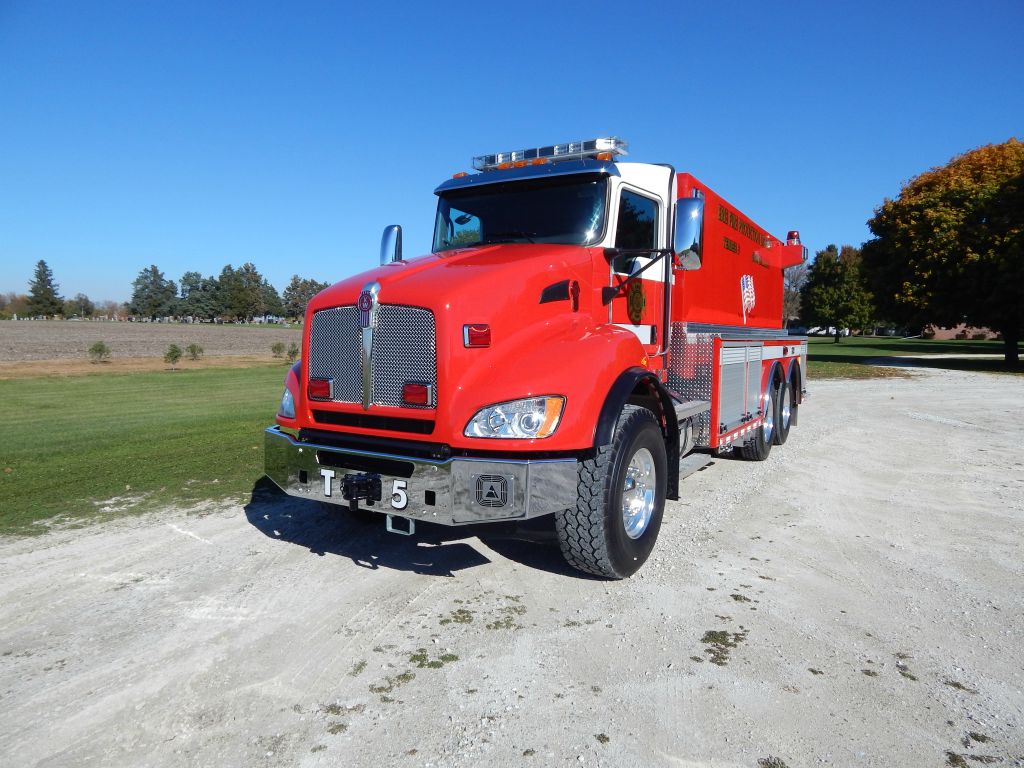

• Kenworth T-400 2-Door Tandem Chassis
• Paccar PX-9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• ROM Roll Up Doors
• 3000-Gallon Poly Tank

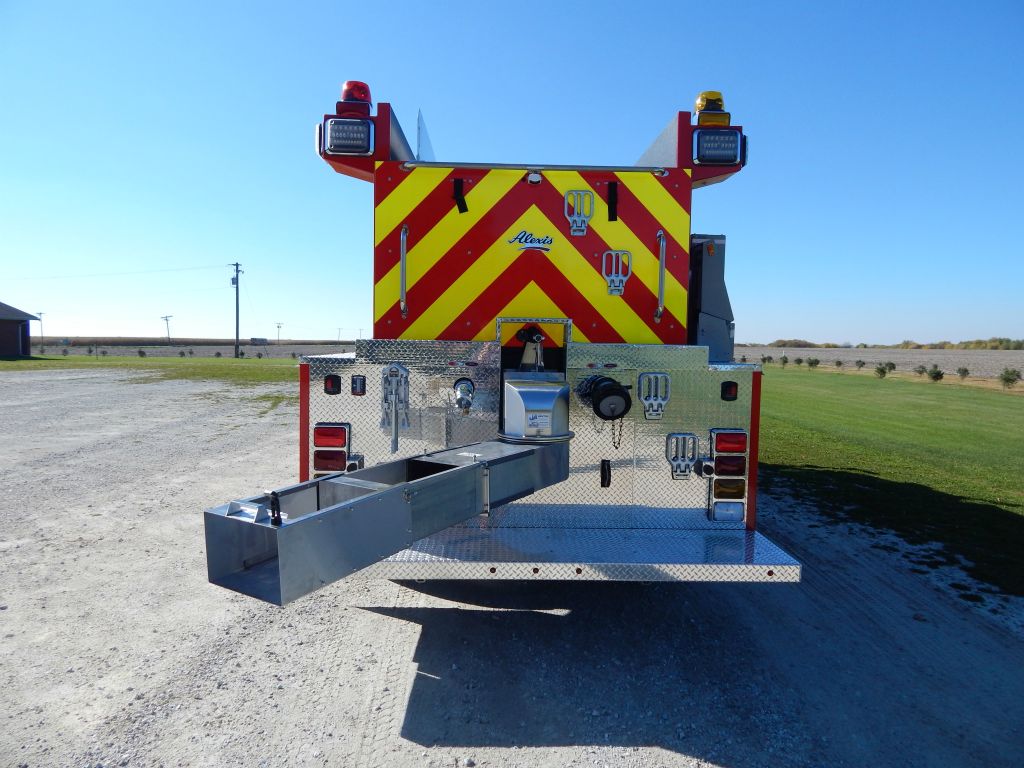

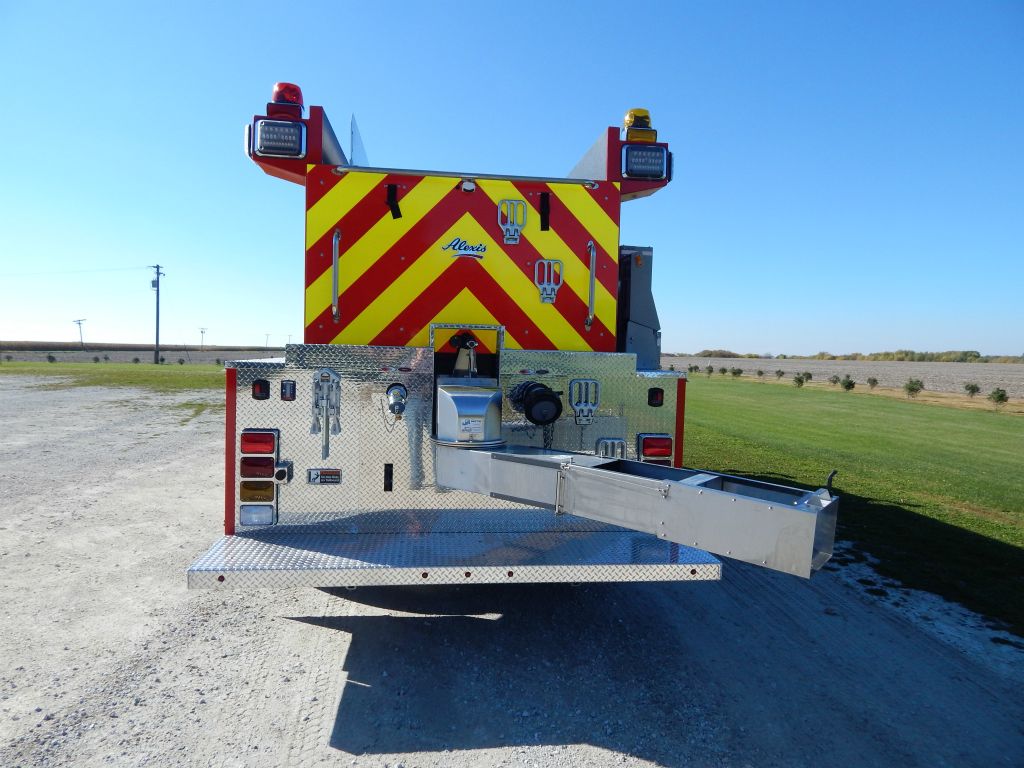

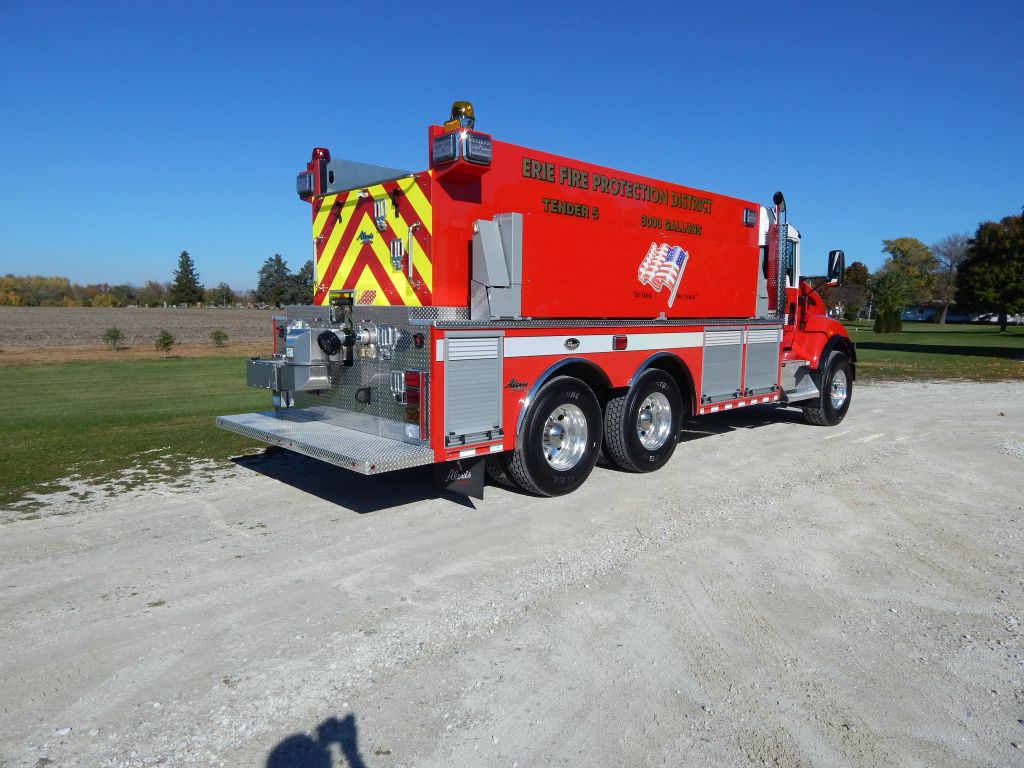

• One (1) 10" square Newton electric swivel tank dump with 36" extension, rear
• One (1) 4" and one (1) 2 ½" Fireman's Friend Tank fills, rear
• Waterous CLVK, 500-GPM Pump

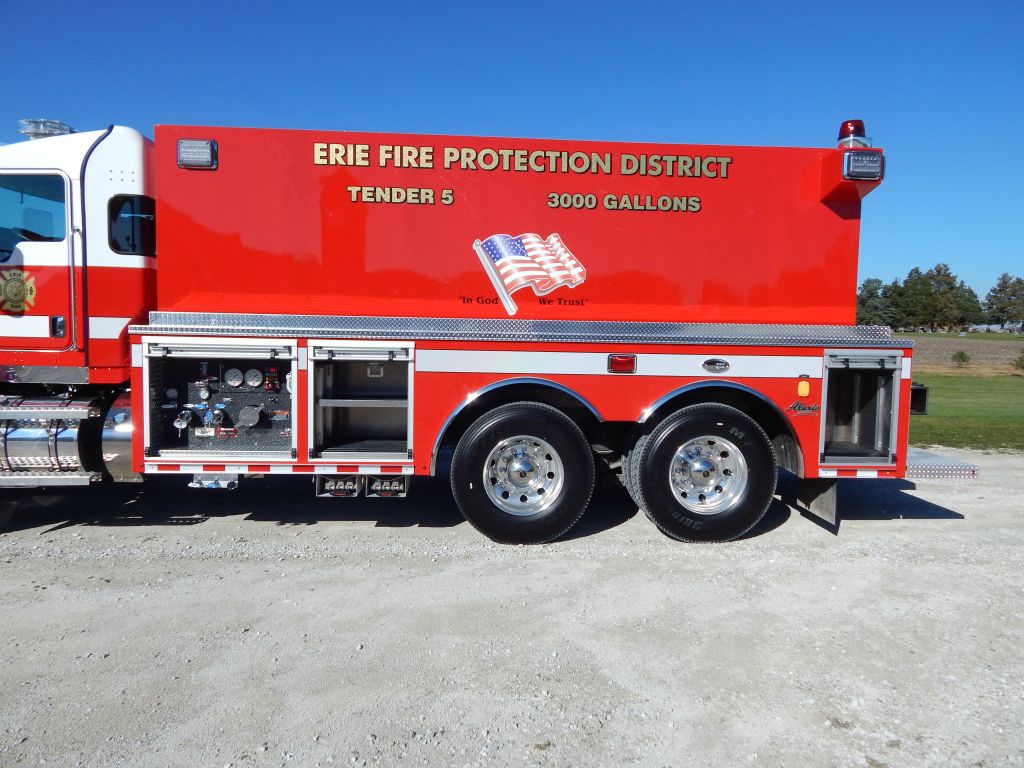

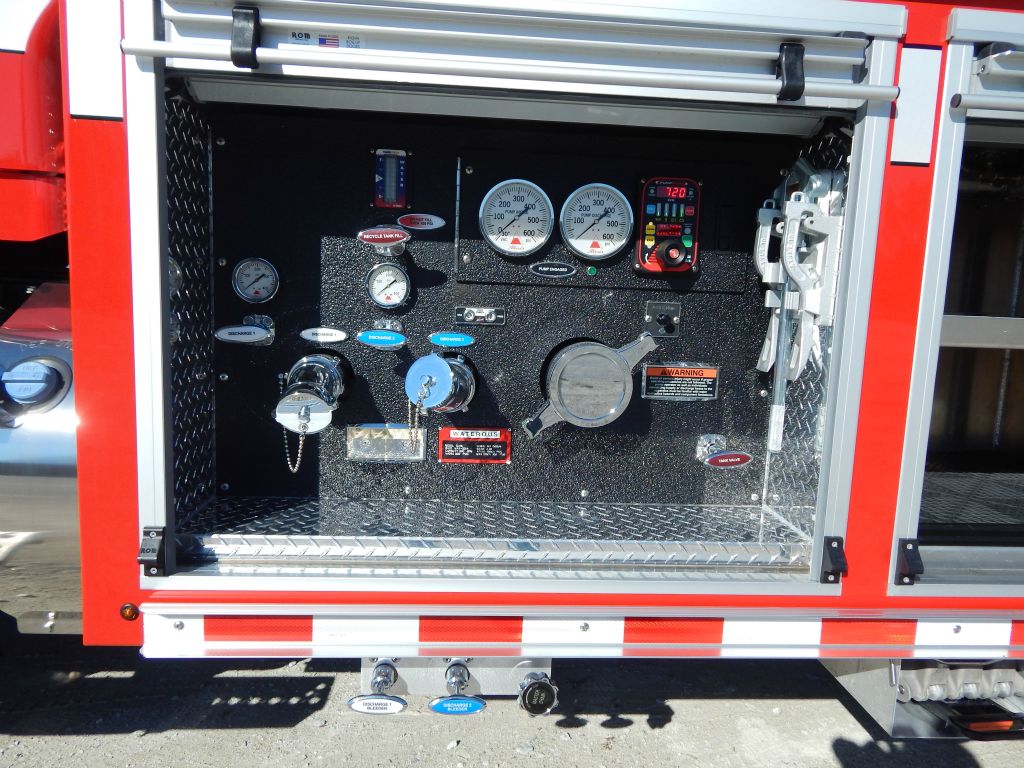

• Pump operator's panel left side under tank
• Two (2) 2 ½" Discharges, left side

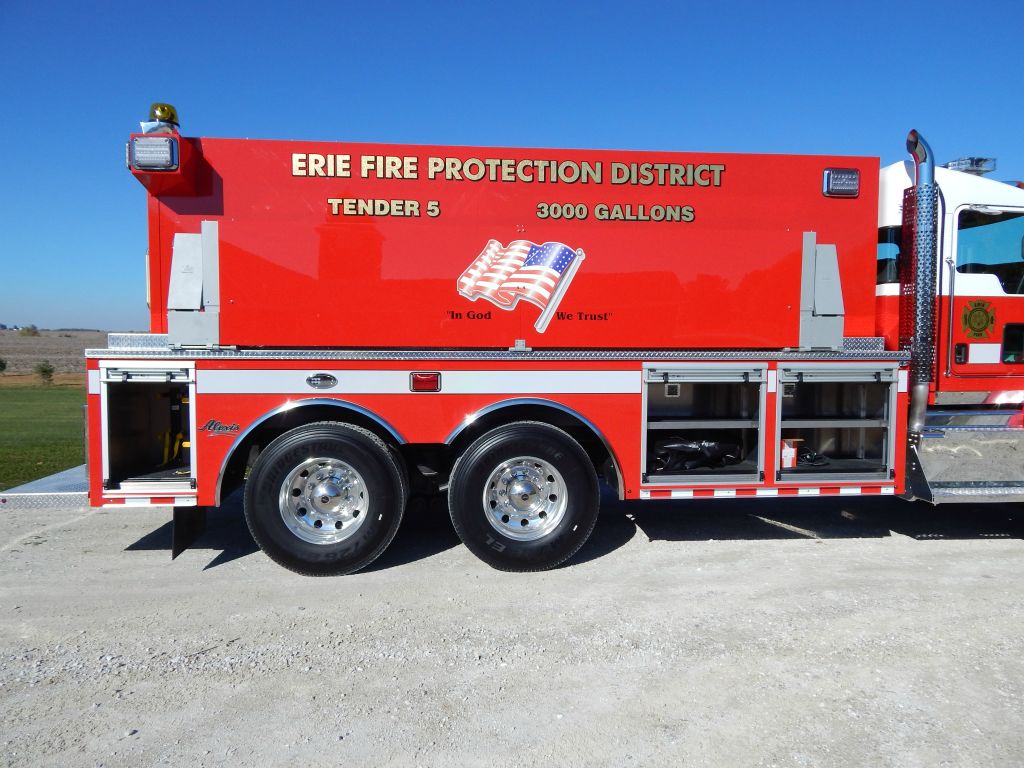

• Two (2) walk-away Air pack brackets, right side compartment
• Turtle Tile on floors and/or shelves and trays of compartments

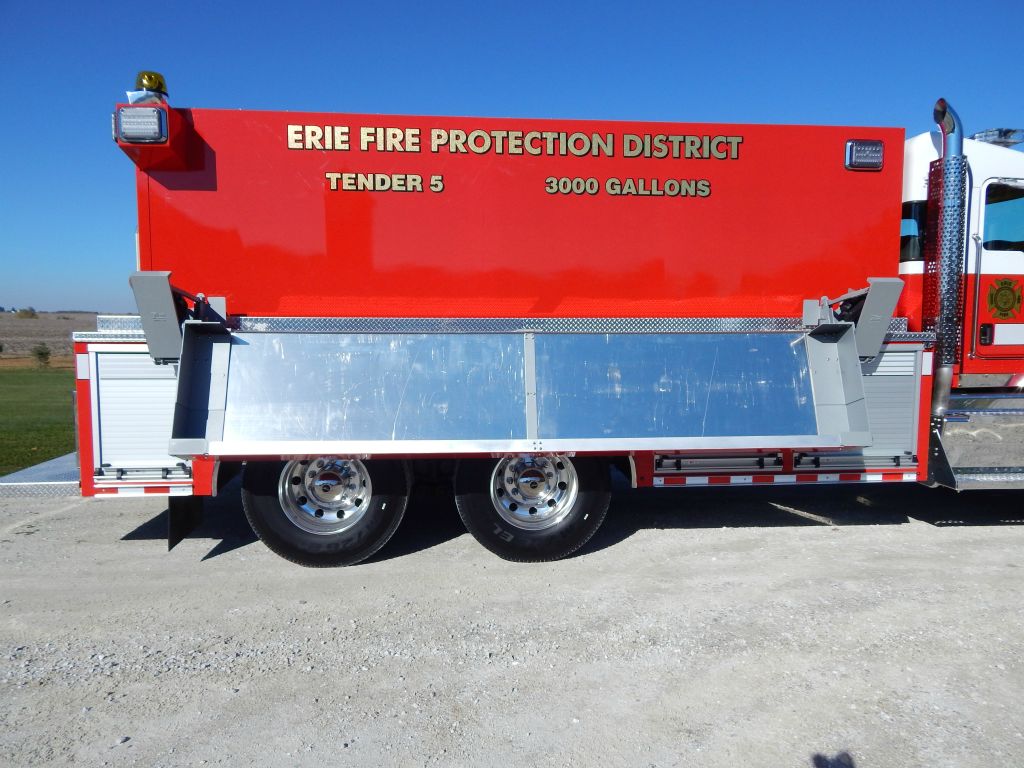

• Ziamatic hydraulic hinged folding tank bracket for 3000-gallon tank, right side
• Progressive Dynamics on-board battery charger with Viair air compressor
• Kussmaul Super Auto Eject 120-volt shoreline

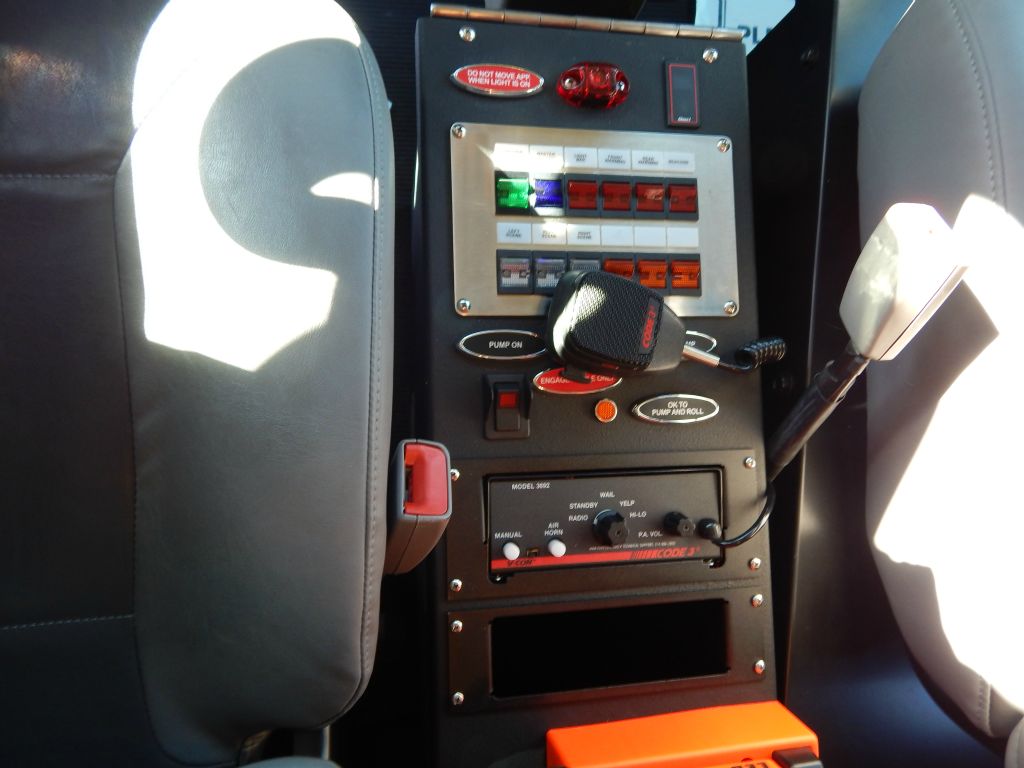

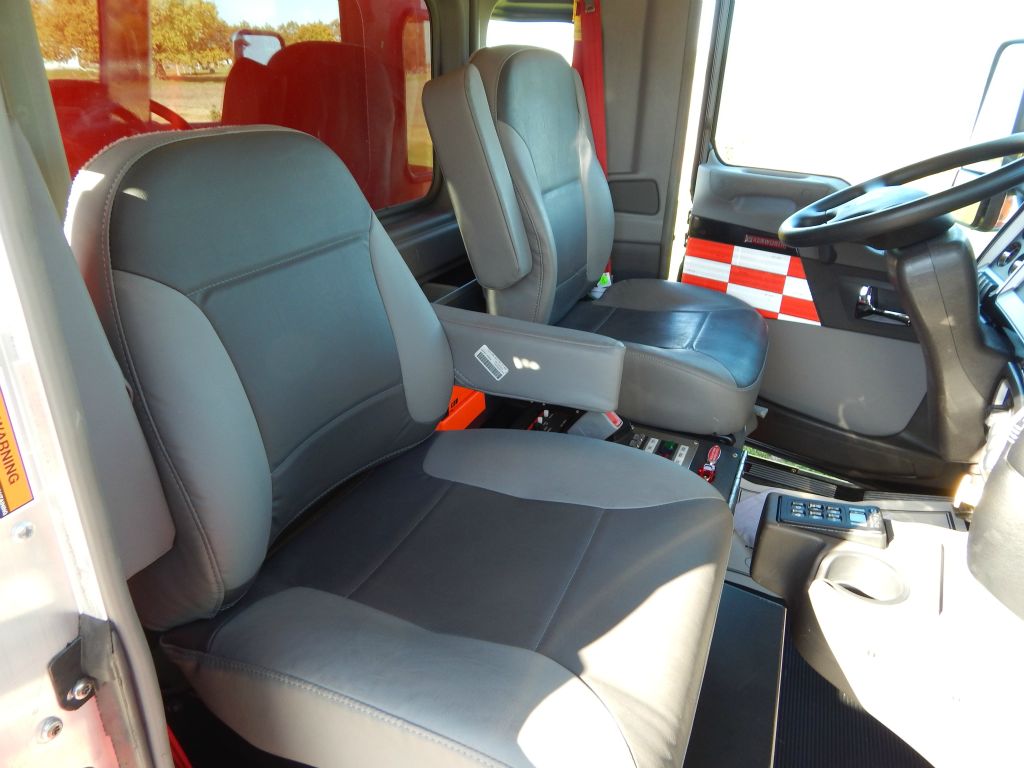

• Floor mounted console for emergency switches, cab
• One (1) Audiovox back-up camera with 7" Color monitor and right side camera
• Code 3 Electronic Siren with 100-watt Whelen speaker
• Six (6) Whelen LED scene lights, two (2) each side and two (2) rear
• Whelen LED Warning Light Package

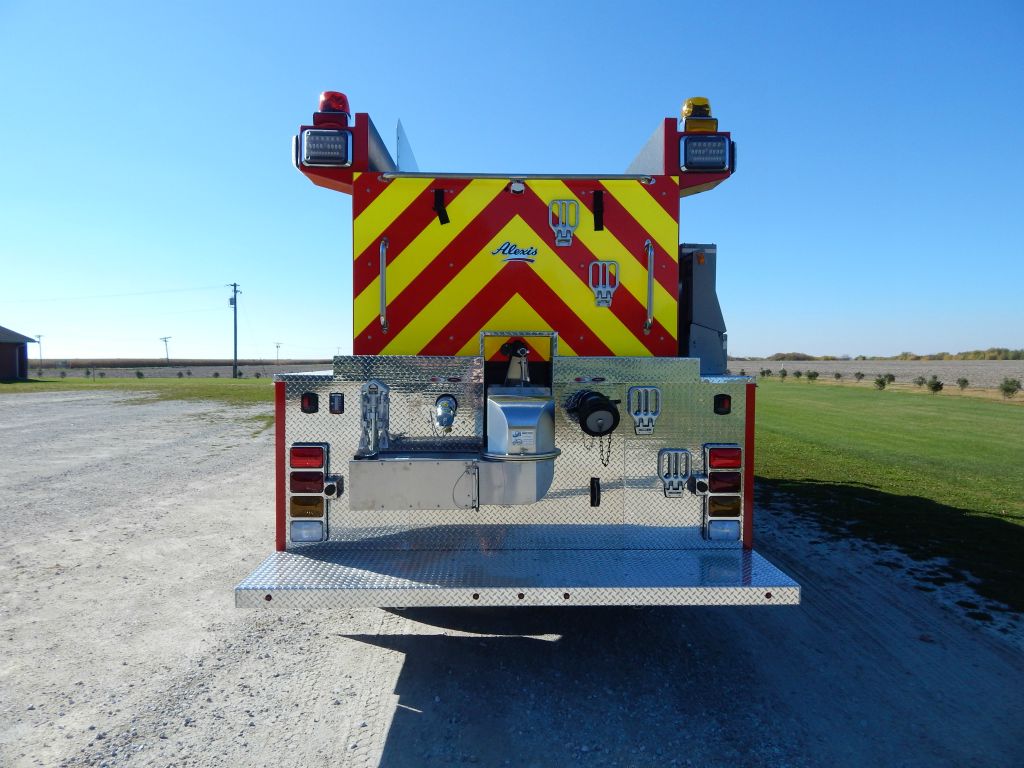

• Diamond Grade Chevron pattern striping, rear
• 10' 9" Overall height
• 30' 6" Overall length
• 211" Wheelbase
• 137.9" Cab to Axle
• 20,000 FAWR
• 44,000 RAWR
• 64,000 GVWR
