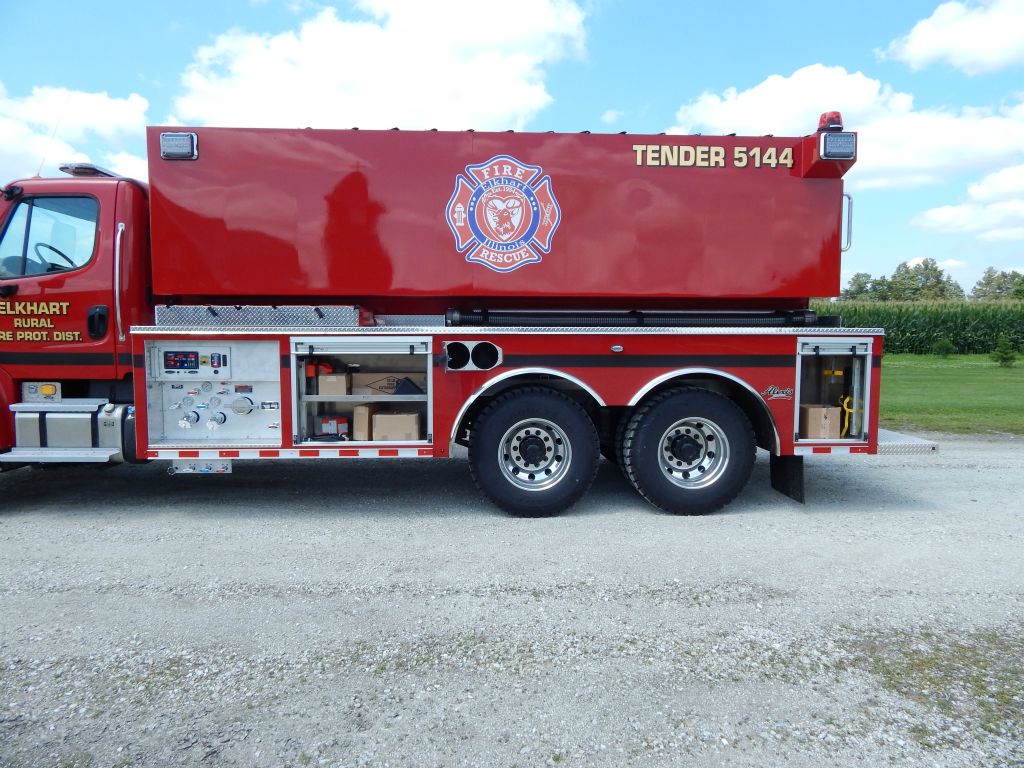

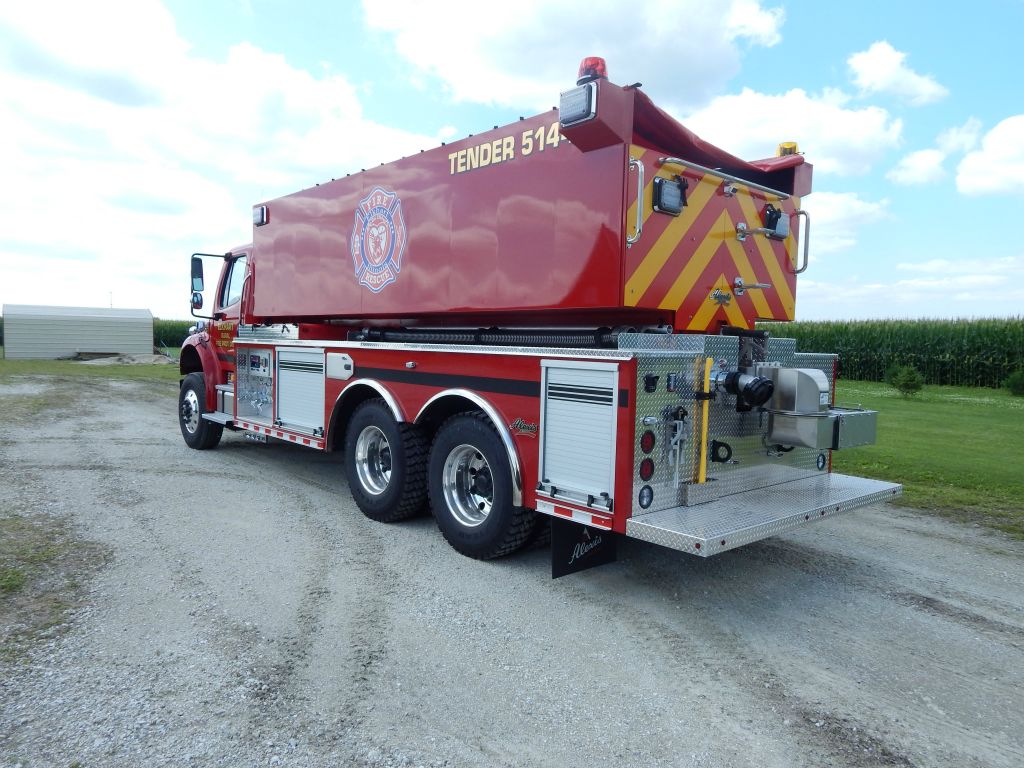

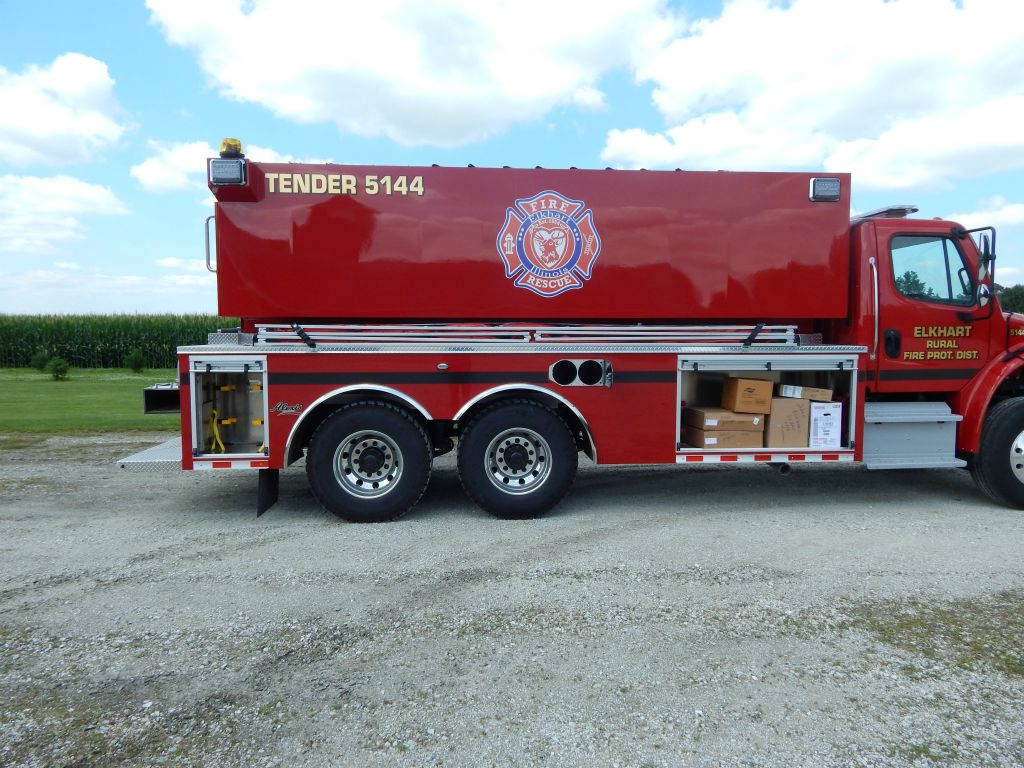

ELKHART RURAL FIRE PROTECTION DISTRICT
ELKHART, ILLINOIS
Technical Specs
•Freightliner M2 106 2-Door Chassis
• Cummins ISL 350-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• ROM Roll Up Doors
• 3500-Gallon Wet side Poly Tank
• One (1) 4" and (1) 2 ½" Fireman's Friend Tank fills, rear
• One (1) Newton 10" square swivel electric tank dump with 36" extension, rear
• Waterous CLVK 500-GPM Pump
• Pump Operator's panel under tank left side
• Two (2) 2 ½" Discharges, left side
• One (1) 1 ½" Preconnect, left side top of compartment
• Four (4) Flame Fighter walk-away Air pack brackets, two (2) each side
• Folding Tank rack for 3500-gallon tank, right side compartment top
• Suction hose storage tray, left side compartment top
• One (1) Pike pole storage tube, left side
• Two (2) Dual bottle Air bottle compartments, one (1) each side
• Progressive Dynamics on-board battery charger with Viair air compressor
• Audiovox back-up camera with 7" color monitor
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Floor mounted console for emergency switches, cab
• Whelen Electronic Siren with Whelen speaker
• Six (6) Whelen LED Scene lights, two (2) each side and two (2) rear
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 10' 8" Overall height
• 30' 2" Overall length
• 216" Wheelbase
• 150.45" Cab to Axle
• 16,000 FAWR
• 46,000 RAWR
• 62,000 GVWR
