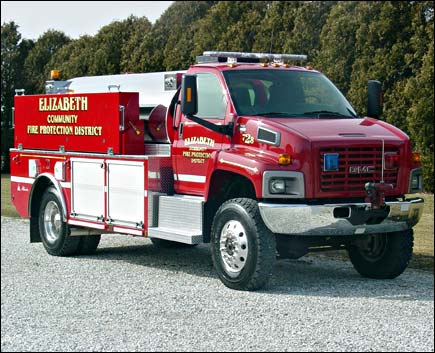

Elizabeth Fire Protection
District
Elizabeth, Illinois
Technical Specs
• 2005 CMC C8500 4x4 Cab
& Chassis
• 2000 Gallon UPF Poly Elliptical Tank with Stainless
Steel Wrap
• Hale AP 500 GPM Midship PTO Pump
• Akron "Fire Fox" Bumper Turret
• Hannay Booster Reel EF4038-17 in right side compartment
• One (1) storage compartment on left side
• Two (2) storage compartments on right side
• Suction hose storage compartment on the right side
accessible from the rear
• Hard Suction and hose storage compartment on upper
left side.
• Three (3) Air Bottle Compartments above rear wheel
wells
• Drop down 2100 Gallon Fol-Da-Tank bracket on the right
side
• One (1) 10" Newton Dump at the rear
• Two (2) 2-1/2" tank fills at the rear
• Aluminum Tread Plate Running Boards
• 100w Siren Speaker
• 9'-7" Overall Height
• 26'-2" Overall Length
• 14,600 FAWR
• 26,000 RAWR
• 40,600 GVWR
|
