ELDRIDGE VOLUNTEER FIRE COMPANY INC.
ELDRIDGE, IOWA
Technical Specs

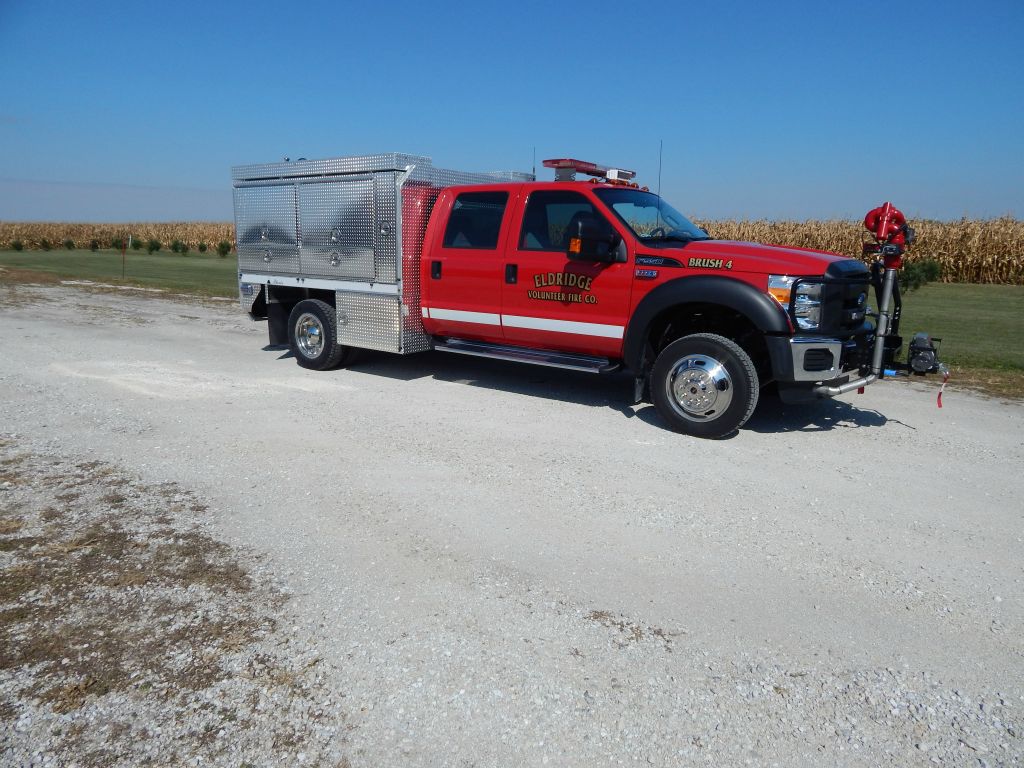

• Ford F-550 XL 4-Door DRW 4x4 Chassis
• Triton V10 6.8L 362-HP Gasoline Engine
• TorqShift 5-speed Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• One (1) Black Warn Brush guard with wrap around and front receiver
• Luverne stainless steel running boards
• Reese type rear trailer hitch with electrical connections
• One (1) Warn, 9000-lb Winch
• 300-Gallon Poly Skid Tank

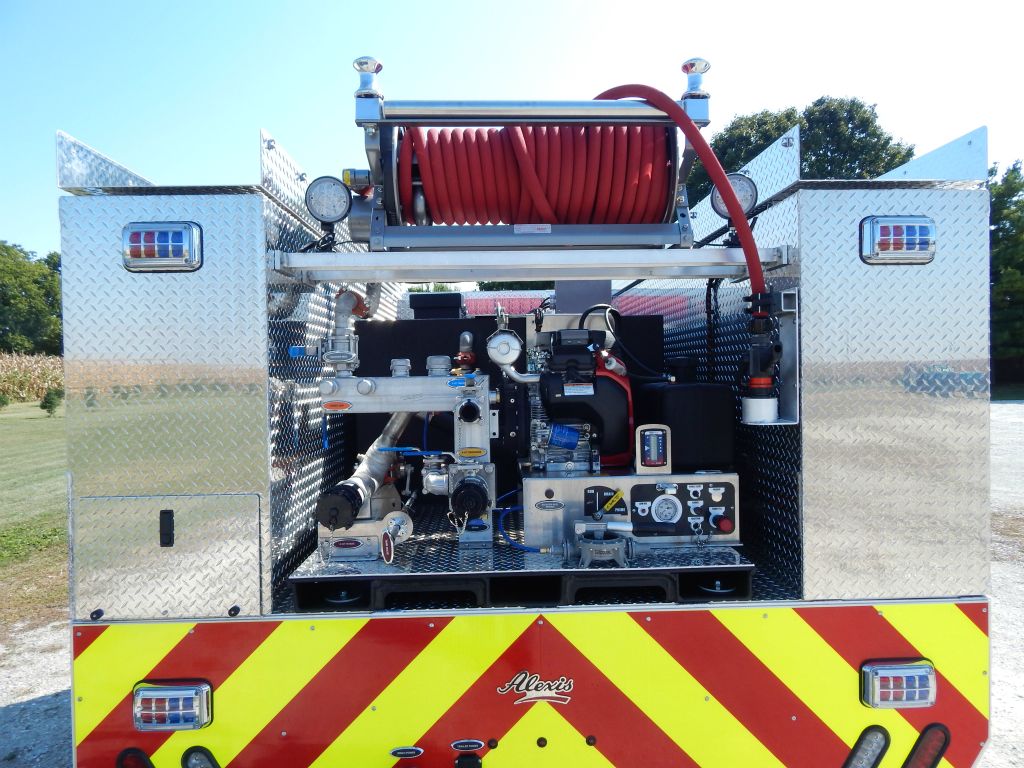

• Darley 1-11/2AGE with 21-HP Gasoline Engine
• One (1) 2 ½" and one (1) 1 ½" Discharges, rear
• One (1) Akron 3462 Front Turret with remote control from the cab
• One (1) Hannay Electric Booster Reel with 100-ft of 1" hose, rear facing
• Backboard storage compartment behind cab front of body, transverse

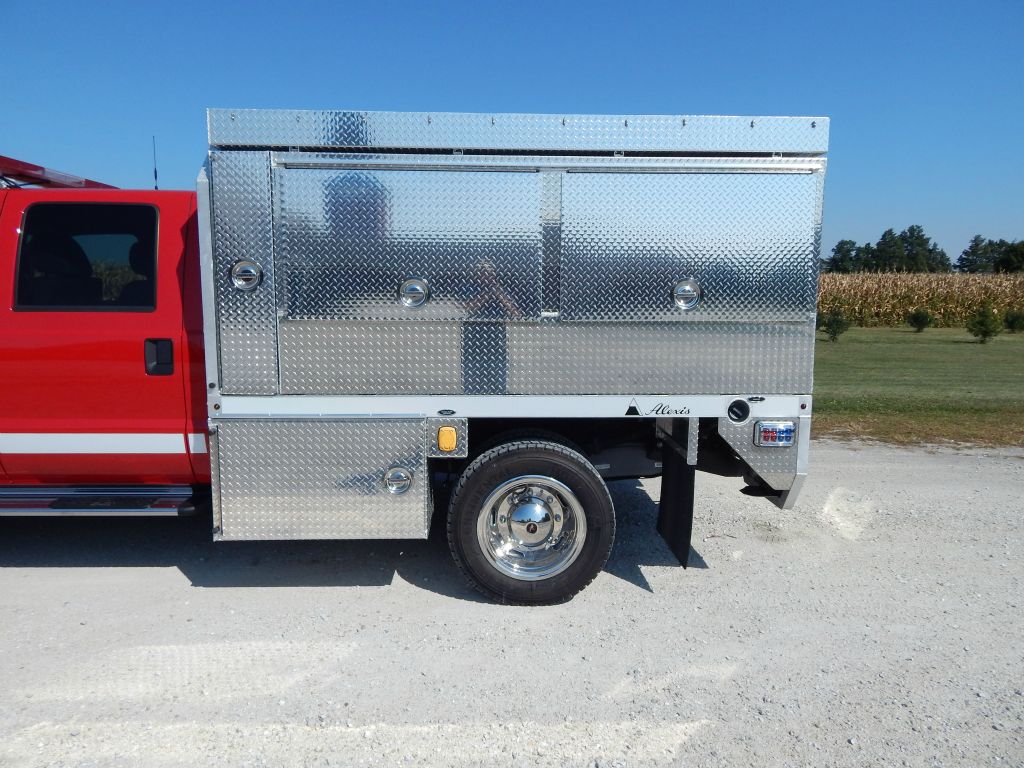

• Two (2) compartments, one (1) each side with two (2) drop down doors each
• Two (2) Underbody compartments, one (1) each side ahead of rear wheels
• One (1) Suction hose storage compartment, left side with rear access
• Two (2) hose trays, one (1) each side compartment top
• Progressive Dynamics on-board battery charger
• Kussmaul Super Auto Eject 120-volt shoreline connection
• Whelen Electronic Siren with 100-watt Whelen speaker
• Floor mounted console for emergency switches with extended rear console, cab
• Two (2) Whelen swivel Deck lights, rear
• One (1) FRC Evolution LED light, cab roof
• Weldon LED Warning Light Package
• Diamond Grade Chevron pattern striping, rear
• 8' 3" Overall height
• 22' 4" Overall length
• 176" Wheelbase
• 60" Cab to Axle
• 7,000 FAWR
• 14,706 RAWR
• 19,500 GVWR
