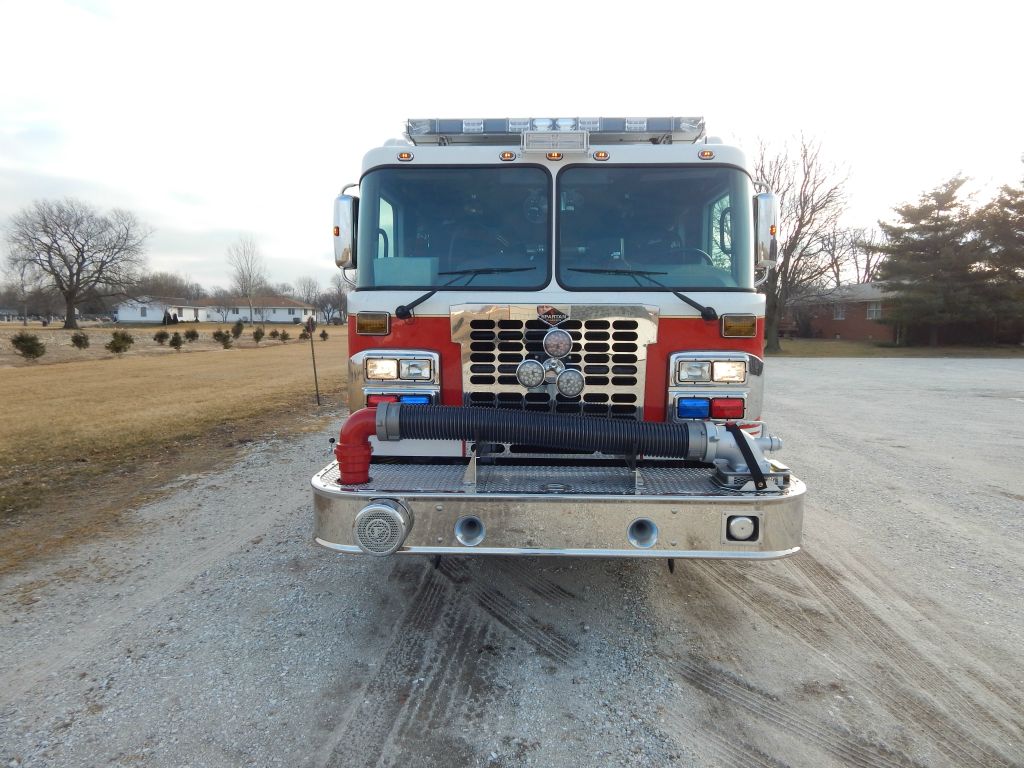

CUSTOM TOP CONTROL PUMPER #2264
ELDRIDGE VOLUNTEER FIRE COMPANY INC
ELDRIDGE, IOWA

Technical Specs
• Spartan Metro Star MFD 10" raised roof Chassis
• Cummins ISL9, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• On Spot Automatic Tire chains
• Custom map box and clipboard holder, chassis cab
• 24" Front Bumper extension with 5" suction preconnected and center hose well
• Six (6) man cab seating with five (5) SCBA seats
• Heavy Duty 3/16" Aluminum Body with ROM Roll Up Doors
• 1000-Gallon Poly Tank with one (1) 2 ½" Fireman's Friend Tank fill, rear
• Waterous CXS, 1500-GPM Pump with pump operator's panel across top of body
• Five (5) 2 ½" Discharges, two (2) left, one (1) right side and two (2) rear
• Two (2) 3" Discharges, one (1) right side and one (1) over pump for Deck Gun
• One (1) 2 ½" Gated Suction, left side
• Two (2) 1 ½" Cartridge Lay Preconnects, front of body
• Two (2) Pac Trac Vertical pull-out tool boards, left side
• Two (2) free floating hose wells, one (1) each side running boards
• Two (2) Storage compartments under pump walkway, one (1) each side
• Two (2) Triple bottle Air bottle and one (1) Fire Extinguisher compartment
• Zico Hydraulic Ladder rack with two (2) Pike pole tubes, right side
• Two (2)Suction hose storage, one (1) each side
• Four (4) bottle 6000-PSI Cascade system with control panel
• Federal Q2B mechanical Siren, front bumper
• Two (2) Air Horns, front bumper
• Federal Electronic Siren with 100-watt Cast Products speaker
• Kussmaul 1200 on-board battery charger/air compressor with Auto Eject
• One (1) Audiovox back-up camera system with 7" color monitor
• Two (2) Akron Extenda-Lite 12-volt LED Telescopic lights, one (1) each side
• Roto Rays LED three (3) light rotating warning light, front grill area
• Whelen LED Warning Light Package
• Diamond Grade Chevron pattern striping, rear
• 9' 8" Overall height
• 34' 7" Overall length
• 222" Wheelbase
• 168" Cab to Axle
• 20,000 FAWR
• 27,000 RAWR
• 47,000 GVWR

Download Spec Sheet »






Alexis Fire Equipment would like to thank the members of the
ELDRIDGE VOLUNTEER FIRE COMPANY INC. for their business.
