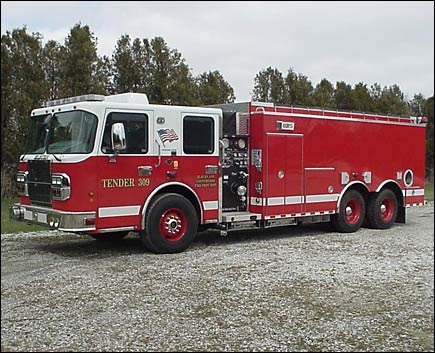

Elburn & Countryside
Fire
Protection District
Elburn, Illinois
Technical Specs
• Spartan Gladiator SMFD
(short medium four door) flat roof Chassis
• Cummins ISM450, 450-HP Diesel Engine
• Allison 4000 EVP Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• UPF 3000-Gallon T-Type Poly Tank
• Hale PSD125, 1250-GPM PTO Pump
• Side Control pump panel
• Four (4) 2 ½" Discharges, one (1)
each side and two (2) rear
• One (1) 3" Discharge, right side
• One (1) 3" Discharge over the pump compartment
for Deck Gun
• Two (2) 2 ½" Gated Suctions, one
(1) each side
• Two (2) 1 ½" Mattydale Preconnects
• Four (4) Air Bottle compartments, two (2) each
side
• Box or Lap type doors, side compartments
• Two (2) Slide out storage compartments, one
(1) each side under dumps
• Three (3) E J Metals round Tank Dumps with
22" air operated extensions, one (1) each side
and one (1) rear
• Folding Tank compartment with slid-in rear
access, left side
• Two (2) Hard Suction hose compartments under
the tank "T"s, one (1) each side with rear
access
• Ladder Brackets, right side
• Two (2) Unity Deck Lights, one (1) each side
rear
• Three (3) Havis Shield Magnafire 12-volt Flood
Lights, one (1) each side and one (1) rear
• Tomar 1860 Preemption system
• Whelen LED Warning Light Package
• 9' 7" Overall height
• 34' 10" Overall length
• 231" Wheelbase
• 186" Cab to Axle
• 21,500 FAWR
• 44,000 RAWR
• 65,500 GVWR
|
