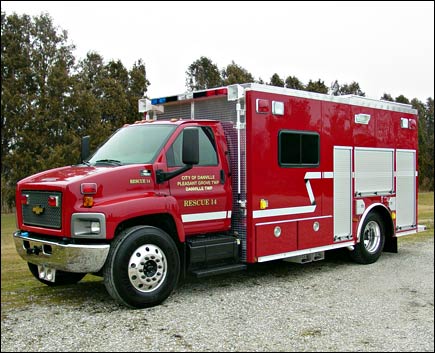

16' RESCUE UNIT w/CREW ENCLOSURE
#S640
Danville Fire Department
Danville, Iowa

Technical Specs
• Chevrolet C7500 2- Door Chassis
• Caterpillar C7 300 HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Front and rear hitches with Ramsey QM 8000 Winch
• Whelen Strobe Lighting Package
• Onan 25 KW PTO Generator
• Two (2) 500 Watt Telescopic Lights at the front of the body
• Two (2) 1000 Watt Tripod Lights at the rear of the body
• One (1) 500 Watt recessed light each side of the body
• One (1) 500 Watt recessed light at the rear of the body
• Two (2) 12 volt scene lights each side of the body
• Two (2) 12 volt scene lights at the rear of the body
• Crew enclosure behind the cab with seating for four (4), two (2) with SCBA backrests
• Talk-through between the cab and the crew enclosure
• Zico Automatic step for access to the crew enclosure
• Ample floor space in crew enclosure
• Interior storage compartment with locking roll-up door between the seats in the crew enclosure
• One (1) hydraulic and one (1) electric cord reel in the rear compartment
• Backboard Storage in Transverse L1/R1 compartment for four (4) backboards
• Roll out drop down trays - one (1) each in L2 and R2
• Adjustable Shelves - two (2) each in L3 and R3
• Two (2) pull-out drawers at the front of the body on the left side, below the crew enclosure
• Two (2) upper storage compartments with shoebox lids
• 10'-1" Overall Height
• 27'-4" Overall Length
• 206" Wheelbase
• 138" Cab to Axle
• 12,000 FAWR
• 19,000 RAWR
• 31,000 GVWR






Alexis Fire Equipment would like to thank the members of the Danville Fire Department for their business.
