COLCHESTER FIRE PROTECTION DISTRICT
COLCHESTER, ILLINOIS
Technical Specs

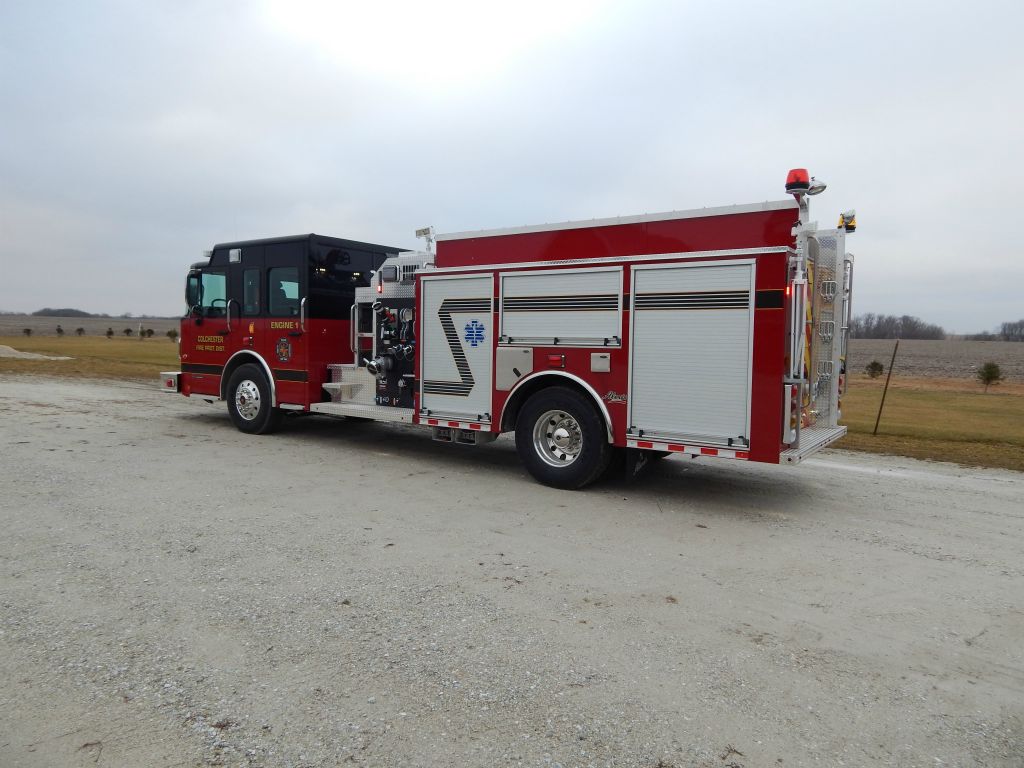

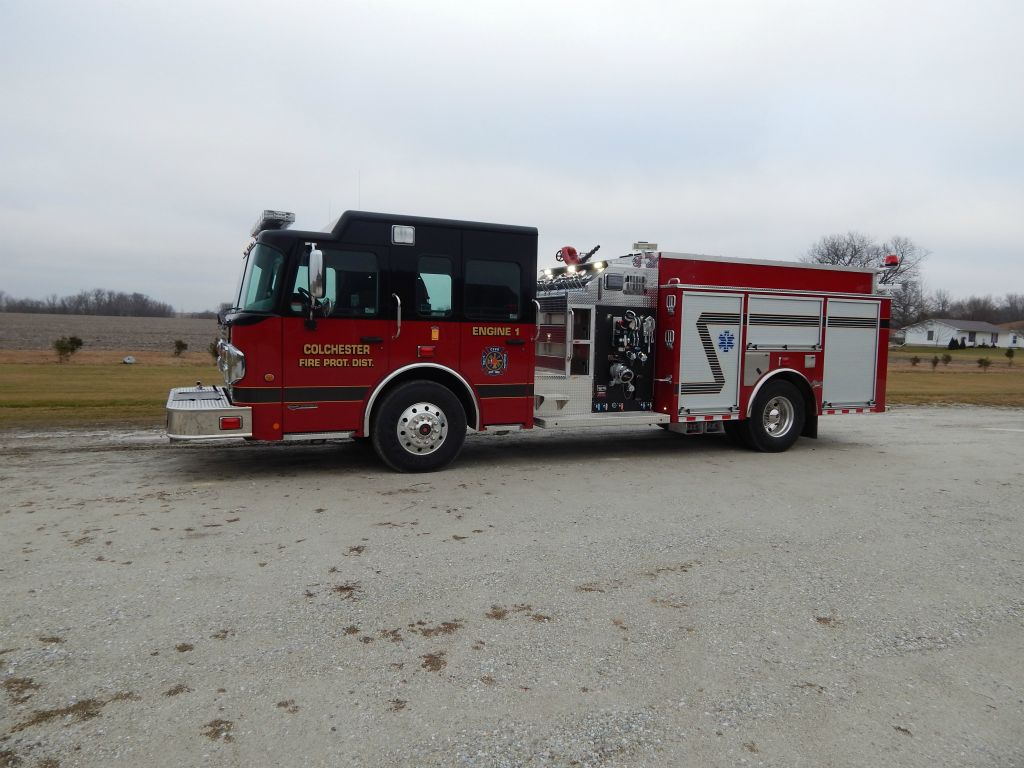

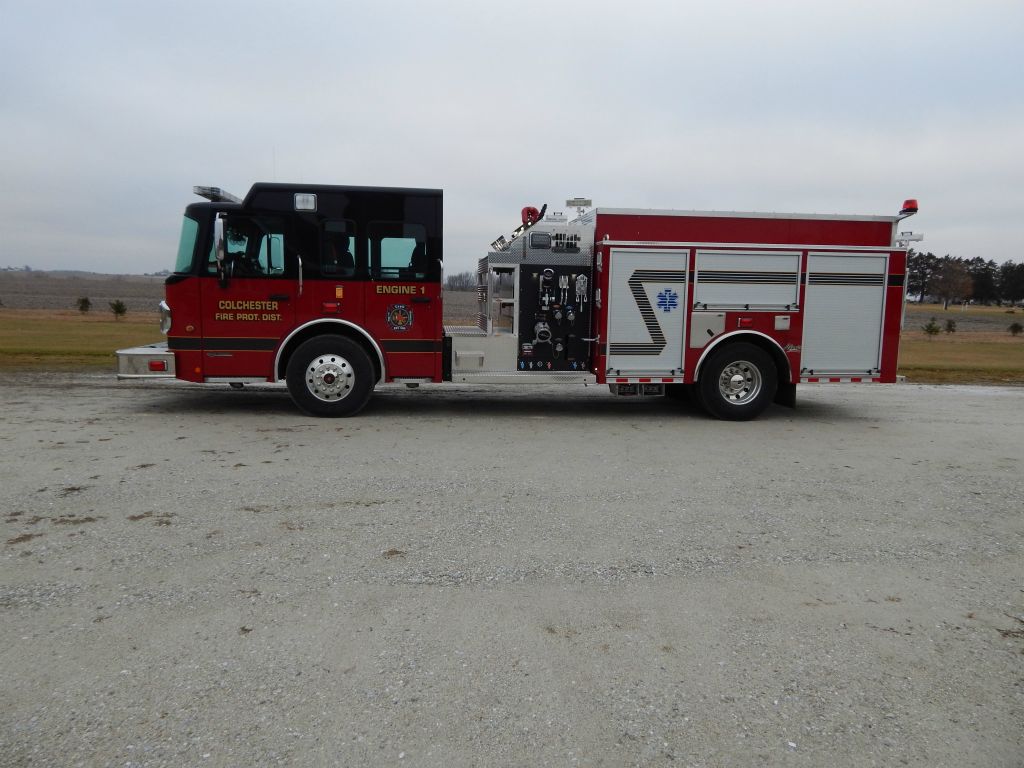

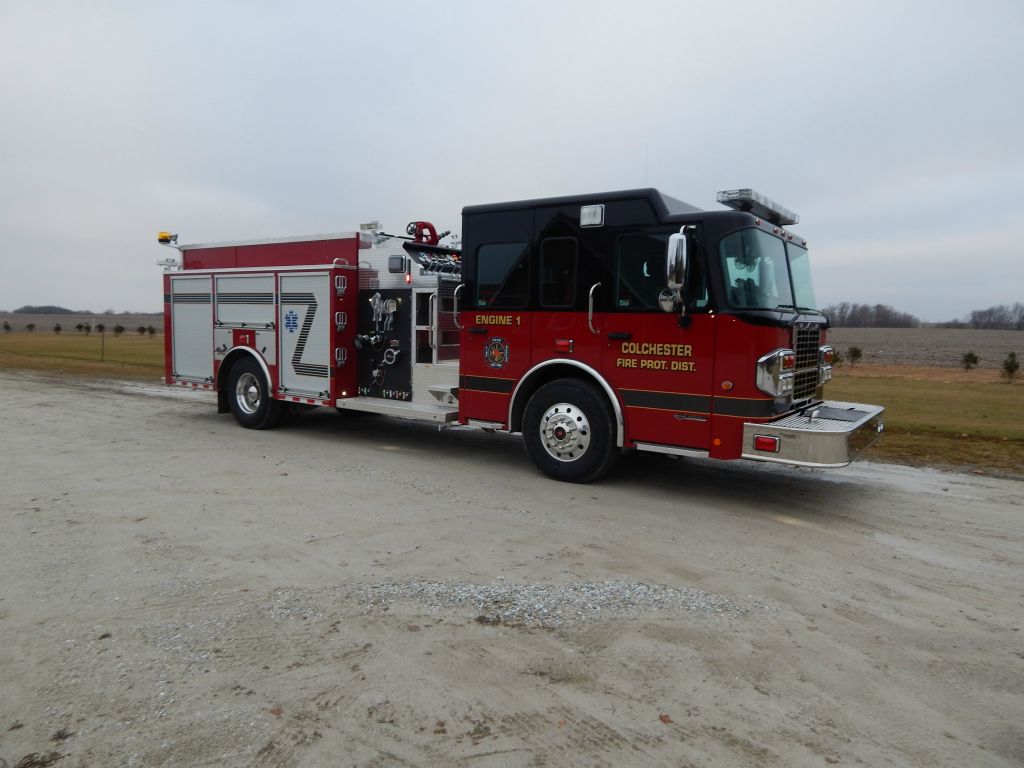

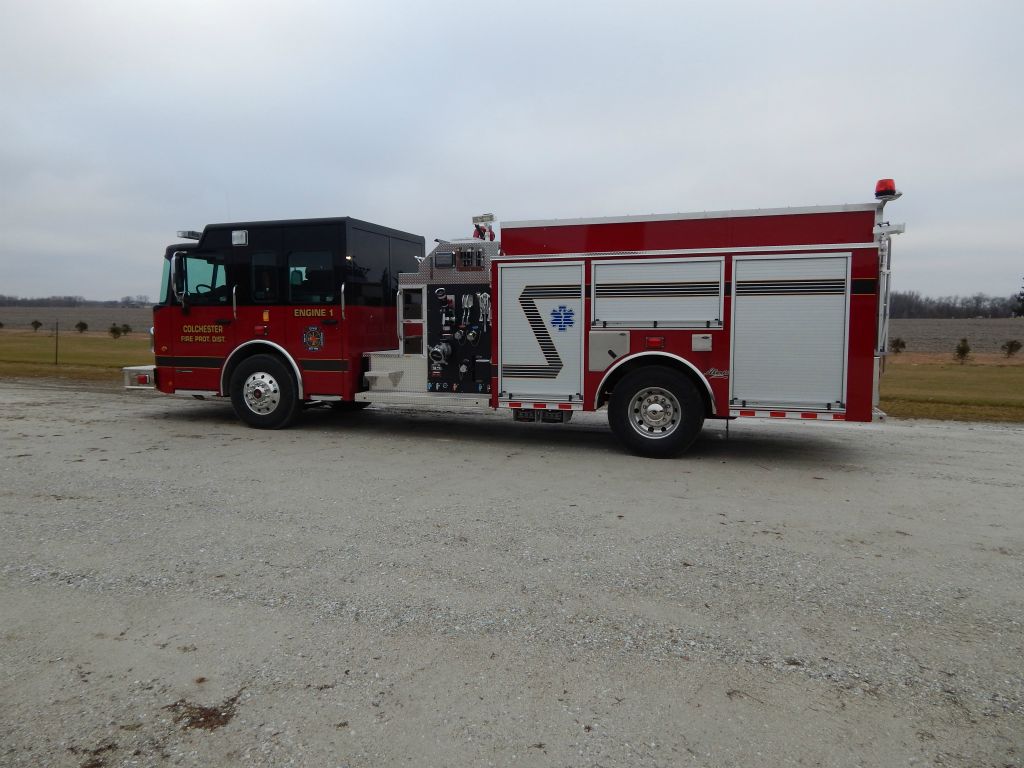

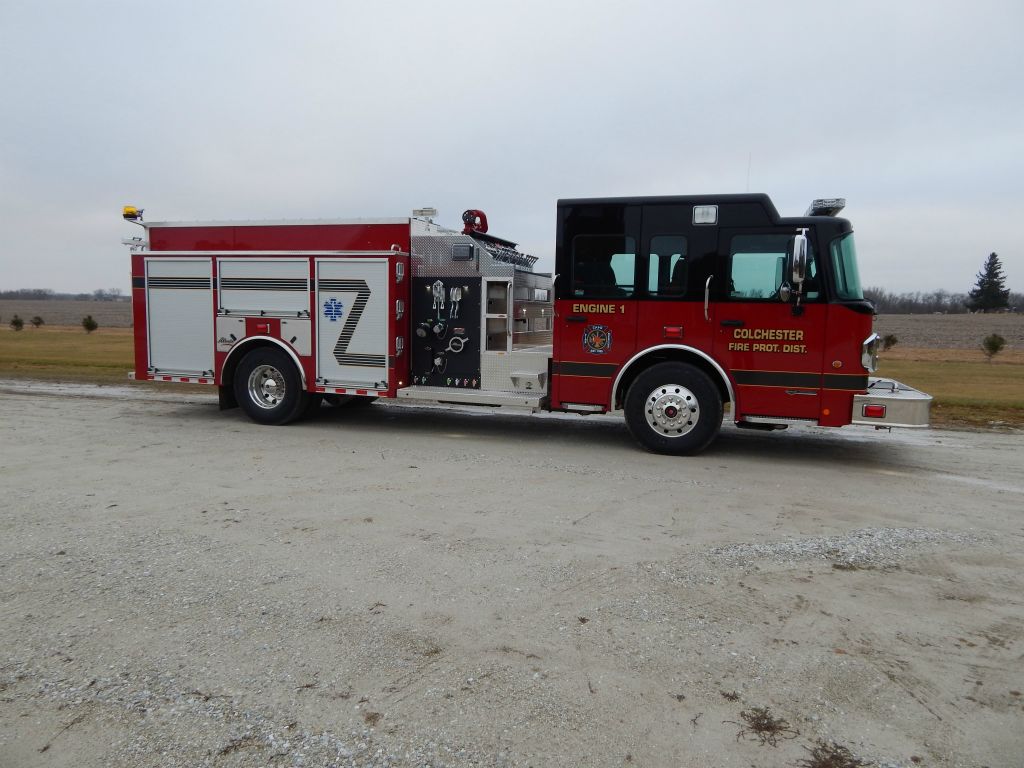

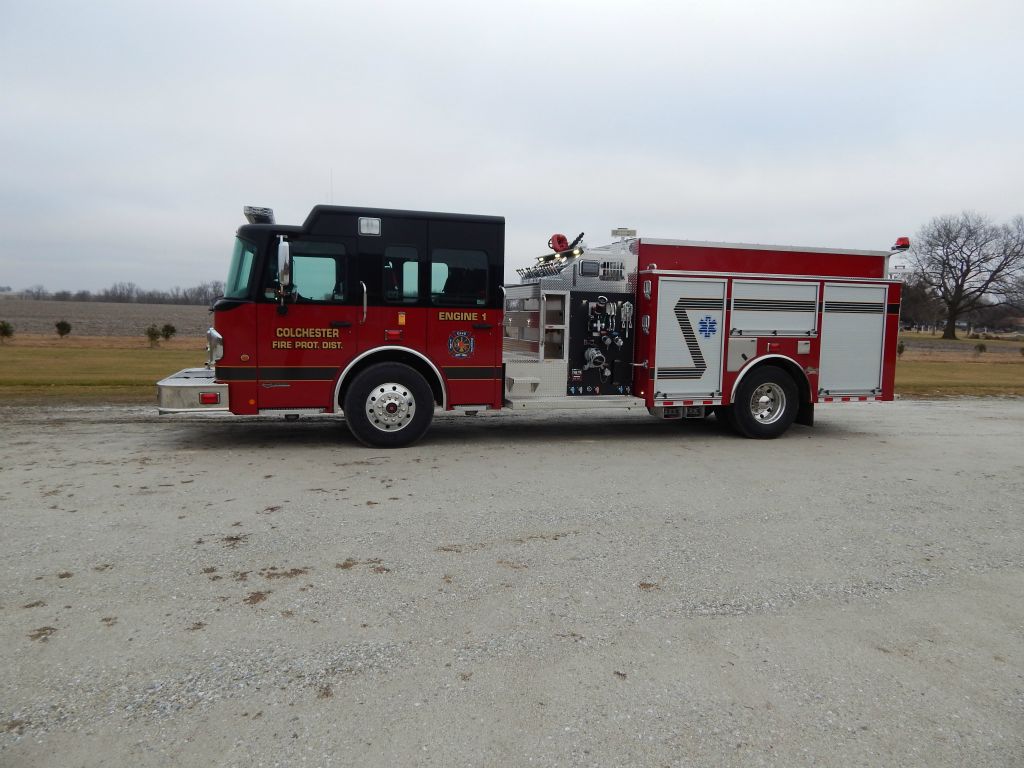

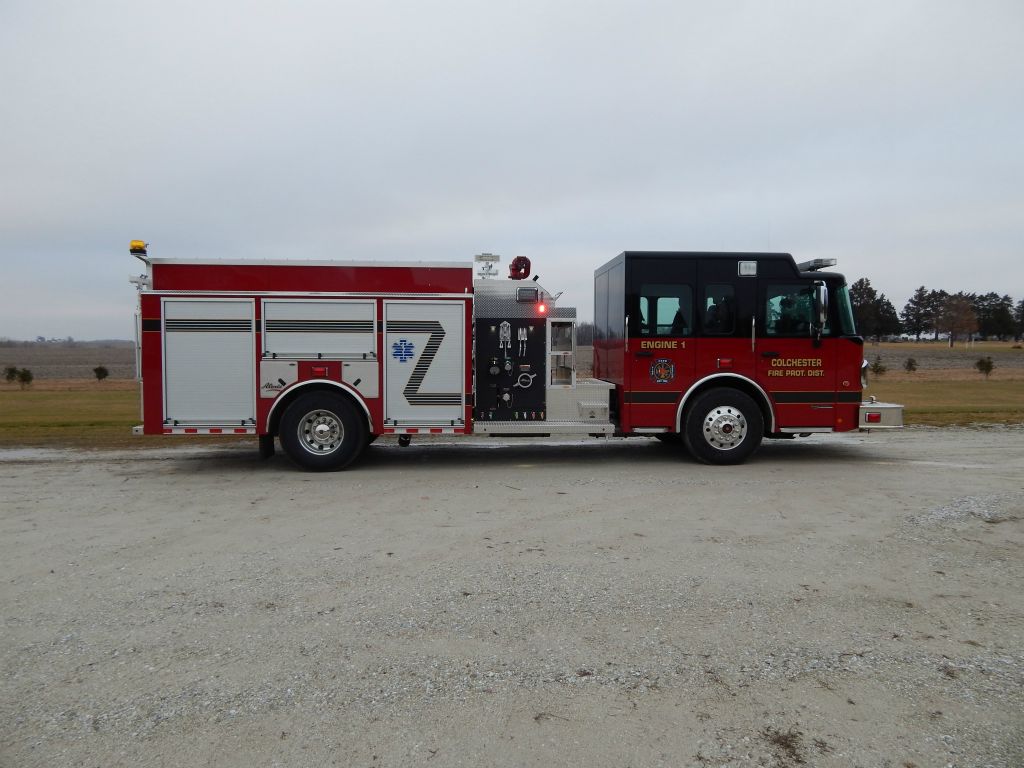

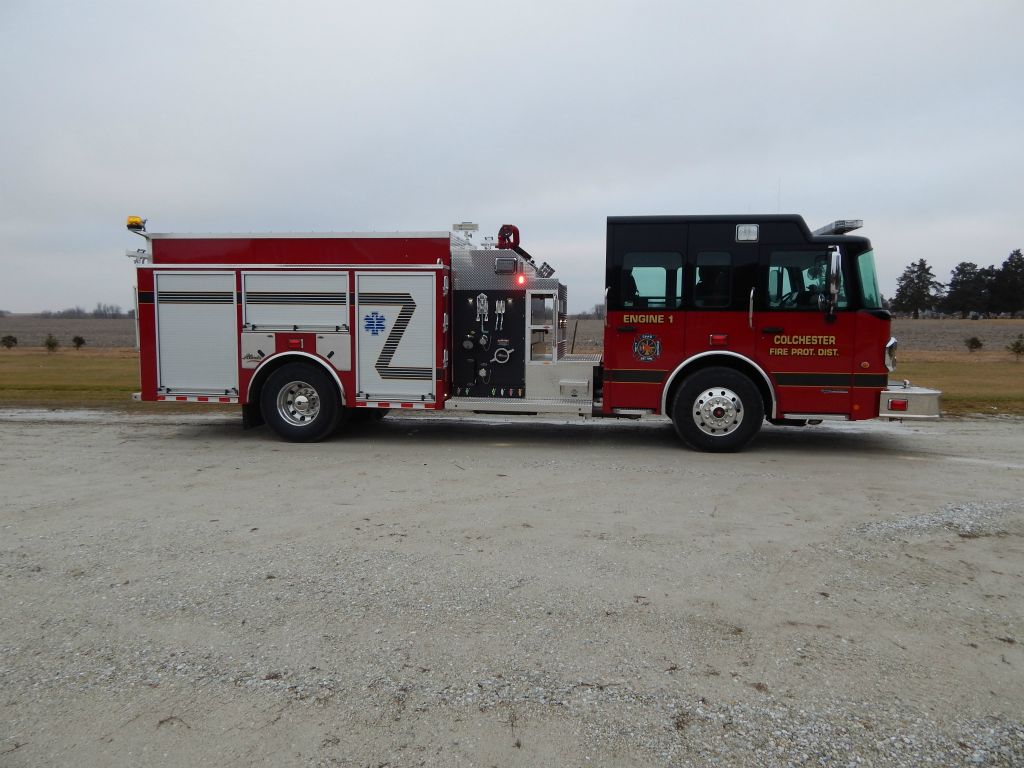

• Spartan Metro X MFD 10" raised roof Chassis
• Cummins ISL9, 380-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission

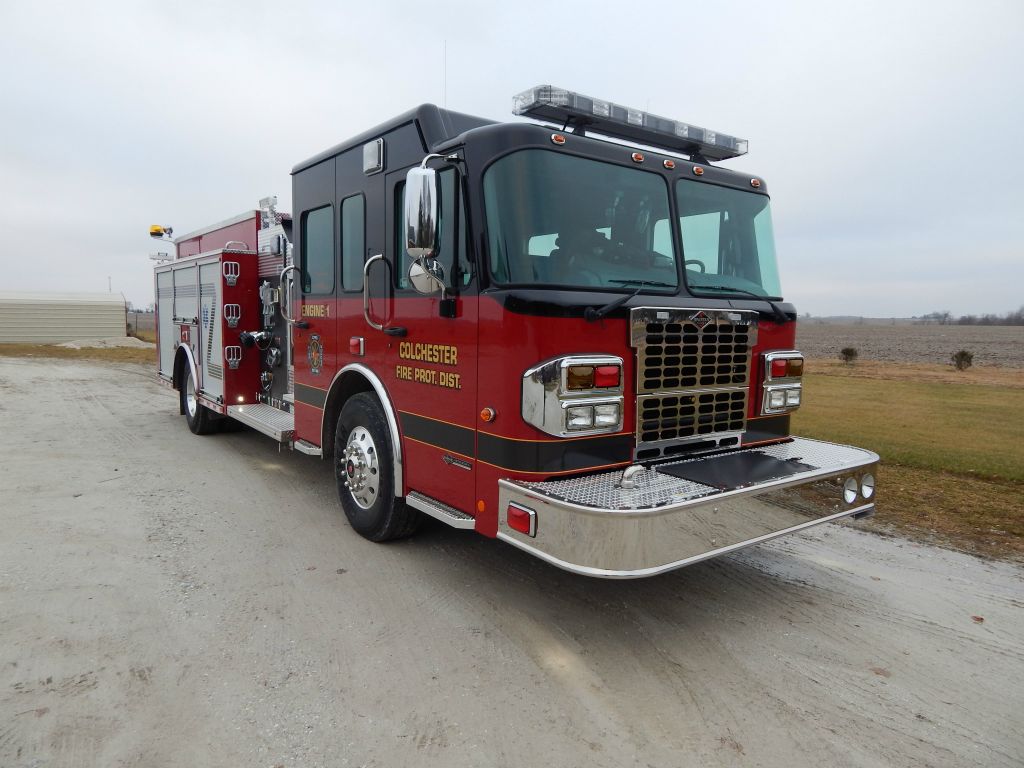

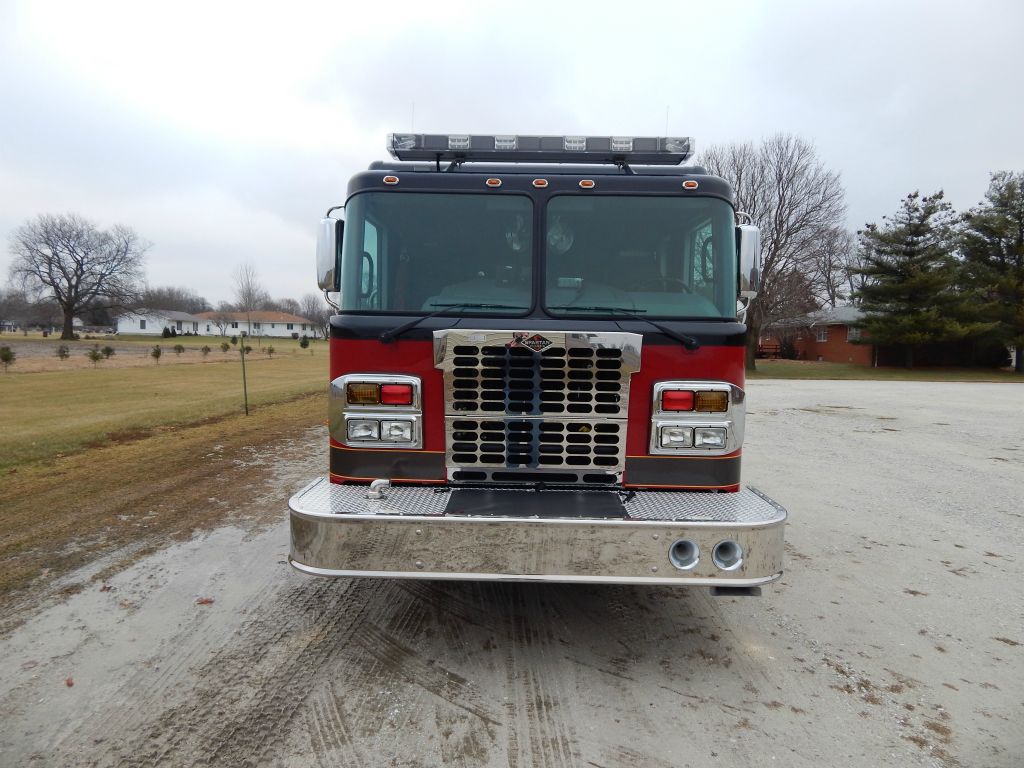

• 24" Front Bumper extension with 1 ½" Preconnect and center hose well

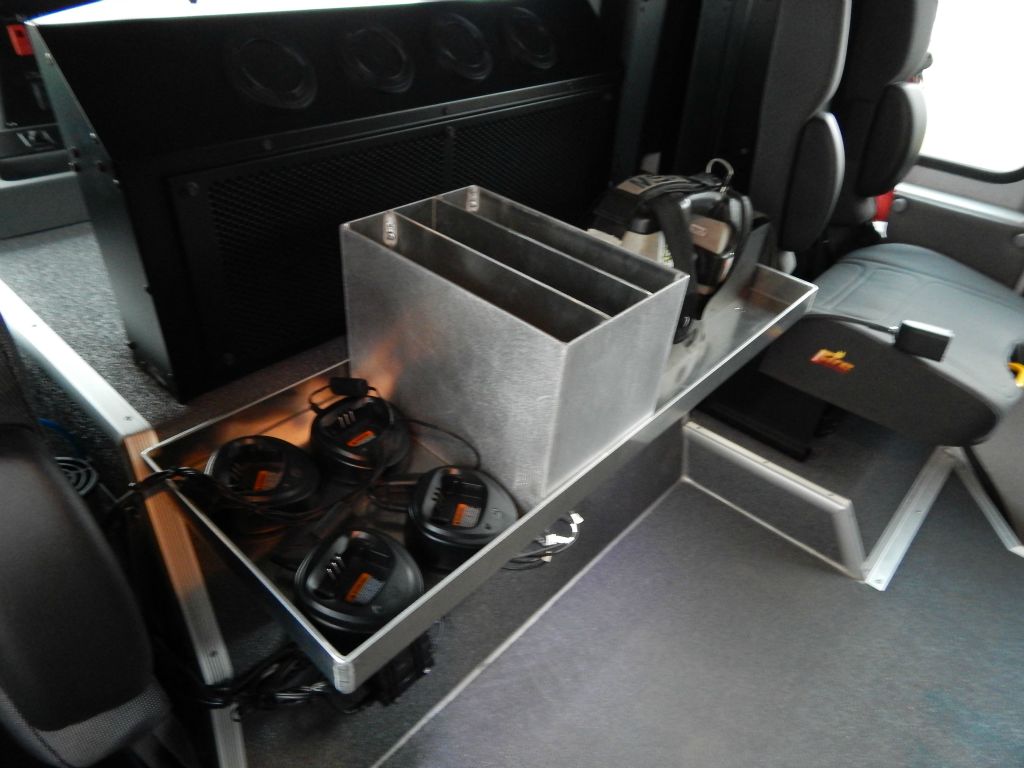

• Six (6) man cab seating with five (5) SCBA seats

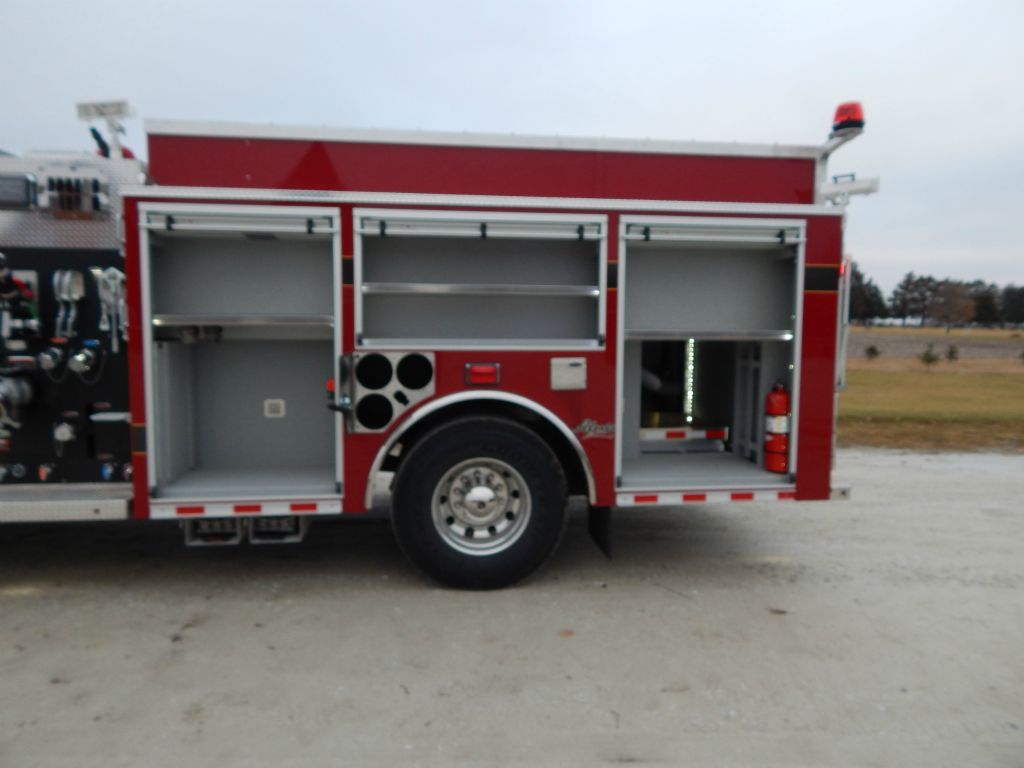

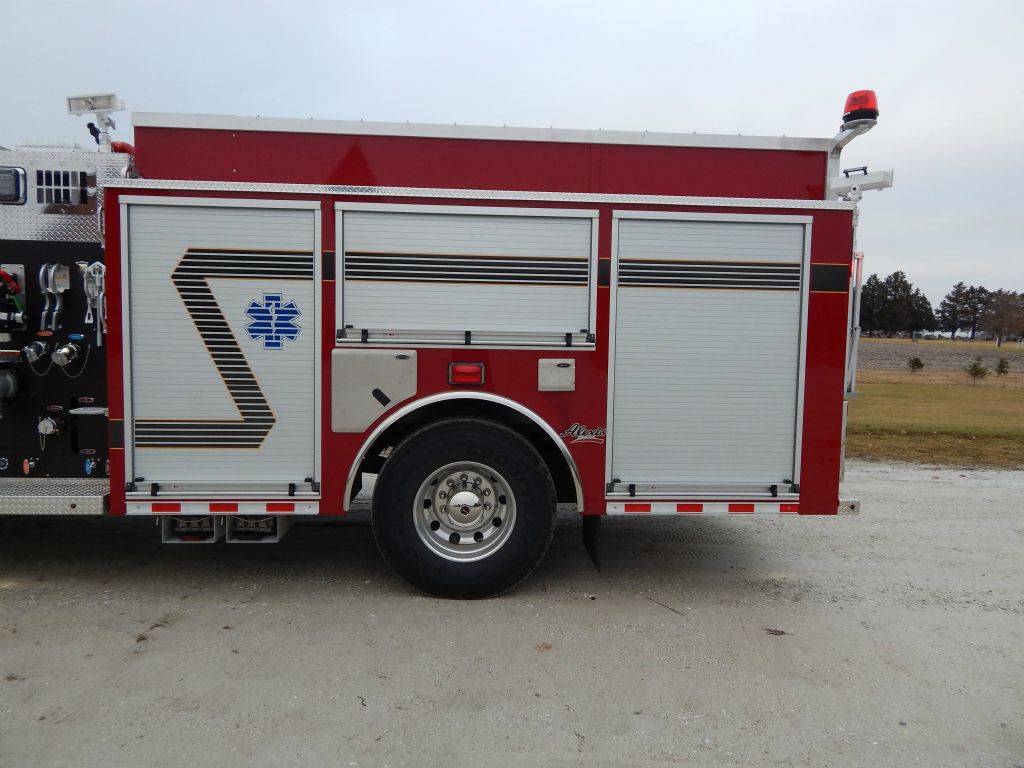

• Heavy Duty 3/16" Aluminum Body with ROM Roll Up Doors
• 1000-Gallon Poly Tank with 20-Gallon foam tank
• Waterous CXS, 1500-GPM Pump

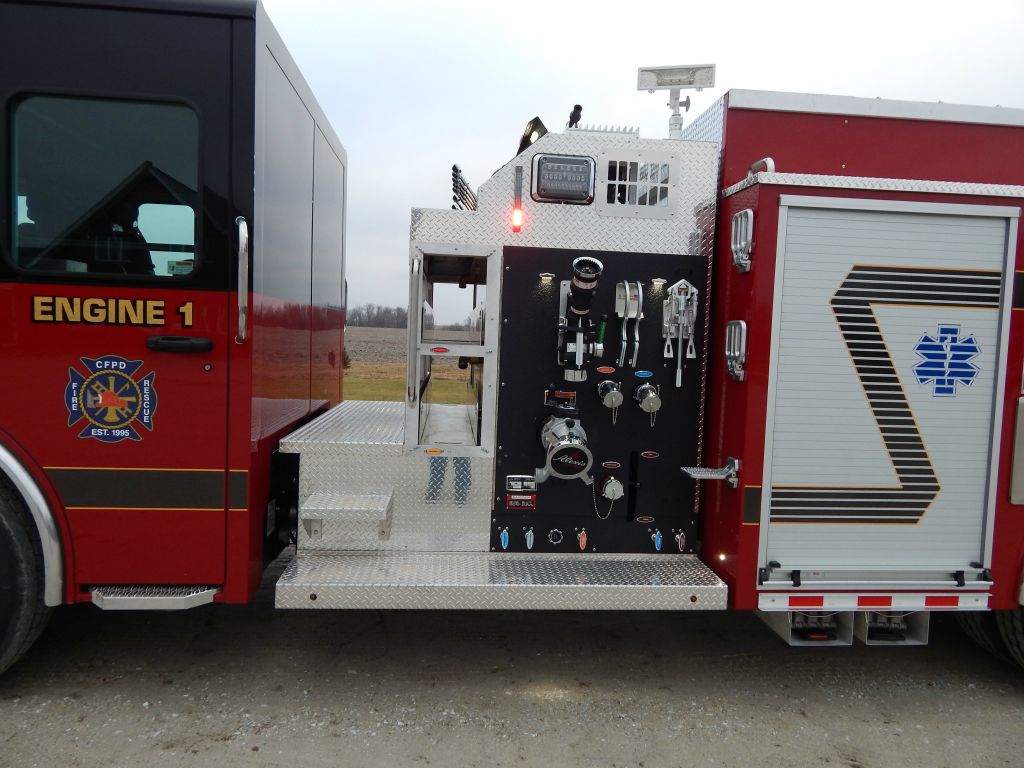

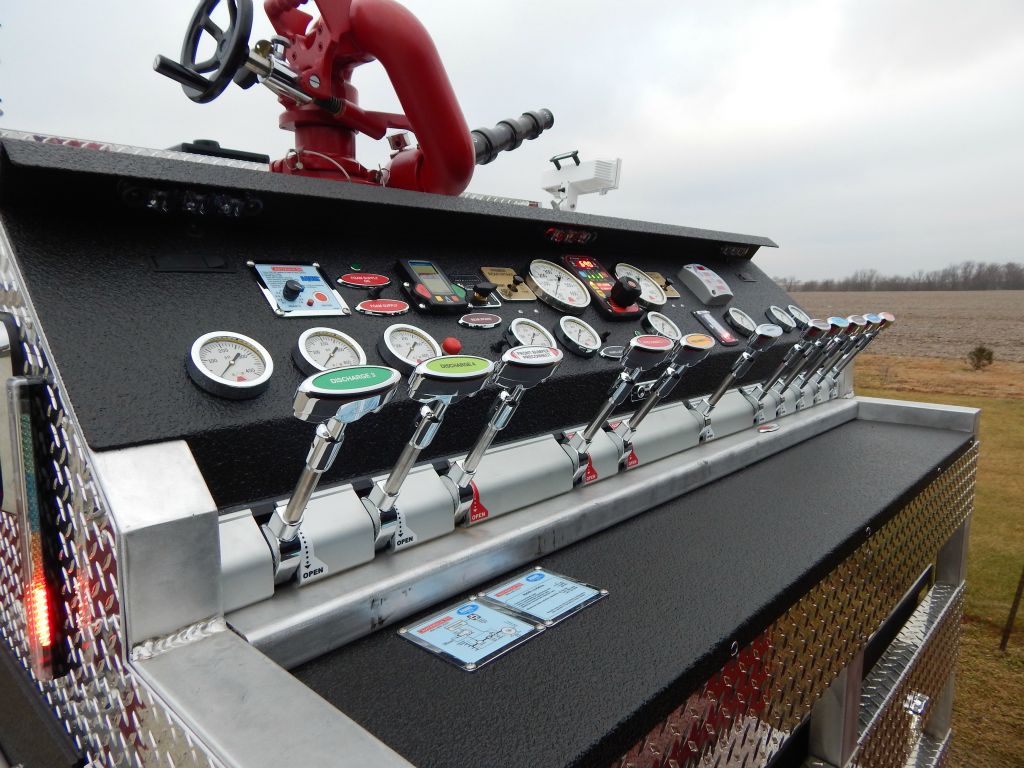

• Pump operator's panel across top of apparatus
• Four (4) 2 ½" Discharges, two (2) left, one (1) right side and one (1) hosebed
• Two (2) 3" Discharges, one (1) right side and one (1) over pump for deck gun

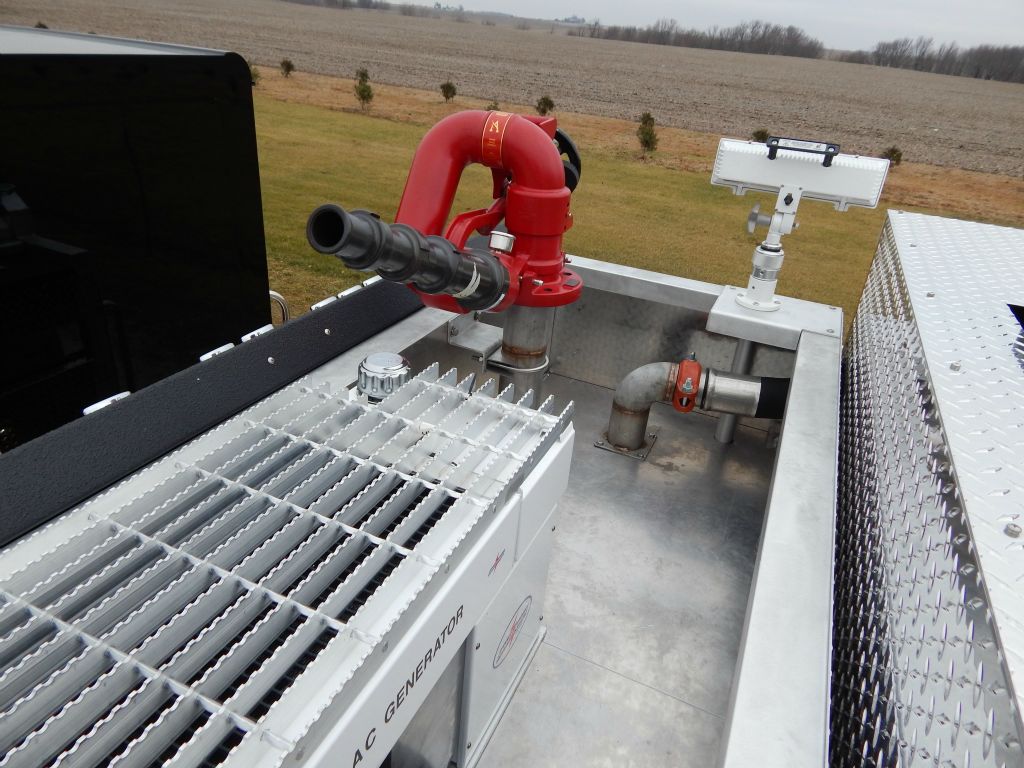

• One (1) Akron Apollo Deck Gun with stream shaper, tips and ground mounts
• Two (2) 2 ½" Gated Suction, one (1) each side
• One (1) 5" Rear Suction, right side
• Two (2) 1 ½" Cartridge Lay Preconnects, front of body
• Waterous Aquis 1.5 Foam System
• Two (2) Air Horns, front bumper extension

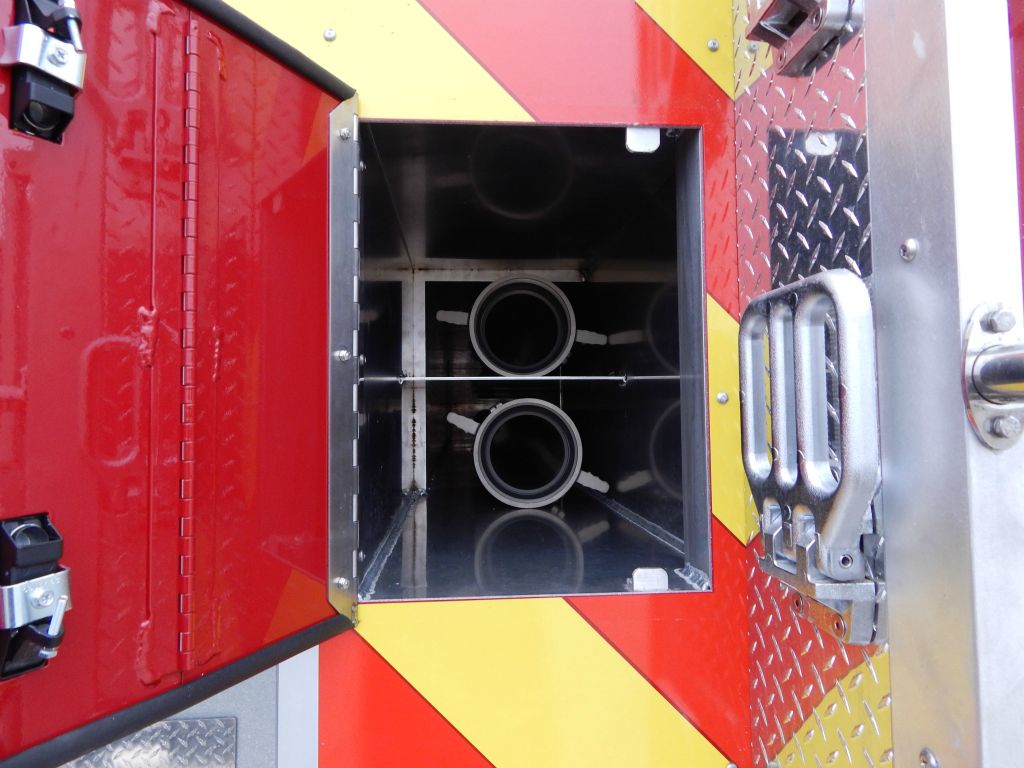

• Three (3) Triple bottle Air bottle compartments, two (2) right and one (1) left side

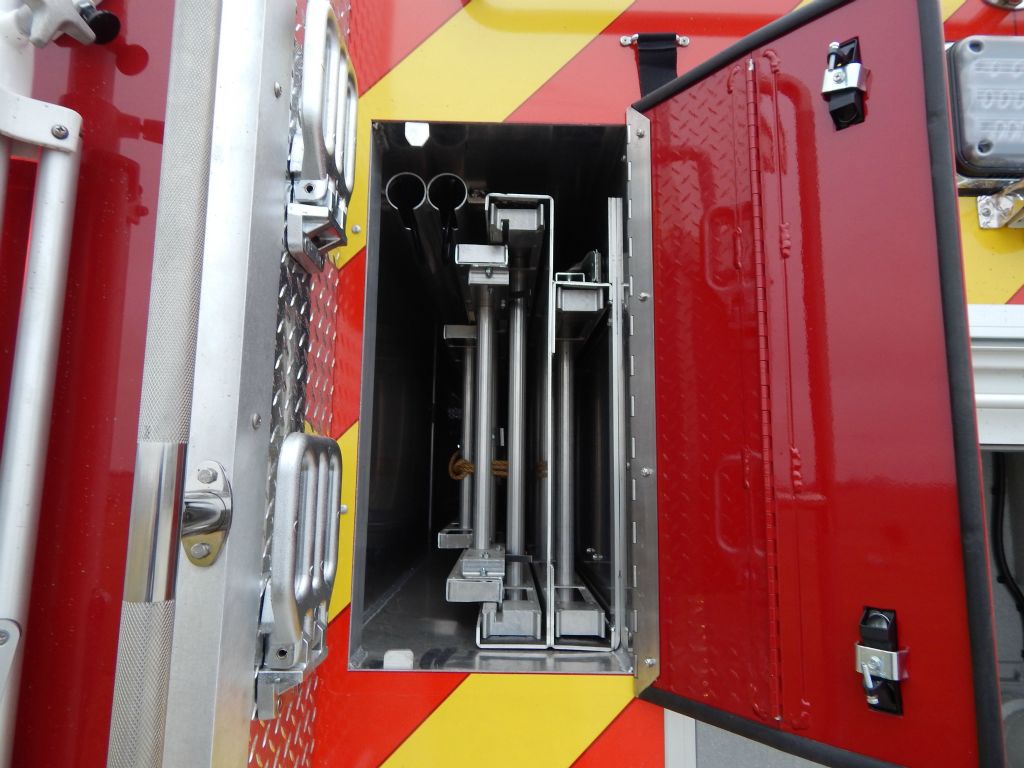

• Ladder and Pike pole storage compartment, left side vertical with rear access
• Suction hose storage compartment, right side with rear access
• One (1) Audiovox back-up camera with 7" color monitor
• Kussmaul Pump Plus on-board battery charger/air compressor.
• Kussmaul Super Auto Eject 120-volt shoreline
• Smart Power 8000 watt hydraulically driven Generator with 120-volt system

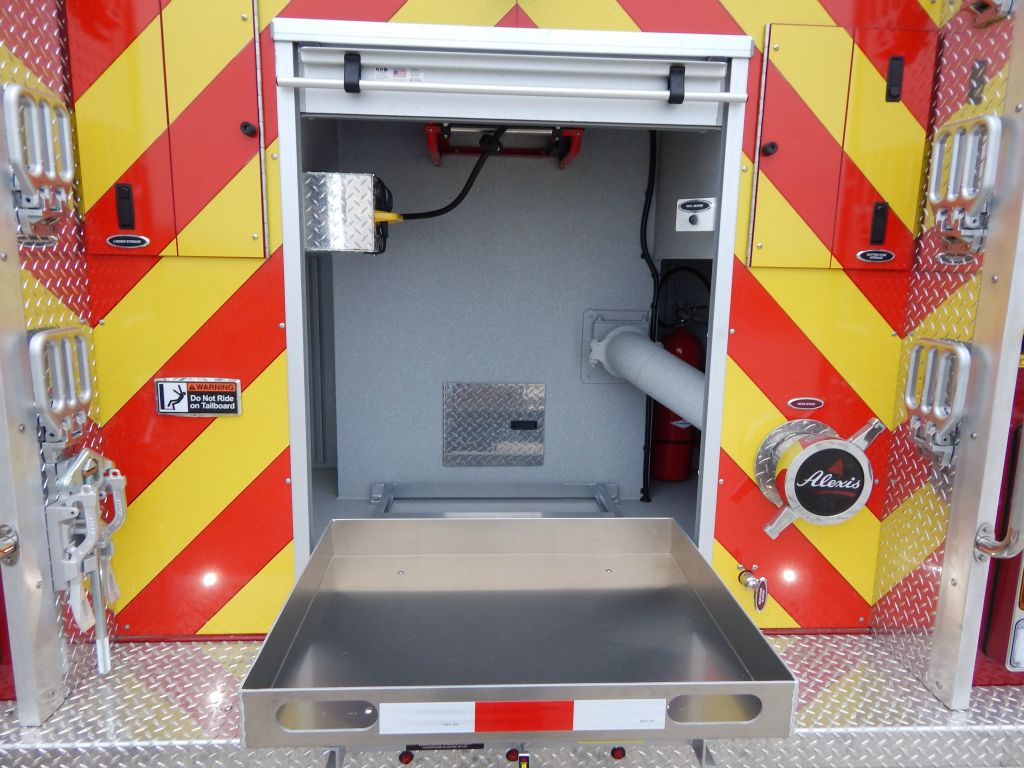

• One (1) Akron electric cord reel with 150-ft of 10/3 cord and junction box, rear
• Two (2) Extenda-light 120-volt 750-watt telescopic lights, one (1) each side
• Two (2) Extenda-light 120-volt 750-watt tripod lights, one (1) each side
• Whelen Scene light Package
• Whelen Electronic Siren with 100-watt Cast Products speaker
• Whelen LED Warning Light Package

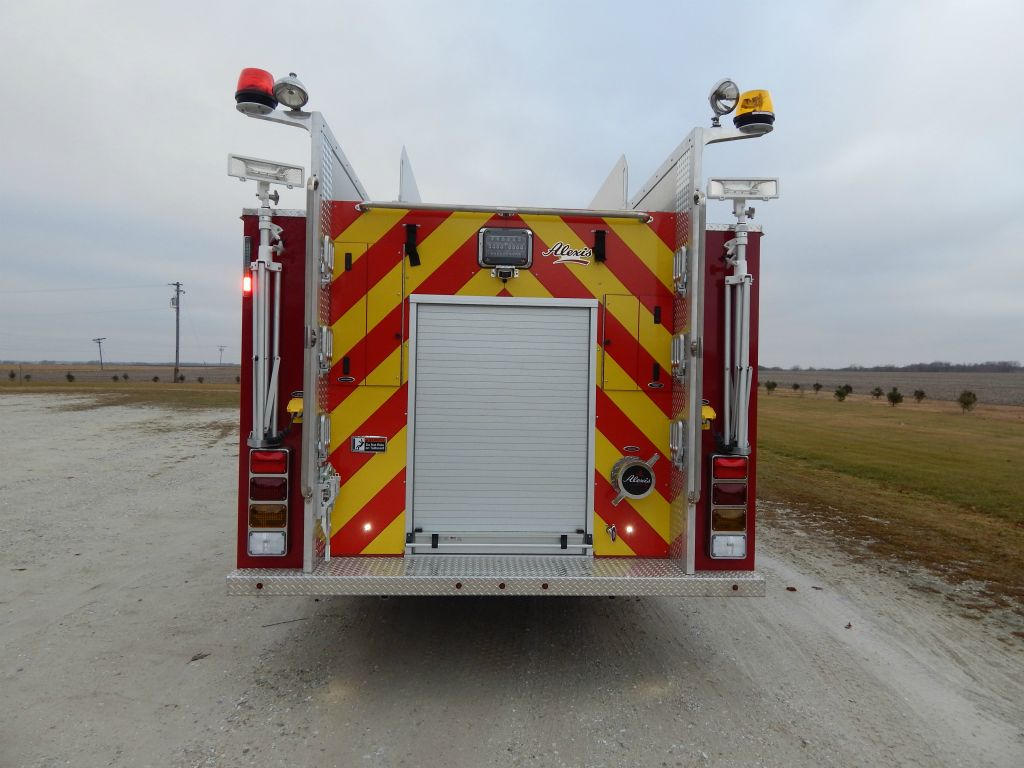

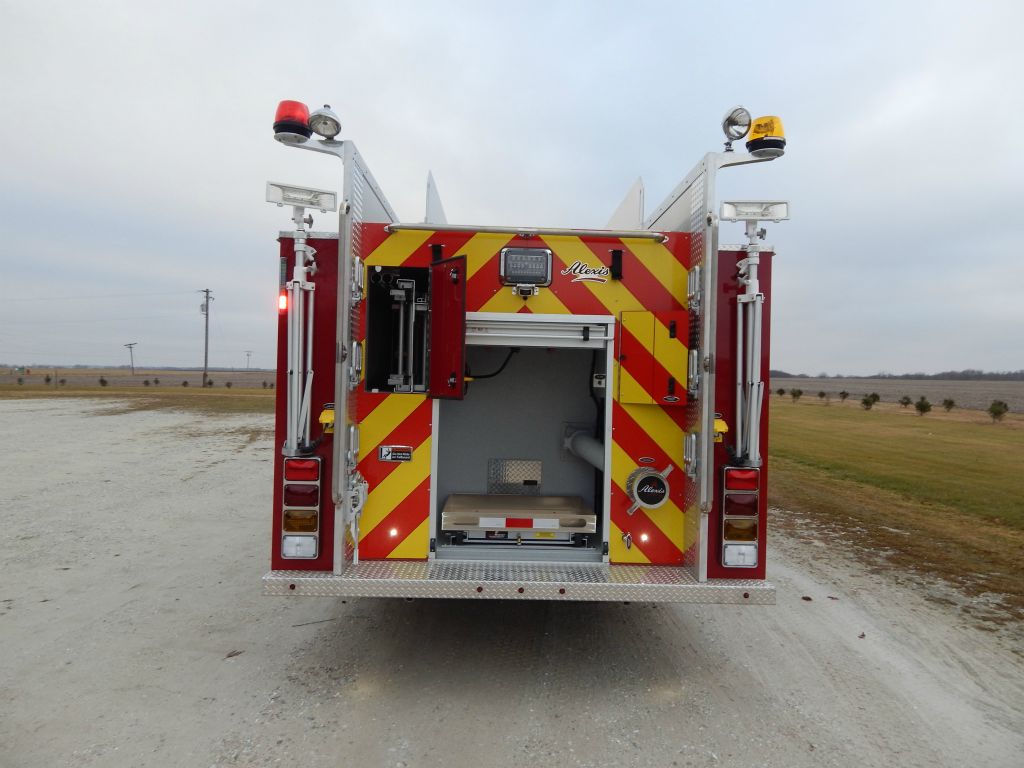

• Chevron pattern striping, rear
• 9' 10" Overall height
• 33' 7" Overall length
• 210" Wheelbase
• 156" Cab to Axle
• 18,000 FAWR
• 27,000 RAWR
• 45,000 GVWR
