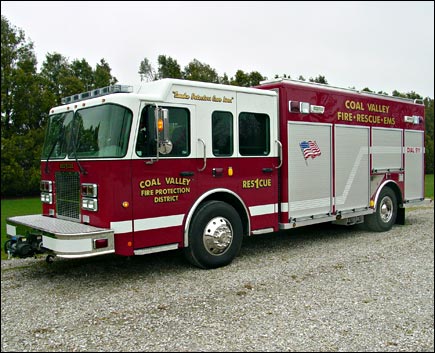

Coal Valley Fire Protection
District
Coal Valley, Illinois
Technical Specs
Spartan Advantage-Big
Easy Chassis
Cummins ISC 330, 330 HP Diesel Engine
Allison 3000 EVP Automatic Transmission
Heavy Duty 3/16" Aluminum Body
Top access ladder mounted on the rear with
center roof walk way
Four (4) storage compartments located on the
roof, two each side
One (1) air bottle compartment with a 2 bottle
capacity will be located each side
Permanently mounted bottle rack holds up to
ten bottles in the right rear compartment
Roll up awning on the right side
Back board storage rack in transverse compartment
Rom roll up doors
Kussmaul Pump-Plus 1200 air compressor/automatic
battery charger
Kussmaul 120-volt super auto eject shoreline
Hannay 120-volt electric cord reel
Hannay air hose reel in the right rear compartment
Ramsey QM 8000, 8000 pound winch with a Reese
hitch in front bumper
Onan 25YD, 25,000-Watt PTO driven Generator
Four (4) Extenda-Lite 500 watt recess mounted
flood lights two (2) each side
One (1) Extenda-lite 500 watt recess mounted
flood light rear
Four (4) large Whelen scene lights two (2)
each side
Two (2) large Whelen scene lights rear
Night Scan Powerlite light tower with six (6)
1500 watt halogen lights
Whelen warning light package
10' 3" Overall height
32' 6" Overall length
200" Wheelbase
146" Cab to Axle
18,000 FAWR
24,000 RAWR
42,000 GVWR
|
