CHILLICOTHE COMMUNITY FIRE DEPARTMENT
CHILLICOTHE, ILLINOIS
Technical Specs
• Freightliner M2 112, 2-Door Tandem Chassis
• Cummins ISL, 450-HP Diesel Engine
• Allison 3000 EVS Automatic Transmission
• Heavy Duty 3/16" Aluminum Body
• ROM Roll Up Doors
• 3500-Gallon Elliptical Poly Tank with stainless steel jacket
• One (1) 2 ½" and one (1) 4" Fireman's Friend Tank fills, rear
• One (1) Newton 10" square manual swivel dump with 36" extension
• Waterous CLVK, 500-GPM PTO Pump
• Under Tank left side pump operator's panel
• Two (2) 2 ½" Discharges, one (1) each side
• Two (2) Low level strainer storage compartments, one (1) each side wheel well
• Suction Hose storage compartment with rear access, left side
• Transfer Tube storage compartment, left side

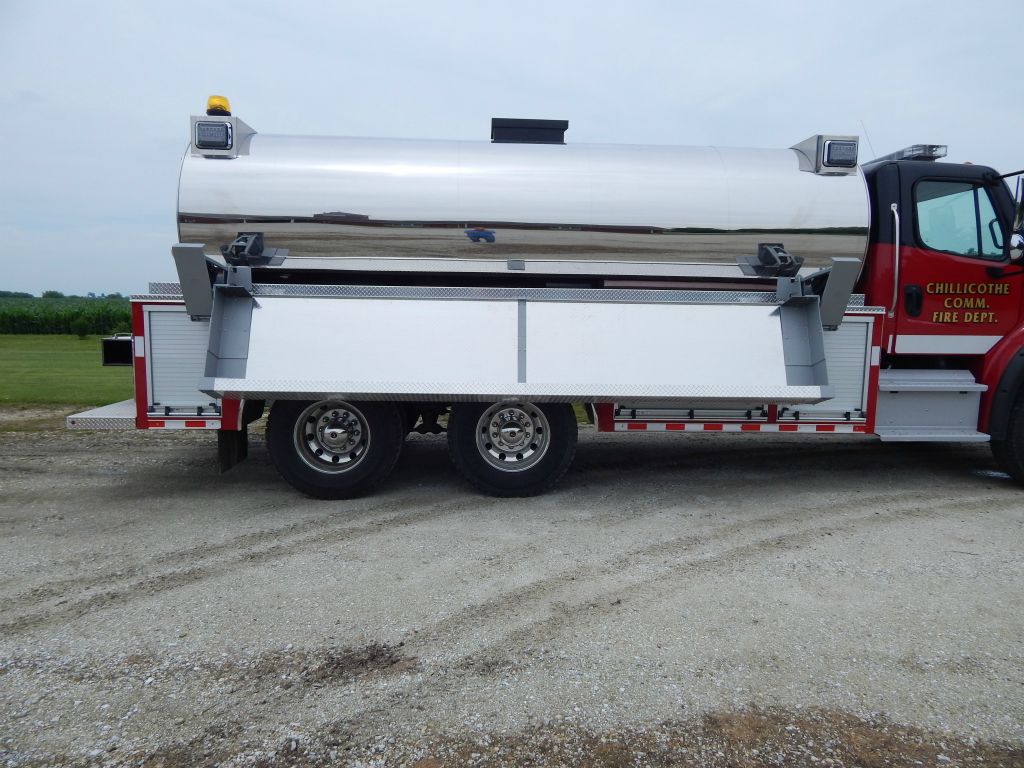

• Ziamatic Hydraulic hinged Folding Tank Bracket for 3500-gallon tank, right side
• Progressive Dynamics on-board battery charger with Viair compressor
• Kussmaul Super Auto Eject 120-volt shoreline
• Floor mounted console for emergency switches with map/binder storage
• Audiovox Back-Up camera with 7" color monitor
• Federal E-Q2B Electronic Siren with 200-watt speaker
• Six (6) Whelen LED Scene lights, Two (2) each side and two (2) rear
• Two (2) Air Horns, one (1) each side of chassis hood
• Whelen LED Warning Light Package
• Chevron pattern striping, rear
• 10' 5" Overall height
• 29' 11" Overall length
• 213" Wheelbase
• 147.45" Cab to Axle
• 20,000 FAWR
• 46,000 RAWR
• 66,000 GVWR
