BLUE LAKE TOWNSHIP FIRE DEPARTMENT
TWIN LAKE, MICHIGAN
Technical Specs

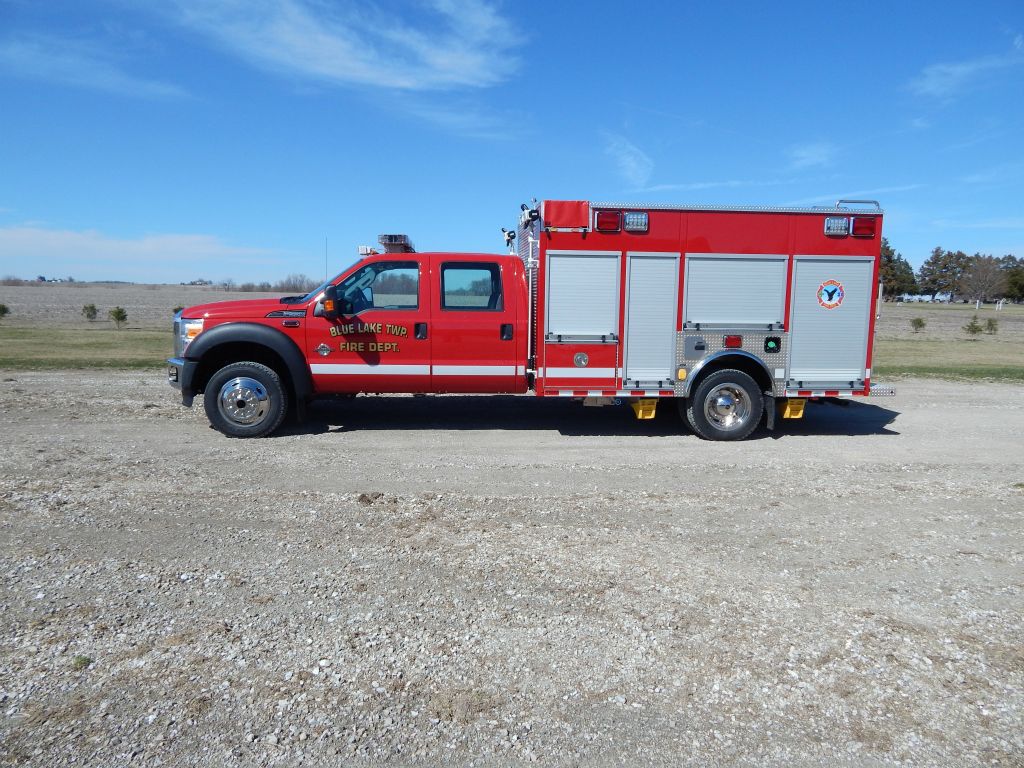

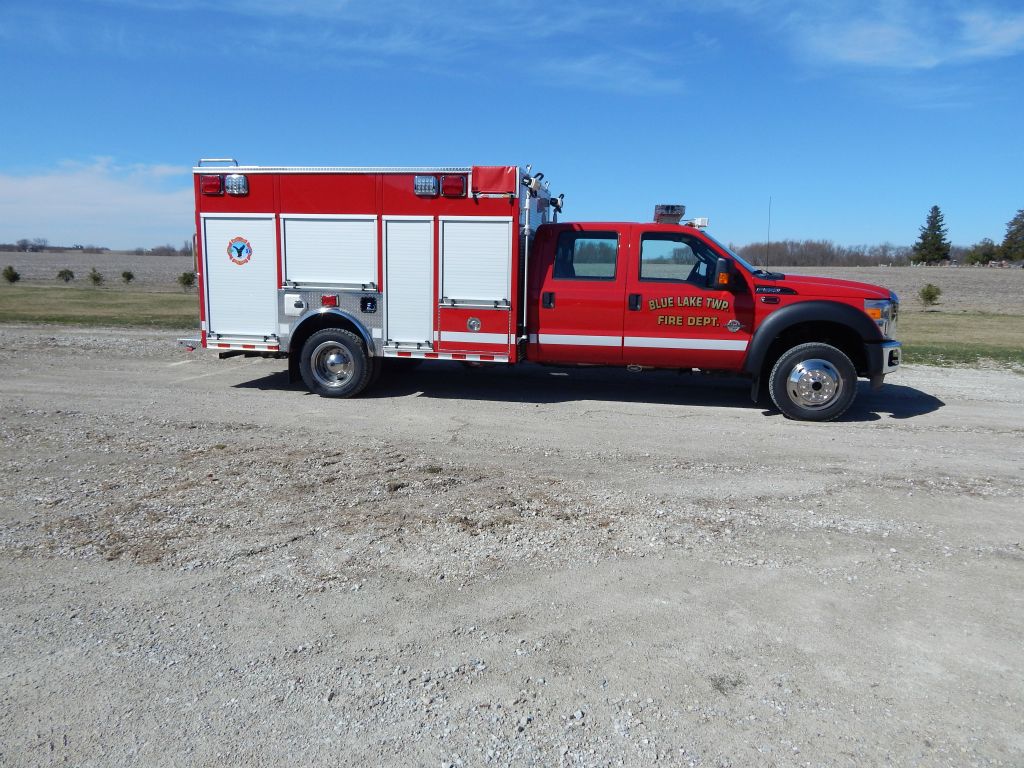

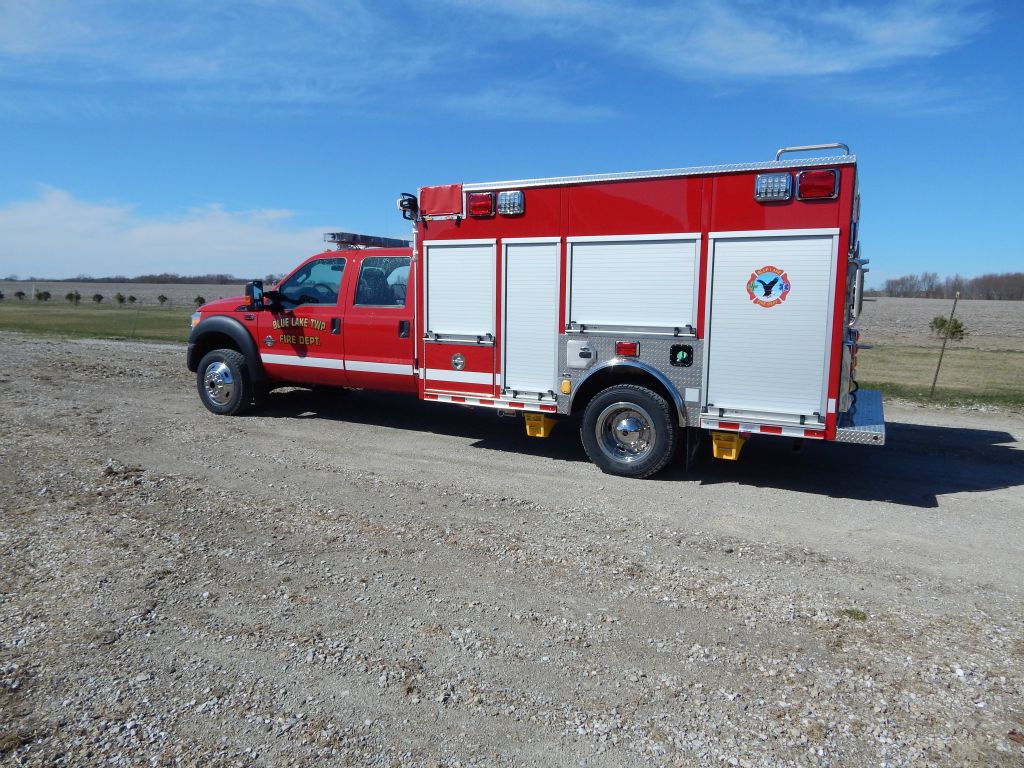

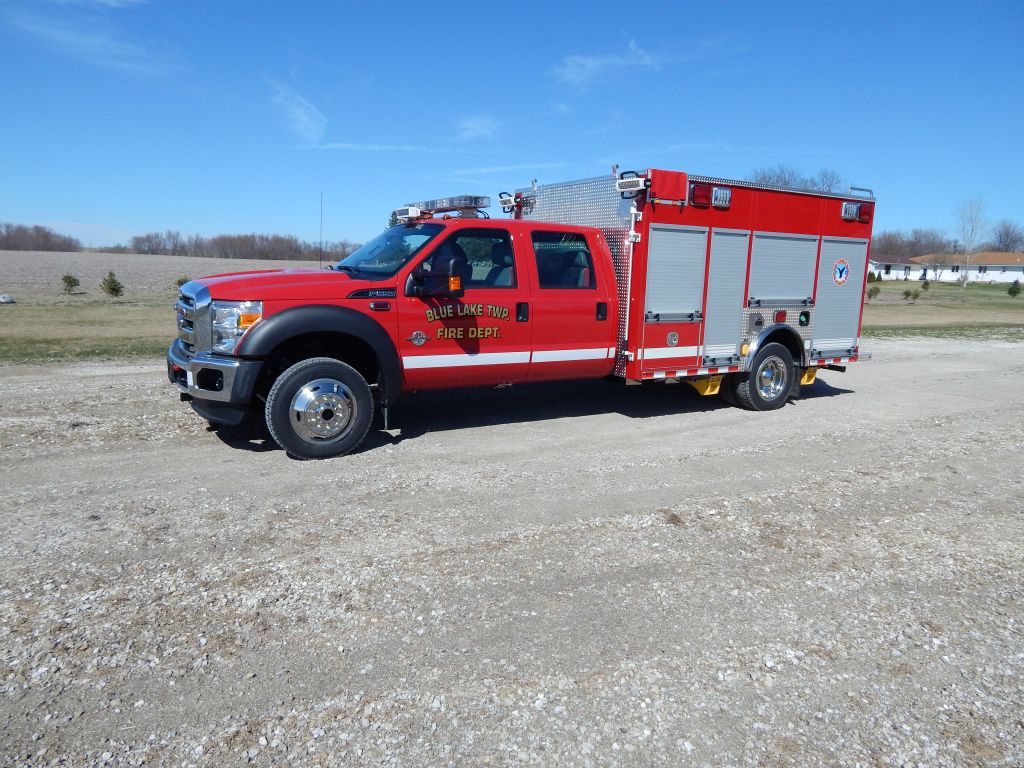

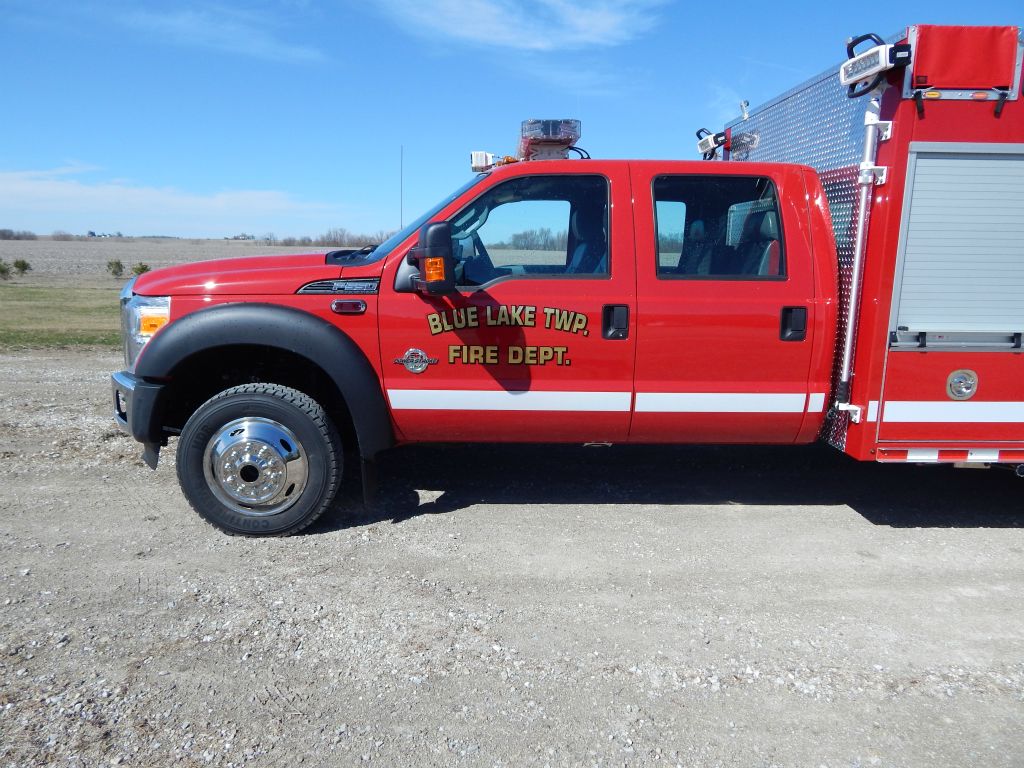

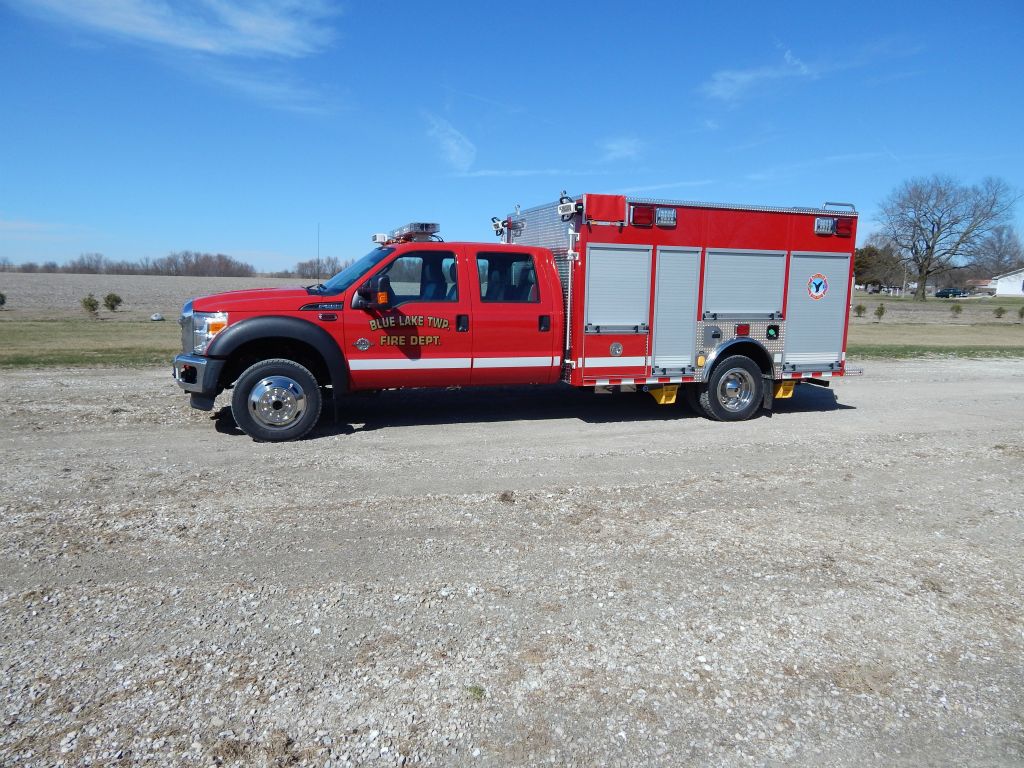

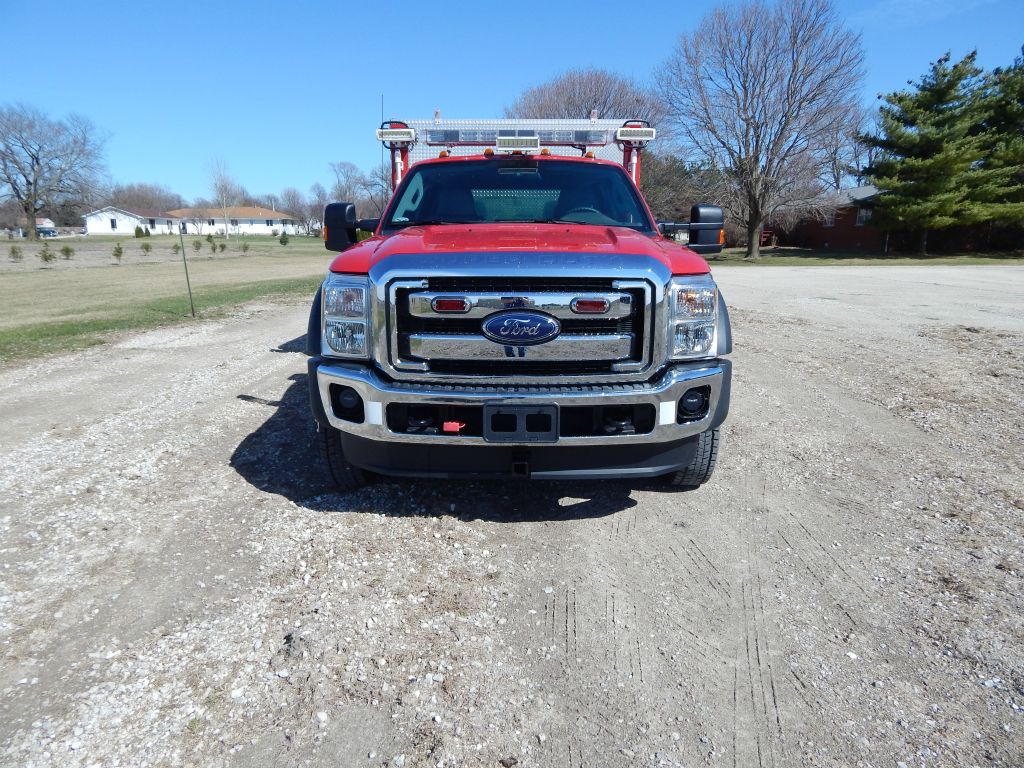

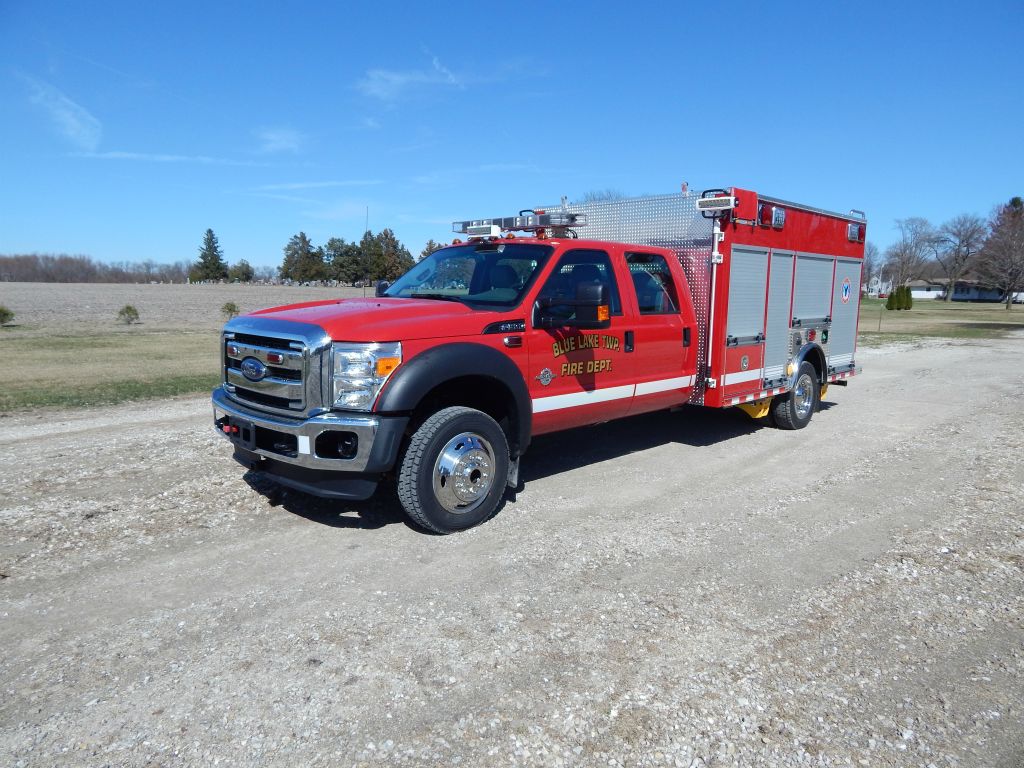

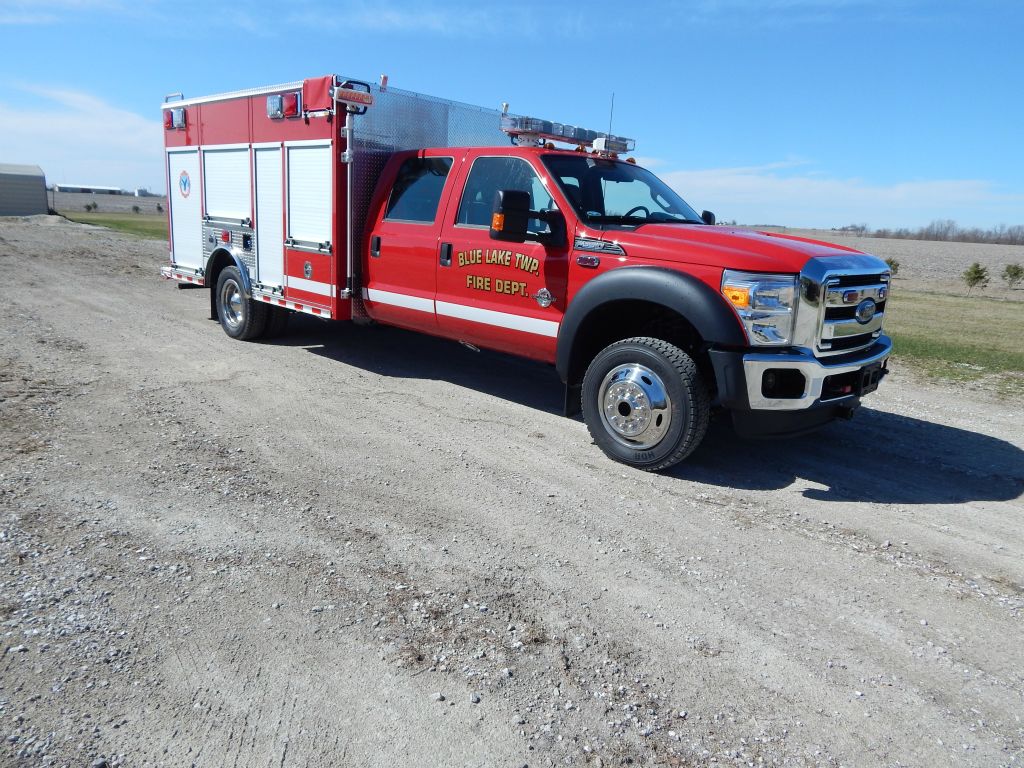

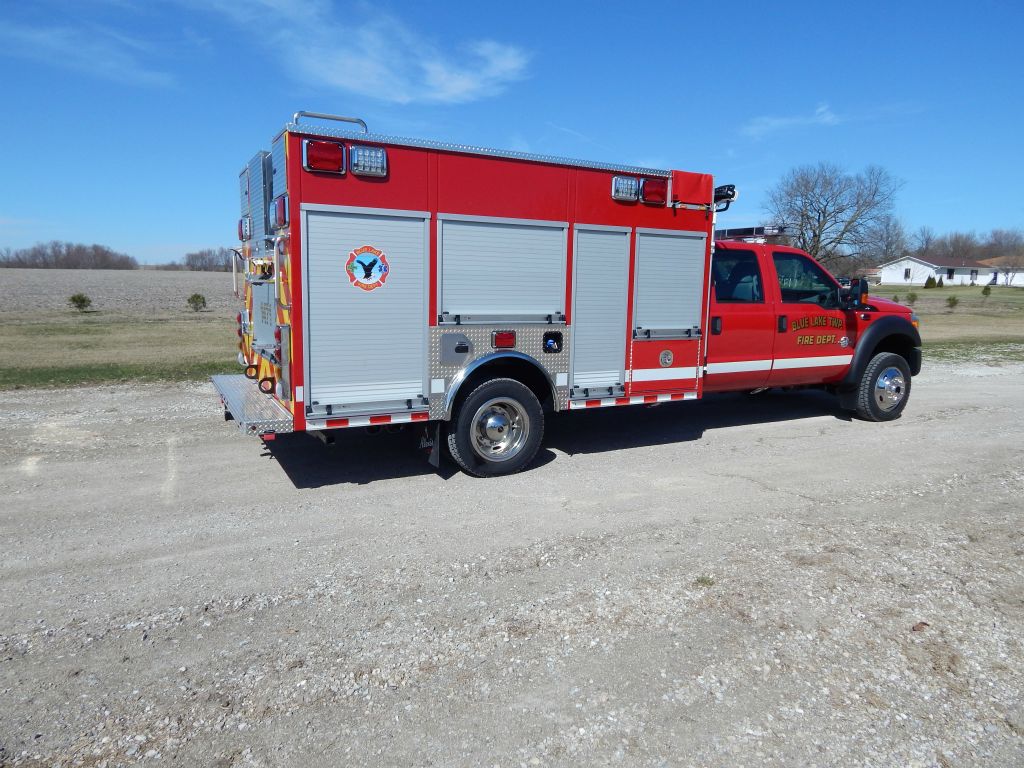

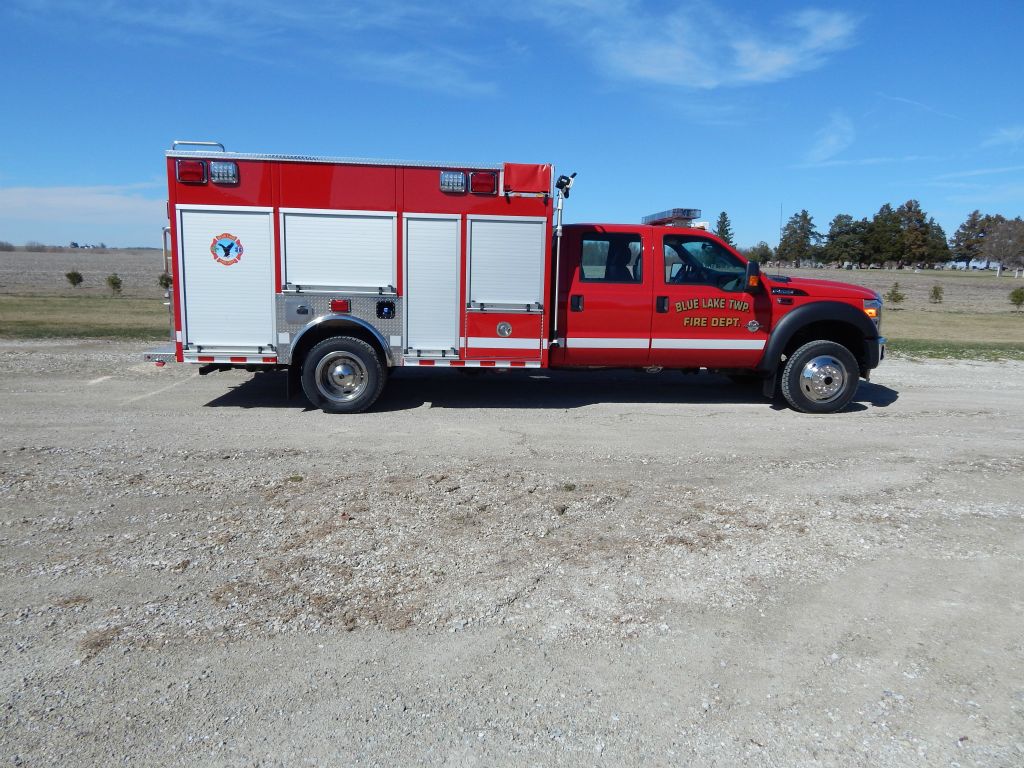

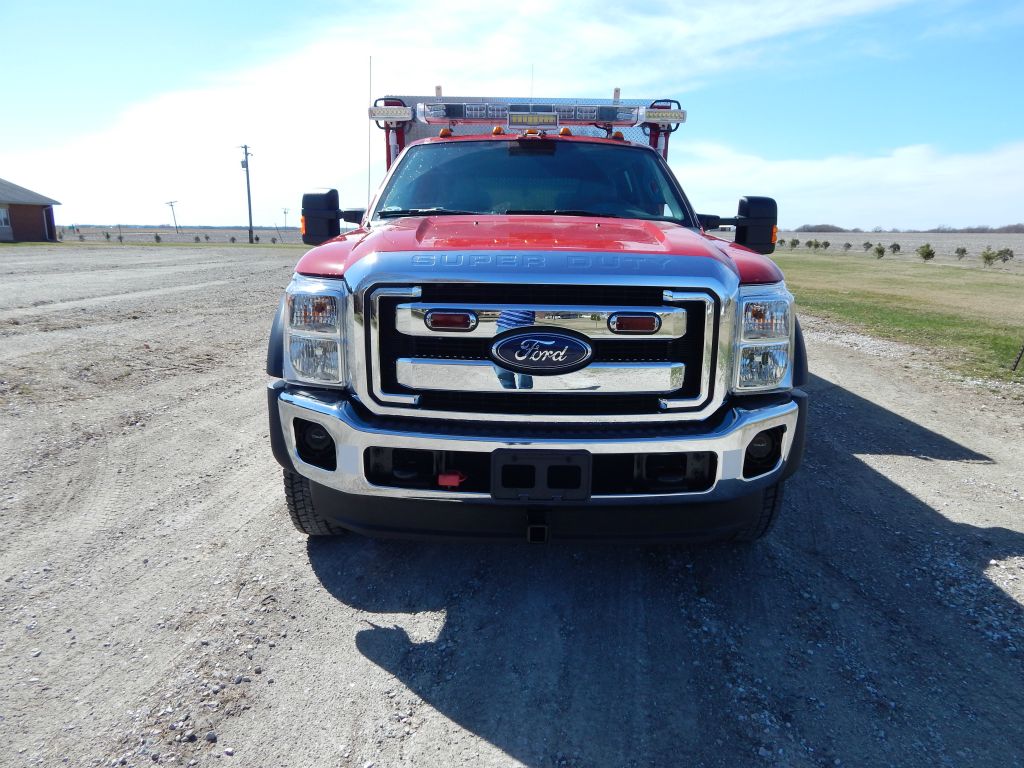

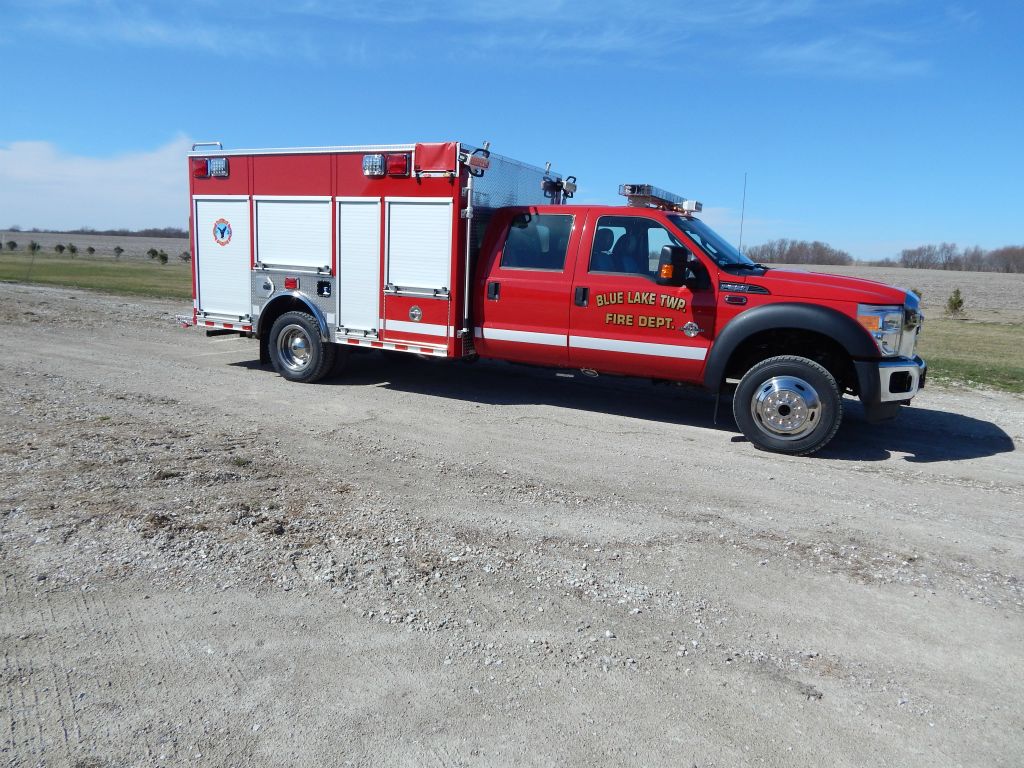

• Ford F-550XL 4-Door 4x4 DRW Chassis
• Powerstroke 6.7L V8, 300-HP Diesel Engine
• TorqShift 6-speed Automatic Transmission

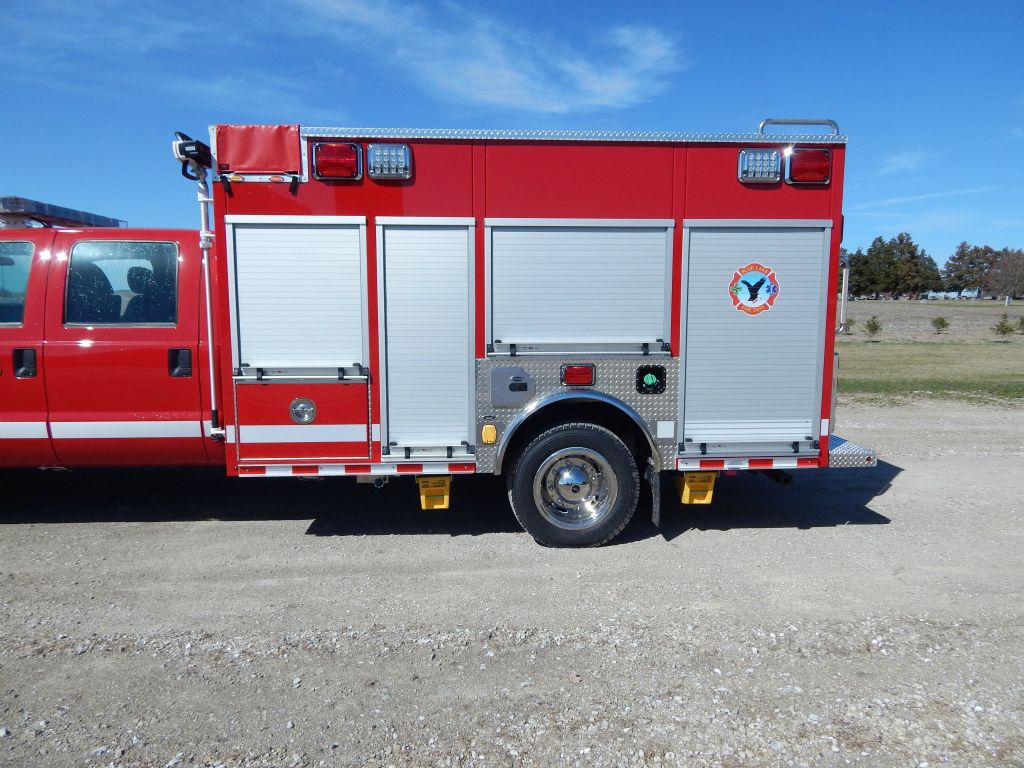

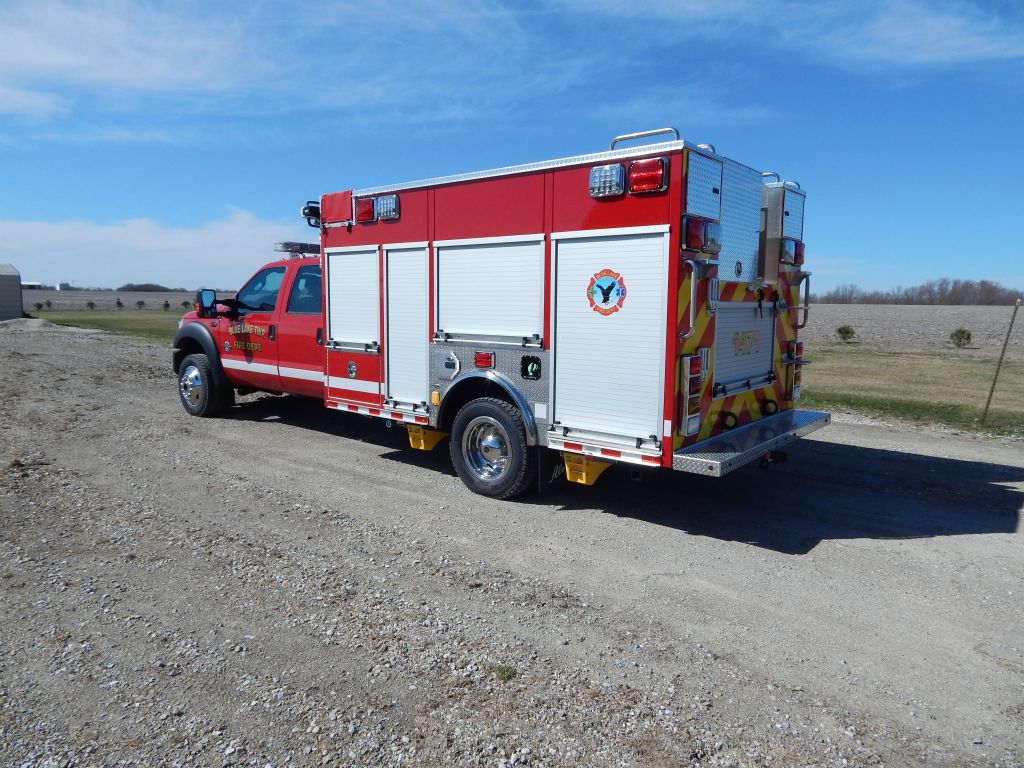

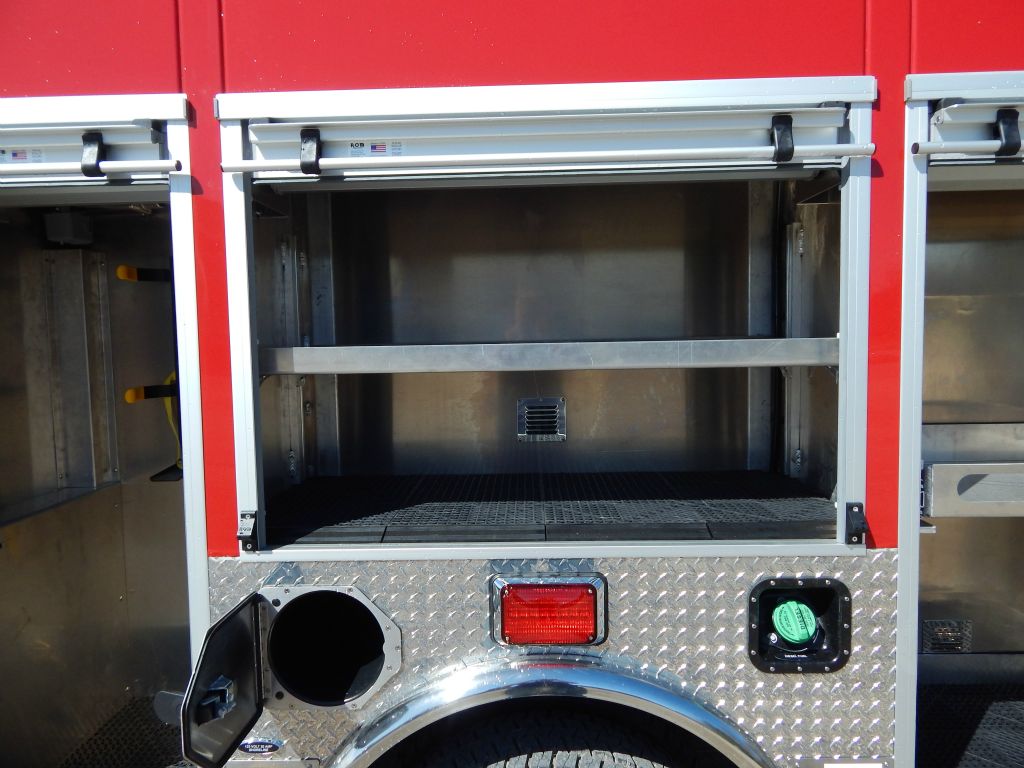

• Heavy Duty 3/16" Aluminum Body with ROM Roll Up Doors
• 290-Gallon Poly Tank with 10-gallon foam tank

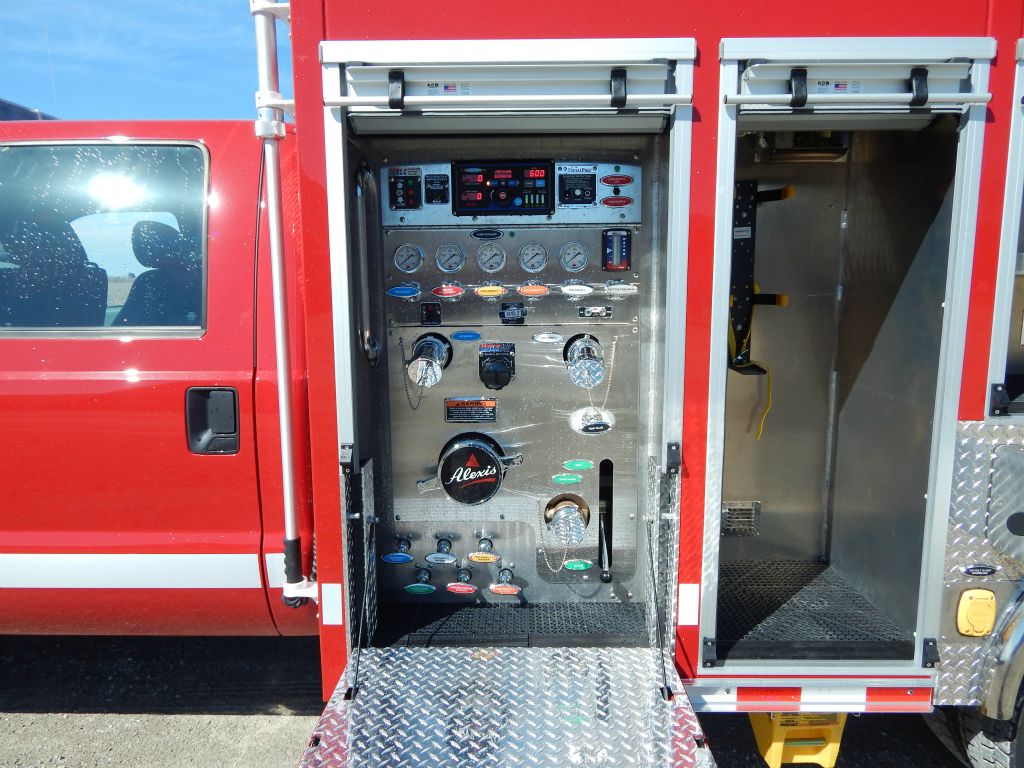

• Hale MG 1000-GPM Pump

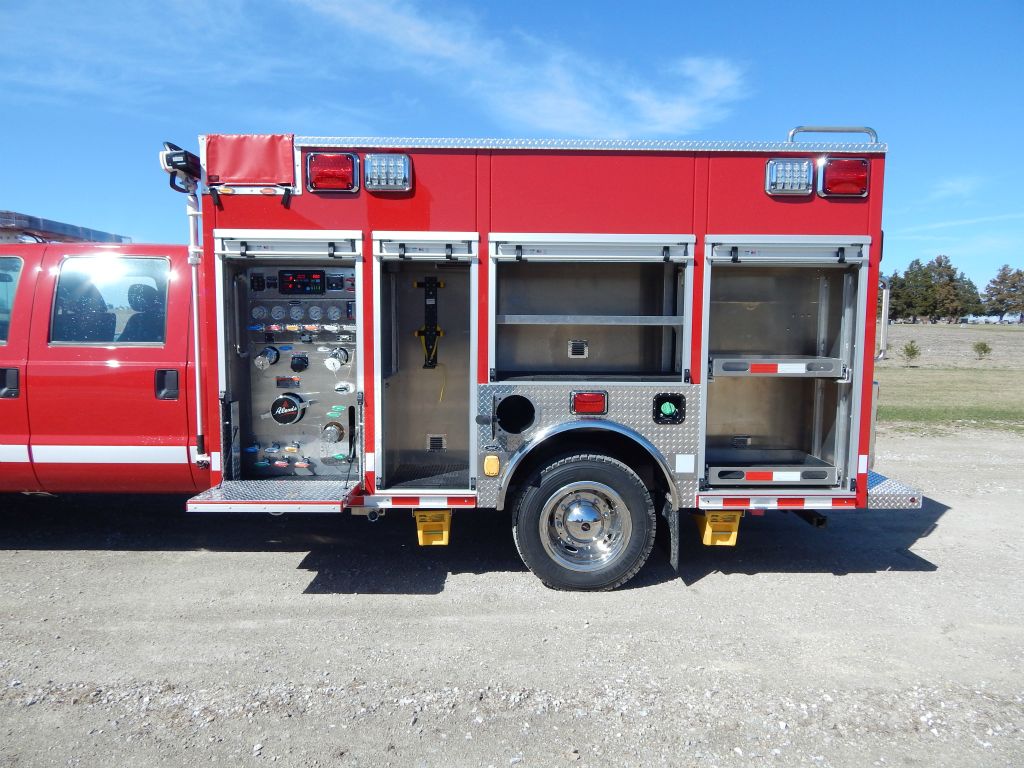

• Two (2) 2 ½" Discharges, left side
• One (1) 2 ½" Gated Suction, left side
• One (1) 2 ½" Preconnect, front of hosebed
• One (1) 2 ½" and one (1) 1 ½" Mattydale Preconnect, across top of body
• Foam Pro 1600 single tank foam system
• Front Reese type Winch receiver with electrical connections
• Rear Reese type trailer hitch/Winch receiver with electrical connections
• Two (2) Winch points, one (1) each side behind rear wheels
• Two (2) Air bottle compartments in the wheel wells, one (1) each side
• Suction hose/Pike pole storage, left side with rear access
• Ladder/Backboard storage, right side with rear access

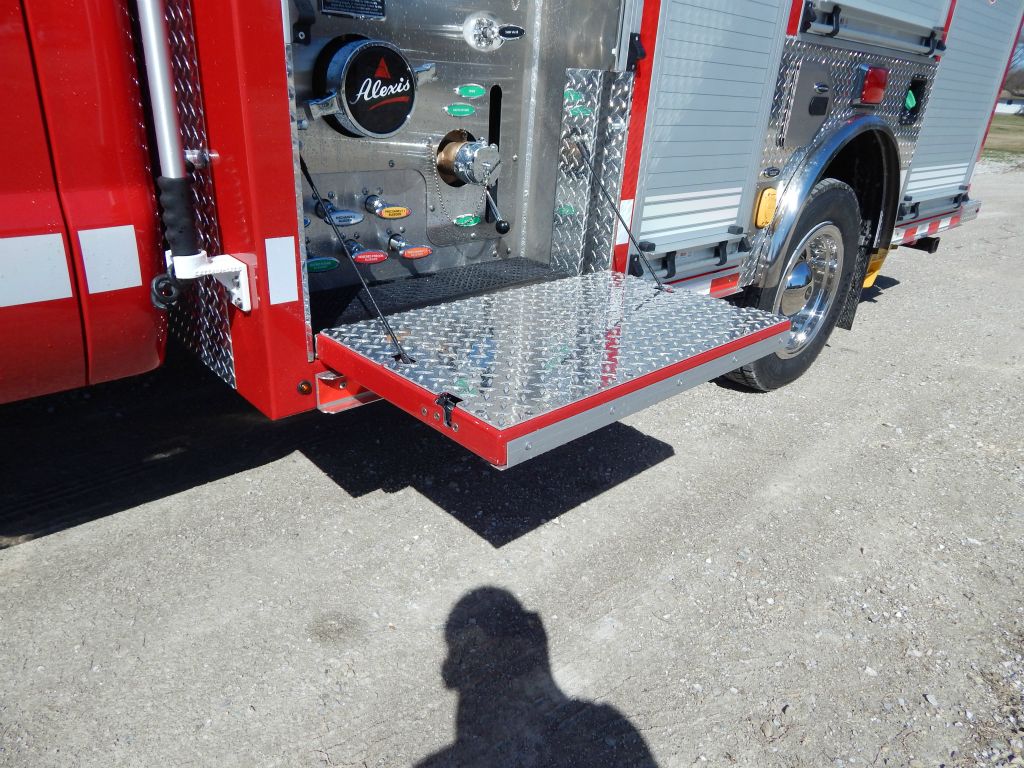

• Custom drop down door/steps, one (1) each side
• Hose bed storage compartment, left side
• Two (2) upper compartments, body roof
• Progressive Dynamics on-board Battery charger with Viair air compressor
• Kussmaul Super Auto Eject 120-volt shoreline

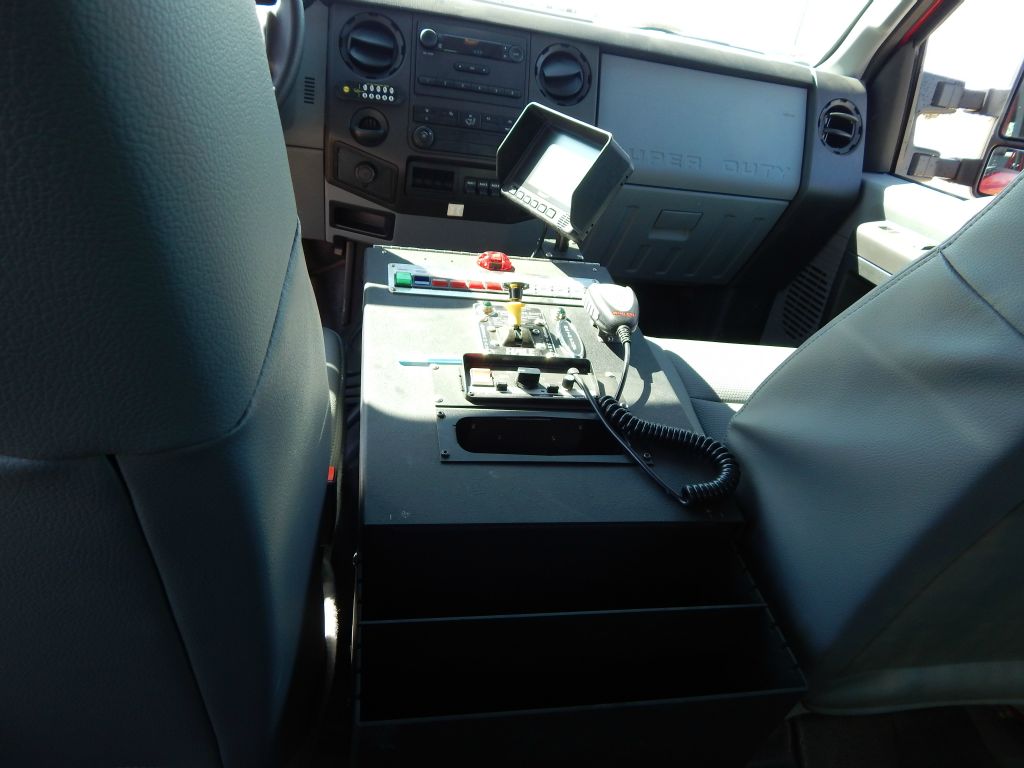

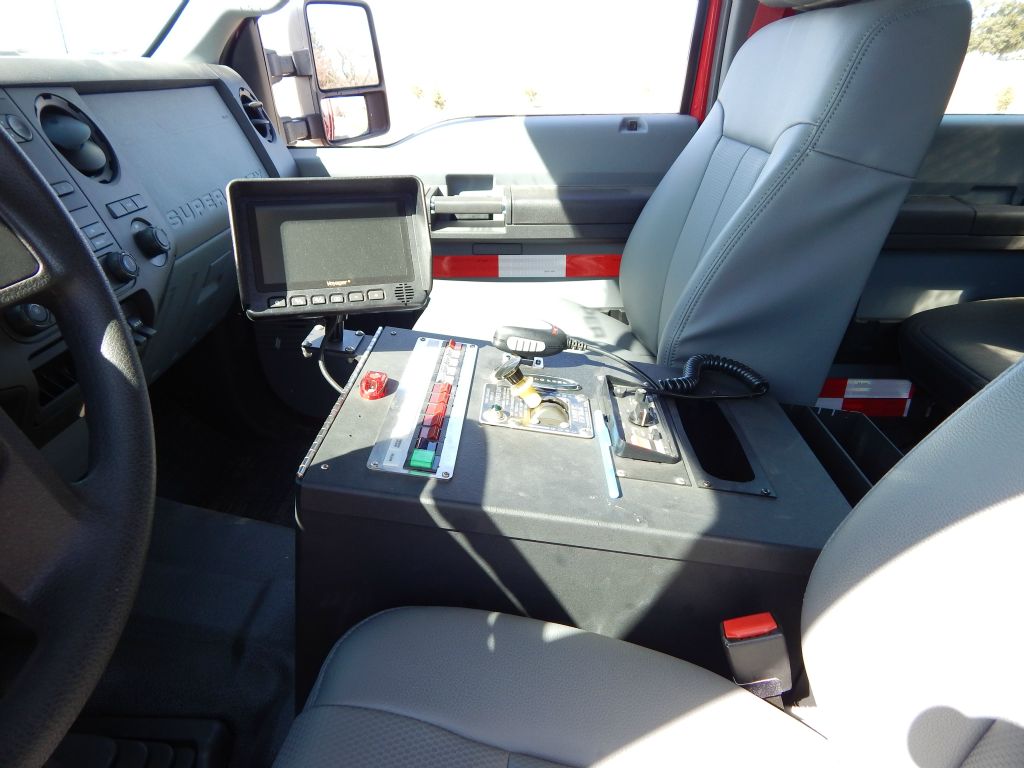

• Floor mounted console for emergency switches with map/binder storage

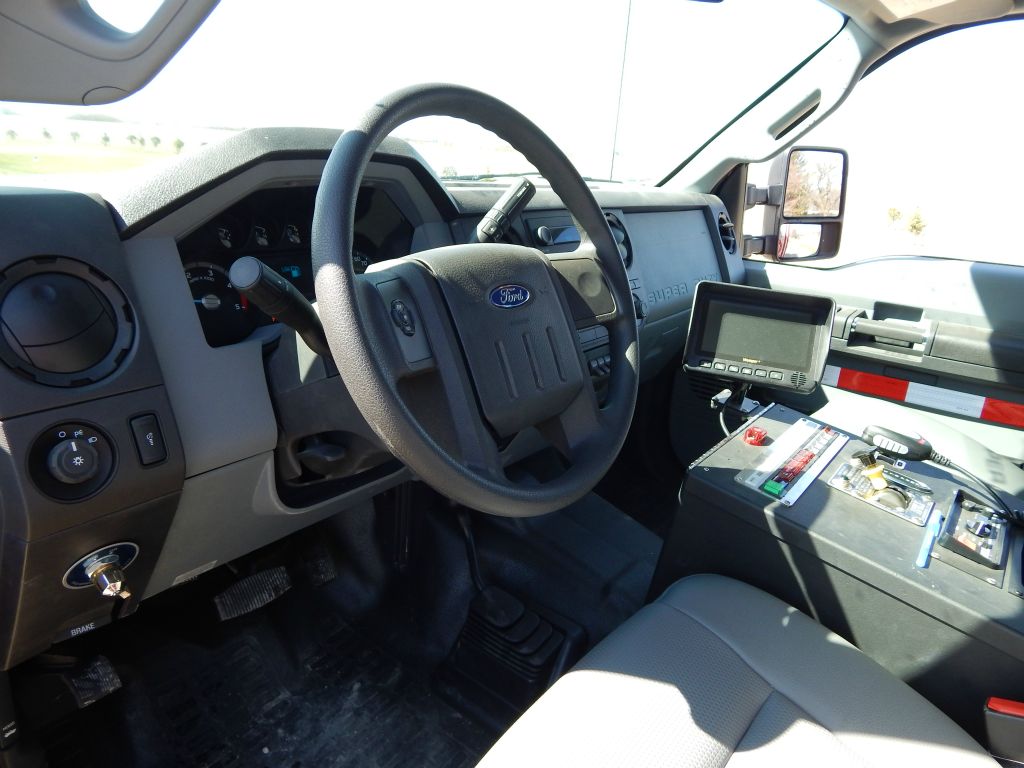

• Audiovox Back-Up Camera with 7" Color monitor
• Whelen Electronic Siren with two (2) 100-watt Whelen speakers
• FRC Evolution LED Brow light, roof mounted
• Two (2) Extenda-Lite 12-volt 220-watt LED telescopic lights, one (1) each side
• Six (6) Weldon 12-volt LED Scene lights, two (2) each side and two (2) rear
• Whelen LED Warning Light Package

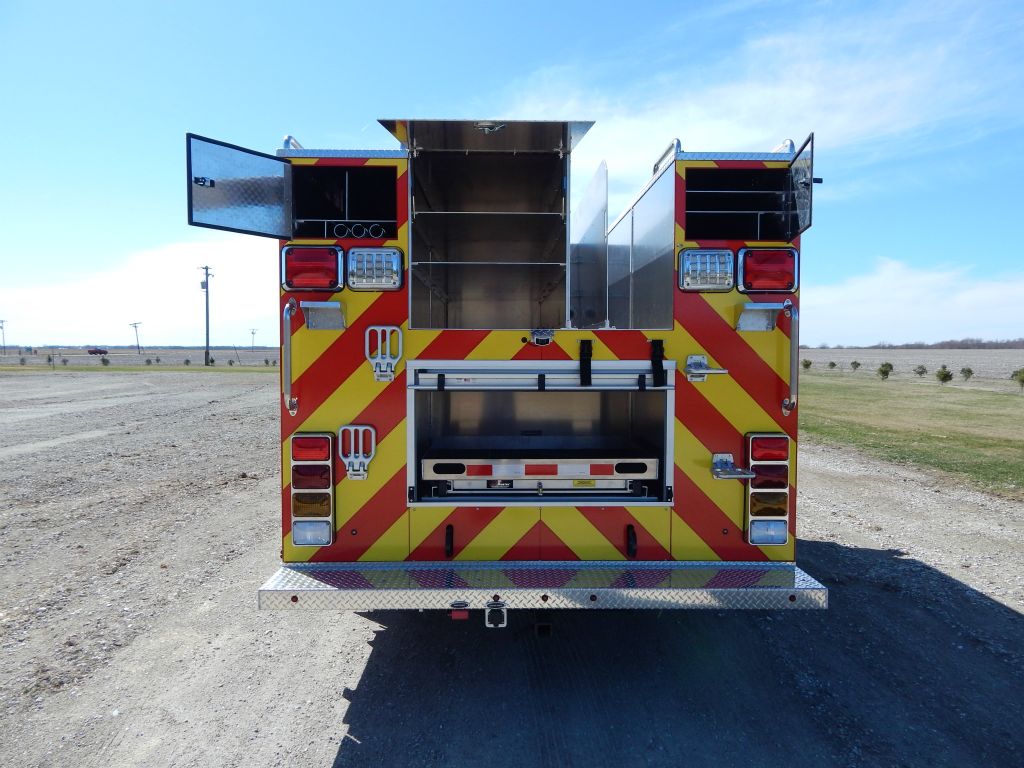

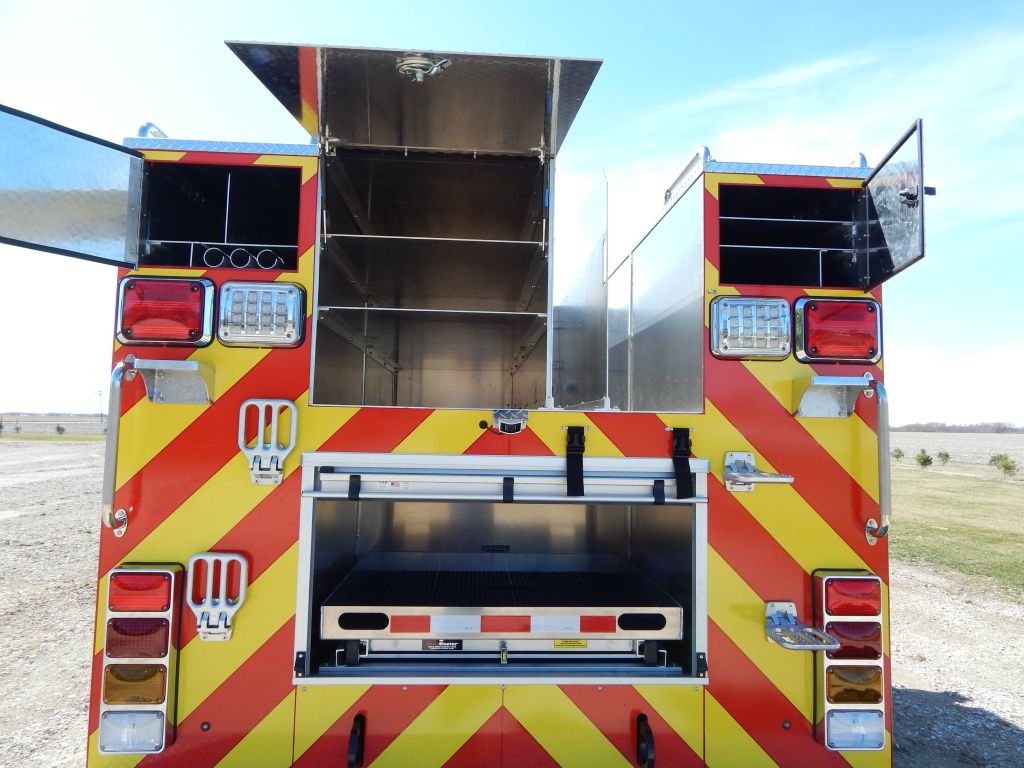

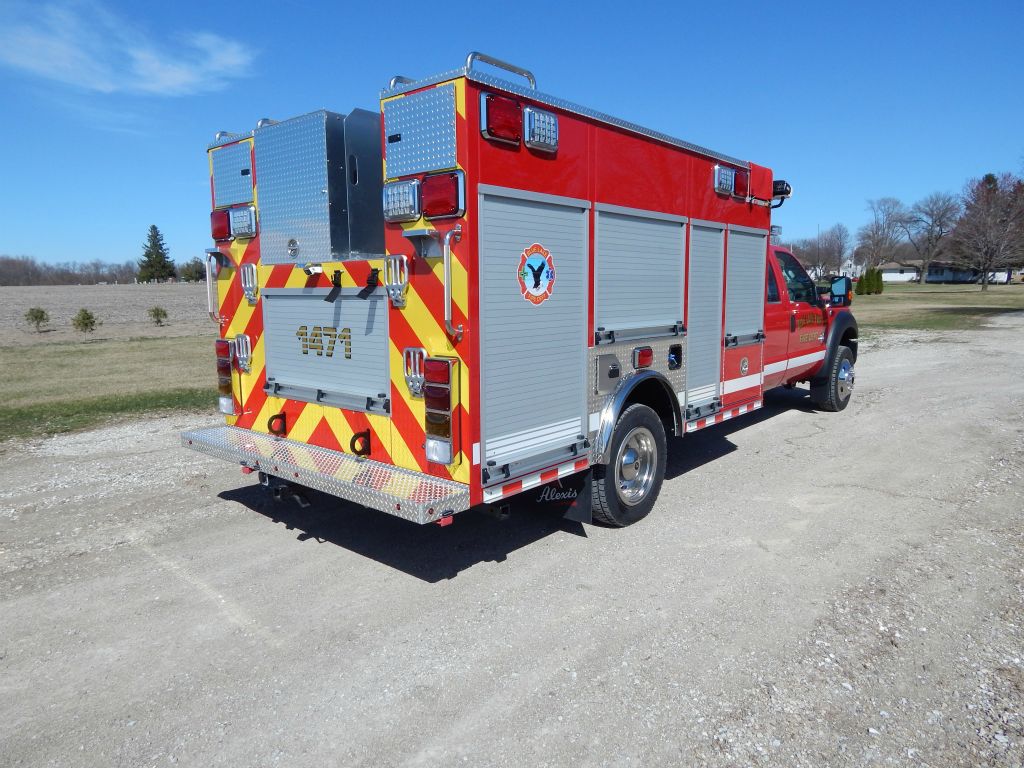

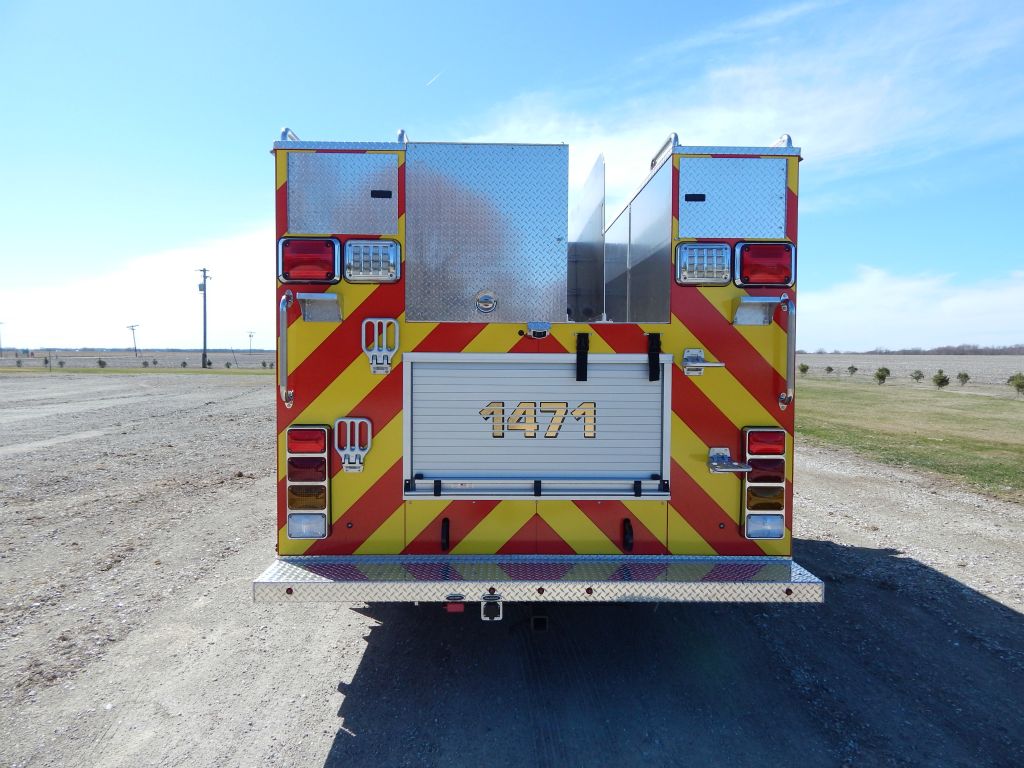

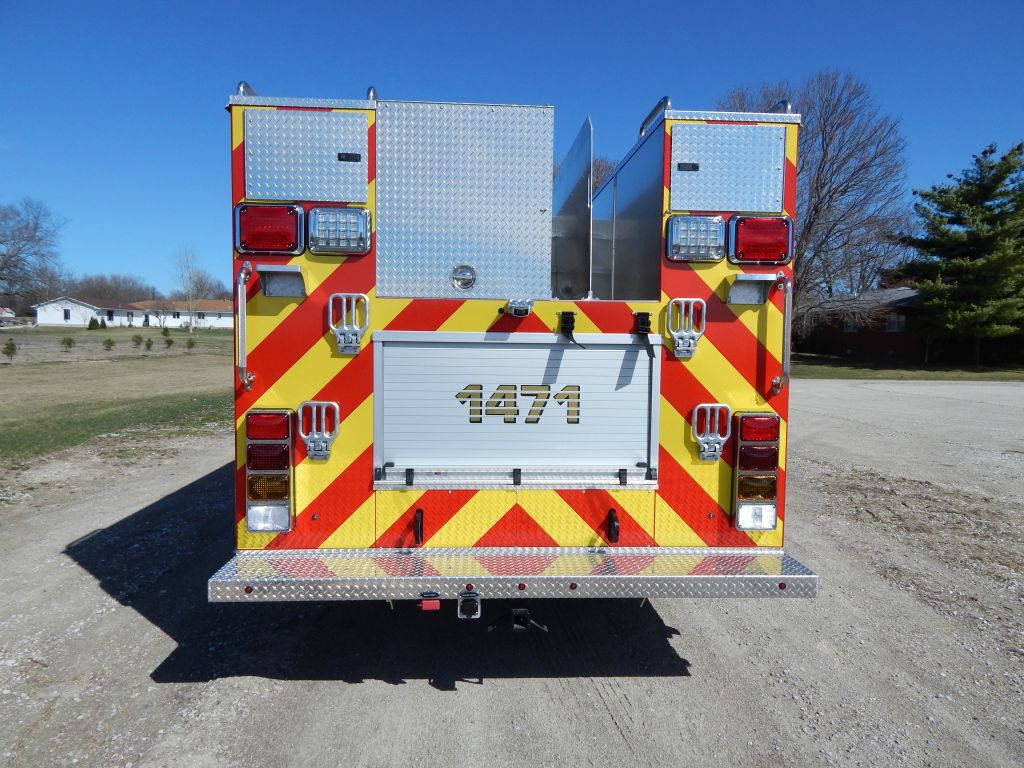

• Chevron pattern striping, rear
• 8' 7" Overall height
• 26' Overall length
• 200" Wheelbase
• 84" Cab to Axle
• 7,000 FAWR
• 14,706 RAWR
• 19,500 GVWR
